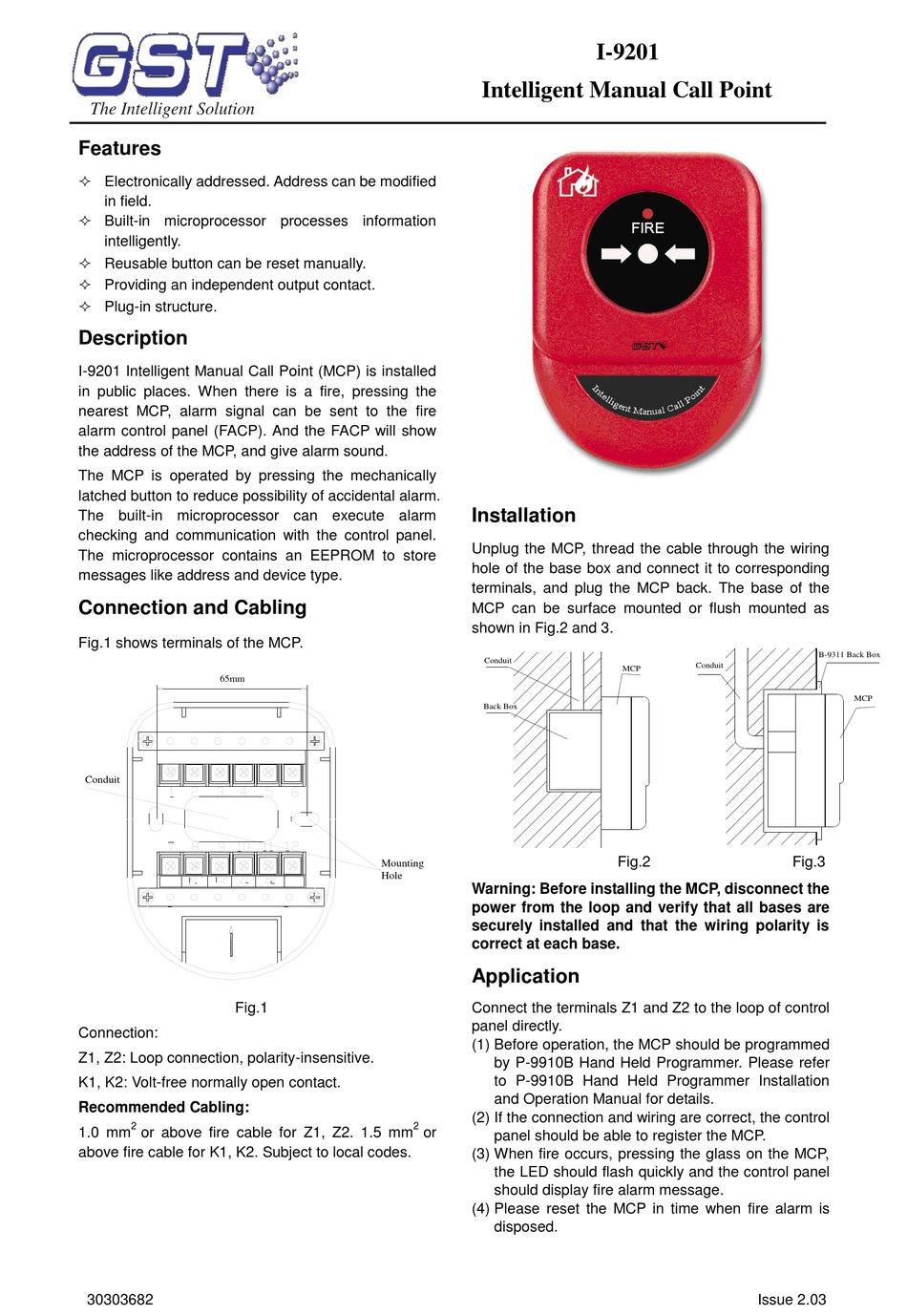

The Intelligent Solution
Features
Electronically addressed. Address can be modified
in field.
Built-in microprocessor processes information
intelligently.
Reusable button can be reset manually.
Providing an independent output contact.
Plug-in structure.
Description
I-9201 Intelligent Manual Call Point (MCP) is installed
in public places. When there is a fire, pressing the
nearest MCP, alarm signal can be sent to the fire
alarm control panel (FACP). And the FACP will show
the address of the MCP, and give alarm sound.
The MCP is operated by pressing the mechanically
latched button to reduce possibility of accidental alarm.
The built-in microprocessor can execute alarm
checking and communication with the control panel.
The microprocessor contains an EEPROM to store
messages like address and device type.
Connection and Cabling
Fig.1 shows terminals of the MCP.
65mm
Conduit
Fig.1
Connection:
Z1, Z2: Loop connection, polarity-insensitive.
K1, K2: Volt-free normally open contact.
Recommended Cabling:
2
1.0 mm
or above fire cable for Z1, Z2. 1.5 mm
above fire cable for K1, K2. Subject to local codes.
30303682
Intelligent Manual Call Point
Installation
Unplug the MCP, thread the cable through the wiring
hole of the base box and connect it to corresponding
terminals, and plug the MCP back. The base of the
MCP can be surface mounted or flush mounted as
shown in Fig.2 and 3.
Conduit
Back Box
Mounting
Hole
Warning: Before installing the MCP, disconnect the
power from the loop and verify that all bases are
securely installed and that the wiring polarity is
correct at each base.
Application
Connect the terminals Z1 and Z2 to the loop of control
panel directly.
(1) Before operation, the MCP should be programmed
by P-9910B Hand Held Programmer. Please refer
to P-9910B Hand Held Programmer Installation
and Operation Manual for details.
(2) If the connection and wiring are correct, the control
2
or
panel should be able to register the MCP.
(3) When fire occurs, pressing the glass on the MCP,
the LED should flash quickly and the control panel
should display fire alarm message.
(4) Please reset the MCP in time when fire alarm is
disposed.
I-9201
Conduit
MCP
Fig.2
Issue 2.03
B-9311 Back Box
MCP
Fig.3
