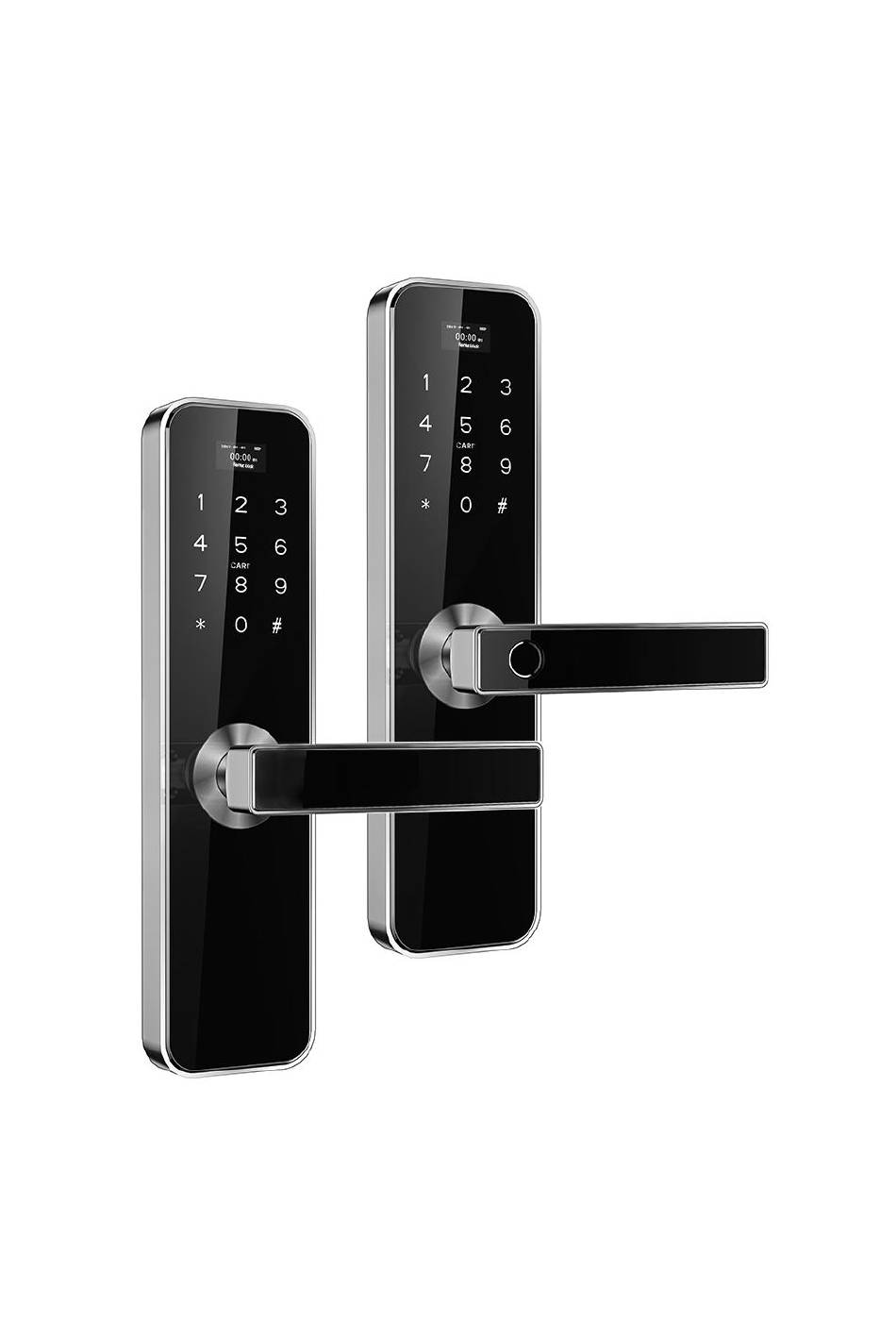

Smart Lock
User Manual
H30-TYZ
Text
Special Attention:
1. Mechanical keys please keep outdoor, just in case keys lock in doors.
2. Please replace for the battery when low wattage alarm.
3.
Reading this manual carefully before installation, and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Seamless Smart Lock and is the answer not in the manual?

Questions and answers

Summary of Contents for Starke Seamless Smart Lock

  • Page 1 Smart Lock User Manual H30-TYZ Text Special Attention: 1. Mechanical keys please keep outdoor, just in case keys lock in doors. 2. Please replace for the battery when low wattage alarm. Reading this manual carefully before installation, and keep it for future reference.

  • Page 2: Packing List

    1. Introduction 1.1.Lock structure 1.2.Packing List Check the following drawing to check whether the package contains all the parts Name Name Front Pane Sliding Screws:16*5mm Back Panel Mortise Screws:10*5 (For Aluminum Door) Mortise:55*72 Mortise Screws:25*4mm (For Wooden Door) Card M5*20mm Screw for Door Thickness 35-50mm Mechanical Key M5*30mm Screw for...

  • Page 3: Specifications

    1.3.Specifications Aluminum door Suitable for Doors H30-TYZ The Universal Lock Wooden door Models Applicable Working Handle：Zinc Alloy Materials 6V/4x AA Batteries Panel：SS304 Voltage Door 35-65mm Lock Weight Thickness to Zigbee Fingerprint(option) Unlocking Password Fingerprint+Password+Card≤240 Data Card Capacity （Fingerprint≤100） Mechanical key Gateway(option) Silver Working...

  • Page 4: Installation

    2.Installation 2.1Turn the handle Notice: Adjust the handle according to the direction you open the door. For Front Panel: For Back Panel:...
  • Page 5 Installation Diagram(For 5572) 2.2. Step 1 Install Mortise Step 2 Install Sliding Screw Casing Keep arrow direction(shows image) always upward. Step 3 Connect Front and Back Step4 Install Back Panel Panels Step5 Install the Battery...
  • Page 6 3.Operation 3.1.Number Pad “ 2 ” : UP(↑) 1#：set 2#: configure the network 1.Net config “ 8 ” : DOWN(↓) 2.Net Remov “ * ” : Cancel, Return, 4#：Request remote lock picking Exit and Delete 5#：Get a temporary password “ # ” : Confirm and End 6#：Time Updating 8#：updated Passage mode ：...

  • Page 7: Setting Guide

    3.2.4.Setting Guide (F+P 235 Users remain) Touch the keyboard to wake up the system —1# — New Adminis- trator Password or Fingerprint. +P 4 Users remain) Code 1. Adding Admin Fingerprint Password Code 2. Adding Users Card 3. Statistics Admin Fingerprint Normal Password...
  • Page 8 4. Add tuya smart app(optional) 4.1.Download search [ TuyaSmart ] in various app stores or scan the QR code above to download 4.2.Register 1.Click “Sign Up”and read the Privacy Policy after it pops up. Click “Agree” and enter the registeration page. 2.You can use email or mobile number as your account to register.
  • Page 9 4.4.Using the APP 4.4.1. Add Lock 1. Tap Add Device on the Home page or + in the upper right corner of the page to go to the Add Device page. 2.Click the zigbee door lock in Security&Sensors ， Choose add your zigbee gateway type，Added successfully 3.After the gateway is added successfully, enter the gateway page, click on "Add sub device",then select more device type.Find the door lock option...
  • Page 10 4.4.2. Remote unlock 1. Enter the setting interface for remote door opening management, you can choose to open the door remotely with a password, or open the door without secret 2. On the main interface, click the remote open button to open the door without secret and confirm directly 3.

  • Page 11: Member Management

    4.4.5.Member management 1.Select a member to edit，Can add fingerprint, password, card 2.Enter the information number entered on the door lock and bind it to the unlock ID of a certain user. When opening the door in this way, the door opening record directly displays the ID of the member 4.4.6.Set up 1.You can switch the language and volume of the door lock directly on the main page of the...
  • Page 12 5. FAQ 1) How to read operation records? In the Records of the main interface. . 2) Why can’t I unlock it after open You need to perform an unlock verification in the passage mode any method, than the passage mode will take effect.
  • Page 13 Guarantee Customer Name： Customer Calls ： Purchase Date ： Product Name ： Product Model ： Note: 1) Please keep this card so that you can use it when you need warranty service. 2) We provide you with a one-year warranty from the date of purchase. 3) This warranty service is valid for customers in any country in the world.
