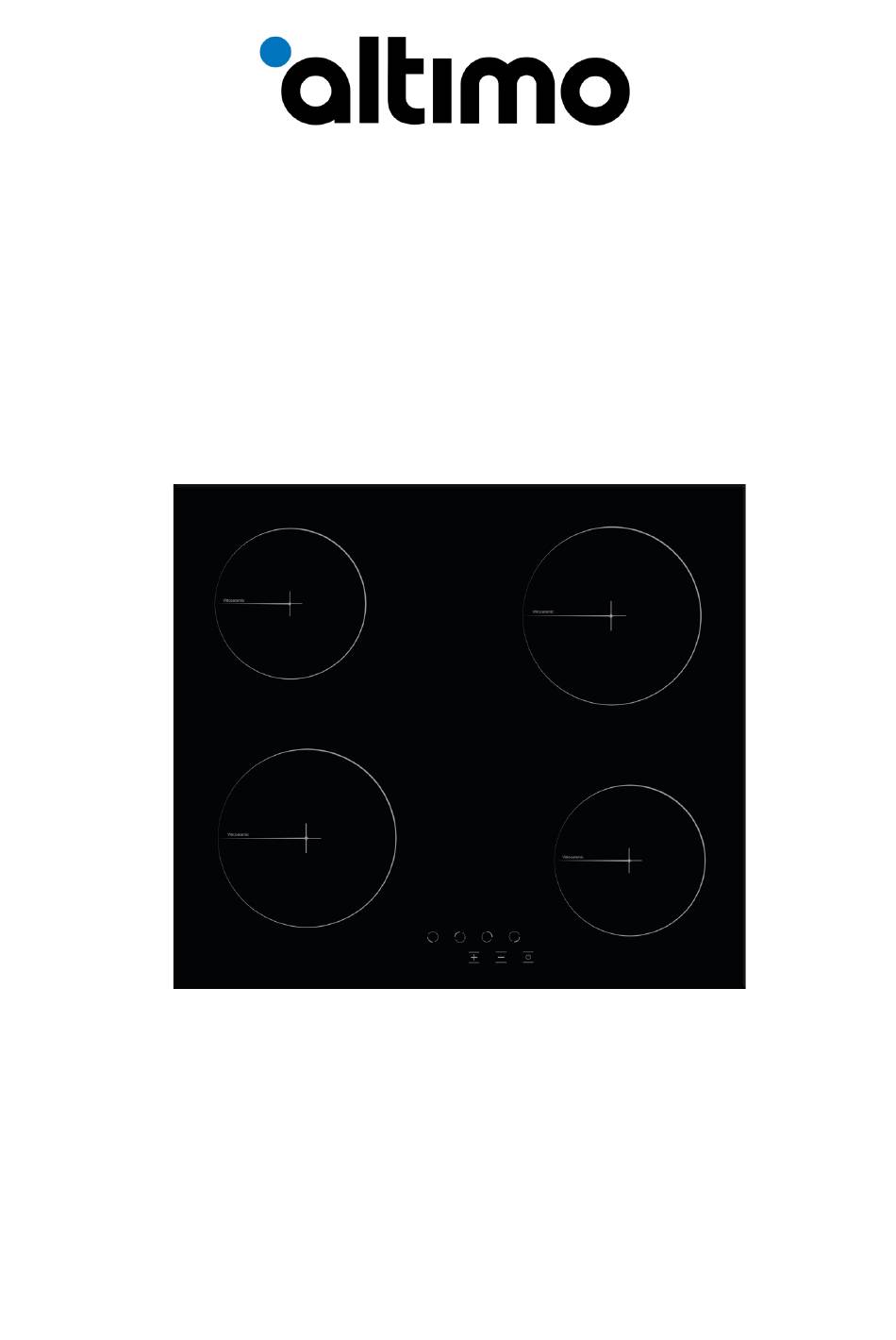

- Page 1 Instruction Manual Ceramic Hob BCH600T1B...
-
Page 2: Table Of Contents
Contents Care and Maintenance Safety information Safety information Cleaning Technical specifications Getting to know your Hob Product support Overview Troubleshooting Accessories Help and assistance Declaration of conformance to Installing your Hob product standards Installation requirements Disposal Installation guide Guarantee Electrical connections Using your Hob Operation Saucepans... -
Page 3: Safety Information
Safety information Important - Please read these instructions fully before installing or operating INSTALLATION WARNINGS DURING USAGE IMPORTANT: Prior to Installation, ensure that IMPORTANT: This appliance can be used by the local supply conditions (electricity, voltage children aged from 8 years and above and persons and frequency) are compatible with the with reduced physical, sensory or mental capabilities requirements of your built-in hob. - Page 4 Safety information Important - Please read these instructions fully before installing or operating IMPORTANT: Make sure the built-in hob control IMPORTANT: Do leave towels, dishcloths or knobs are all in the off position when not in use. clothes on the built-in hob or its control knobs. IMPORTANT: If you do not intend to use your CLEANING AND MAINTENANCE hob for a long period of time, turn off the electric...
-
Page 5: Getting To Know Your Hob
Getting to know your Built-in Hob You’ll be up and running in no time 1. Heater positions 2. Glass or metal surface 3. Control switches 4. Ceramic heater (180 mm or 140 mm) -
Page 6: Accessories
Getting to know your Built-in Hob You’ll be up and running in no time Accessories 1. Bracket*4 2. Screw*4 3. Seal*1... -
Page 7: Installing Your Hob
Installing your Built-in Hob Bringing it all together WARNING: This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations. • • Incorrect installation may cause harm and damage, The cut aperture dimensions are indicated below. -
Page 8: Installation Guide
Installing your Built-in Hob Bringing it all together Fixing the seal to the back of the Hob The hob must be sealed to the work surface to prevent liquid from entering into the cabinet. A tape seal is supplied with the hob. Refer to Fig. 1 1. - Page 9 Installing your Built-in Hob Bringing it all together Fig. 1 Rear Screw Mains Connector Rear Screw Seal no gaps in corners Front Screw Front Screw Fig. 2 30 mm Sleeve screw 40 mm screw Figures for reference only...
-
Page 10: Electrical Connections
Installing your Built-in Hob Bringing it all together Electrical connection Appliances with a three-pole cable are set up for operation with alternating current at the voltage and frequency indicated on the rating plate. The earth conductor is yellow/green. The connection to the electricity supply must be made by a qualified person and following the regulations in force. -
Page 11: Using Your Hob
Using your Built-in Hob Getting the most from your appliance Operating your new hob Lower left cooking area selection key Upper left cooking area selection key Upper right cooking area selection key Lower right cooking area selection key Plus key Minus key On / off key Temperature display icon... - Page 12 Using your Built-in Hob Getting the most from your appliance Turning the Hob on Note: Unit becomes operational within 1 second after it is plugged to the mains. All LEDs and displays illuminate for 1 second. Unit is turned on by pressing the key.
- Page 13 Using your Built-in Hob Getting the most from your appliance Turning the Hob Cooking Areas on Turn the Hob on by pressing the button. (See Fig. 5) Figure 5 2. Press the relevant hob selection key. The icon will be displayed in the relevant hob when you touch for the first time.
- Page 14 Using your Built-in Hob Getting the most from your appliance 3. Then, press the key once. The icon shall be displayed by the relevant hob with this touch. (see Fig. 10) Thus, the keep warm shall be activated. Figure 10 Turning the Hob Cooking Areas off 1.
- Page 15 Using your Built-in Hob Getting the most from your appliance Press the front left hob selection key ( ) again. (See Fig. 15) Figure 15 The child lock is activated at this time and the icon is displayed on all hobs to indicate this condition.
- Page 16 Using your Built-in Hob Getting the most from your appliance To activate the child lock completely: icon is displayed on all displays when the Hob is on and the child lock is active. (see Fig. 20) The icons are displayed alternatively if any hob is hot.
-
Page 17: Saucepans
Using your Built-in Hob Getting the most from your appliance Saucepans Use pans with flat bottoms. Uneven or thin bottoms will waste energy and are slow to cook Use pans slightly larger than the hotplates. Smaller pans will waste energy. Do not use oversized pans. -
Page 18: Care And Maintenance
Care and maintenance Looking after your appliance Cleaning WARNING! Isolate the power supply to the built-in Stainless Steel: Hob and make sure that the built-in hob is cool. Stainless steel parts must be cleaned frequently with mildly warm soapy water and a soft sponge and then dried with a soft cloth. -
Page 19: Technical Specifications
Care and maintenance Looking after your appliance Technical specification Model BCH600T1B Voltage and frequency 220-240V AC / 50Hz Power consumption for large hot plate 1800W (x2) Power consumption for small hot plate 1200W (x2) Total Power 6000W Recommended fuse size... -
Page 20: Product Support
Product support Help is always at hand Troubleshooting 1. If no electrical functions appear to work, 3. DO NOT ATTEMPT TO REPAIR THIS APPLIANCE YOURSELF. CALL OUR check the isolation switch has not been PRODUCT SUPPORT TEAM ON turned off, also check the fuse in the switch 0330 041 7490 OR CONSULT A and your circuit breaker. -
Page 21: Help And Assistance
If you require any technical guidance or find that your hob is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at www.altimo.co.uk. If you still require further assistance, call one of our experts on 0330 041 7490. -
Page 22: Declaration Of Conformance To Product Standards
Declaration of conformance to Disposal product standards This appliance/fitting is marked according to the European directive This appliance conforms to all relevant standards applicable to domestic appliances 2012/19/EU on Waste Electrical sold in the UK. and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be... - Page 23 For customer service call: 0330 041 7490...
