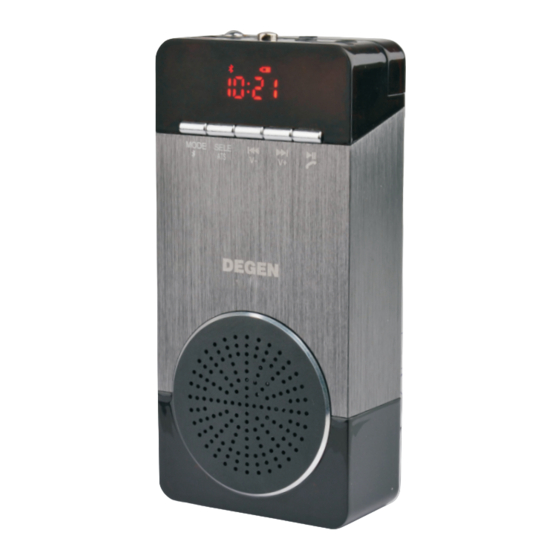

DEGEN DE660 Operation Manual

Bluetooth handsfree speaker mp3 player fm stereo

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

深圳市德劲电子有限公司

地址：深圳市宝安区福永镇怀德村翠岗第四工业区26栋

网址：www.degen.com.cn

邮编：518053

传真：0755-26918325

电话：0755-26912618 26918406 26918409

SHENZHEN DEGEN ELECTRONICS CO., LTD.

Address: Building 26, NO.4 District Cuigang Industrial Zone,

Fuyong Town, Baoan District, Shenzhen, Guangdong, China

Website: www.degen.com.cn

Postalcode: 518053

Fax: 86-755-26918325

Tel: 86-755-26912618 26918406 26918409

用户手册

OPERATION MANUAL

蓝牙电话音响

插卡音乐播放器

FM收音机

BLUETOOTH HANDSFREE SPEAKER

MP3 PLAYER

FM STEREO

DE660

本机支持软件升级，请关注德劲公司网站

http://www.degen.com.cn的软件更新。

Table of Contents

Need help?

Do you have a question about the DE660 and is the answer not in the manual?

Questions and answers

Summary of Contents for DEGEN DE660

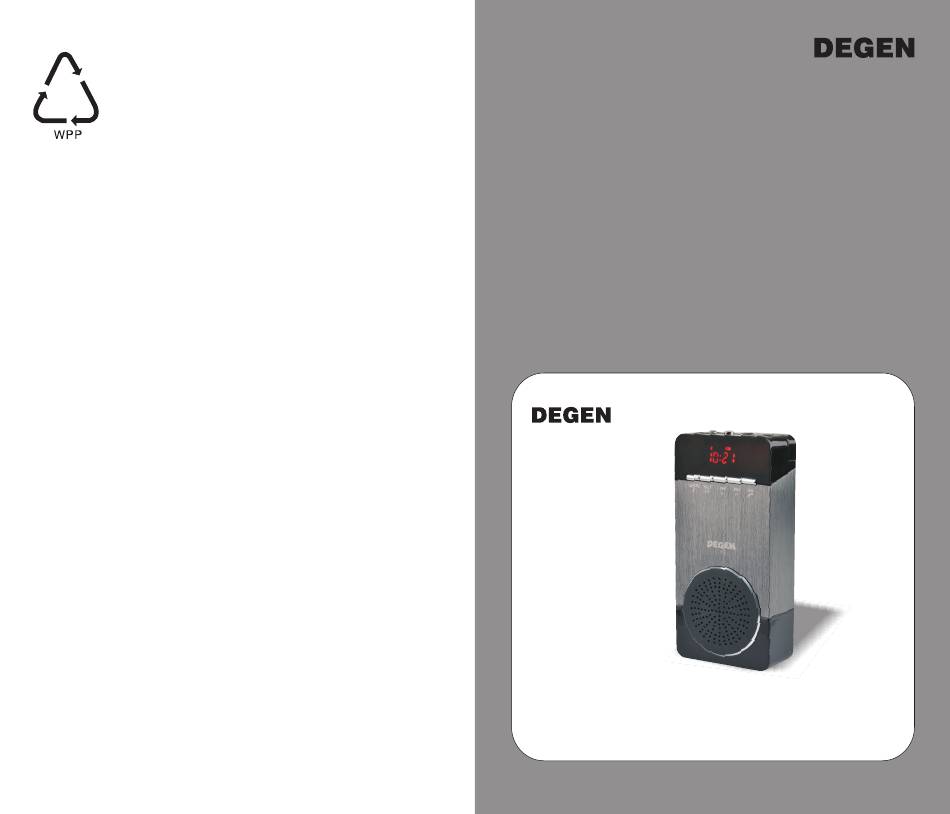

Page 1 FM STEREO DE660 深圳市德劲电子有限公司地址：深圳市宝安区福永镇怀德村翠岗第四工业区26栋网址：www.degen.com.cn 邮编：518053 传真：0755-26918325 电话：0755-26912618 26918406 26918409 SHENZHEN DEGEN ELECTRONICS CO., LTD. Address: Building 26, NO.4 District Cuigang Industrial Zone, Fuyong Town, Baoan District, Shenzhen, Guangdong, China 本机支持软件升级，请关注德劲公司网站 Website: www.degen.com.cn http://www.degen.com.cn的软件更新。 Postalcode: 518053 Fax: 86-755-26918325 Tel: 86-755-26912618 26918406 26918409...
Page 2 Foreword OUR THANKS Thank you for choosing this product from the DEGEN series; we are very happy that you are using our product. Please keep this manual in case you need to review it in the future. This package includes: ü...
Page 3: Table Of Contents
Contents Location of controls Battery power supply: (I) Installing the battery (II) Battery consumption indicator (III) Charging the lithium battery How to operate the buttons Turn on/off the device Switching modes Bluetooth mode: (I) Pairing a mobile device through a Bluetooth connection 7 (II) Answering incoming calls via Bluetooth (III) Call recording (IV) Bluetooth audio playback...
Page 4: Location Of Controls
Location of Controls 1. Telescopic antenna 2. USB (flash disk) jack 3. Mini-USB jack 4. Built-in microphone 5. Strap hole 6. Micro-SD card slot 7. Line-in jack 8. Earphone jack 9. Display 10. Mode switching Reject a call Page | 1...
Page 5 11. Auto Tuning Storage (ATS) Select songs Phone call recording Clock adjustment 12. Speaker 13. Music mode: rewind (short press); reduce volume (long press) Radio mode: auto-scan high-to-low frequency (short press); reduce volume (long press) 14. Radio mode: switch stored radio stations (short press). Music mode: play and pause.
Page 6: Battery Power Supply
Battery Power Supply For the power supply, please use a lithium battery that is proven appropriate by DEGEN. If you are using other unqualified batteries, this may cause voltage instability. Although the radio works properly, it may increase the risk of fire or explosion. When the battery’s operating time is shortened or the battery expands or is deformed, replace the battery with a new one immediately.
Page 7: (Iii) Charging The Lithium Battery
(III) CHARGING THE LITHIUM BATTERY To charge the battery using an external adapter, connect the device through the mini-USB port to a power source (5V DC/≥500mA, not provided). While charging, the battery symbol shown on the display moves from right to left, and stops when the battery is fully charged. A computer with a USB jack can also be used as a power source to charge the battery.
Page 8: How To Operate The Buttons
How to Operate the Buttons The device is operated by three operating keystrokes: short press, long press, and press & hold. Unless specified differently, all keystrokes mentioned in this manual are “short press”. - Short press: press the button to take effect immediately. - Long press: press &...
Page 9: Turn On/Off The Device
Turn On/Off the Device (1) While the < ON/OFF > switch is in the "OFF" position, the device is turned off. To turn on the device, push the switch into the "ON" position. The Bluetooth mode is automatically turned on. The device can also be turned off by long pressing the <...
Page 10: Switching Modes
Switching Modes / Bluetooth Mode SWITCHING MODES While the device is turned on, press < > to switch to another mode. The voice prompts indicate the change of mode: Bluetooth mode Time mode Music mode Radio mode BLUETOOTH MODE (I) Pairing a mobile device through a Bluetooth connection. 1.
Page 11: (Ii) Answering Incoming Calls Via Bluetooth
2. Turn on the Bluetooth of your (mobile) device. 3. Search for the Bluetooth device called DE660. 4. Select the DE660 device and pair with it. If prompted to fill in a password, please enter “0000”. 5. When the pairing is complete, the display of DE660 will show “L Y”.
Page 12: (Iii) Call Recording
“PH” is shown on the display, which varies according to phone and Bluetooth connection. NOTE: - While charging the battery, or when the battery power is low, the Bluetooth connection may not be stable. In this case, the Bluetooth Call function may not work properly. - Incoming calls can also be answered in Time mode, Music mode, Radio mode, and while playing audio via a Bluetooth connection.
Page 13 NOTE: - Make sure that the audio function of your mobile device is activated. - This Bluetooth speaker has to be in Bluetooth mode in order to listen to audio files on your mobile device. - In Radio mode, press < >...
Page 14 However, when answering the call through the iPhone, the device may not immediately work as a handsfree speaker. In this case, after answering the call, you need to enter the “audio source” menu on your iPhone and select DE660. Audio source selection Audio source menu...
Page 15: Time Mode
Time Mode Press < > to select the Time mode: Time mode: Hour Minute In Time mode, press < > to enter the time setting. Move the cursor by pressing < >. Press the < > or < > to set the number.
Page 16: Music Mode
Music Mode I. Playing audio files Turn on the device after correctly inserting the Micro-SD card or USB flash disk containing your MP3/WAV audio files. Press < > to select Music mode; the device automatically plays the audio files and displays the playback progress.
Page 17: (Ii) Song Selection
II. SONG SELECTION In Music mode, while playing audio, press < > to enter the song selection menu. Short press < > or < > to change track number. Press < > to change digit location. Press < > to confirm and play the selected song.
Page 18: Radio Mode
Radio Mode When turned on, press < > to select Radio mode. The "FM" indicator is shown on the lower right corner of the display. Radio mode: Frequency display FM indicator (I) USING THE WHIP ANTENNA While tuning into stations, extend the antenna according to signal reception.
Page 19: (Iii) Auto Tuning Storage (Ats)
(III) AUTO TUNING STORAGE (ATS) In Radio mode, long press < > to start the ATS function. All available stations will be stored. The device can save up to 40 radio stations. ATS will stop after searching all frequencies. NOTE: It is recommended not to listen to radio while connected to an external power supply or computer, because this may cause interference of the FM reception.
Page 20: Active Speaker (Line-In)
Active Speaker / Using the Anti-slip Mats ACTIVE SPEAKER (LINE-IN) This device has a line-in jack, enabling it to function as a speaker for an external audio source (such as: laptop, recording pen, small audio players, etc.). Connect one end of the audio cable to the external audio source and another end to this device’s <LINE IN>...
Page 21: Firmware Upgrade
3. Make sure the device is turned completely off (ON/OFF power switch must be in the OFF position) and connect it to a computer with the provided USB cable. 4. Start the DE660 firmware upgrade tool and follow the instructions. NOTE: - The device must be turned off before starting the firmware upgrade.
Page 22: Care And Maintenance
Care and Maintenance 1. Keep it dry. Rain, humidity and other types of liquids or moisture can contain minerals that may cause corrosion to components. If the device does accidentally get wet, remove the battery and wait for the radio to dry completely before placing it back. 2.
Page 23: Battery Safety Information
Battery Safety Information 1. Use the battery under normal conditions; temperature: (20 ± 5) ° C, relative humidity: 65 ± 20%. Under normal circumstances, the battery can be charged and discharged about 300 times. 2. Do not expose the battery to heat or high pressure, do not drop the battery, prevent children from playing with electric currents.
Page 24: Battery Hazard Warning
Battery Hazard Warning 1. Do not disassemble the battery or make amendments. This may lead the battery’s internal protection circuit to malfunction and cause abnormal chemical reactions, electrical heat, smoldering, deformation, fire or explosion. 2. Avoid short-circuiting the battery. Avoid contact of the positive and negative terminals of the battery with metal connectors.
Page 25 occurrence of abnormal chemical reactions, electrical heat, smoldering, deformation, fire or explosion. 8. Avoid direct contact with a leaking battery. Electrolyte leakage causes skin irritation. If there is contact with the eyes, immediately wash with water, do not rub your eyes, and quickly go to the hospital for treatment.
Page 26: Troubleshooting
Troubleshooting (1) Cannot turn on the device: The battery may be exhausted, charge it in time. (2) Cannot connect to a computer: The USB cable may be damaged. Please use a new cable and try again. The USB port on the computer may be damaged. Please try another port.
Page 27: Specifications
Specifications Memory support Micro SD / USB flash disk 64M-8G Audio supported formats MP3 (16-320 Kbps), WMA (8-384 Kbps) FM frequency range 87.0 - 108.0 MHz FM Radio memories 40 stations Recording format Earphone output power ≤10mW*2 USB connection standards USB 2.0 (high speed) The speaker maximum output Approx.
Page 28: Contents: Toxic And Hazardous Substances
Contents: Toxic and Hazardous Substances In accordance with the requirements of the "Electronic Information Products Pollution Control and Management Measures", the following table lists the toxic or hazardous substances that this DEGEN product may contain. Part Names Toxic and hazardous substances or elements Lead...
