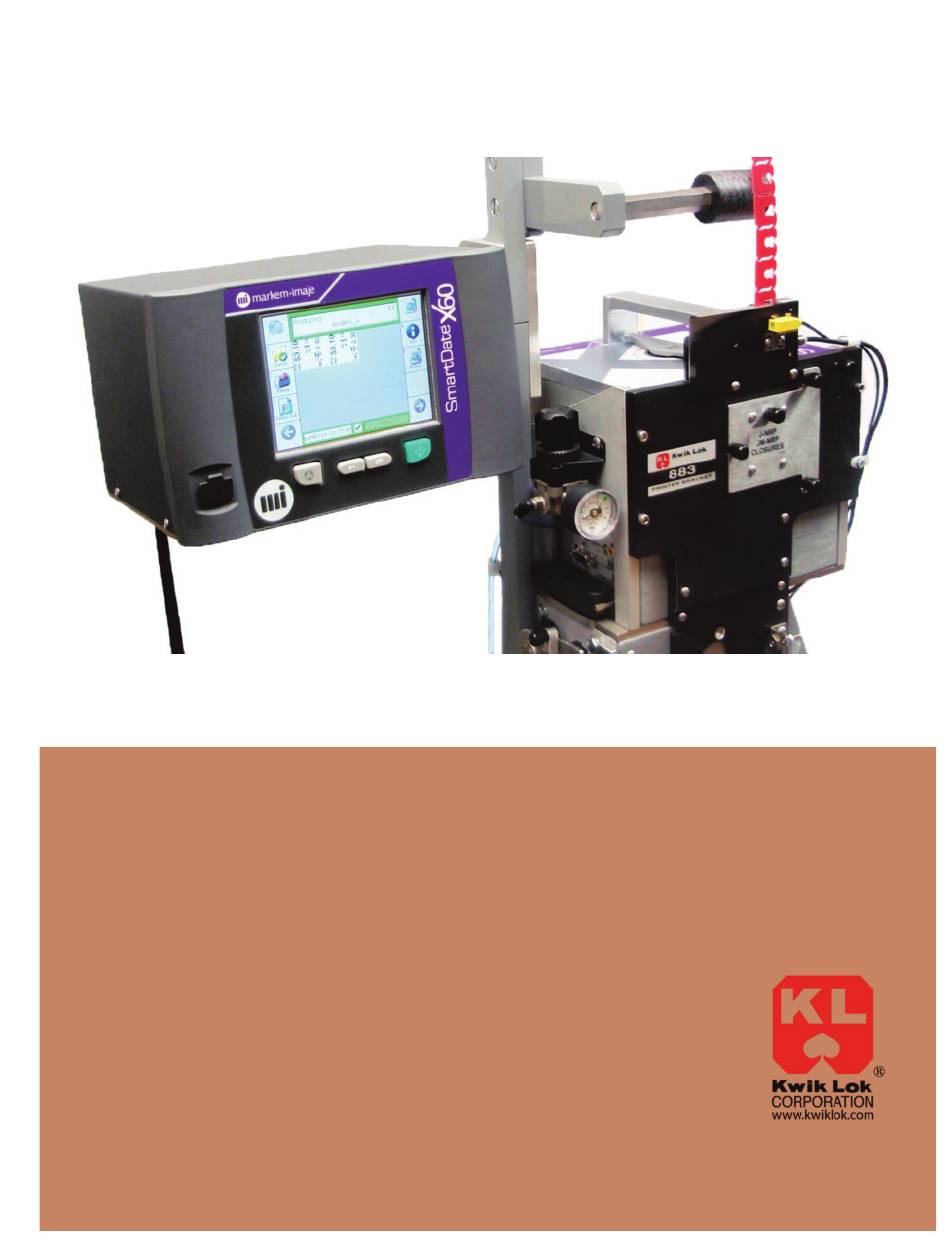

  • Page 1 Kwik Lok ® 883N THERMAL PRINTER MANUAL M883N 02 19...

  • Page 2: Table Of Contents

    For technical support during regular business hours, call your local Kwik Lok distributor. For 24/7 technical support call Kwik Lok Corporation at 1 800-688-5945 if you are in the continental U.S. For those outside the U.S., please dial + 1-509-248-4770.

  • Page 3: Specifications

    Scanner - Product Select liters / minute @ 5 bar) P37-00072 Kit - Spare Parts - SmartDate X60 The printer mounts on Kwik Lok type 872XLS, 872 En- core (Model NF printer only), 872AB (Model NF printer only) automatic closing systems. ®...
  • Page 4 If the open end of the bag is on your right - hand side the flow direction is RIGHT-HAND. If the open end of the bag is on your left - hand side the flow direction is LEFT-HAND. P 1.2 883N 06 14...
  • Page 5 ALL PRINTED AREAS DESCRIBED ON THIS PAGE ARE DIMENSIONED IN MILLIMETERS For best print quality, avoid placement of copy adjacent to and in-line with the closure web. P 1.3 883N 06 14...
  • Page 6 This page intentionally blank...

  • Page 7: Installation

    Use caution to avoid damage to the chip or the chip mount. 4. Remove the top plate or existing printer from the top of the closer frame. 5. Install the jumper into position “B” on terminal J68 on the module. P 2.1 883N 06 14...
  • Page 8 J21 and J22 08-004677 Alarm 08-004695 Bag relay cable to J62 Figure 2.2 sensor cable to J64 Pins 2 and 3 on J66 Ten pin connector Chip notch J21, J22 Figure 2.3 P 2.2 883N 01 17...
  • Page 9 J69 on the mod- ule and the other connector to pins 1 and 2 on terminal J66. Make certain the white wire in the connector is attached to pin 2 on terminal J66. P 2.3 883N 06 14...
  • Page 10 Air nozzle Figure 2.5 Air regulator 1. Be sure the closing machine is in neutral. 883N Printer mount right-hand side 2. Remove the two button head screws used to se- 883N Printer mount cure the lok track mounting plate bar to the...
  • Page 11 1. Peel off the adhesive backing material from the double sided tape of the lok deflector. 7. Mount the air regulator to the side of the 883N printer mount using two 10-24 x 1/4” socket but- 2. Install the lok deflector using the pan head ton head screws provided.
  • Page 12 Connect the other end of the cable to the printer. Tighten the mounting screws at both ends of the cable to secure the cable connec- tions. 4. Connect the Power cord to the controller. P 2.6 883N 02 19...
  • Page 13 Power cord of the frame with two 1/4” flat washers, two 1/4” Figure 2.10 lock washers and two 1/4-20 x 1 1/2” hex bolts. 4. Replace the access cover on the closer frame. P 2.7 883N 02 19...
  • Page 14 This page intentionally blank...

  • Page 15: Operation

    J65. This provides a print signal to the 883N printer. If the printer is ready to actuate The lok detector sensor (Figure 3.1) monitors the lok (the green status light is on) the printer cycles once strip and activates the alarm circuit if loks are not and prints on two closures at the same time.
  • Page 16 SECTION III Operation Air control lever E. INSTALL SOFTWARE: Kwik Lok recommends purchasing markem - imaje CoLOS Create Professional software. Air control lever Install and activate the software following the in- structions in the CoLOS manual. F. DESIGNING IMAGE FORMATS: Figures 3.5 - 3.9 Printed images are designed and modified using CoLOS software, which runs on a PC.
  • Page 17 Figure 3.5 9. Press the check mark icon again to confirm the and the layout shown in Figure 3.6. To reduce copy. the printer registration adjustments, insert a pe- 883N 06 14 P 3.3...
  • Page 18 5. Enable the printer by pressing the green button b. Select “Smartdate X60 53mm Intermittent” on the front of the printer controller (see Section 883N 06 14 P 3.4...
  • Page 19 SECTION III Operation Recommended usable print area for Recommended usable print area for J-NRP/TGR-3 closure. J-NRP/TGR-3 closure single line. All dimensions are in millimeters All dimensions are in millimeters Figure 3.5 Figure 3.6 883N 02 19 P 3.5...
  • Page 20 SECTION III Operation Recommended usable print area for Recommended usable print area for JM-NRP/TGR-3 closure double line. JM-NRP/TGR-3 closure. All dimensions are in millimeters All dimensions are in millimeters Figure 3.8 Figure 3.7 883N 02 19 P 3.6...
  • Page 21 SECTION III Operation Recommended usable print area for VW-NRP/TGR-3 closure. All dimensions are in millimeters Period Figure 3.10 Figure 3.9 883N 02 19 P 3.7...
  • Page 22 This page intentionally blank...

  • Page 23: Maintenance

    4. Peel the adhesive backing from the trimmed pad and place the pad as shown in Figure 4.3. The Figure 4.3 chamfered edges must be at the top and bottom of the anvil pad. P 4.1 883N 06 14...
  • Page 24 This page intentionally blank...

  • Page 25: Adjustments

    5. Turn on the closer. Set the closer speed to run very slowly. 3. Verify that the bracket is at the bottom of the mounting slots. Do not connect the air supply to the printer at this time. P 5.1 883N 06 14...
  • Page 26 Print Darkness: 115% E. SET THE CONTROLLER: Print Darkness Adjust: Leading Edge Boost Following are the initial settings for the 883N Smartdate Body Boost X60 printer. The information is entered from the printer Head Out Time: 30ms controller. The settings are approximate starting points,...
  • Page 27 COMMS TAB (COMMUNICATION) ribbon hub. Enter IP address, subnet mask and gateway as needed. Then press- HOME - MENU - (ENTER PASSWORD) - MENU - SETTINGS - DISABLE SECURITY -  P 5.3 883N 06 14...
  • Page 28 This page intentionally blank...

  • Page 29: Troubleshooting

    For technical support during regular business hours, call your local Kwik Lok distributor. For 24/7 technical support call Kwik Lok Corporation at 1 800-6885945 if you are in the continental U.S. For those outside the U.S., please dial + 1-509-248-4770.
  • Page 30 Compressed air disconnected. Activation switch adjusted Review switch adjustment. incorrectly. Wrong IC chip installed on the Review IC part number. 872 solenoid module. Lok detection out of adjustment. Adjust lok detector. Lok detector defective. Replace lok detector. P 6.2 883N 06 14...

  • Page 31: Parts Identification

    4 on the drawing. Referring to the PRINTER PARTS COMMON Parts List, the description for Item Number 4 is "Part No. 08-006509 R, Shim - Lok" If the Machine Nameplate is marked "Type 883N, Model AJ-NRP R Serial No. 10001-1902" the order should specify as follows: "One Part No.
  • Page 32 RIGHT OR LEFT-HAND MACHINE IDENTIFICATION IMPORTANT: The 883N printer is available in right and left-hand models. Parts lists contain part numbers for both right and left-hand models. Determine the hand of the machine so as to insure that the correct parts are ordered.
  • Page 33 If the open end of the bag is on your right - hand side the flow direction is RIGHT - HAND. If the open end of the bag is on your left - hand side the flow direction is LEFT - HAND. 883N 04 18 P 7.3...
  • Page 34 SECTION VII Parts Identification PRINTER MOUNTING BRACKETS Figure 7.1 P 7.4 883N 02 19...
  • Page 35 SECTION VII Parts Identification PRINTER MOUNTING BRACKETS (Figure 7.1) PARTS LIST 883N 02 19 P 7.5...
  • Page 36 SECTION VII Parts Identification PRINTER AND PANEL MOUNT Figure 7.2 P 7.6 883N 002 19...
  • Page 37 SECTION VII Parts Identification PRINTER AND PANEL MOUNT (Figure 7.2) PARTS LIST 883N 02 19 P 7.7...
  • Page 38 SECTION VII Parts Identification STRIP CLEANER AND CONTROL Figure 7.3 P 7.8 883N 02 19...
  • Page 39 SECTION VII Parts Identification STRIP CLEANER AND CONTROL (Figure 7.3) PARTS LIST 883N 02 19 P 7.9...
  • Page 40 SECTION VII Parts Identification PRINTER ACTUATING SWITCH Figure 7.4 P 7.10 883N 04 18...
  • Page 41 SECTION VII Parts Identification PRINTER ACTUATING SWITCH (Figure 7.4) PARTS LIST 883N 04 18 P 7.11...
  • Page 42 SECTION VII Parts Identification PRINTER ANVIL ASSEMBLY Refer to SECTION IV, Maintenance, Part A, Anvil Pad Replacement for instructions to replace the anvil pad material. Figure 7.5 PARTS LIST P 7.12 883N 04 18...
  • Page 43 SECTION VII Parts Identification KIT - Z8083040 - LOK DETECTOR Figure 7.6 PARTS LIST 883N 04 18 P 7.13...
  • Page 44 SECTION VII Parts Identification LOK DEFLECTOR Figure 7.7 PARTS LIST ITEM PART DESCRIPTION QTY. NUMBER 08-006560 R DEFLECTOR - LOK 08-006560 L DEFLECTOR - LOK P23-00350 SCREW - 4MM Q 6MM - PAN HEAD P 7.14 883N 04 18...

  • Page 45: Pneumatics

    SECTION VIII Pneumatics 883N PNEUMATICS TUBING Figure 8.1 883N 02 19 P 8.1...
  • Page 46 This page intentionally blank...

  • Page 47: Appendix

    CORPORATION EXECUTIVE OFFICE P.O. BOX 9548 YAKIMA, WA. 98909 TELEPHONE: 1-800-688-5945 or (509) 248-4770 ® FAX: (509) 457-6531 Internet: www.kwiklok.com SUGGESTED SPARE PARTS INVENTORY FOR THE TYPE 883N PRINTER Part no. Description Qty. 08-006694 SENSOR - LOK DETECTION P37-00012 ANVIL - RUBBER...

  • Page 48: Warranty

    LOSS PROFITS OR OTHER CONSEQUENTIAL DAMAGES, OR FOR ANY OTHER DIRECT OR INDIRECT COSTS OR EXPENSES. Kwik Lok Corporation’s warranty policy does not include those components developed, built and / or supplied by markem-imaje Corporation. For warranty and RMA porcedures concerning those items, address inquires to markem-imaje Corporation.

  • Page 49: Returned Materials Authorization

    Kwik Lok Corporation and credit will not be issued. b. If the parts are determined eligible for credit, it will be issued in the amount of the Kwik Lok Corporation invoice less a 20% restocking charge.
  • Page 50 This page intentionally blank.
  • Page 51 This page intentionally blank.
