AllisCom LHR10 User Manual

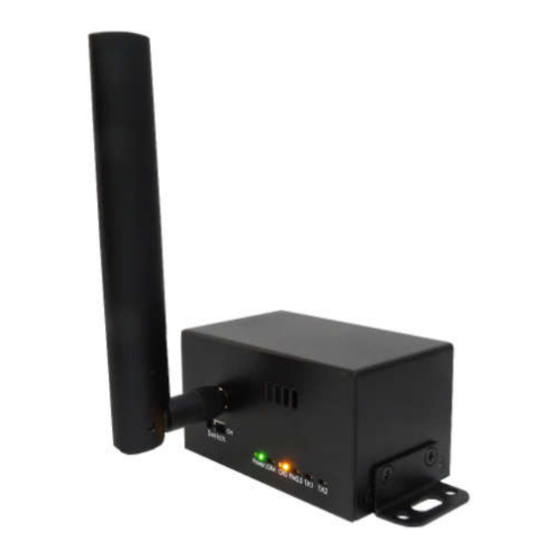

Iot lora sensor/receiver temperature/humidity/pm2.5/pm10
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Model :
Features:
ALLIS COMMUNICATIONS
ALLISCOM
IoT LoRa Sensor/Receiver
Temperature/Humidity/PM2.5/PM10
LHR10 (Receiver) ; LSS10 (Sensor)
- Low Power Consumption
- Highly Reliability
- Good Connectivity
- Long Distance 1~10KM
- Multiple of LoRa Compatibility
- Battery Inside
- Light & Compact Design
- Ease of Installation
-Use with Allis Communications 4G Wireless Router/
Gateway (MG700)
Page
1
of
8
LHR10&LSS10 Specifications Rev. 1.0 08/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LHR10 and is the answer not in the manual?

Questions and answers

Summary of Contents for AllisCom LHR10

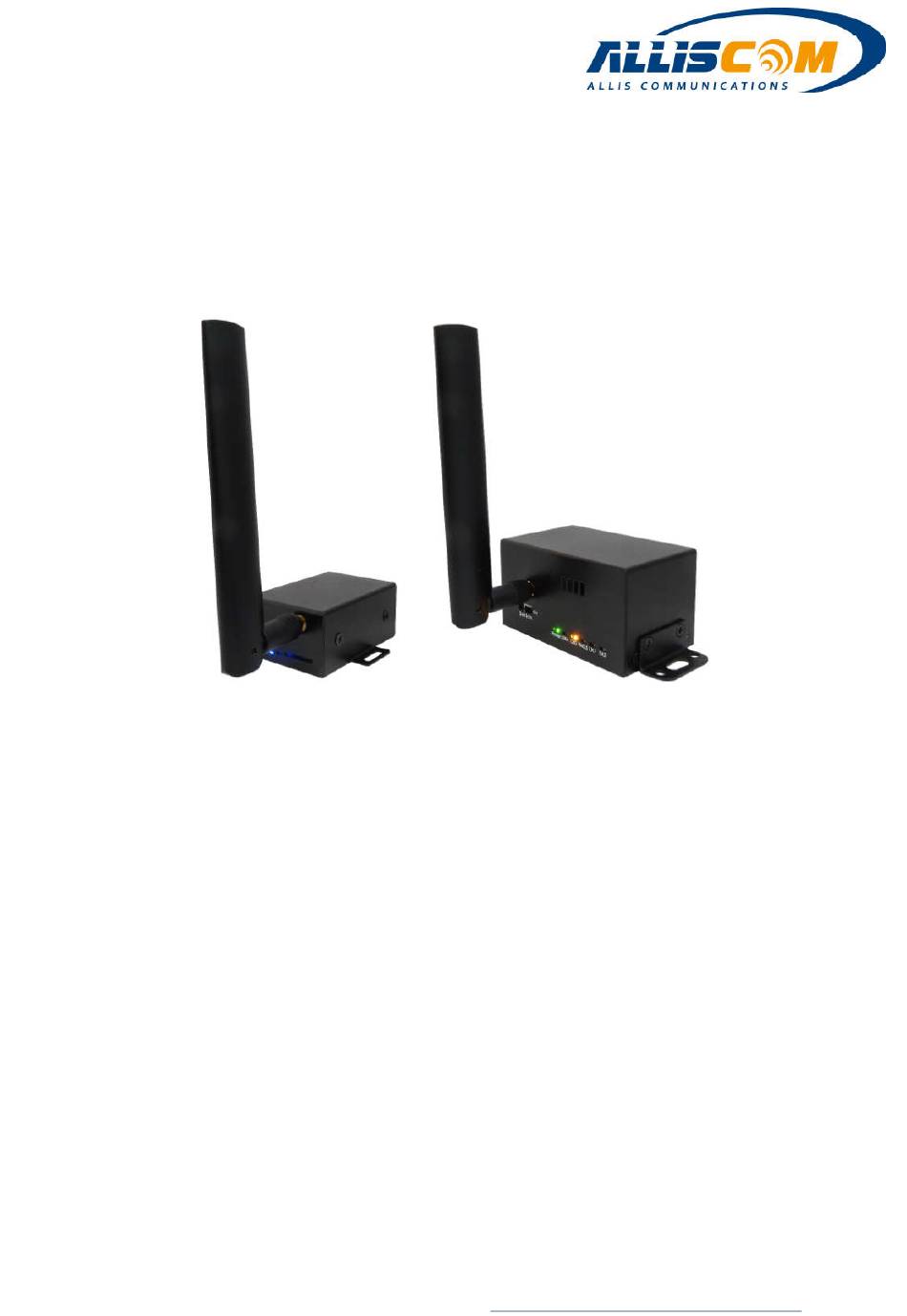

  • Page 1 ALLISCOM IoT LoRa Sensor/Receiver Temperature/Humidity/PM2.5/PM10 Model : LHR10 (Receiver) ; LSS10 (Sensor) - Low Power Consumption Features: - Highly Reliability - Good Connectivity - Long Distance 1~10KM - Multiple of LoRa Compatibility - Battery Inside - Light & Compact Design...
