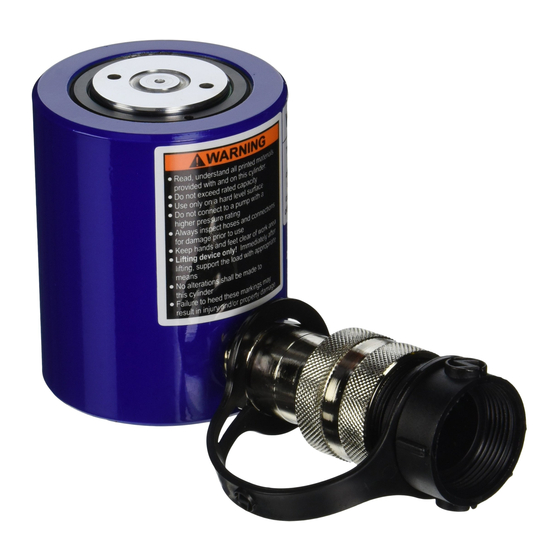

Low Profile Cylinders
MODELS: 6CL10T01, 6CL20T02, 6CL30T02 & 6CL50T02
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
• Leer, comprender, y seguir las instrucciónes antes de utilizar el aparato.
• El manual de instrucciónes y la información de seguridad deben estar comunicado en lengua del operador
antes del uso.
• No seguir estas indicaciónes puede causar daños personales o materiales.
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES
6CL10T01-M0_062017
OWNER/ OPERATOR MANUAL
Single Acting,
CAPACITY: 10 TO 50 TONS
(Max. Operating Pressure 10,000 PSI)
!
ADVERTENCIA
J.H. Williams Tool Group
6969 Jamesson Road,
Midland, GA 31820
1-866-460-7995
Printed in Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6CL10T01 and is the answer not in the manual?

Questions and answers

Related Manuals for Williams 6CL10T01

Summary of Contents for Williams 6CL10T01

  • Page 1 CAPACITY: 10 TO 50 TONS (Max. Operating Pressure 10,000 PSI) MODELS: 6CL10T01, 6CL20T02, 6CL30T02 & 6CL50T02 This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

  • Page 2: Product Description

    (a load dropped suddenly, unexpectedly upon it), discontinue use until checked out by a Williams authorized Before operating the pump, tighten all hose service center. Owners and operators of this equipment connections with proper tools.

  • Page 3: Operation

    10,000 psi. refer repairs to qualified, authorized personal. • Do not connect a cylinder to a pump with higher Contact Williams tech service for authorized pressure rating. service center. • Do not subject cylinder to a shock loads, a load...

  • Page 4: Specifications

    If cylinder does not retract, secure load by other means. hydraulic fluid. Use only good quality hydraulic fluid. Depressurize pump and hose, then remove the cylinder from We recommend Williams 8H1G or equivalent. Never application. Disconnect and replace with new coupler. use brake fluid, transmission fluid, turbine oil, motor oil, alcohol, glycerin etc.

  • Page 5: Troubleshooting Guide

    TROUBLESHOOTING GUIDE The following information is intended as an aid in determining if problem exists. Cylinders should be repaired only by authorized William Service Center. For repair service, contact service center in your area. Symptom Possible Causes Corrective Action Erratic action •...
  • Page 6 Note: Not all components of the cylinder are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. To ensure safe and reliable performance, replace worn or damaged parts with Williams authorized repair parts only.
  • Page 7 Note: Not all components of the cylinder are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. To ensure safe and reliable performance, replace worn or damaged parts with Williams authorized repair parts only.

  • Page 8: Limited Lifetime Warranty

    • Damaged components, including but not limited to bent rams, dented or crushed cylinder walls, broken welds or couplers as well as worn out seals, o-rings and springs are the result of misuse and not covered by warranty and Williams will not provide any warranty credit for such damaged components.
