IMPORTANT – Please read these instructions carefully before assembling

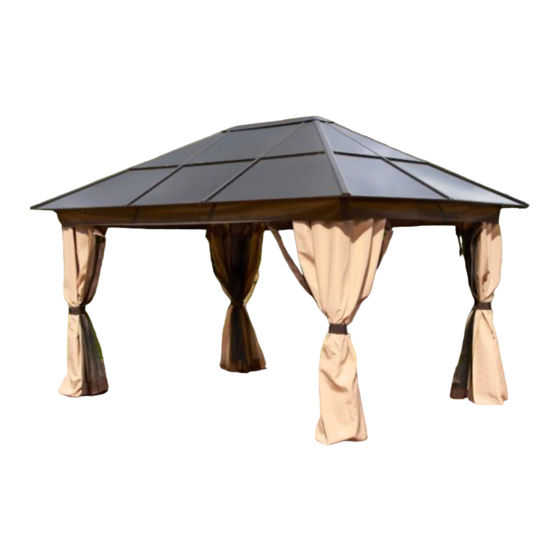

GL0020 Polycarbonate gazebo 3x3m Assembly Instructions
WE RECOMMEND 2-3 PEOPLE TO ASSEMBLE THIS GAZEBO
Please watch this short video on tips on how to assemble your gazebo https://youtu.be/uhKEq7fPzQA
If you need help with assembly or missing parts please call our customer care team on: 0121 616 1939
Please check if you have all the fittings listed below
Component Parts
Please check if you have all the parts as listed Note: The quantities below are the correct amount to
complete the assembly. In some cases more fittings may be supplied than are required.
Page | 1
Advertisement
Table of Contents
Related Manuals for Glendale GL0020
Summary of Contents for Glendale GL0020
- Page 1 IMPORTANT – Please read these instructions carefully before assembling GL0020 Polycarbonate gazebo 3x3m Assembly Instructions WE RECOMMEND 2-3 PEOPLE TO ASSEMBLE THIS GAZEBO Please watch this short video on tips on how to assemble your gazebo https://youtu.be/uhKEq7fPzQA If you need help with assembly or missing parts please call our customer care team on: 0121 616 1939...
- Page 2 M6*15 M8*40 M4*10 M6*20 M6*40 Dimensions EXTERNAL Width 300 cm Depth 300 cm Height 280 cm Assembly Requirements Number of people required to assemble Approximate assembly time 3-4 Hours If you need help with assembly or missing parts please call our customer care team on: 0121 616 1939 Page | 2...
- Page 3 Assembly Instructions Step 1 & 2 Connect all the leg uprights (A) first with the cross members B + B1 & C + 1 also connect the foot plates M to the uprights and include the bracket support bars Q & R.
- Page 4 Step 5 & 6 & 7 Add all the side supporting sections G and secure onto the frame with part P You can now proceed to start to slide the roof sections in V making sure the correct way up is inserted the roof is clearly marked, please remove the protective film and start with the top part first...
- Page 5 Safety and Care Advice Distributed by: Glendale Leisure 46 Barn Street, Digbeth Birmingham B5 5QB www.Glendale-leisure.com If you need help with assembly or missing parts please call our customer care team on: 0121 616 1939 Your Gazebo frame can be left outside all year round but we advise the curtains are taken off during the winter months and stored in a cool dry frost free place (do not store wet).
