- Page 1 Model 1102-04A Strain Gage Load Cell Installation and Operating Manual For assistance with the operation of this product,contact: PCB Load & Torque, Inc. Toll-free: 866-684-7107 24-hour SensorLine™: 716-684-0001 Fax: 248-888-8266 E-mail: LTInfo@pcbloadtorque.com Web: www.pcbLoadTorque.com...
- Page 2 Satisfaction. If, at any time, for any is recommended as this helps build reason, you are not completely satisfied confidence in measurement accuracy with any PCB product, PCB will repair, acquired data. Equipment replace, or exchange it at no charge.
- Page 3 PCB for a complete statement of our Piezotronics, contact your local warranty. Expendable items, such as distributor, sales representative, batteries and mounting hardware, are factory customer service representative not covered by warranty. Mechanical to obtain a Return Warranty, Service,...
- Page 4 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 汞 镉 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 铅 (Pb) (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料...
- Page 5 Mercury Cadmium Chromium VI Polybrominated Polybrominated (Pb) (Hg) (Cd) Compounds Biphenyls Diphenyl (Cr(VI)) (PBB) Ethers (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.
- Page 6 9.0 TROUBLESHOOTING ......................5 9.1 Mechanical Troubleshooting ......................5 9.2 Electrical Troubleshooting ......................... 5 10.0 CALIBRATION / REPAIR SERVICES ................5 10.1 RMA / Purchase Order ........................5 11.0 WARRANTY ........................5 PCB Load & Torque Toll-Free in USA 866-684-7107 716-684-0001 www.pcb.com...
-
Page 7: Safety Precautions

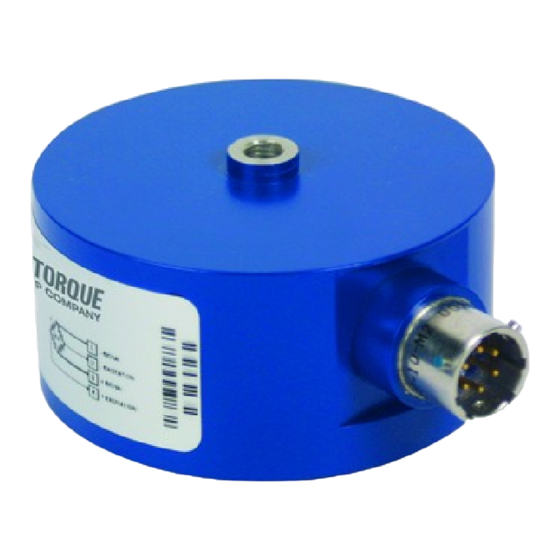

CANISTER LOAD CELL OPERATION MANUAL 3.1 Dimensions 1.0 INTRODUCTION General purpose canister load cells manufactured by PCB Load & Torque are suitable for a wide range of general force measurement applications, including weighing, dynamometer use, and static material test machines. -
Page 8: Electrical Installation
Compression Load = Positive = Negative Every canister load cell manufactured by PCB Load & Torque has been fully calibrated per ISO/IEC 17025 procedures, and meets all published specifications. Each load cell will come with a calibration certificate designated with matching model and serial numbers. - Page 9 Where: = Shunt Resistor (K ohms) = Bridge Resistance (ohms) Output = Full Scale output of the load cell (mV/V) = Load to be simulated, % of Load Cell Capacity PCB Load & Torque Toll-Free in USA 866-684-7107 716-684-0001 www.pcb.com...
-
Page 10: Maintenance
If an initial evaluation shows that a transducer requires repair, 9.1 Mechanical Troubleshooting PCB will provide the customer with an estimate prior to taking any corrective action. A mechanical checklist includes: 10.1 RMA / Purchase Order... - Page 11 2.75 in x 1.5 in 69.9 mm x 38.1 mm Weight 0.67 lb 304 g Mounting Thread 1/4-28 Female No Metric Equivalent PCB Load & Torque, Inc. Housing Material Painted Aluminum Painted Aluminum 24350 Indoplex Circle Sensing Element Strain Gage Strain Gage Deflection at Full Scale Capacity 0.003 in...
- Page 12 PCB Load & Torque Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others without DESCRIPTION the written consent of PCB Load and Torque Inc. ADDED NOTE 1, WIRING CODE...
