Summary of Contents for Sitepower SP80

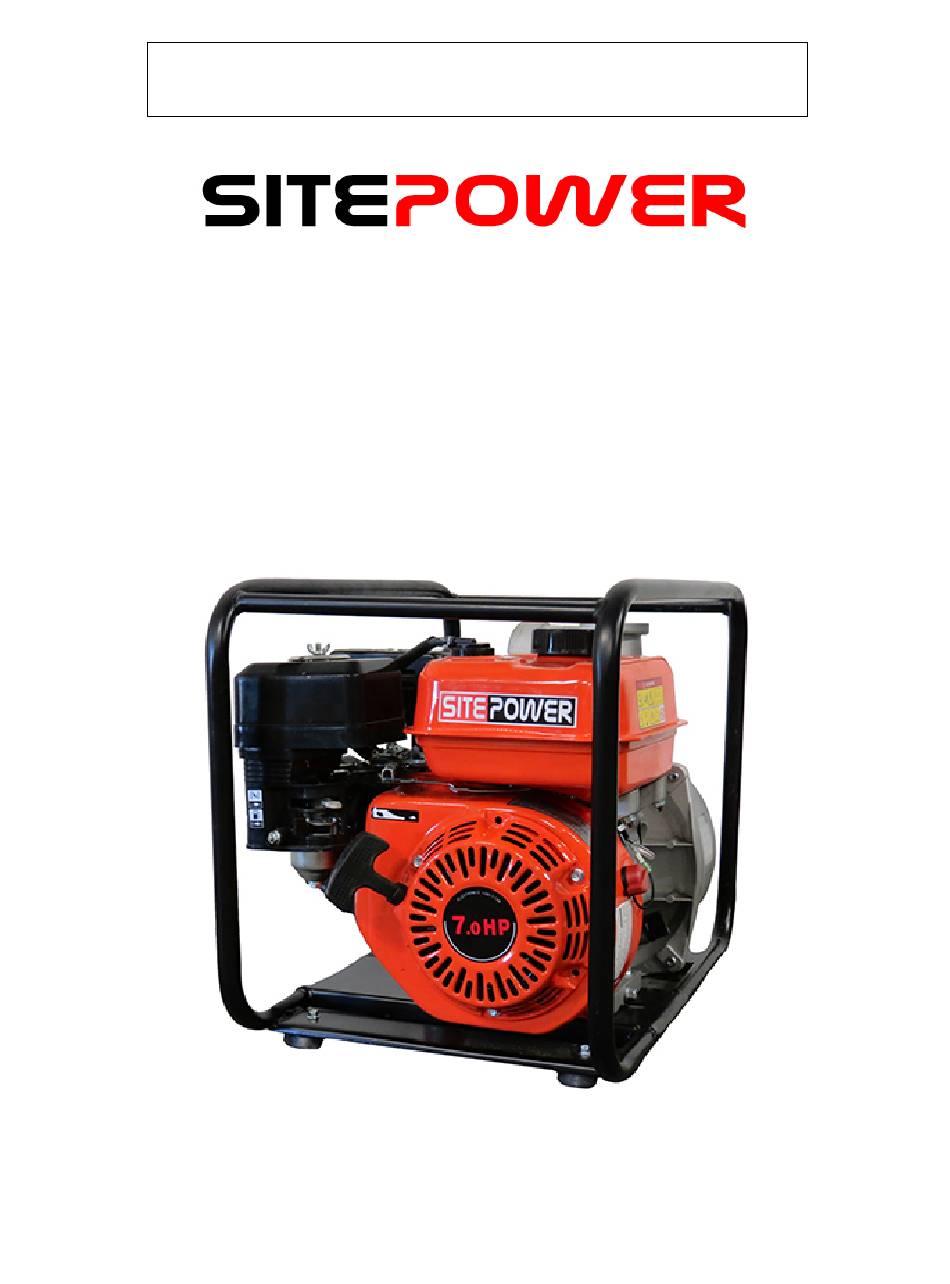

- Page 1 Before using the SitePower™ SP80(50) Water Pump, please read this manual carefully. OPERATION INSTRUCTION Water Pump SP80(50)
-
Page 2: Preface
This means that there is helpful advise for pump operators. Also, due to changes with pump specifications, details of your pump may not align with information presented in this manual. Please consider this possible inconsistency. Thank you again for having chosen the SitePower SP80(50) Water Pump! -
Page 3: Table Of Contents
Table of Contents 1. Preface……………………………………………………………………………….…… 2. Contents……………..…………………………………………………………………… 3. Safety Precautions………..…………………………………………………………… 4. Safety Mark Positions…………………………………………………………………. 5. Main Part Names……………….………………………………………………………. 6. Preparations Before Starting…………………………..…….…………..………….. 7. Starting……………………………..………………………….………..…..………….. 8. Water Pump Usage……………..…………………………….…………..………….. 9. Stopping the Engine….…………………………………….…….……..………….. 10. Maintenance…………………………………………………..…………..………….. 11. Transport and Long-Term Storage….…………………….…………..………….. 12. Troubleshooting……………………………………..……….…………..………….. 13. -
Page 4: Safety Precautions
3. Safety Precautions WARNING • Before starting, please check the engine (page 6) to avoid damaging the pump. • Please do not suck combustible or corrosive liquids: such as gasoline, acid, sea water, solution or alkaline liquid (used oil, wine, honey). •... -
Page 5: Main Part Names
5. Main Part Names... -
Page 6: Preparations Before Starting
6. Preparations Before Starting Joint Suction Hose Use commercially available hose, connections and clips. Please be careful that commercially available hose must be unfolded and kept to the necessary length. The water pump will function better if it is near the water source. There is a direct ratio between needed suction time and the length of the suction hose. - Page 7 PRECAUTION: CHECK FUEL • Take fuel tank cap off and check whether fuel level is sufficient or not. Please add enough fuel, according to requirements. • It is better to use gasoline with Pb or with a little Pb. • Do not use a mixture of gasoline and oil, or dirty gasoline.
-
Page 8: Starting
PRECAUTION: CHECKING WATER • Please fully add water before starting. • NEVER start the pump before adding water. It may damage the sealing of THE pump. Once the water is depleted, please stop the engine and add water - after engine has cooled. - Page 9 3. Move the switch to the Open position. 4. Move the throttle control lever to the LEFT slowly. 5. Pull the starter with a sharp stroke. PRECAUTION: STARTER Never pull the entire rope. Never let the rope return by freeing the rope.
-
Page 10: Water Pump Usage
8. Water Pump Usage Using in Plateau: If you need to use this water pump in plateau, please inform us in advance before purchasing so that we can adjust it in advance. Standard Water Pump Usage: 1. As the engine warms up, gradually move the choke lever to the OPEN position. -
Page 11: Stopping The Engine
9. Stopping the Engine To stop the engine in an emergency, turn the engine switch to the position. Under normal conditions, use the following procedure: 1. Move the throttle control lever full the RIGHT. 2. Turn the engine switch to the position. -
Page 12: Maintenance
10. Maintenance The water pump has a life expectancy that is dependent upon the quality of maintenance. It is recommended that you inspect your unit before and after every operation. REGULAR SERVICE PERIOD Each First month Every 3 Every 6 Every year or Performed at every indicated month or at or 20 Hrs. - Page 13 1. Renewal of Engine Oil The engine oil shall be drained while the engine is warm. a. Take off the oil gauge and remove the oil inlet port. Then drain the oil. b. Assemble the oil inlet port bolt. c. Put in the new oil, up to the level mark. d.
- Page 14 3. Spark Plug We recommend using NHSP LD F7TC a. Remove the cap. If the machine was just stopped, please be careful to avoid being scalded by the muffler. b. Visually inspect the plug. If it is badly damaged – or if the insulator is cracked/broken, then please replace with a new one.
-
Page 15: Transport And Long-Term Storage
PRECAUTION: SPARK PLUG Please make sure that the plug is assembled tightly. If not, the engine may be too hot and even damage the motor. Do not use a spark plug of poor quality. 10. Transport and Long-Term Storage WARNING: TRANSPORT AND LONG-TERM STORAGE •... - Page 16 b. Drain the gasoline in the fuel tank. c. Assemble the screw in float room. d. Renew the oil. e. Take off the spark plug, put a spoonful of clean engine oil into cylinder. Turn the engine several revolutions to make the oil spread evenly. Then reinstall the spark plug.
-
Page 17: Troubleshooting
11. Troubleshooting Not Able To Start 1. There may be no fuel in tank. 2. Is the fuel valve at the position? 3. Can gasoline enter into the carburetor? Open the valve and take-off the drain screw at the bottom of carburetor. Then inspect it. - Page 18 d. Let the spark touch the engine and then pull the starter to check whether there is fire or not. e. Change a new spark plug if there is no spark. 7. If the engine still does not start, take the engine to the authorized dealer. Not Able To Suction 1.
-
Page 19: Main Specifications
12. Main Specifications Name Water pump SP80 SP50 Model Dimensions (L X W X H) 530x380x445mm 500x380x430mm Weight 27kg 24kg Suction port diameter 80mm(3.0inch) 50mm(2.0inch) Discharge port diameter 80mm(3.0inch) 50mm(2. Oinch) Discharge(Max.) 50m3/h 25m3/h Total water head(Max.) Suction water Continuous work time...
