Europa components ECSS-102 Technical Data

!
Important Safety Notice
It is the responsibility of the person installing the electrical equipment to ensure that the installation meets the
requirements of the IET wiring regulations and is therefore 'fit for purpose'. Factors such as correct selection
of components, cable sizing, protective devices and Earth bonding are all critical and should be checked prior
to full testing and power-up. Any other regulations applicable to the equipment being installed such as the
Machinery Directive and current health and safety legislation must also be adhered to.
All connections (including factory made) must be checked for the correct tightness prior to commissioning of
the electrical installation.
All connections should be checked periodically to ensure correct tightness.
DO NOT USE POWER TOOLS ON THESE PRODUCTS
SPD Specification
According the IEC61643-11
Earthing System
System Voltage
Max. continous operation AC voltage
Norminal discharge current (8/20µs)
Maximum discharge current (8/20µs)
Voltage protection level
Maximum backup fuse
Response time
Enviroment temperature
Status indicator
Mounting
Cross section of wire (min.)
Cross section of wire (max.)
Casing material
Degree of protection
Enclosure Dimensions
Page 1 of 2

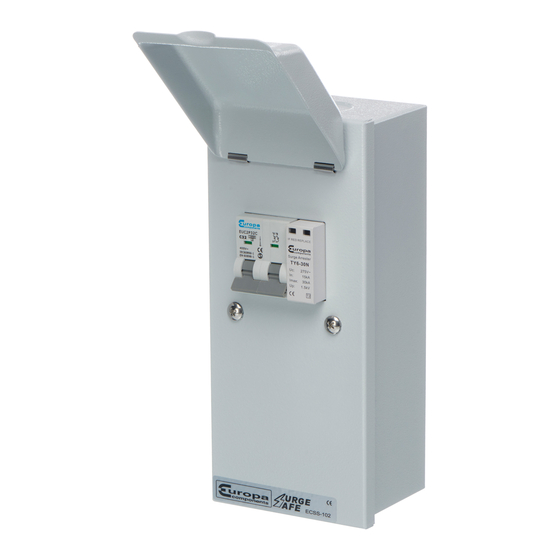

Technical Data: Safe Surge Unit | ECSS-102
MCB Specification
Product Ranges
TY6 30N
Standard (s)
Type 2
Certification
TT/TN
Characteristic Curves
Un 230/400V
Rated Current (In)
Uc 275V
Rated Voltage (Ue)
In 15kA
Rated Frequency
Imax 30kA
Rated impulse withstand voltage (Uimp)
Up 1.5kV
Energy Limiting Class
63A gL
Number of poles
tA 25ns
Rated Short-Circuit Capacity (Icn)
Tu -40 ̊ C ~ 80 ̊ C
Operating Temperature
non/red Altitude
Humidity
35mm Din Rail
Pollution Degree
4mm
Overvoltage Category
16mm
Terminal Protection
Thermal plastic
Mounting
UL94 - V0
IP20 Terminal Type
Terminal Capacity
Recommended Terminal Torque
* average not exceeding 35
32 DIA.
105
̊
C over 24 hour period
102
78
EUC1P, EUC2P, EUC3P
IEC 60898, EN 60898
KEMA
B, C & D
1, 2, 4, 6, 10, 16, 20, 25, 32, 40, 50 & 63A
AC 230(240)/400(415)V
50/60Hz
4kV
3
1, 2 & 3
10Ka
̊
̊
-5 to 40 C *
Not exceeding 2000 metres
̊
Not exceeding 50% at 40 C and 90% at 20
2
III
IP20
35mm DIN Rail
Tunnel
1.0-25mm²
2.0Nm
6 DIA.
55
EDS1311-001
̊
C
