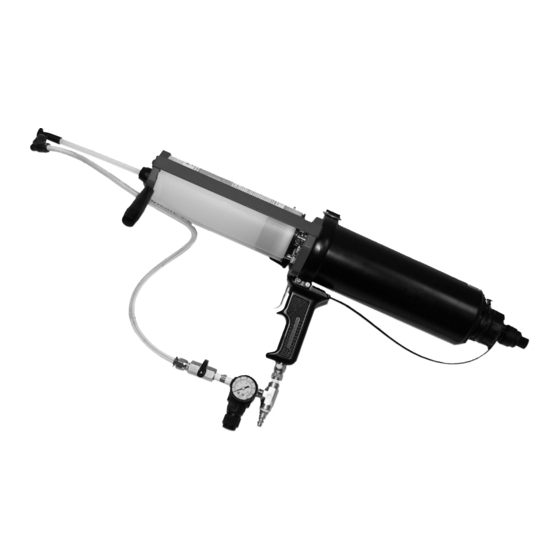

Summary of Contents for RHINO RhinoPro 1500

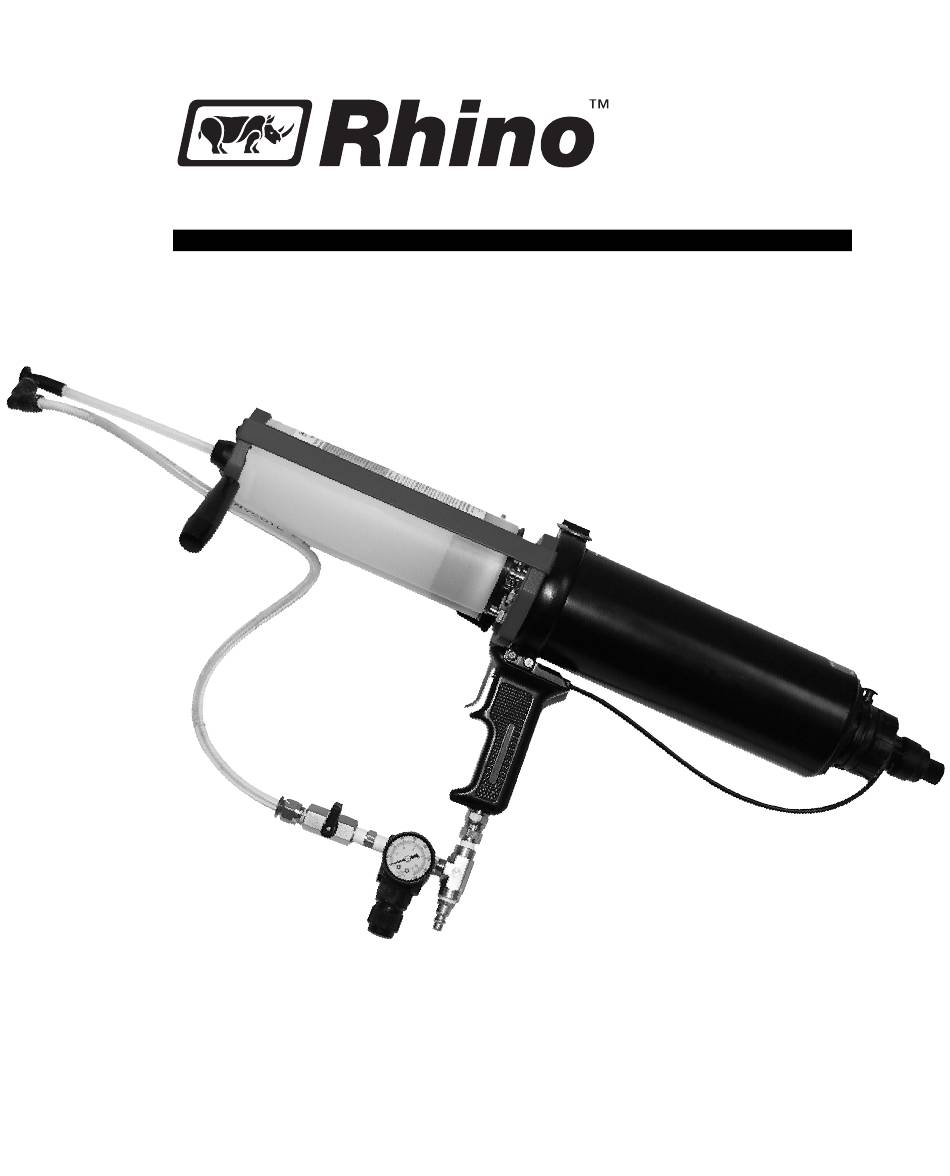

- Page 1 RhinoPro ™ Cartridge Gun Manual...
- Page 2 RhinoPro ™ Cartridge Gun 1500 with 750ml cartridges Table of Contents Application Instructions ......... 1 Operating Instructions .
-
Page 3: Application Instructions
Application Instructions Safety This applicator is a quality product for the professional user; it is designed for high duty cycles over long operating periods. As compressed air is used as the power source, operator fatigue is minimal, but it must be remembered that compressed air can be dangerous when used incorrectly. -
Page 4: Operation Controls
Connection Check the supply pressure. For optimum performance the supply pressure must be greater than 100 P.S.l. (6.8 bar) and less than 145 PSI (10 bar) and a CFM of 8 – 10. The applicator will work at lower supply pressures, but flow rates could be reduced and may vary. -
Page 5: Maintenance
Trigger [B] By pulling the trigger, a cushion of compressed air is built up inside the applicator, this initiates the flow of liquid composites. On releasing the trigger, the liquid composites flow ceases as the compressed air escapes rapidly by a quick exhaust valve at the rear of the gun. Plunger Return Button (where fitted) [C] Press and hold the plunger return button [C], then pull the trigger [B]. - Page 6 Operating Instructions REAR FRONT Air Connector Connect an airline to the cartridge gun using the supplied quick connect or with a fitting that has a compatible screw thread. Load Cartridge Pack 1. Ensure the plungers on the cartridge gun are fully retracted. 2.
- Page 7 Operating The Trigger By pulling the trigger [B], a cushion of compressed air is built up inside the cylinder, which initiates the flow of coatings. On releasing the trigger, the coatings flow stops as the compressed air escapes through a quick exhaust valve.
- Page 8 • Always disconnect the airline prior to dismantling the cartridge gun or changing the ratio-plates. • It is recommended that protective eyeglasses be worn when using all pneumatic tools. • All personnel protective equipment recommended for spraying Rhino Linings ® materials must be worn: air supplied fresh air respirator, protective chemical suite, gloves and shoe covers.
- Page 9 © 2 0 0 7 R h i n o L i n i n g s U S A , I n c . P N 1 0 4 0 9 0 5 0 7 4 5 5 6 Rhino Linings USA, Inc. Rhino Linings Canada, Inc. Rhino Linings Latin America Rhino Linings Australasia Pty Ltd. Rhino Linings Europe...
