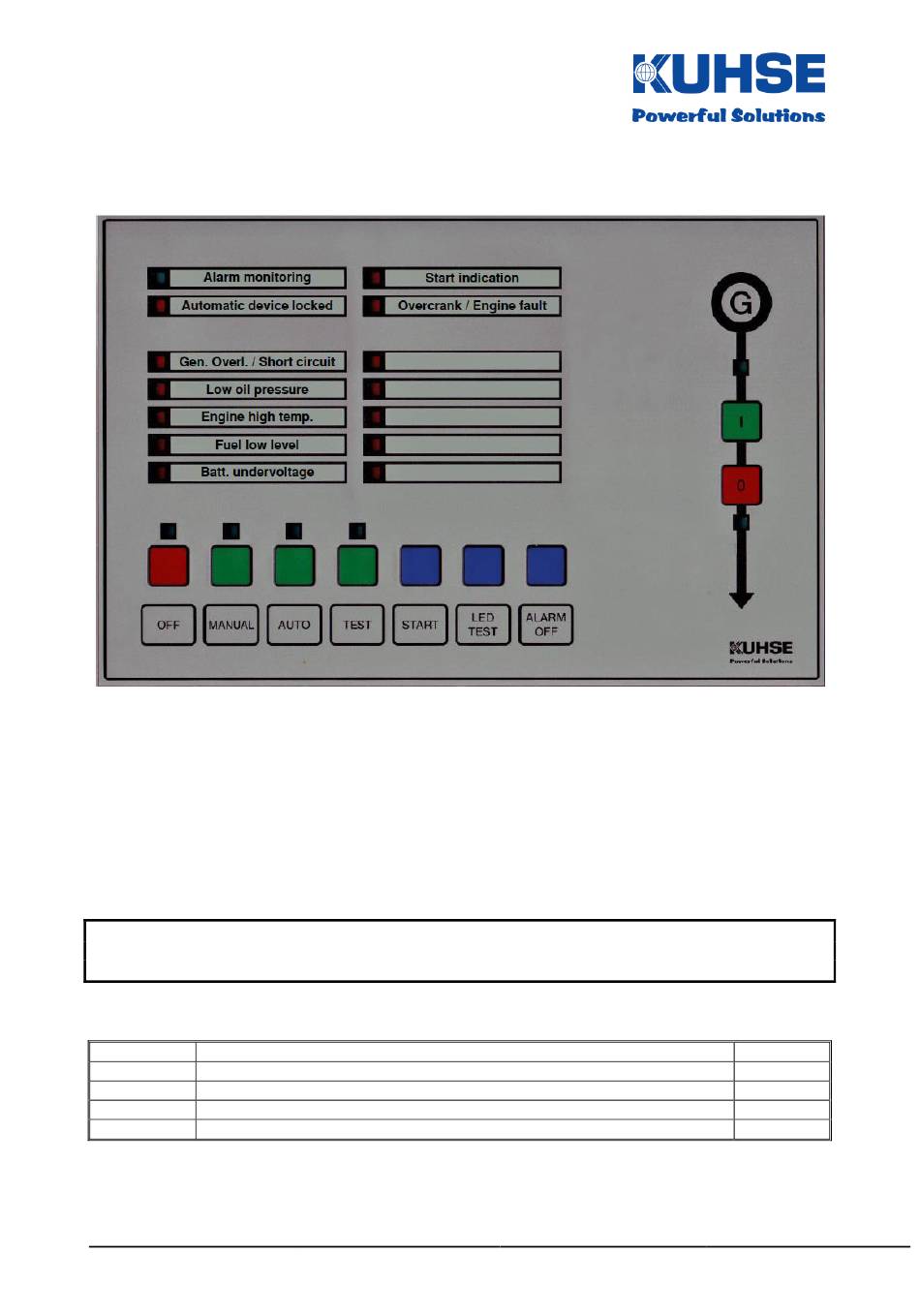

Operating instructions

Automatic start/stop system for stand-alone gensets

For product: KEA 292 INS

File:

BA_KEA 292 INS_EN_Ver 2016-07-01.doc

2A292I5000

_________________________________________________________________________________

Use and basic operation

The KEA 292 INS automatic system is used for power generation units that operate in standalone

mode.

The function of the output relay and the parameters can be set with a PC.

Because the KEA 292 has the same dimensions and fastenings as its predecessor, replacement is

simple.

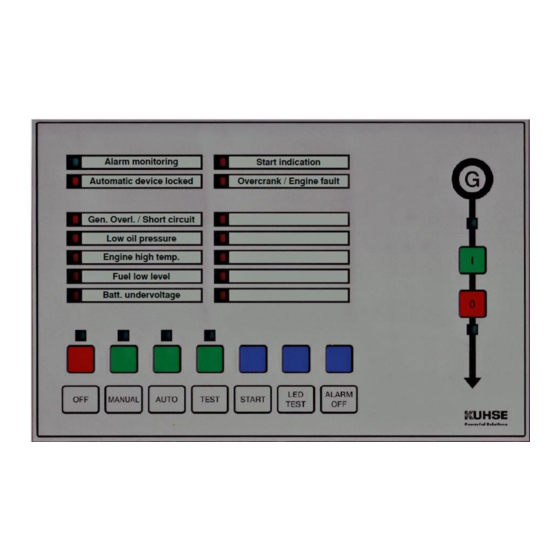

Ten parameterisable alarm and operating indicators – which can be labelled by easily replaceable

paper strips – as well as four general displays are displayed through LEDs.

The parameterisation can be performed using the serial USB interface with the P

sation program.

Important note!

The operation of the automatic system is simple and uncomplicated as it is carried out via the usual

buttons – without menu guidance – as for all previous automatic systems.

Revision history

Created

Changed

07-05-2013

First edition

01/10/2014

Connection diagrams updated

01/07/2016

Change the header

Alfred Kuhse GmbH

An der Kleinbahn 39,21423 Winsen

Telephone: +49 4171-798-0

Fax: +49 (0) 4171-798-117

Item no.

ARA

E-mail: kuhse@kuhse.de

http://www.kuhse.de

parameteri-

Version

07-05-2013

01/10/2014

01/07/2016

Subject to technical changes.

Table of Contents

Need help?

Do you have a question about the KEA 292 INS and is the answer not in the manual?

Questions and answers

Summary of Contents for Kuhse KEA 292 INS

Page 1: Use And Basic Operation
2A292I5000 _________________________________________________________________________________ Use and basic operation The KEA 292 INS automatic system is used for power generation units that operate in standalone mode. The function of the output relay and the parameters can be set with a PC. Because the KEA 292 has the same dimensions and fastenings as its predecessor, replacement is simple.
Page 2: Table Of Contents
Operating instructions KEA 292 INS - 2 / 13 - File: BA_KEA 292 INS_EN_Ver 2016-07-01.doc Content Use and basic operation ....................1 Revision history ......................... 1 Content ..........................2 General description ......................3 Warnings ..........................3 Displays and keys ......................4 Functions of the keys ......................
Page 3: General Description
Operating instructions KEA 292 INS - 3 / 13 - File: BA_KEA 292 INS_EN_Ver 2016-07-01.doc General description The KEA 292 INS automatic system is used for the control and monitoring of standalone systems. Both Diesel and gas motors can be controlled. All controls, displays and the mimic diagram are ar- ranged in a clear manner.
Page 4: Displays And Keys
Operating instructions KEA 292 INS - 4 / 13 - File: BA_KEA 292 INS_EN_Ver 2016-07-01.doc Displays and keys Functions of the keys 7.1. Operating mode keys The operating modes are selected via four keys – see illustration above. The selected operating mode is displayed by LEDs.
Page 5: General Displays
Operating instructions KEA 292 INS - 5 / 13 - File: BA_KEA 292 INS_EN_Ver 2016-07-01.doc General displays The two upper rows of the LEDs provide important information on the operating processes and error messages. The displays described below are intended as standard.
Page 6: Operating Modes
Operating instructions KEA 292 INS - 6 / 13 - File: BA_KEA 292 INS_EN_Ver 2016-07-01.doc Operating modes 9.1. Off operating mode The O position is automatically selected (reset function) during the application of battery voltage in order to prevent the triggering of an unintentional start-up. When switching to O...
Page 7: Sprinkler Operation
Operating instructions KEA 292 INS - 7 / 13 - File: BA_KEA 292 INS_EN_Ver 2016-07-01.doc 9.5. Sprinkler operation The following functions are intended for the operation of an electrical sprinkler pump:  Switching of all shutdown alarms (overspeed alarm remains switched off for electronic speed sen-...
Page 8: Internal Error Messages
Operating instructions KEA 292 INS - 8 / 13 - File: BA_KEA 292 INS_EN_Ver 2016-07-01.doc 10.4. Internal error messages All possible error messages monitored by the software are described in the following. They can be re- leased or locked. The parameterisation (release) is described in the service instructions.
Page 9: Emergency Stop / Emergency Off (External)
Operating instructions KEA 292 INS - 9 / 13 - File: BA_KEA 292 INS_EN_Ver 2016-07-01.doc Emergency Stop / Emergency Off (external) A pulse on the Q ) input is sufficient to trigger the Emergency Stop func- UICK MERGENCY tion. Thus, independent of the operating mode: ...
Page 10: Technical Data
Operating instructions KEA 292 INS - 10 / 13 - File: BA_KEA 292 INS_EN_Ver 2016-07-01.doc Technical data 15.1. Design  Unit for front installation  Dimension (,, depth) 260 x 170 x 80 mm  Weight approx. 2.2 kg  Installation position arbitrary ...
Page 11: Connection Diagrams
Operating instructions for KEA 292 INS - 11 / 13 - File: BA_KEA 292 INS_EN_Ver 2016-07-01.doc Connection diagrams 16.1. KEA 292 connection diagram ______________________________________________________________________________________ Alfred Kuhse GmbH Telephone: +49 4171-798-0 kuhse@kuhse.de Subject to technical changes An der Kleinbahn 39, D-21423 Winsen (Luhe) Fax: +49 4171-798-117 www.kuhse.de...
Page 12: Position Of The Voltage Selector And Connection Terminals
Operating instructions KEA 292 INS - 12 / 13 - File: BA_KEA 292 INS_EN_Ver 2016-07-01.doc 16.2. Position of the voltage selector and connection terminals Alfred Kuhse GmbH Telephone: +49 4171-798-0 E-mail: kuhse@kuhse.de Subject to technical changes. An der Kleinbahn 39,21423 Winsen Fax: +49 (0) 4171-798-117 http://www.kuhse.de...
Page 13: Drilling Template - Scale 1:1 - Print Without Scaling
Operating instructions for KEA 292 INS - 13 / 13 - File: BA_KEA 292 INS_EN_Ver 2016-07-01.doc Drilling template – Scale 1:1 – print without scaling! _________________________________________________________________________________ _____ Alfred Kuhse GmbH Telephone: +49 4171-798-0 kuhse@kuhse.de Subject to technical changes An der Kleinbahn 39, D-21423 Winsen (Luhe) Fax: +49 4171-798-117 www.kuhse.de...
