Thank you for using the product from SHENZHEN ISD TECHNOLOGY CO.,LTD This product is specifically designed for RC, not appliance in other areas. We strongly recommend you read our user’s guide before using BC-8S. ISDT accepts no liability for damage, injury or any legal responsibility incurred directly or indirect- ly from the use of this product.
Features of product ● Using multi-channel differential detection circuit, with high-speed 32bit ARM microprocessor to provide fast and accurate voltage detection with easy access graphical display interface. ● High-resolution graphics dot matrix display, multi-data display mode. ● Ultra-light design, compatible with airborne or ground use modes. ●...
Function button S Button: C Button: S Button: Enter Setting Mode and switch setting options, Save your setting and return to measurement mode C Button: Switch the data measurement display, disable the alarm Change the default setting, discard previous change and return to measurement mode Voltage Display In measurement mode, press C button to switch display mode they are status display mode;...
Page 5

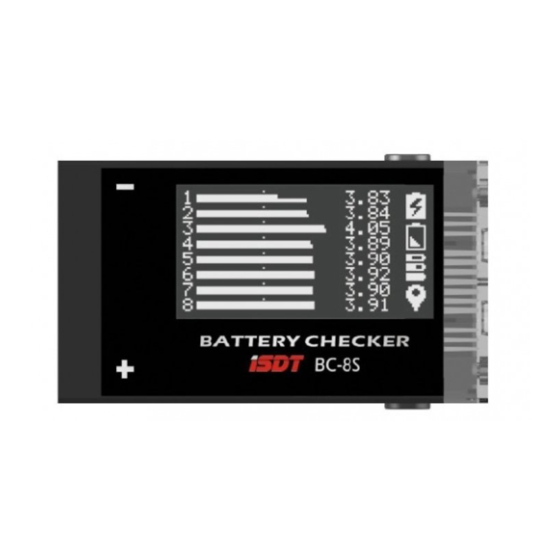

Voltage Display battery remaining percentage average voltage for battery lowest cell voltage Battery voltage Graphic Display mode Graphic mode is used to quickly and intuitively indicate the battery level. The indication of the battery level depends on how you set the battery type setting option. Lowest voltage record The current voltage Current cell voltage...
Function Setting In measurement mode, press and hold S button to enter setting mode, details showed in the figure. Press S button to switch setting options, press C button to change parameters. Press and hold S button to save setting than return to measurement mode A.
Page 7
To confirm that the function is reliable, perform a functional test on the ground. When this func- tion is enabled, while the motor starts or stops, and BC-8S will make the alarm sound. Only after the BC-8S working properly with the test, user can use this function. Because the variety of model moto, electronic speed controller and battery, it can’t be assured that BC-8S is suitable...
Page 8
While connect to the battery checker, negative electrode of the balance port must start from “BAT-“ . Reverse protection circuit is inside the BC-8S, no damage will cause to BC-8S while connect reversely.
Page 12
WWW.ISDT.CO Manufacturer Shenzhen ISD Technology CO.,LTD Address: 5th Fl., Bldg. 9, Mabian Industrial Zone, Yangtian Rd., Block 72, Xin'An Street,Bao'An District, Shenzhen, PRC Email:hi@isdt.co Changes in specifications and data will not be further noticed.
