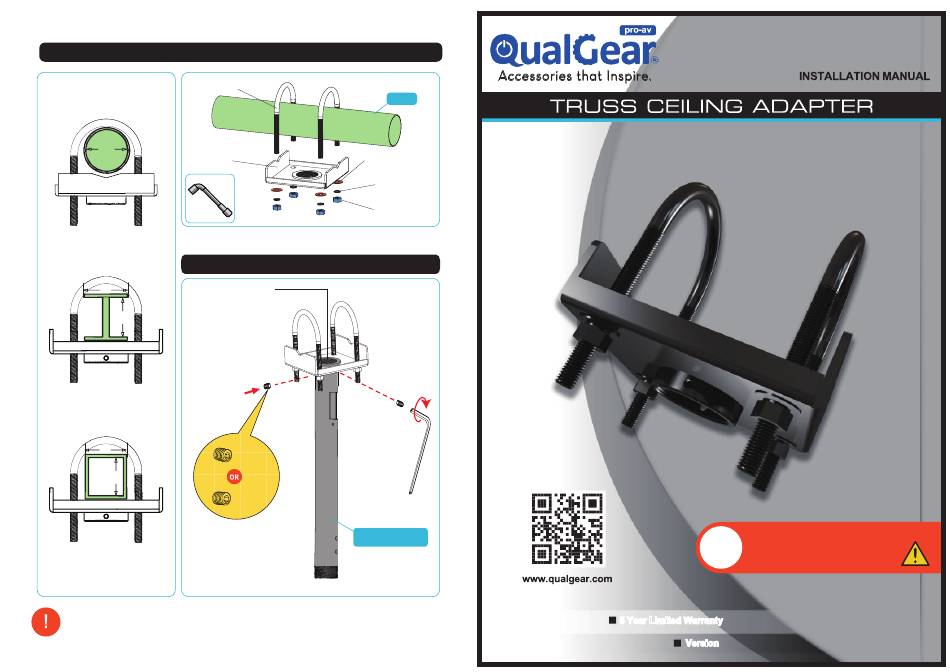

Installing the Ceiling Adapter to the Truss
TYPES OF TRUSS
(B)
3"
(A)
17mm
Position "U" bolts (B) over truss, and attach adapter plate (A) with the
hex nuts (E), washers (C,D) and tighten using a 17mm socket wrench.
Max. Diameter: 3"
Joining the Pipe to the Ceiling Adapter
3"
Connect this 1.5" NPT
pipe end to the ceiling plate
3 ½"
Max. 3" wide by 3 ½" tall
3"
3 ½"
To secure the position of the
Max. 3" wide by 3 ½" tall
pipe, tighten screws (F or G)
with allen key (H).
IMPORTANT!
Do not loosen screws all the way when making adjustments, this will disconnect the
parts and may cause injury or property damage.
Truss
Washers (C)
Washers (D)
Hex Nuts (E)
Alley Key
(H)
(F) x 2
(G) x 2
1.5" NPT Pipe
(not included)
QG-PRO-PM-TCA-B
CAUTION!
181kg
Do not exceed the maximum rated weight
(400lbs)
specified. Otherwise, serious injury or
RATED
property damage may occur.
5 Year Limited Warranty
5 Year Limited Warranty
June 2016
Version June 2016
© 2016
QualGear LLC
Advertisement
Table of Contents
Related Manuals for QualGear QG-PRO-PM-TCA-B
Summary of Contents for QualGear QG-PRO-PM-TCA-B
- Page 1 QG-PRO-PM-TCA-B Installing the Ceiling Adapter to the Truss TYPES OF TRUSS Truss 3" Washers (C) Washers (D) Hex Nuts (E) 17mm Position “U” bolts (B) over truss, and attach adapter plate (A) with the hex nuts (E), washers (C,D) and tighten using a 17mm socket wrench.
- Page 2 Before starting installation, please check that all parts shown in this checklist are included. If any parts are missing or damaged, contact your local distributor or support@qualgear.com for replacement parts and do not start assembly and installation WARNING until you receive all the parts.
