User Manual

GSM100

Combustible Gas Detector

Introduction

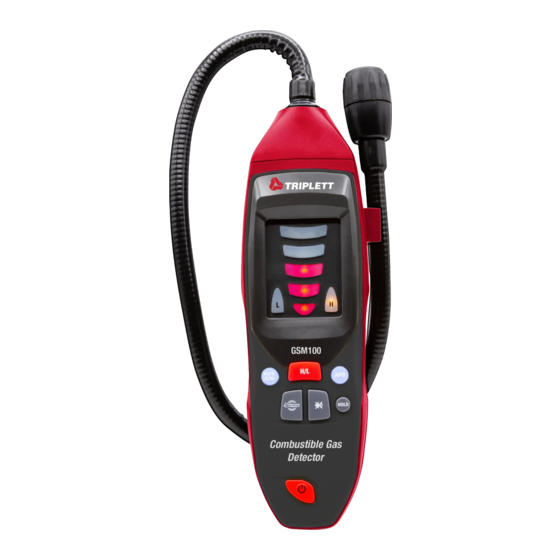

Thank you for selecting the Triplett GSM100 Combustible Gas Detector. The

GSM100 Combustible Gas Detector is a gas leak locating tool that is used to

identify the presence of and isolate the source location of combustible gases

such as methane, propane, butane, ammonia, carbon monoxide and many

Table of Contents

Need help?

Do you have a question about the GSM100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Triplett GSM100

Page 1 Introduction Thank you for selecting the Triplett GSM100 Combustible Gas Detector. The GSM100 Combustible Gas Detector is a gas leak locating tool that is used to identify the presence of and isolate the source location of combustible gases such as methane, propane, butane, ammonia, carbon monoxide and many...
Page 2: Safety Symbols
(please see back of manual for a more complete list). Even low levels of combustible gas can be detected in seconds. The GSM100 detects gas concentrations through the use of an internal sensor. This sensor is heated during operation. As the heated sensor interacts with gases, the unit immediately indicates to the user that combustible gases are present.
Page 3: General Safety Rule
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE indicates information that relates to the protection of property. This symbol means read the operator’s manual carefully before using the equipment.
Page 4: Personal Safety
Personal Safety • Stay alert, watch what you are doing and use common sense when operating equipment. Do not use equipment while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating equipment may result in serious personal injury. •...
Page 5: Specific Safety Information
Specific Safety Information Warning This section contains important safety information that is specific to this tool. Read these precautions carefully before using the GSM100 Combustible Gas Detector to reduce the risk of fire, explosion or other serious personal injury. SAVE THESE INSTRUCTIONS! Keep this manual with the tool for use by the operator.
Page 6 Description METER DESCRIPTION Warm Up indicator Low Sensitivity indicator (White) Auto Zero Enable/Disable Vibration Alert Enable/Disable 0N/OFF Led Display High Sensitivity indicator (yellow) High/Low Sensitivity Selector Auto Power Off Enable/Disable 10. Hold Enable/Disable 11. Audible Alert Enable/Disable...
Page 7: Charging And Installing Batteries
3. Check that the warning labels are present, firmly attached and readable. 4. If any issues are found during the inspection, do not use the GSM100 until it has been properly serviced.
Page 8: Setup And Operation
Set-Up and Operation Warning High concentrations of combustible gases can cause explosions, fires, asphyxia and other hazards that could cause serious personal injury or death. Know the characteristics of the gas you are working with and use proper precautions to avoid hazardous conditions. Always turn on and calibrate the gas detector in an area known to be free of combustible gases.
Page 9 If locating a leak, use the gas detector to find areas of lower gas concentration and follow back to the source. In a piping system, trace the system, stopping at the joints to monitor the gas levels. 8. When gas detection is complete, turn the GSM100 OFF by pressing the ON/OFF button.
Page 10 Gas Detector Feedback for Methane Concentration Levels High Level Lights Audible Sensitivity Sensitivity Alert White Yellow Beeping Light ON Light ON = 0 ppm = 0 ppm 1 ... 100 1 ... 1000 1cyc/sec 100 ... 1000 ... 400ppm 4000ppm cyc/sec 400 ...
Page 11: Hold Measurement
Off is enable, it will automatically shut OFF to conserve the batteries. Maintenance Cleaning Do not immerse the GSM100 in water. Wipe off dirt with a damp soft cloth. Do not use aggressive cleaning agents or solutions. Treat the instrument as you would a telescope or camera.
Page 12 Storage The GSM100 Combustible Gas Detector must be stored in a dry secure area between -10℃ (14℉) and 60℃ (158℉). Store the tool in a locked area out of the reach of children and people unfamiliar with the GSM100. Remove the batteries before any long period of storage or shipping to avoid battery leakage.
Page 13: Troubleshooting
Troubleshooting PROBLEM POSSIBLE REASON SOLUTION High (Yellow) The battery is The batteries and Low discharged are low and (White) (unable to heat need to be sensitivity the sensor). changed. lights are ON at the same time. All display The sensor (or the Shut OFF unit.
Page 14: Specifications
Specifications Visual Alert......5 Red LEDs: Gas Measuring Levels; Sensitivity Visual Alert Audible Alert (85 db) ..Loud Audible Ticking Rate (w/Continuous Modulation Proportional to Gas Level) Vibration Alert....Standard Sensitivity ......< 50 ppm (methane) Response Time ....< 2 Seconds Range........0 – 10000 ppm (methane) Sensitivity Level (methane) (HIGH) ....5 Levels: 100/400/700/1000/>1000ppm Sensitivity Level...
Page 15: Warranty
Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase.
