Titan TPZDS/HA1.2 Manual

Zigbee HA1.2 Wireless Duct
Temperature Sensor
(TPZDS/HA1.2)

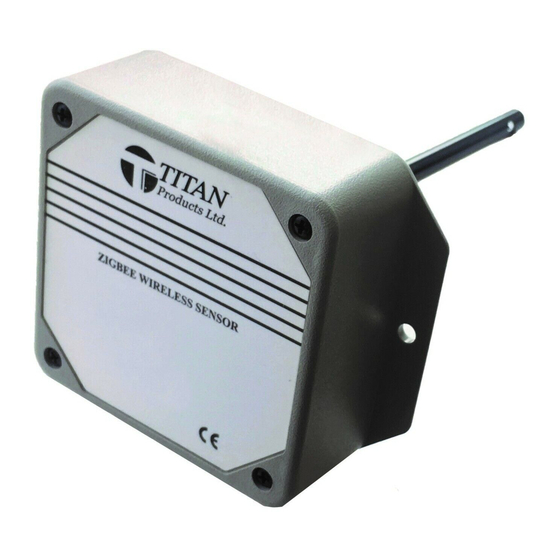

The Titan Products Zigbee HA1.2 Duct Temperature
Sensor is designed to wirelessly monitor the air
temperature in duct works and expose the measured
information wirelessly via a Zigbee HA1.2 network.
Using a frequency of 2.4GHz the transmissions from
the TPZDS/HA1.2 duct sensors are determined by the
Min/Max reporting intervals and the configured COV
(change of value) parameters set within the temperature
measurement cluster.
The TPZDS/HA1.2 wireless duct temperature sensor
is supplied with an IP41 enclosure and polycarbonate
probe. The probe has a standard length of 150mm with
other lengths available on request.
The sensor uses a 3.7V, 2600mAh lithium thionyl
chloride battery. This eradicates the need for wiring to
the unit making it extremely easy and cost effective to
install.

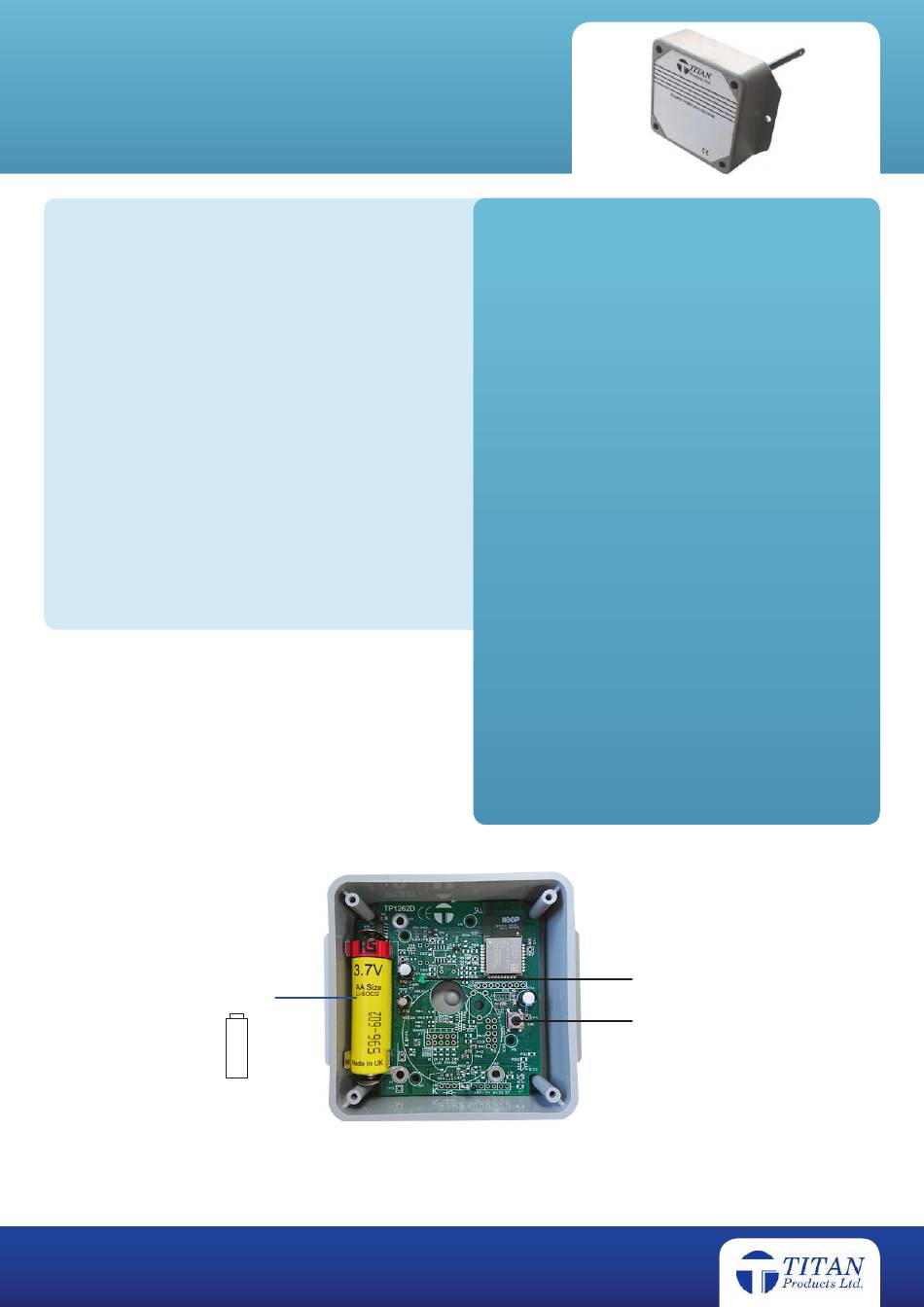

Ensure battery polarity
is correct when
inserting battery
Battery
Zigbee HA1.2 Wireless Duct Temperature Sensor (TPZDS/HA1.2)
+
-
Specification
3.7V, 2600mAh lithium thionyl chloride
Power Supply:
battery (AA size)
Battery Life: Up to 5 years (depending on
transmission intervals and based on
default settings – excludes OTA usage)
Network Technology: Zigbee HA1.2
Transmission Frequency: 2.4GHz
Transmission Power: 8dBm
Up to 60m indoor (depending on
Transmission Range:
building type)
Up to 200m outdoor (line of sight)
+/-0.5°C @ 25°C
Measurement Accuracy:
Operating Range: 0 to +50°C
5 to 80% RH (Non-Condensing)
UL L94-V0 Flame Retardant
Material:
Polycarbonate
Enclosure Rating: IP41 Rated
FCC CFR 47 Part 15
Wireless Module Approvals:
DA00-1407 FCC Public Notice
Radio: EN 300 328:V1.9.1
EMC: EN 301 489-17 V2.2.1
EMC: EN 62479 2010
EMC: EN 301 489-1 V1.9.2
Safety: EN 60950-1:2006
CE
Approvals:
RoHS
WEEE
60 months (excludes battery)
Standard Warranty Period:
90mm (h) x 95mm (w) x 60mm (d)
Enclosure Dimensions:
Probe Dimensions: 150mm x 8mm
Part Code:
TPZDS/HA1.2
LED indication
PCB push button
Fig 1.0
