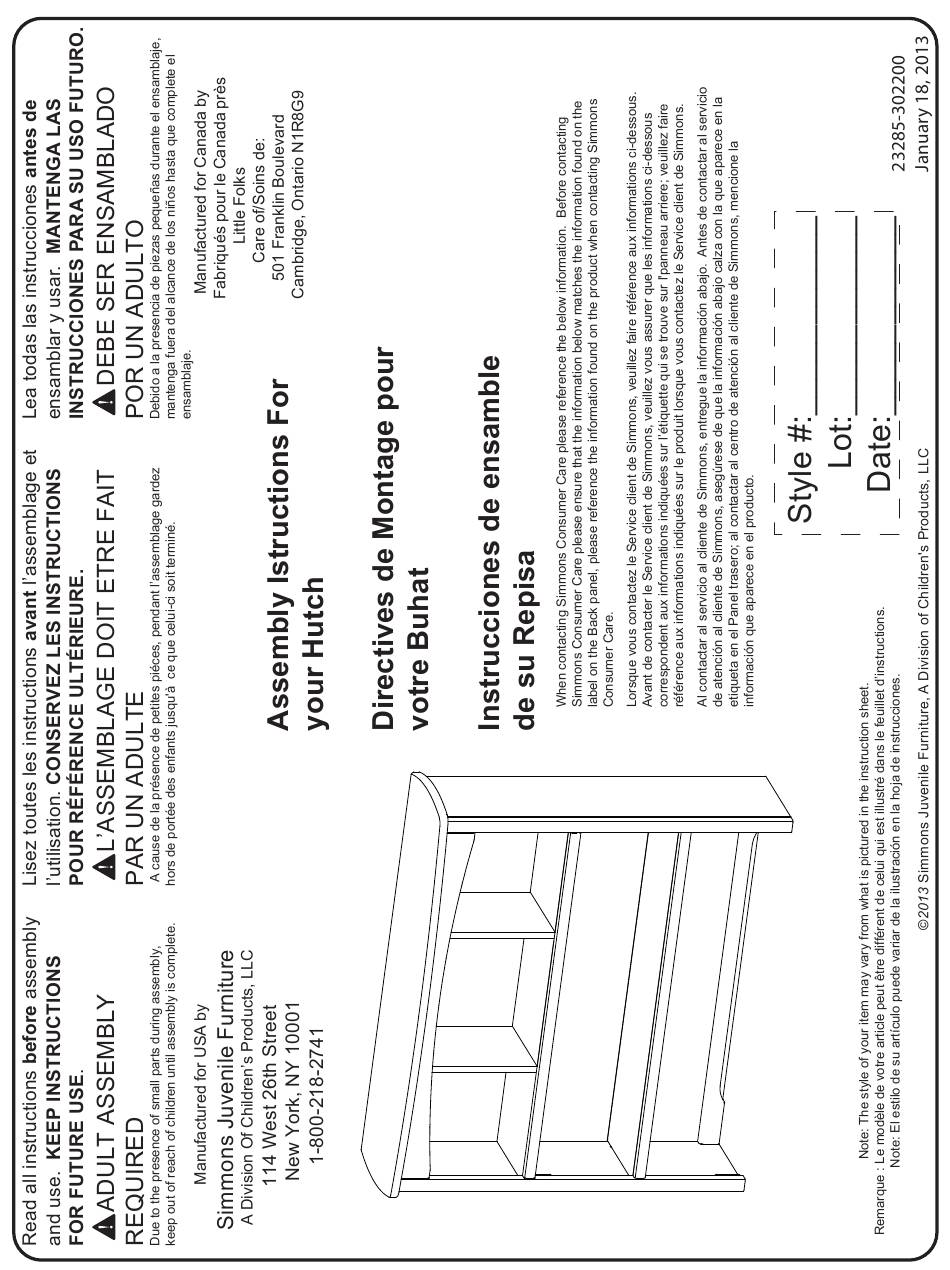

Children's Products Simmons Juvenile 302030 Assembly Instructions Manual

Hutch
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Simmons Juvenile 302030 and is the answer not in the manual?

Questions and answers

Related Manuals for Children's Products Simmons Juvenile 302030

Summary of Contents for Children's Products Simmons Juvenile 302030

  • Page 2 NOTES ON ASSEMBLY: -During the assembly process whenever using screws or bolts, check each by placing the screw/bolt on the diagram of the item which is drawn actual size and design. Be sure to use the proper size and shape specified in the instructions. -To assemble this unit you may be required to place the unit on it’s side and face.
  • Page 3 PARTS: MAKE SURE THAT ALL PRE-ASSEMBLED PARTS ARE TIGHT. PIÈCES: S'ASSURER QUE TOUTES LES PIÈCES PRÉASSEMBLÉES sont bien serrés PIEZAS: Que todos los elementos estén bien apretadas. D. Top Back Rail x1 C. Top Front Rail x1 Garde supérieur arrière Garde supérieur avant Barandilla Superior Trasera Barandilla Frontal Superior...
  • Page 4 PARTS: CAUTION: DO NOT USE A POWER SCREWDRIVER THEY CAN CAUSE HARDWARE KITS PART # 23284 SCREWS TO BREAK OR STRIP. Ensemble de quincaillerie Élément PIÈCES: ATTENTION: NE PAS UTILISER UN TOURNEVIS ÉLECTRIQUE CARLE Pieza número VIS PEUVENT CASSER OU PERDRE LEURS FILETS. PIEZAS: PRECAUCIÓN: NO USE UN DESTORNILLADOR ELÉCTRICO PORQUE PUEDEN HACER QUE LOS TORNILLOS SE ROMPAN O RUEDEN.
  • Page 5 HARDWARE SYSTEM - REVIEW BEFORE ASSEMBLY BB. 60mm Bolt x6 Boulon 60mm Perno 60mm CC. Crescent Washer x6 Rondelle en Croissant Arandela de Media Luna 1. Install (1) 60mm Bolt into each threaded insert by turning it ONLY (2) FULL TURNS. Install all bolts in one side before continuing. 1.
  • Page 6 STEP #1 ÉTAPE N°1 PASO #1 EE. 35mm Bolt x4 Boulon 35mm Perno 35mm Attach the Dividers (Part L) to the Fixed Shelf (Part J) Carefully align all of the Dowels with the holes in the fixed shelf, attach the dividers using (4) 35mm Bolts (Part EE). Tighten all bolts with Allen Wrench.
  • Page 7 STEP #2 CC. Crescent Washer x3 ÉTAPE N°2 Rondelle en Croissant Arandela de Media Luna BB. 60mm Bolt x3 PASO #2 Boulon 60mm Perno 60mm EE. 35mm Bolt x2 Boulon 35mm Perno 35mm Attach the Fixed Shelf Assembly from Step 2, Bottom Back Rail (Part E), Top Front Rail (Part C) and Top Back Rail (Part D) to the Left Side (Part A).
  • Page 8 STEP #3 ÉTAPE N°3 CC. Crescent Washer x3 Rondelle en Croissant PASO #3 Arandela de Media Luna BB. 60mm Bolt x3 Boulon 60mm Perno 60mm EE. 35mm Bolt x2 Boulon 35mm Perno 35mm Carefully align (8) Dowels with the holes in the Right Side (Part B). Attach the Right Side using (3) 60mm Bolts (Part BB) and (3) Crescent Washers (Part CC) following the direction on page 5.
  • Page 9 STEP #4 ÉTAPE N°4 PASO #4 AA. 45mm Bolt x4 EE. 35mm Bolt x11 Boulon 45mm Boulon 35mm Perno 45mm Perno 35mm Attach the Top Panel (Part F) to the base of the case. Ensure (2) Dowels from the Sides are aligned properly before installing any bolts.
  • Page 10 STEP #5 ÉTAPE N°5 PASO #5 JJ. Back Panel Screw 17mm x33 Vis Pour Panneau Arrière Tornillo de Panel Trasero Attach Back Panel - Upper (Part G) and Back Panel - Lower (Part T) using (33) Back Panel Screws (Part JJ). Tighten with a Phillips Screwdriver. Fixez le panneau arrière - Supérieur (pièce G) et le panneau arrière - Inférieur (pièce T) à...
  • Page 11 STEP #6 ÉTAPE N°6 JJ. Back Panel Screw 17mm x13 PASO #6 Vis Pour Panneau Arrière Tornillo de Panel Trasero Insert The Joint Cover Rail (Part U) on the Back Panel - Lower, then insert the Back- Panel - Middle (Part H) into the slot of Joint Cover Rail.
  • Page 12 STEP #7 ÉTAPE N°7 PASO #7 JJ. Back Panel Screw 17mm x8 GG. Metal Plate x2 Vis Pour Panneau Arrière Plaque de métal Tornillo de Panel Trasero Bandejas Metálicas Place the Hutch onto the Double Dresser item 302030. Install (2) Metal Plates (Part GG) to back of the Hutch, using (4) Screws (Part JJ) into the pre-drilled holes.
  • Page 13 STEP #8 ÉTAPE N°8 PASO #8 FF. shelf Support x4 Taquet Soporte de estante Insert (4) Shelf Support (Part FF) in to the predrilled holes in the side. Insérez (4) taquets (pièces FF) dans les trous pré-percés sur le côté. Inserte (4) Soporte de Estante (Pieza FF) en los agujeros pre-taladrados del lado.
  • Page 14 STEP #9 ÉTAPE N°9 PASO #9 Insert the Removable Shelf (Part K) in the Hutch and place shelf on the supports. DO NOT use the Removable Shelf when using base unit as a changing surface. Insérez la tablette amovible (pièce K) dans le bahut, puis posez la tablette sur les taquets. N’utilisez PAS la tablette amovible lorsque vous utilisez l’unité...
  • Page 15 HUTCH ASSEMBLY Ensemble bahut Ensamblaje de Repisa 302030 NOT Included - See Retail Store or Contact Simmons Juvenile Furniture 302030 NON compris – Rendez-vous dans un magasin de détail ou contactez Simmons Juvenile Furniture 302030 NO incluido: Contacte a su proveedor o a Simmons Juvenile Furniture...
