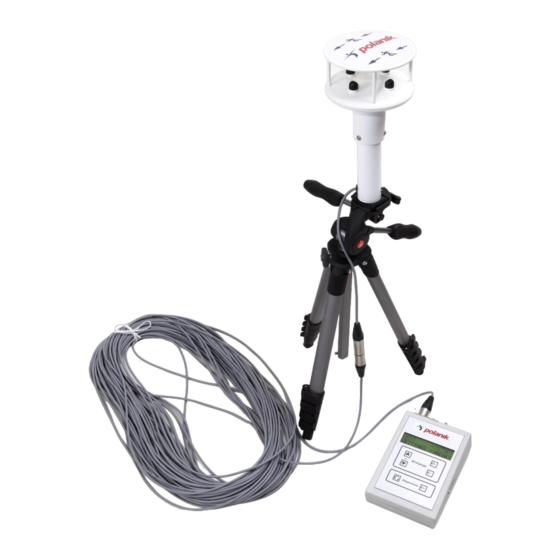

- Page 1 INSTRUCTION MANUAL ULTRASONIC WIND GAUGE WG15-SONIC File: 2020-07-06 PRODUCT SUPPORT Pawel Ciechanowski p.ciechanowski@polanik.com...
- Page 2 - synthetic casing dustproof and resistant to rain, - light and maintenance free, without moving parts, - integrated mode and standalone operation, - keypad, tripod and carrying case included in the set, - battery-operated and AC adapter. Instruction manual WG15-SONIC 2 / 12...
- Page 3 AC adaptor and cables photo finish system Wind gauge Keypad: Scrolling upwards Scrolling downwards Start measuring Resetting countdown timer of trial Stop measuring Change settings Starting countdown timer of trial Power socket 12 DC Instruction manual WG15-SONIC 3 / 12...
- Page 4 Start countdown timer to take a wind velocity measurement RESET Reset countdown timer to prepare for measurement Resetting countdown timer of trial, it works only with led display connected. Starting countdown timer of trial, it works only with led display connected. Instruction manual WG15-SONIC 4 / 12...
- Page 5 The wind measuring begins automatically when START signal is produced and ends when the predefined time for the given track event elapses. The wind speed and the direction is recorded automatically and displayed in the window named “wind”. Instruction manual WG15-SONIC 5 / 12...
- Page 6 “+” and “-“ in the connection box, pay special attention to the polarity, red plug to red socket (+) and black plug to black socket (-), always connect banana plugs according to their colours, changing polarity may damage the wind gauge, Instruction manual WG15-SONIC 6 / 12...
- Page 7 (male) of the long grey cable into the female connector of the keypad, c) switch on the keypad, Instruction manual WG15-SONIC 7 / 12...
- Page 8 START. The measurement can be stopped at any time (for example: due to false start or a competitor leaves runway) by pressing RESET. Then a new measurement is started by pressing START again. Instruction manual WG15-SONIC 8 / 12...
- Page 9 1 s. until the keypad is switched off. Each time its value is displayed together with the wind direction indicated by the signs: „+” – same as race direction „-” – opposite to race direction Instruction manual WG15-SONIC 9 / 12...
- Page 10 Micrograph (Microgate) – wind velocity display Micrograph (Microgate) – wind velocity display and elapsed trial time presentation OSTAR – wind velocity display and elapsed trial time presentation Gill Athletics and Microgate – wind velocity simultaneously presented on both boards Instruction manual WG15-SONIC 10 / 12...
- Page 11 RS 232 Cabling serial cable 60 m long, cable 0,5 m for communication RS and power supply Keypad dimensions 195x136x57 [mm] Keypad power supply DC 12V (minus „–” in centre) Keypad net weight 0,65 kg Instruction manual WG15-SONIC 11 / 12...
- Page 12 Zyczliwa 11, 97-300 Piotrkow Tryb. 3) Object of declaration: Description of goods Code Ultrasonic wind gauge WG15-SONIC 4) The object of declaration described above is in conformity with the requirements of the company production internal norms. Additional Information 5) Declaration for:...
