  • Page 1 909 / 909P Weighing Indicator USER MANUAL...

  • Page 2: Table Of Contents

    CONTENT SAFETY PRECAUTIONS ............PREPARATION & SET UP ............FEATURES ................SPECIFICATIONS ..............POWER SUPPLY ..............DISPLAY AND KEY DESCRIPTION ........OPERATING INSTRUCTIONS ..........CALIBRATION PROCEDUER ..........INDICATOR PARAMETER SETTINGS ........CONNECTORS ............... TROUBLESHOOTING ............

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Read and follow all instructions before use calibration, inspections, and maintenance should be performed by professionals Ensure the indicator rests on a stable surface DO NOT disassemble or modify unity DO NOT exceed the rated load limit of the unit DO NOT step on the unit DO NOT jump on the unit DO NOT use this product if there are any signs of damage...

  • Page 4: Features

    FEATURES Main Function LED display option Multiple weighing units: kg/lb Gross/Tare/Pre-Set Tare/Zero Multiple Hold functions Overload / Underload indication Connects to multiple printers Splash proof keyboard and display Connects to a Remote Display/Scoreboard Power saving mode Ability to modify gravity based on different geographical locations RS232 output Technical Parameters Accuracy class...

  • Page 5: Specifications

    SPECIFICATIONS INDICATOR MEASUREMENTS 8.2 in 8.3 in 2.3 in POWER SUPPLY AC Adapter If the indicator is powered by an adapter, plug the adapter directly into the “DC” pin located at the bottom of the indicator. We recommend to plug into a wall outlet to avoid interference with other wirings.

  • Page 6: Display And Key Description

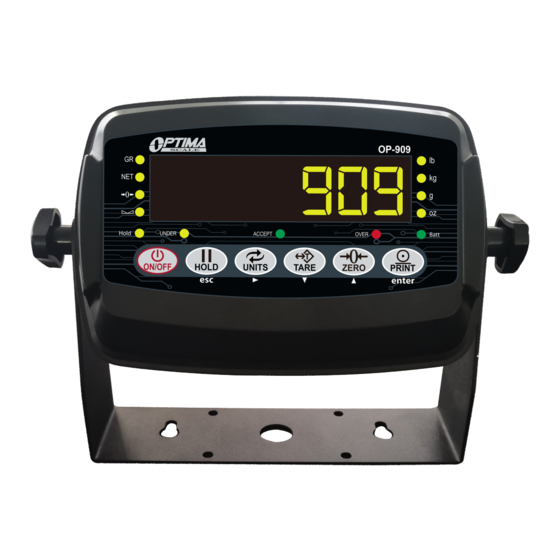

    DISPLAY AND KEY DESCRIPTION FIRST PANEL 1. Display lamp lb lamp: ON when the weight unit is pound [lb] kg lamp: ON when the weight unit is kilogram [kg] g lamp: ON when the weight unit is gram [g] oz lamp: ON when the weight unit is oz [oz] Batt: GREEN when the battery is full, Red when it is low GROSS lamp: ON when the current weight is GROSS weight NET lamp: ON when the current weight is NET weight...

  • Page 7: Operating Instructions

    REAR PANEL RS-232 PORT DC POWER LOAD CELL LOAD CELL: Port for connecting load cell. RS-232 PORT: Serial interface port. (computer, printer) DC POWER: Port for DC power. (DC 12V adapter are available) OPERATING INSTRUCTIONS Power On Turn on the power by pressing the power button for 2 seconds. Once on, the scale will ash the voltage and then begin to auto-check and count down from 0-9 sequentially before entering the weighing mode Note: Anything on the scale before powering on will automatically be tared out.
  • Page 8 Note: If you remove the container the scale will show the minus weight of the container To use a pre-set tare weight Press and hold the TARE key for 2 seconds Input the tare weight using the arrow keys Press print key to confirm Counting Function The counting function is used to count a high volume of identical parts.

  • Page 9: Calibration Proceduer

    Hold There are 4 different hold functions you can choose from in the C11 parameter 1.Peak Hold: Grabs the highest weight (for materials testing, ie. tension and pulling force) Press the HOLD key then add weight to the scale The indicator will show the highest weight it recorded and hold it on the screen until a higher weight is placed on the scale 2.Manual Hold: Grabs the current weight and holds it so it will not change/fluctuate While weighing, press HOLD and the indicator will hold the current weight on the screen until...
  • Page 10 . The display will count down from 10-1 while the scale is calibrating zero. When the display shows 0 the zero calibration is complete. OP-909 offers 2 calibration methods, Single Point which uses one weight to calibrate or Linear Calibration, which uses multiple (2-7) weights for a more accurate calibration.
  • Page 11 23. Enter the calibration weight value you will use (at least 10% of max capacity you set in C04 by using UNITS to move the cursor right, and TARE and ZERO move the values down and up.) 24. Place the calibration weight you have on the empty scale and press PRINT enter. 25.

  • Page 12: Indicator Parameter Settings

    INDICATOR PARAMETER SETTINGS The parameter settings menu has a calibration section (C01 to C07 explained above) and a parameter settings section (C08 and up). To access the calibration section the seal switch (located at one corner of the PCB) must be OFF.
  • Page 13 Function Parameter Settings/Options 0 = calibration not needed 1 = Ready to calibrate with one calibration weight Calibration 2 = Ready to calibrate using multiple calibration weights (Linear) 3 = Sensitivity Output Restore Default Settings 0 = do not restore 1 = restore to default settings Warning Tone 0 = turn off warning tone...
  • Page 14 Function Parameter Settings/Options 0 = turn off manually zero setting 1 = ±1% max capacity 2 = ±2% max capacity Manual 4 = ±4% max capacity Zero 10 = ±10% max capacity Range 20 = ±20% max capacity 100 = ±100% max capacity 0 = no initial zero setting 1 = ±1% max capacity 2 = ±2% max capacity...
  • Page 15 Function Parameter Settings/Options 0 = turn off noise filter 1 = 1 digital filter strength Noise Filter 2 = 2 digital filter strength 3 = 3 digital filter strength yy.mm.dd mm.dd.yy Print Time and Date dd.mm.yy yy.mm.dd Analog Output Setting 0 - 5V output 4 - 20mA output Calibrate Current...
  • Page 16 Table 3. Default Parameter Settings Function Parameter Default Setting Weighing Unit Decimal Setting Graduation Setting Maximum Capacity 100000 Zero Calibration Calibration Restore Default Warning Tone Automatic Power Off Power Saving Mode Hold Function Unit Conversion Upper Limit Alarm 000000 Lower Limit Alarm 000000 Inner Code Display Set Date...

  • Page 17: Connectors

    CONNECTORS 1. Load cell connection The indicator can connect with 6 load cells of 350Ω at most 4 wire or 6 wire load cell connections are both okay Please contact us directly if you have other special needs for your application There are two connection methods between the load cell and indicator Quick Disconnect as shown below: FIGURE 2: QUICK DISCONNECT CONNECTION DIAGRAM...
  • Page 18 Table 4. Wiring Color Code Signal Name Color Code Description +Exe/ +EX Positive excitation voltage to load cell +IN / +SIG GREEN Positive output signal from load cell HD / SHLD YELLOW/THICK BLACK Shield Wire -IN / -SIG WHITE Negative output signal from load cell -EXC / -EX BLACK Negative excitation voltage to load cell...
  • Page 19 Remote Display Continuous Sending Mode (C18=1) For use with a Scoreboard/Remote Display Note: Baud Rate must be set to 1200 (C19 = 0) Output Continuous Format State A Bits0,1,2 Decimal point position XXXXXX0 XXXXXXX XXXXX.X XXXX.XX XXX.XXX Bits3,4 Division State B BitsS function Bits0...
  • Page 20 Print Mode (C18 = 2) For printing on a non-adhesive ticket printer. Parameters 16, 17, 30, & 42-45 all effect your ticket print out. Normal weighing ticket printout example: Date: 05/01/2017 Time: 11:30:52 Net: 25.6lb Tare: 10.3lb Gross: 35.9lb Accumulation weighing ticket printout example: Date: 05/01/2017 Time:...
  • Page 21 Command Request Mode (C18=3) In this mode, the indicator can receive ASCII commands as listed below Command Name Function Tare Save and clear tare Zero Zero gross weight Print Print the weight G.W/ Read gross weight or net weight Kg/lb Kg/lb conversion Check gross weight at net weight mode...

  • Page 22: Troubleshooting

    Print to Adhesive Label Printers (C18=5) & (C18=6) Printing formats: Date: 05/01/2017 Date: XX.XX. XX (yy.mm.dd) Time: 11:30:52 Time: XX.XX.XX (hh.mm.ss) Net: 25.6lb 6.00kg (net weight) Tare: 10.3lb 2.88kg (tare) TARE Gross: 35.9lb GROSS 8.88kg (gross weight) TROUBLESHOOTING Issues/Error Codes Possible Causes Suggested Actions The scale does...
  • Page 23 1. Calibration is no good 1. Ensure scale is leveled 2. Cables are not connected 2. Check load cell connection nnnnnnn properly 3. Check load cell input and output 3. Load cell is defective resistance 4. If the above actions don’t work, try the following instructions: •...
  • Page 24 Err6 Exceed Zero Range 1. Ensure the scale is leveled and does not wobble. Turn it on with no load on the scale. 2. Press and hold the “PRINT and HOLD” key simultaneously for a few of seconds 3. The screen will read “C01” 4.
