1065 South Rogers Circle • Boca Raton, FL 33487 • Phone (561) 998-9600 • Fax (561) 998-9609

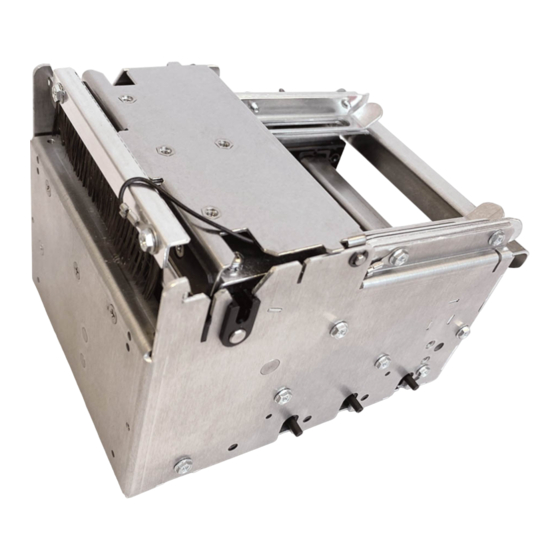

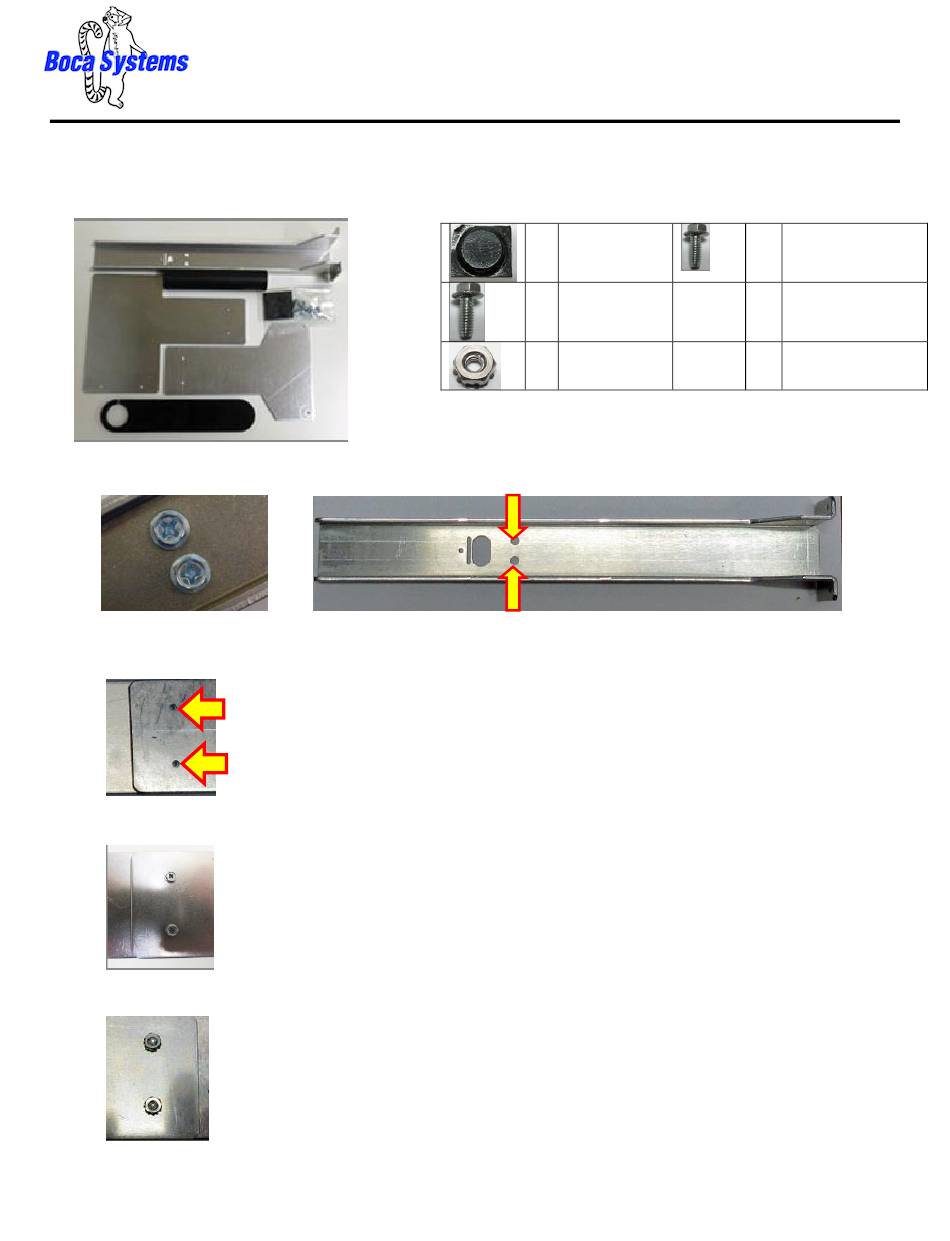

Roll Holder Adaptor Kit for Lemur-X UPG (P/N 424184)
Kit will include floor plate (2pcs), one roll holder arm, one spindle, one adjustable stopper and installation hardware.
1. Attach the spindle onto the roll holder arm using the two Philip ¼" Hex head screws.
2.
Align the two floor plate pieces (larger piece on top of smaller piece) so that the two screw holes align. See step
# 8 photo to orientate pieces.
3.
Install the two 3/16" hex head Taptite screw and tighten.
4. Install the two #4 Kep nuts onto screws and tighten
4X
Rubber Feet
1/4" Hex Head
2X
#8 Taptite
2X
#4 Kep Nut
3/16" Hex Head
6X
#4 Taptite
Advertisement
Table of Contents
Summary of Contents for Boca Systems Lemur-X UPG
- Page 1 1065 South Rogers Circle • Boca Raton, FL 33487 • Phone (561) 998-9600 • Fax (561) 998-9609 Roll Holder Adaptor Kit for Lemur-X UPG (P/N 424184) Kit will include floor plate (2pcs), one roll holder arm, one spindle, one adjustable stopper and installation hardware.
- Page 2 You will need to relocate the back two feet. As shown in the photo below. 7. Install the floor plate onto the bottom of the Lemur-X UPG printer. Align the two holes on the floor plate up with the two mounting holes on the printer. Install the two 3/16” hex head Taptite screws and tighten.
- Page 3 10. Tear off a full turn of the paper or media from the new roll. Caution: It is important that the outer end of the media is free of glue or other adhesive substance that may cause a paper jam or damage the print head. REMOVE Place the roll onto the spindle so the media turns in a clockwise direction.
