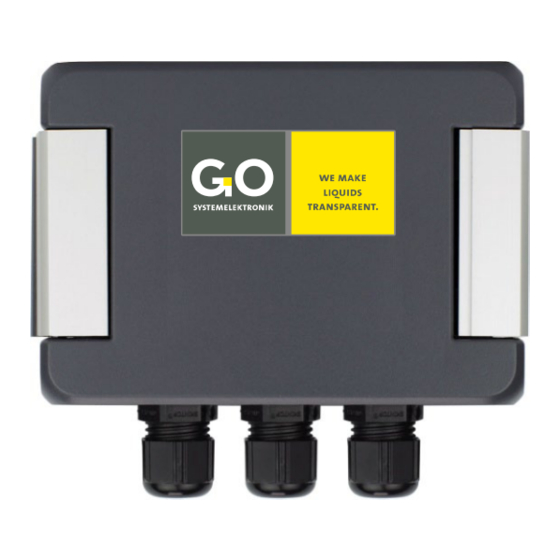

GO Systemelektronik BlueConnect Manual

Hide thumbs Also See for BlueConnect:
Table of Contents

Advertisement

Quick Links

Download this manual

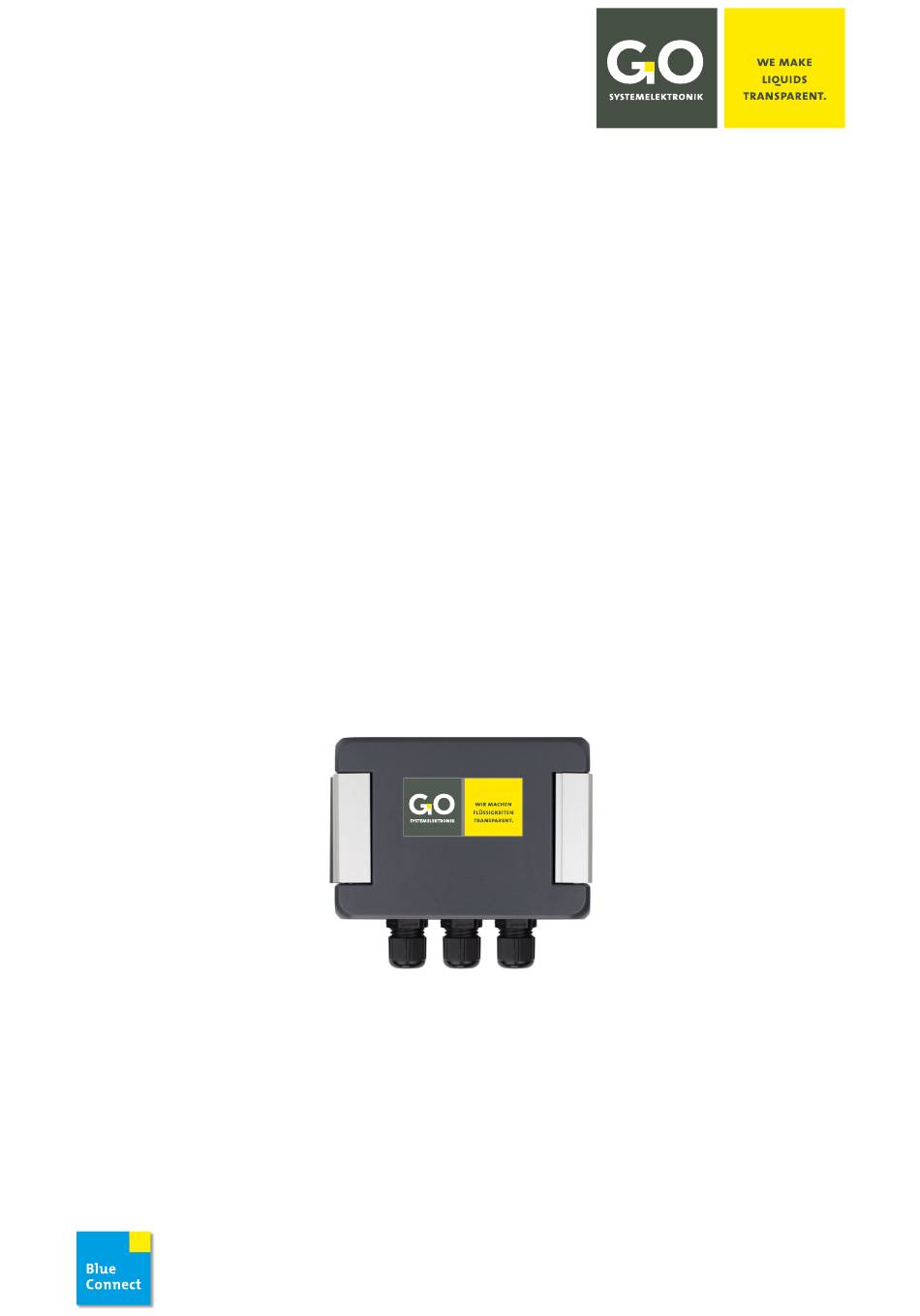

Manual
BlueConnect Modules
Version of this manual: 2.3 en
www.go-sys.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BlueConnect and is the answer not in the manual?

Questions and answers

Related Manuals for GO Systemelektronik BlueConnect

Summary of Contents for GO Systemelektronik BlueConnect

  • Page 1 Manual BlueConnect Modules Version of this manual: 2.3 en www.go-sys.de...
  • Page 2 All rights reserved in the event of patent, utility model or design registration." Changes GO Systemelektronik GmbH retains the right to modify the contents of the manual without prior notice. Liability exclusion GO Systemelektronik GmbH takes no responsibility for correct system operation under all possible operating conditions.

  • Page 3: Table Of Contents

    Appendix B – EU Declaration of Conformity ..............................26 1 Introduction This manual describes the BlueConnect Modules of GO Systemelektronik. BlueConnect Modules are available in four basic variants: as Sensor Module, Bus Module, Current Module and RS232 Module. At the completion of...

  • Page 4: Description Of The Blueconnect Modules

    4 Configuring the Sensor Modules with the Modbus Tool.exe The BlueConnect Modules must be installed in such a way that they are not exposed to direct sunlight, rain or snow. Direct sunlight can lead to extreme temperatures, which significantly reduces the service life of electronic components.

  • Page 5: Technical Data And Connections

    Open housing cover to the left. Loosen the screws (Torx T20). Sticker with pin assignment and termination see Appendix A – Interior Cover Stickers Page 5 / 26 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 6: Cable Connections, Switch Positions And Leds

    • The module-specific assignment is shown on the sticker on the inside of the housing cover. • Both the CAN bus and the Modbus are terminated at the factory. Notes on termination of older BlueConnect Modules Exception see next but one page Earth the module.
  • Page 7 LED 1: Flashing – frequency 0.5 Hz, main processor is in operation LED 2: Data transmission Modbus/RS232 LED 3: Data transmission CAN bus Page 7 / 26 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...
  • Page 8 Notes on termination of older BlueConnect Modules Older modules have no slide switches on the board.  With older BlueConnect Senor and Bus Modules, the termination of CAN bus and Modbus is done via the configuration program Modbus Tool.exe. see 4.7 Configuring Older Bus Modules ≈...

  • Page 9: Pin Assignment

    CAN-L +24 VDC GND 24 V Mainboard of the BlueBox R1 – Slot X07 CAN bus 1 2 3 4 Page 9 / 26 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11 www.go-sys.de...

  • Page 10: Configuring The Blueconnect Modules With The Program Modbus Tool.exe

    • | pH + Temp. = BlueConnect pH | ISE + Temp. = BlueConnect ISE | | ORP + Temp. = BlueConnect Redox | • | Oxygen = BlueConnect O2 | Conductivity = Conductivity | Oil in Water = BlueTrace Oil in Water | | Turbidity = BlueTrace Turbidity | •...

  • Page 11: Title Bar And Menu Bar

    Change COM Port Modbus Slave ID Reset ID to 1 Change ID COM 1 selected The default Modbus Slave ID of a BlueConnect Sensor Module is 1 and ∗ does not need to be changed. ∗ In special cases contact GO Systemelektronik.

  • Page 12: The Info Window

    B l u e C o n n e c t – C o n f i g u r i n g t h e M o d u l e s 4.4 The Info Window After the program has detected the connected module (here Redox/ORP), the module info window opens. Modbus Tool V1.07 File Language Serial Communication Device BlueConnect Redox Modbus BlueConnect Redox Firmware Version 2.12 Info Parameter...

  • Page 13: The Calibration Table

    Writes the calculated coefficient values into the module memory. apply coefficients 4.6 The Measurement Value Window Modbus Tool 1.07 File Language Serial Communication Modbus read BlueConnect Redox read Info Redox Starts and stops the Parameter read Calibration measurement value display.

  • Page 14: The Measurement Value Recording Window

    B l u e C o n n e c t – C o n f i g u r i n g t h e M o d u l e s 4.7 The Measurement Value Recording Window Modbus Tool V1.07 File Language Serial Communication Sensor live data Data Logger Modbus BlueConnect Redox Info Redox Interval Parameter Calibration save (csv format) Temperature...

  • Page 15: Configuring The Sensor Modules

    RS485 / CAN Termination Switches the termination of the Modbus (RS485) and the CAN bus on/off. Applies only to older BlueConnect Modules, the newer ones are terminated with slide switches on the board, see 3.2 Cable Connections, Switch Positions and LEDs there also Note on termination of older BlueCon- nect Modules.

  • Page 16: The Calibration Window O2

    The calibration of the O2 sensor is a two-point calibration (calibration degree 0 poly- Modbus nomial). One point is the zero point, the other is determined by the saturation in air BlueConnect O2 (100 %) or a pair of measured values from the measurement value of the sensor and Info...

  • Page 17: Configuring The Current Input Module

    4.5.1. Parameter window of the Current Input Module Modbus Tool V1.06 File Coefficients Current 1 Coefficients Current 2 Serial Communication Modbus -4,975610E-01 -4,975610E-01 BlueConnect Current In 1,488027E+00 1,488027E+00 Info P ar am eter -9,711752E-02 -9,711752E-02 Calibration Measuring 0,000000E+00 0,000000E+00...

  • Page 18: Configuring The Current Output Module

    4.5 and 4.5.1. Parameter window of the Current Output Module Modbus Tool V1.06 File Coefficients Current 1 Coefficients Current 2 Serial Communication Modbus -4,975610E-01 -4,975610E-01 BlueConnect Current Out 1,488027E+00 1,488027E+00 Info P ar am eter -9,711752E-02 -9,711752E-02 Calibration Measuring 0,000000E+00...

  • Page 19: Configuring Older Bus Modules

    BlueTrace Oil in Water Optical O2 BlueTrace Turbidity COM 1 selected Older BlueConnect Bus Modules do not have slide switches on the board. Here, the termination is done via the Parameter Window. RS485 Termination Selection Modbus (RS485) termination selection on/off CAN Termination Selection CAN bus termination on/off Writes the selected termination into the module memory.

  • Page 20: Modbus Address Overview Of The Sensor Modules

    B l u e C o n n e c t – M o d b u s - A d d r e s s e s S e n s o r M o d u l e s 5 Modbus Address Overview of the Sensor Modules BlueConnect O2 486 C000-4 – Modbus Address Overview 31.8.2021...
  • Page 21 B l u e C o n n e c t – M o d b u s - A d d r e s s e s S e n s o r M o d u l e s BlueConnect pH 486 C000-5 – Modbus Address Overview 31.8.2021...
  • Page 22 B l u e C o n n e c t – M o d b u s - A d d r e s s e s S e n s o r M o d u l e s BlueConnect ISE 486 C000-7 – Modbus Address Overview 31.8.2021...
  • Page 23 B l u e C o n n e c t – M o d b u s - A d d r e s s e s S e n s o r M o d u l e s BlueConnect Redox 486 C000-9 – Modbus Address Overview 31.8.2021...

  • Page 24: Appendix A - Interior Cover Stickers

    B l u e C o n n e c t – I n t e r i o r C o v e r S t i c k e r s Appendix A – Interior Cover Stickers Page 24 / 26 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...
  • Page 25 B l u e C o n n e c t – I n t e r i o r C o v e r S t i c k e r s Page 25 / 26 GO Systemelektronik GmbH Faluner Weg 1...

  • Page 26: Appendix B - Eu Declaration Of Conformity

    B l u e C o n n e c t – E U D e c l a r a t i o n o f C o n f o r m i t y Appendix B – EU Declaration of Conformity Page 26 / 26 GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0...
