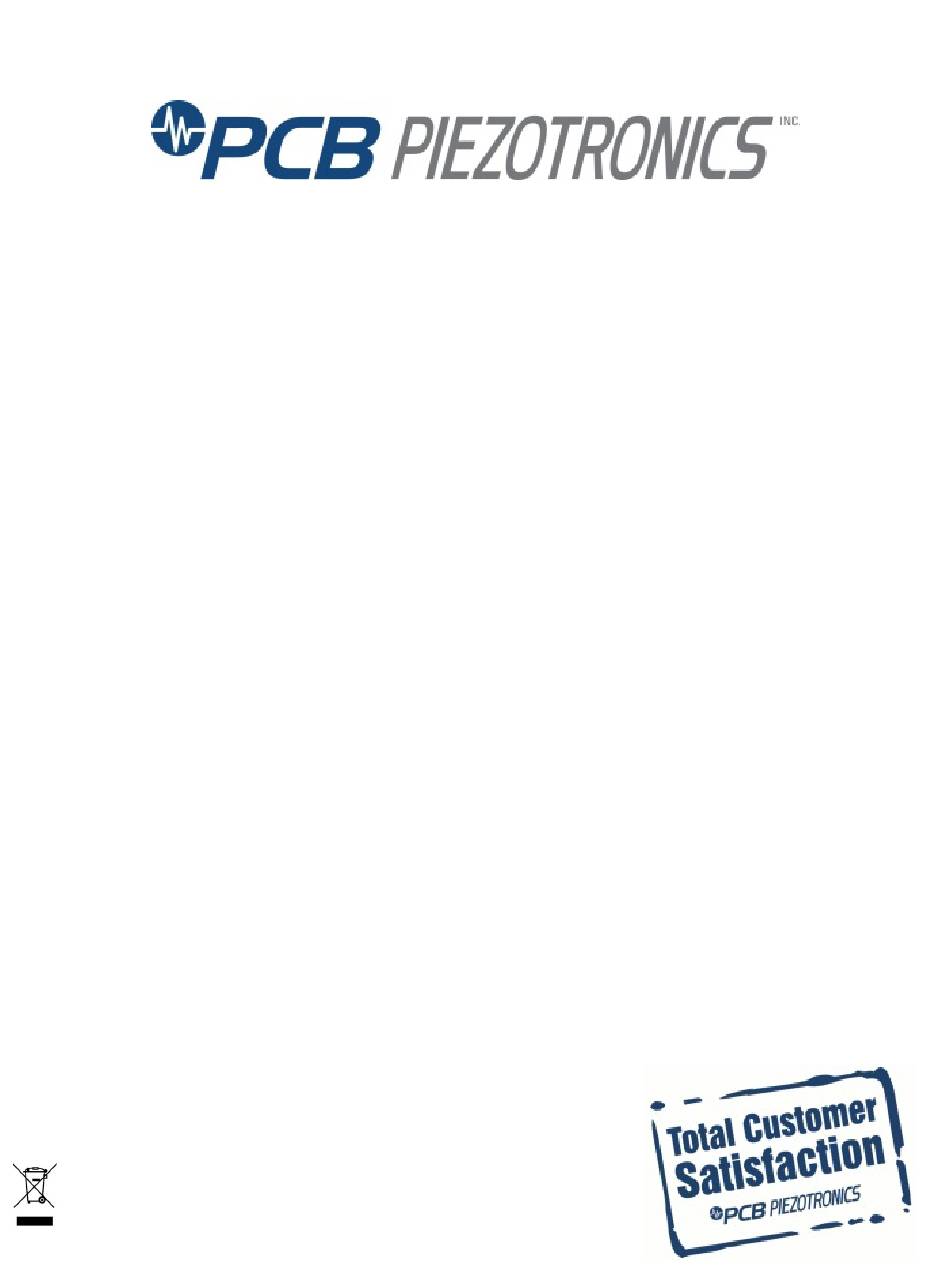

- Page 1 Model 357A64 Charge Output Accelerometer Installation and Operating Manual For assistance with the operation of this product, contact the PCB Piezotronics, Inc. Toll-free: 716-684-0001 24-hour SensorLine: 716-684-0001 Fax: 716-684-0987 E-mail: info@pcb.com Web: www.pcb.com...
- Page 2 Piezotronics, user servicing or repair is critical test. not recommended and, if attempted, may void the factory warranty. Routine PCB Piezotronics maintains an ISO- maintenance, such as the cleaning of 9001 certified metrology laboratory and electrical connectors, housings, and offers calibration services, which are...
- Page 3 50% of the general contact numbers are: replacement cost returned item(s). PCB will provide a price PCB Piezotronics, Inc. quotation replacement 3425 Walden Ave. recommendation for any item whose Depew, NY14043 USA repair costs would exceed 50% of...
-
Page 4: China Rohs Compliance
PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 汞 镉 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 铅 (Pb) (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料 焊接... - Page 5 Component Name Hazardous Substances Lead Mercury Cadmium Chromium VI Polybrominated Polybrominated (Pb) (Hg) (Cd) Compounds Biphenyls Diphenyl (Cr(VI)) (PBB) Ethers (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.
- Page 6 General OPERATING GUIDE for use with PIEZOELECTRIC CHARGE MODE ACCELEROMETERS SPECIFICATION SHEET, INSTALLATION DRAWING AND CALIBRATION INFORMATION ENCLOSED PCB ASSUMES NO RESPONSIBILITY FOR DAMAGE CAUSED TO THIS PRODUCT AS A RESULT OF PROCEDURES THAT ARE INCONSISTENT WITH THIS OPERATING GUIDE. 1.0 INTRODUCTION Enclosed is a Specification Sheet, which lists the Congratulations on the purchase of a quality PCB charge...
-
Page 7: Adhesive Mount
upon the coupling type or time constant of the external charge amplifying device. This characteristic may be precision-machined mounting surface with in (0.00016 fixed or adjustable, depending on the charge amplifier. minimum finish Please refer to the appropriate charge amplifier recommended. - Page 8 METHOD 1 - Adhesive Mounting Base This method involves attaching a base to the test structure, then securing the sensor to the base. This allows for easy removal of the accelerometer. Also, since the bases are of a “hard-coated” aluminum design, they provide electrical isolation to eliminate ground loops and reduce electrical interference that may be present on the surface of the test object.
-
Page 9: Accelerometer Calibration
pins.) In many cases, it is also helpful to protect the Once each element is connected, allow a few minutes for solder joint with heat-shrink tubing or epoxy. the system to thermally stabilize. Place the switch on the charge amplifier in the OPERATE position and Note: If you do not have the experience or resources to proceed with the measurement. -
Page 10: Sensor Recalibration
For these reasons, it is recommended that a recalibration cycle be established for each accelerometer. This schedule is unique and is based on a variety of factors, such as extent of use, environmental conditions, accuracy requirements, trend information obtained from previous calibration records, contractual regulations, frequency of “cross-checking”... -
Page 11: Common Mistakes
Figure 11. Typical Test Accelerometer Response 7.3 PCB CALIBRATION PROCEDURE Numerous precautions are taken at PCB to insure accurate and repeatable results. This section provides a brief overview of the primary areas of concern. Since the Back-to-Back Calibration technique relies on Figure 12. - Page 12 along the axis of motion, as the mounting stiffness may be altered. The vibration at the test sensor sensing element may differ from the vibration at the reference standard due to a “cantilever” effect, seen in Figure 15. Figure 13. Stud Mounting For adhesive mount sensors, use a thin, stiff layer of temporary adhesive such as quick-bonding gel or superglue.
- Page 13 Model Number Revision: A CHARGE OUTPUT ACCELEROMETER ECN #: 48070 357A64 Performance ENGLISH OPTIONAL VERSIONS Sensitivity(± 10 %) 1.15 pC/g .117 pC/(m/s²) Optional versions have identical specifications and accessories as listed for the standard model Measurement Range ± 1000 g pk ±...
- Page 14 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. RELEASED TO DRAFTING 47943 4.0 3048 ...
