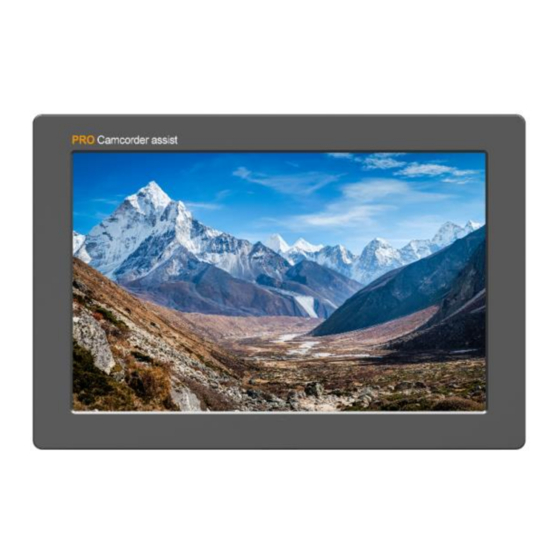

Lilliput Q7 PRO User Manual
  1. Manuals
  2. Brands
  3. Lilliput Manuals
  4. Camcorder
  5. Q7 PRO
  6. User manual

Lilliput Q7 PRO User Manual

Hide thumbs

Advertisement

Quick Links

User Guide
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Q7 PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Lilliput Q7 PRO

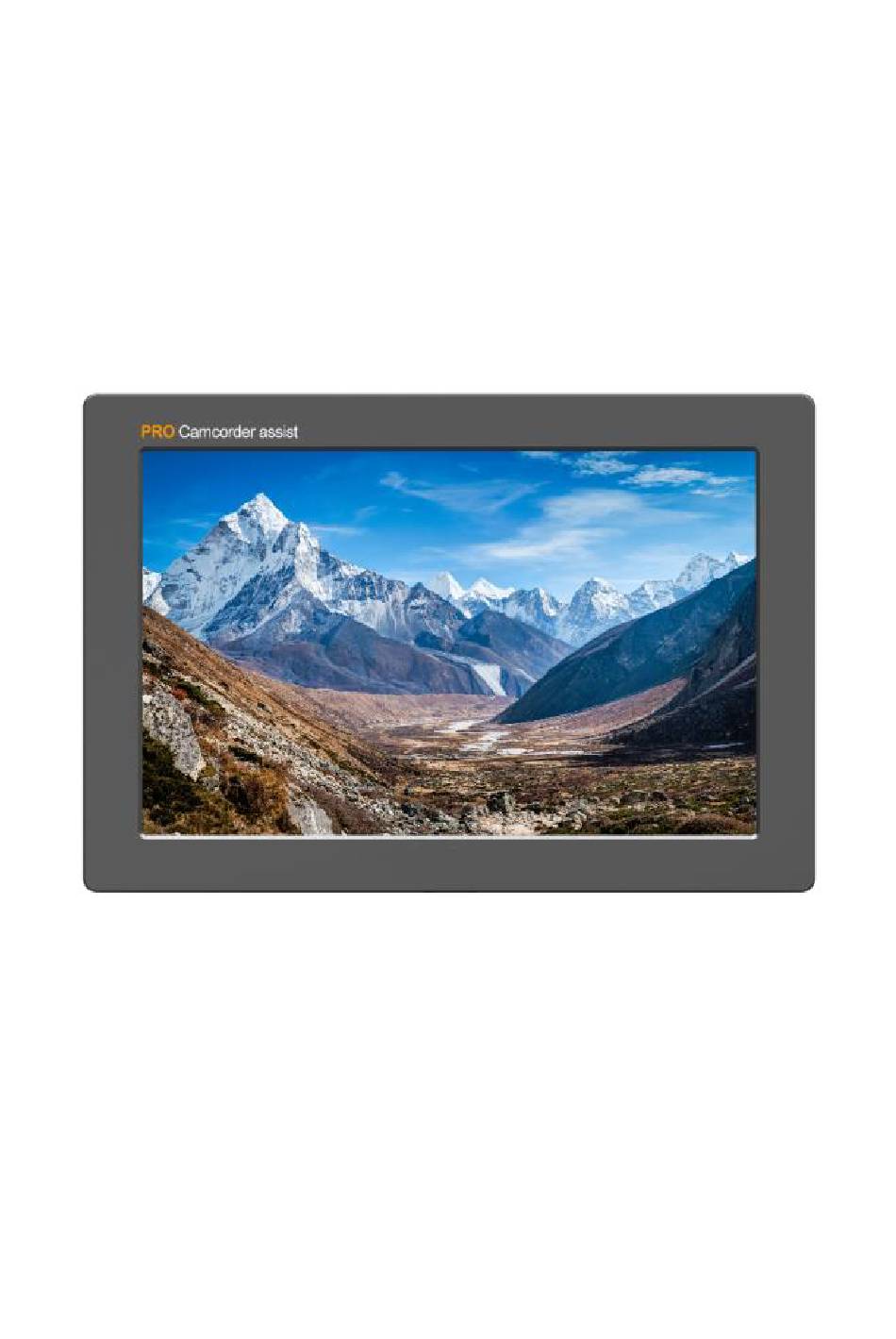

  • Page 1 User Guide...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS: The device has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, the device should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

  • Page 3: Table Of Contents

    CONTENTS 1. PRODUCT DESCRIPTION ..............4 2. DV BATTERY MOUNT PLATE ............5 3. MENU SETTING ................... 7 4. ACCESSORIES ..................21 5. PARAMETERS ..................22 6. TROUBLE SHOOTING ............... 22 YP-01181106...

  • Page 4: Product Description

    1. PRODUCT DESCRIPTION 1. Power ON/OFF: “○” is power OFF; “|” is power ON. 2. MENU Dial: Turn the dial to adjust volume; Menu function: press to activate menu displayed on screen when power Option function: select option via dialing to the left or right. Confirm function: press to confirm after option selected.

  • Page 5: Dv Battery Mount Plate

    2. DV BATTERY MOUNT PLATE Standard mounts process Following three types of battery plates are suitable for this device, model F970 & LP-E6. MODEL: F-970 MODEL: LP-E6 DV Battery Mount Plate Specification: Model F970 for battery of SONY DV: DCR-TRV series, DCR-TRV E series, VX2100E PD P series, GV-A700, GV-D800 FD/CCD-SC/TR3/FX1E/HVR-AIC, HDR-FX1000E, HVR-Z1C, HVR-V1C, FX7E F330.
  • Page 6 V-mount battery plate (optional): Please refer to GP-L130AB type battery specifications. V-mount Battery Plate Plate Bracket Anton Bauer mount battery plate (optional): Please refer to GP-L130B type battery specifications. Anton Bauer Mount Battery Plate Plate Bracket...

  • Page 7: Menu Setting

    3. MENU SETTING Before setting the functions, please make sure the device is connected correctly. 3-1. Shortcut keys: 3-1-1. the image menu Dialing to the left or right when power on, brightness will appear at the bottom of the screen, then press the dial to switch among of brightness, sharpness, contrast, saturation, volume, tint, MENU and Exit.
  • Page 8 3-2-1. Picture ITEMS OPTIONS 0 – 100 Brightness 0 – 100 Contrast 0 – 100 Saturation 0 – 100 Tint 0 – 100 Sharpness HDMI RGB Range 0~255, 16~235 Color Space Rec709, EBU, Native, SMPTE-C Camera Log OFF, Default, User Def.
  • Page 9 Increases or decreases the range between the bright and dark areas of the image. High contrast can reveal detail and depth in the image, and low contrast can make the image appear soft and flat. 3-2-1-3. Saturation Increase or decreases the amount of color in the displayed image. 3-2-1-4.
  • Page 10 The User Log must be named with .cube in the suffix. Please note: the device only support the format of User Log: 17x17x17 , Data order is BGR, Table order is BGR. If the format does not meet the requirement, please use tool “Lut Tool.exe” to transform it.
  • Page 11 3-2-1-11. Back Light Mode Adjusts the back light strength of the panel. If the back light value is increased, the screen becomes brighter. -[Standard]:The default brightness is 100 cd/m². -[Outdoor]: The default brightness is 500 cd/m². -[Custom]: Adjusts the level of the back light from 0 to 100. Note: Only available under [Custom] mode to adjust the level of the back light.
  • Page 12 3-2-2-1. Center Marker Select On, it will appear “+” marker on center of screen. 3-2-2-2. Aspect Marker Display the different aspect of the displayed image . [OFF], [16:9], [1.85:1], [2.35:1], [4:3], [3:2], [1.3X], [2.0X], [2.0X MAG]. 3-2-2-3. Safety Marker Use this setting to set off the safety marker or choose the one of the safety markers: [95%], [93%], [90%], [88%], [85%], [80%].
  • Page 13 3-2-3、Function SDI Mode HDMI Mode ITEMS OPTIONS Scan Zoom, Aspect, Pixel TO Pixel (Options can be adjusted only under scan mode.) Aspect Full, 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 2.0X, 2.0X MAG Underscan OFF, ON H/V Delay OFF, H, V, H/V Check Field OFF, Red, Green, Blue Zoom...
  • Page 14 which avoids loss of sharpness due to scaling artifacts and normally avoids incorrect aspect ratio due to stretching.  Zoom Can see the enlarged image by 10%~90% ratios. To select the “zoom” under Scan, choose the times under Zoom option which underneath the Check Field option.
  • Page 15 3-2-4. Waveform ITEMS OPTIONS Waveform OFF, Multi, Y, YCbCr, RGB, RGB Full Waveform Trans. OFF, 25%, 50% Peaking OFF, ON Peaking Color Red, Green, Blue, White 0 – 100 Peaking Level False Color OFF, ON Exposure OFF, ON 0 – 100 Exposure Level Histogram Y, RGB, Color...
  • Page 16 RGB Full YCbCr 3-2-4-2. Waveform Trans Use this setting to choose the intensity of the Waveform Trans: -[Off] : The background of waveform is shown at black. -[25%]:The background of waveform is shown at 25% intensity. -[50%]:The background of waveform is shown at 50% intensity. 3-2-4-3.
  • Page 17 3-2-4-7. Exposure&Exposure Level The exposure feature helps the user achieve optimum exposure by displaying diagonal lines over areas of the image that exceed the setting exposure lever. The exposure lever can be set to 0~100. 3-2-4-9. Histogram The histogram makes users view visually the exposure of whole and each RGM channels.
  • Page 18 hours:minutes:seconds:frames. It’s very useful for identifying specific frame in film and video production. Note: Time code is only available under SDI mode. 3-2-5. AUDIO HDMI Mode SDI Mode 3-2-5-1. Volume To adjust the volume for the built in speaker and earphone jack audio signal. 3-2-5-2.
  • Page 19 the earphone: [Ch1&Ch2], [Ch3&Ch4], [Ch5&Ch6], [Ch7&Ch8], [Ch9&Ch10],[Ch11&Ch12], [Ch13&Ch14], [Ch15&Ch16]. Note: Only available under SDI mode. 3-2-6. SYSTEM 3-2-6-1. Language Switch between English, Chinese. 3-2-6-2. HDMI/SDI Convert HDMI/SDI cross conversion function can realize signal transmits from SDI input to HDMI output and from HDMI input to SDI output. Use this setting to activate or deactivate the convert function.
  • Page 20 Use this setting to activate or deactivate the Image Flip function. It has three modes to be chose: [H], [V], [H/V]. 3-2-6-6. Fan Use this setting to choose the strength of fan: [Low], [High]. 3-2-6-7. Color Calibration If the device needs to be calibrated color, please operate as following: ...

  • Page 21: Accessories

    4. ACCESSORIES Standard: Folding sun shade cover 1 piece HDMI A/C cable1 piece 1piece Shoe mount 1 piece VESA battery plate 1 piece Battery plate( F970, LP-E6) 2 piece Battery Plate bracket 1 piece 12V DC adapter 1 piece Manual 1 copy Optional: 1.Anton Bauer mount...

  • Page 22: Parameters

    5. PARAMETERS 7” Panel Aspect Ratio 16:10 Physical Resolution 1920×1200 (324ppi) Brightness 500 cd/㎡ Contrast 1000: 1 Viewing Angle 170° / 170° (H/V) Input Voltage DC 7-24V Input Signal 3G-SDI, HDMI, USB (3D-LUT load) ≤12W Power Consumption Operating Temperature -20℃~60℃ Storage Temperature -30℃~70℃...
