Shop fox D2056 Instruction Sheet

Model D2056
Deluxe Tool Table
Instruction Sheet
Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz

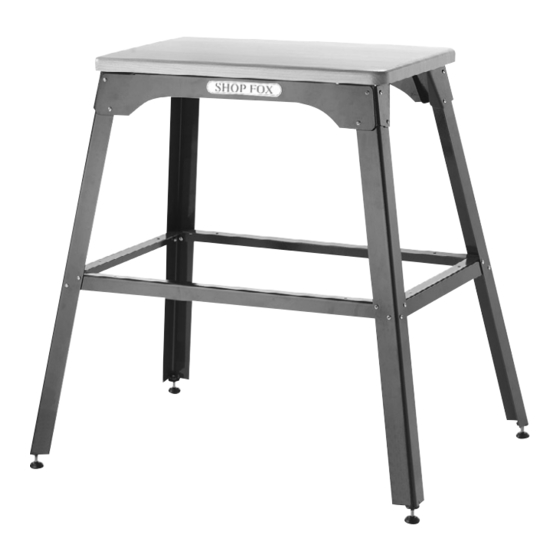

The Model D2056 Shop Fox Deluxe Tool Table is designed to give you a solid, stable work surface. This
table has a 700 lb. capacity and yet it is light enough to be portable. The flared steel legs and cross
bracing top and bottom provide a solid foundation for the 13" x 23" x 1" butcher block style work surface.
Adjustable rubber feet assure a firm grip even when the floor surface may not be level. The table top is
30 ⁄ " high, providing a comfortable working height for a variety of benchtop machinery.
1
2

INVENTORY

PART # DESCRIPTION
XD2056001 TABLE TOP
XD2056002 TABLE LEG
XD2056003 CORNER BRACKET
XD2056004 TOP BRACE W/ LOGO
XD2056005 SHORT BRACE
XD2056006 LONG BRACE
XD2056007 ADJUSTABLE FEET
XPHTEK37 TAP SCREW #10 X 3⁄4"
XPTLW02M EXT TOOTH WASHER 5MM
XPN06M HEX NUT M5-.8
XPS08M PHLP HD SCR M5-.8 x 12
Do not use the D2056 Shop Fox
instruction sheet, and have completed the entire assembly procedure. Serious personal injury may
occur.
Tools Required: Drill,
1. Begin by loosely assembling the table legs and braces. On a table or the floor lay out two legs, the
longer lower brace, the upper brace (with Shop Fox® logo) and two corner brackets (refer to the
photo above for positioning). Using the shorter bolts (with nuts and star washers), attach the long
brace to the inside of the legs. Next attach the corner brackets to the outside edge of the legs.
Use the short bolts to attach one side of the bracket to the outer corner of the leg. Use the longer
bolts to attach the upper brace to the front edge of the corner bracket. Only hand tighten all the
bolts and nuts for now.
2. Now take these two leg assemblies and assemble the two short braces to the inside of each leg
using the pre-punched holes. Hand tighten these bolts only.
COPYRIGHT © SEPTEMBER, 1999 BY WOODSTOCK INTERNATIONAL, INC. REVISED APRIL, 2010 (TR)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#2121HV
Deluxe Tool Table until you have fully read and understood this
®

ASSEMBLY INSTRUCTIONS

⁄ '' drill bit, Phillips® screwdriver, 8mm or
1
8
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
REF
1
4
4
2
2
2
4
20
32
32
32
⁄ " open end wrench and a pencil.
5
16
Printed in China
