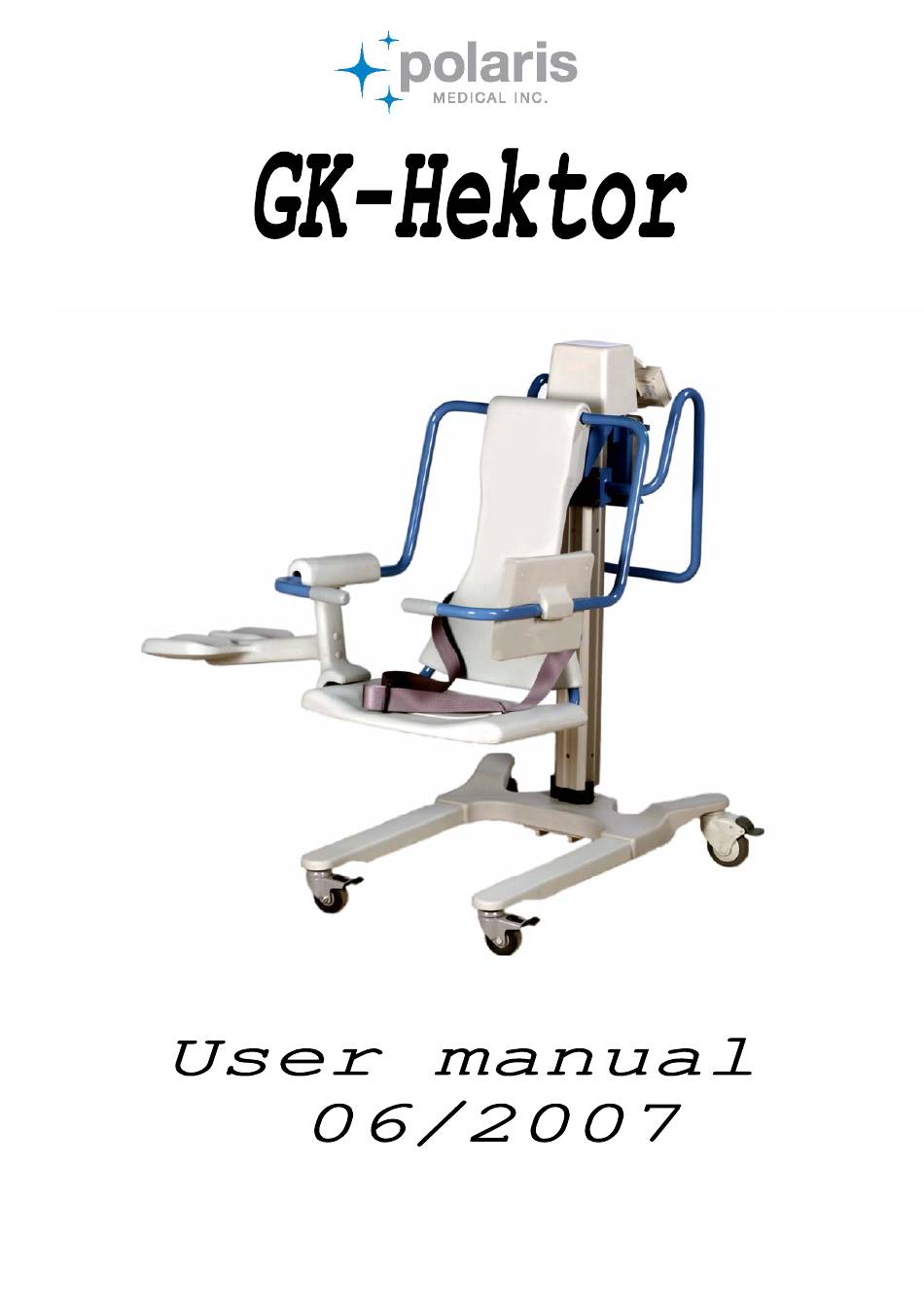

Summary of Contents for Polaris GK-Hektor
-
Page 3: Table Of Contents
Contents ■ Contents Contents Components User manual Transfer from bed Transfer to bed Bathing procedure Cleaning Description of the function Safety instructions Service Technical data... -
Page 4: Components
Components ■ Components Pedicure equipment Safety belt Backrest small Push bar Console and battery pack Scale Steerable roller with brake Steerable roller with tracking device... - Page 5 Components Hand controller • with Up/Down— function Emergency off • button Emergency lower- • ing button Battery pack •...
-
Page 6: User Manual
User manual ■ User Manual Transfer from bed By lowering the seat onto the upper edge of the mattress it is possible to roll the patient onto the lifter. Attach the safety belt to the brackets provided Lower the lifter to the upper edge of the mattress Apply the locking device to the wheels Roll the patient onto the seat Place the patient on the seat... -
Page 7: Bathing Procedure
User manual Bathing procedure The patient remains on the seat during entire bathing procedure. Raise the seat to a comfortable working height and traverse it into position above the bath-tub Apply the locking device to the wheels Raise the bath-tub to working height Lower the lifter into the bath-tub Open the safety belt Carry out the bathing procedure... -
Page 8: Description Of The Function
Description of the function ■ Description of the function The energy your lifter needs for raising and lowering the patient is provided by a rechargeable battery. The yellow LED at the head end of the lifter enables you to monitor the state of charge of the battery. -
Page 9: Safety Instructions
Safety instructions ■ Safety instructions: Please make sure that..the lifter is always operated by trained personnel who fol- low the instruction given in the Operating Manual..the lifter is cleaned thoroughly after every use. It is recommended that the lifter is examined for visible damage at regular intervals (regardless of how often it is used). -
Page 10: Service
Service ■ Service Lifter cannot be moved upwards or downwards: Emergency off button is engaged. ► Unlock by turning the button in a clockwise direction. Battery discharged – yellow LED lights. ► Charge the battery. Battery box not connected to plug. ►... -
Page 11: Technical Data
Technical data ■ Technical data For the Patient lifter — seat type “Hektor” - Lifting Power 1500N - Own weight 650N - Lifting height 630mm - Lifting speed 20mm/sec. - Electrical power lead accumulator, gas-tight 12V, 7.2Ah Battery fuse 20Atr Overload protection at 14A Loading time 12 hours - „On“...
