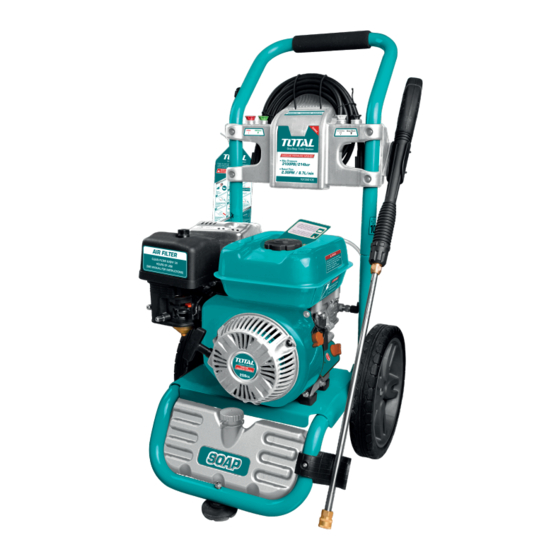

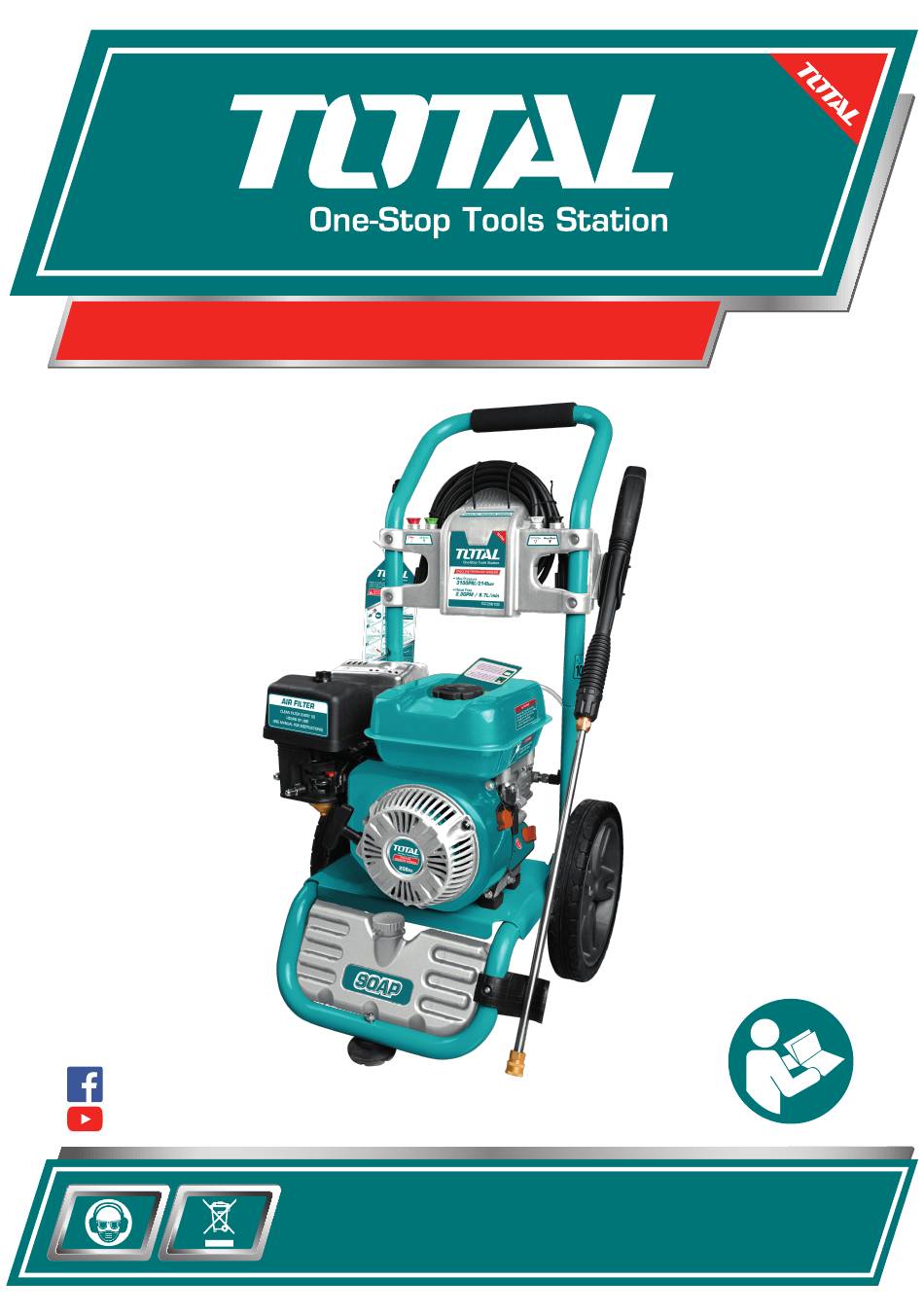

- Page 1 GASOLINE PRESSURE WASHER TGT250105 totaltoolsworld TOTAL TOOLS WORLD 208cc 6.0HP...
-
Page 2: Pressure Washer Features
L - No Flat Foam Filled Tires F - Handle M - High Pressure Hose Outlet G - Spray Gun N - Water Inlet TGT250105 • Max Output: 6.0HP • Starting System: Recoil • Max. Pressure: 214Bar(3100PSI) • Engine Speed: 3600/min •... - Page 3 ASSEMBLY Attaching Foot Assembly (See fig 1) • Parts needed - 1 foot, 1 M8 lock nuts. • Raise or tilt pressure washer so you can line up foot with the hole located at the centre of the frame. • Align the rubber foot with the hole in the frame where the foot is to be located.
- Page 4 ASSEMBLY Attaching the Spray Gun (See fig 5 & 6) • Screw the spray wand and the trigger handle together until they are secure. • nut on by turning clockwise until it is hand tight. FIG 5 FIG 6...
- Page 5 ASSEMBLY Adding / Checking Engine Oil (See fig 7) • Place pressure washer on a level surface. • • Carefully add between 520 ml (17.6 oz) of 4-Cycle engine oil (SAE10W30) to empty reservoir until oil reaches • Be sure to replace both dipsticks before attempting to start the engine. •...
- Page 6 ASSEMBLY Connecting Garden Hose to Pressure Washer (See fig 9) • • Inspect inlet screen and remove any debris. • Connect hose to water inlet and tighten by hand. There must be a minimum of 10 feet of unrestricted hose between pressure washer and faucet or shut off valve.
-
Page 7: Pre-Operation Check List
OPERATION Pre-Operation Check List • Read and understand this operator manual in its entirety before operating pressure washer. • Check oil level and add oil to the proper level if low. • Check fuel level and add fuel if needed. •... - Page 8 OPERATION Pull cord recoils rapidly and pulls arm towards engine faster than you can let go which WARNING! could result in injury. • Always relieve pressure from spray gun before pulling starter cord, including every failed attempt to start engine. •...
-
Page 9: Applying Detergent
OPERATION • For stripping, spot cleaning, blasting, and hard to reach areas use the 15° spray tip. This option is for removing paint, rust, mildew, marine growth off boats, or grease stains. This option can be used for reaching second story surfaces, or for the removal of paint, rust, oil stains, tar, gum, and other stubborn substances. -
Page 10: Pre-Operation Steps
MAINTENANCE Regular maintenance will extend the life of this pressure washer and improve its performance. The warranty does not cover items that result from operator negligence, misuse, or abuse. To receive full value from the warranty, operator must maintain the pressure washer as instructed in this manual, including proper storage. Before inspecting or servicing this machine, make sure the engine is off and no parts are WARNING! moving. -
Page 11: Changing Engine Oil
MAINTENANCE Changing Engine Oil Engine oil will drain better if the engine is still warm, but not hot. • Shut off engine. • Clean the area around the oil fill cap/dipstick to keep out debris then remove oil fill cap/dipstick. •... -
Page 12: Checking Spark Plug
MAINTENANCE Checking Spark Plug • Disconnect the spark plug wire from the spark plug. • Before removing the spark plug, clean the area around its base to prevent debris from entering the engine. • Clean carbon deposits off the electrode with a wire brush. •... -
Page 13: Troubleshooting
TROUBLE SHOOTING PROBLEM CAUSE SOLUTION Engine does not start 1. Out of fuel 1. Fill fuel tank 2. Engine oil low 2. Add engine oil 3. Spark plug wire disconnected 3. Connect spark plug wire from spark plug 4. Replace spark plug 4. - Page 14 DIAGRAMS...
- Page 15 TGT250105 Exploded view...
- Page 16 TGT250105 Spare part list Part Description Part Description Engine HANDLE, FRAME Soap Tank Cap Foam Grip Soap Tank Buckle lock FRAME BASE rope LOCK NUT M8 Panel Foot, Frame Isolating Siphon Tube boltM6X45 WATER PUMP SEAL RING BOLT M8X20 Upper Gun Hook...
- Page 17 GASOLINE PRESSURE WASHER www.totaltools.cn TOTAL TOOLS CO., PTE. LTD. MADE IN CHINA T0719.V02 208cc 6.0HP...
