Summary of Contents for nanoskin EVERGREEN EG-1006
- Page 1 Vacuum Gun EG - 1006 Instruction Manual...

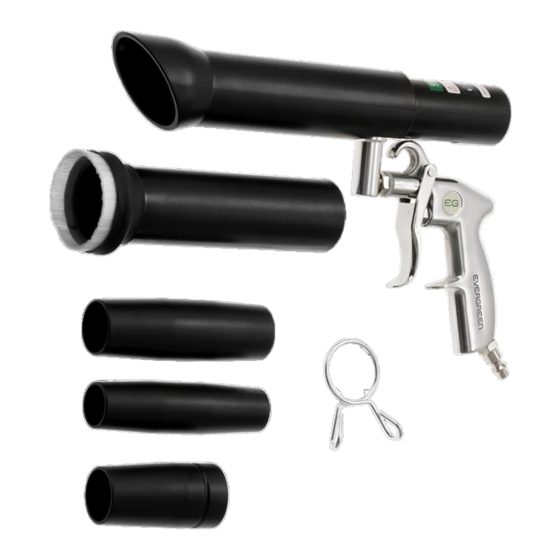

- Page 2 EG-1006 Vacuum Gun Q ty Q ty Tool Tool Description Description Part No . Part No . EG1006001 Cone 1 EG1006002 Nozzle EG1006003 Weighted Tube Ass y ' EG1006004 Screw Adapter 11 EG1006005 Bracket EG1006006 Gasket EG1006007 Screw EG1006008 Switch EG1006009 Nipple EG1006010...
- Page 3 Vacuum Gun Instruction Manual EG-1006 The Dust Collector Vacuum Gun is a blow & suction gun when connecting with wet/dry vac and air compressor. A reversal “Tornado-like” air flow breaks down stubborn dirt, then the vacuum sucks at the same time. The Dust Collector Vacuum Gun significantly reduces air dust particle flows during operation and increases vacuum efficiency &...
- Page 4 DIRECTION FOR USE (PREPARATION) Connection of Vac Hose If the neck finish of vac hose and vacuum gun hose is different, please use the joint adaptor to connect them together. (See figure below) Situation 1: The connecting hose is too small Vacuum Hose Joint Adaptor Situation 2: The connecting hose is too big...
- Page 5 DIRECTION FOR USE (PREPARATION) Connection of Air Compressed Air Please turn off the air compressor while connecting the air compressor and air plug. Connect the air plug with air coupler firmly. Warning Please connect the air plug and air coupler firmly. Failure to connect properly might cause the air leaking when in operation Please turn off the air compressor while disconnecting Warning...
-
Page 6: Direction For Use
DIRECTION FOR USE First, Vacuum the dirt without using the tool trigger. To achieve the best result, use the vacuum function ONLY to remove loose dirt and dust first, next pull the trigger to break down stubborn dirt and contaminants Second, please hold the tool securely when in operation. -
Page 7: Maintenance Methods
MAINTENANCE METHODS First, Detach the cone, clean the cone and joint adaptor. Standard Cone (or cone with brush) Second, put the internal cone into water tank,release the pressure by pulling trigger of the tool.The trapped dirt will be cleaned. Stop the cleaning process once the dirt and contaminents are released. -
Page 8: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read and observe the safety notes in the Instructions manual and the safety labels located on the device. 1. The air pressure must be set below 115 Psi. 2. Use only as described in this manual. Use only the manufacturer’s recommended attachments. -
Page 9: Safety And Operation Rules
Notice Provides information on particular characteristics and how to operate properly. SPECIFICATION NANOSKIN CAR CARE PRODUCTS Model No. EG-1006 Division of Total Import Solutions, Inc. La Habra, CA 90631 Dimension (mm)
