30" ELECTRIC RANGE INSTALLATION INSTRUCTIONS
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED TECHNICIAN.
IMPORTANT: SAVE FOR THE LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

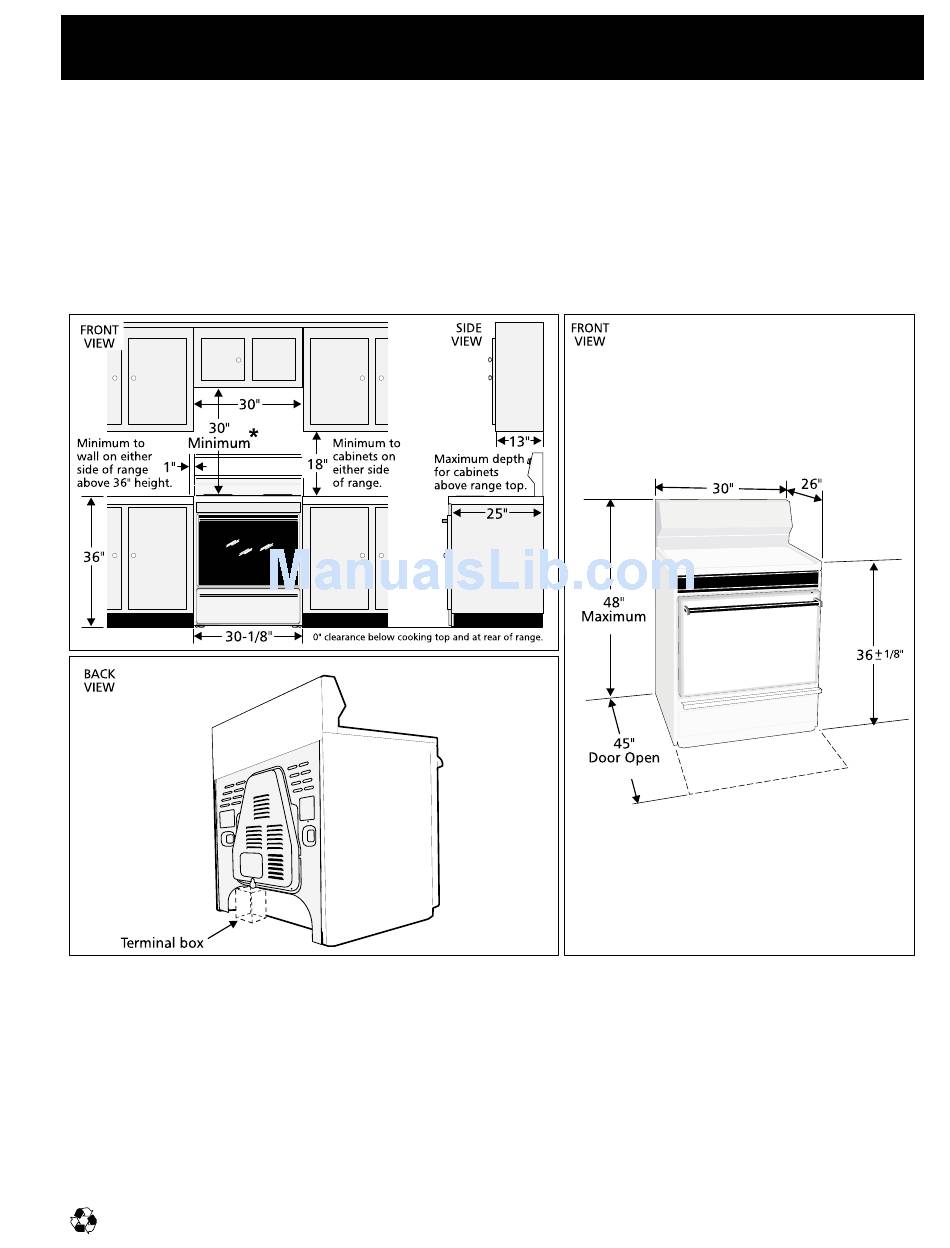

1. Clearances and Dimensions
a. Provide adequate clearances between the range and adjacent combustible surfaces.
b. Location—Check location where the range will be installed. Check for proper electrical supply and the stability of
floor.
c.
Dimensions that are shown must be used. Given dimensions provide minimum clearance. Contact surface
must be solid and level.
* 30" MINIMUM CLEARANCE BETWEEN THE TOP OF THE COOKING SURFACE AND THE BOTTOM OF AN UNPROTECTED
WOOD OR METAL CABINET; OR 24" MINIMUM WHEN BOTTOM OF WOOD OR METAL CABINET IS PROTECTED BY NOT
LESS THAN 1/4" FLAME RETARDANT MILLBOARD COVERED WITH NOT LESS THAN NO. 28 MSG SHEET STEEL, 0.015"
STAINLESS STEEL, 0.024" ALUMINUM OR 0.020" COPPER. 0" CLEARANCE IS THE MINIMUM FOR THE REAR OF THE
RANGE. FOLLOW ALL DIMENSION REQUIREMENTS PROVIDED ABOVE TO PREVENT PROPERTY DAMAGE, POTENTIAL FIRE
HAZARD, AND INCORRECT COUNTERTOP AND CABINET CUTS.
TO ELIMINATE THE RISK OF BURNS OR FIRE BY REACHING OVER HEATED SURFACE UNITS, CABINET STORAGE
SPACE LOCATED ABOVE THE SURFACE UNITS SHOULD BE AVOIDED. IF CABINET STORAGE IS TO BE PROVIDED,
THE RISK CAN BE REDUCED BY INSTALLING A RANGE HOOD THAT PROJECTS HORIZONTALLY A MINIMUM OF 5"
BEYOND THE BOTTOM OF THE CABINETS.
Recycled paper
(For 3 Wire, 60 Hz. Systems)
Printed in Canada
1
P/N 318154300 (9808) Rev. D

Advertisement

Table of Contents
loading

Summary of Contents for Frigidaire FEFD67CHSE

  • Page 1 1. Clearances and Dimensions a. Provide adequate clearances between the range and adjacent combustible surfaces. b. Location—Check location where the range will be installed. Check for proper electrical supply and the stability of floor. Dimensions that are shown must be used. Given dimensions provide minimum clearance. Contact surface must be solid and level.
  • Page 2 A 1-3/8" knock-out hole is provided at the bottom of the range terminal box for connecting the power supply cord kit to the range terminal block (see Figures 2 and 3). 5. Permanent Hard Wiring (3 or 4 Wires) Insert the residence 3-wire power supply cable through the 1-1/8"...
  • Page 3: Grounding Instructions

    A ground link is installed on this range which connects the center terminal of the terminal block (neutral) to the chassis. The ground link is connected to the range by the center ground screw. The ground link must not be removed unless national or local codes do not permit use of the ground link.
  • Page 4: Leveling The Range

    9. Anti-Tip Bracket Installation Instructions IMPORTANT SAFETY WARNING To reduce the risk of tipping of the range, the range must be secured to the floor by properly installed anti-tip brackets and screws packed with the range. Those parts are located in a plastic bag in the oven.
  • Page 5: Espacios Y Dimensiones

    INSTRUCCIONES PARA INSTALACION DE LA ESTUFA ELECTRICA DE 30” LA INSTALACION Y EL SERVICIO DEBEN SER PROPORCIONADOS POR UN TECNICO CALIFICADO. IMPORTANTE: GUARDE ESTAS INSTRUCCIONES PARA SU USO POR EL INSPECTOR ELECTRICO LOCAL. LEA Y GUARDE ESTAS INSTRUCCIONES PARA FUTURA 1.
  • Page 6 INSTRUCCIONES PARA INSTALACION DE LA ESTUFA ELECTRICA DE 30” 2. Instale los soportes antivuelco. instrucciones en la página 4.) 3. Placa de Identificación Esta placa de identificación está localizada sobre el marco y se puede ver cuando la gaveta está abierta. Consulte la placa de identificación para obtener la siguiente información: A.Números de modelo, partida y serie de la estufa.
  • Page 7 INSTRUCCIONES PARA INSTALACION DE LA ESTUFA ELECTRICA DE 30” Desde la estufa Línea 2 Terminal plateada Línea 1 Unión de puesta a tierra PARA FUSIBLE, Tornillo de puesta DESCONECTAR LA a tierra INSTRUMENTO Abrazadera de APROBADO DE prevención de ALAMBRADO PARA tensión EL CORDON DE SUMINISTRO DE...
  • Page 8 INSTRUCCIONES PARA INSTALACION DE LA ESTUFA ELECTRICA DE 30” (Para sistemas de 3 alambres, 60 Hz) 8. Cómo nivelar la estufa Coloque un nivel sobre una de la parrillas del horno. Ajuste las patas niveladoras que están bajo las esquinas inferiores de la estufa hasta que ésta esté...
