Summary of Contents for G-FITNESS TZ-7016

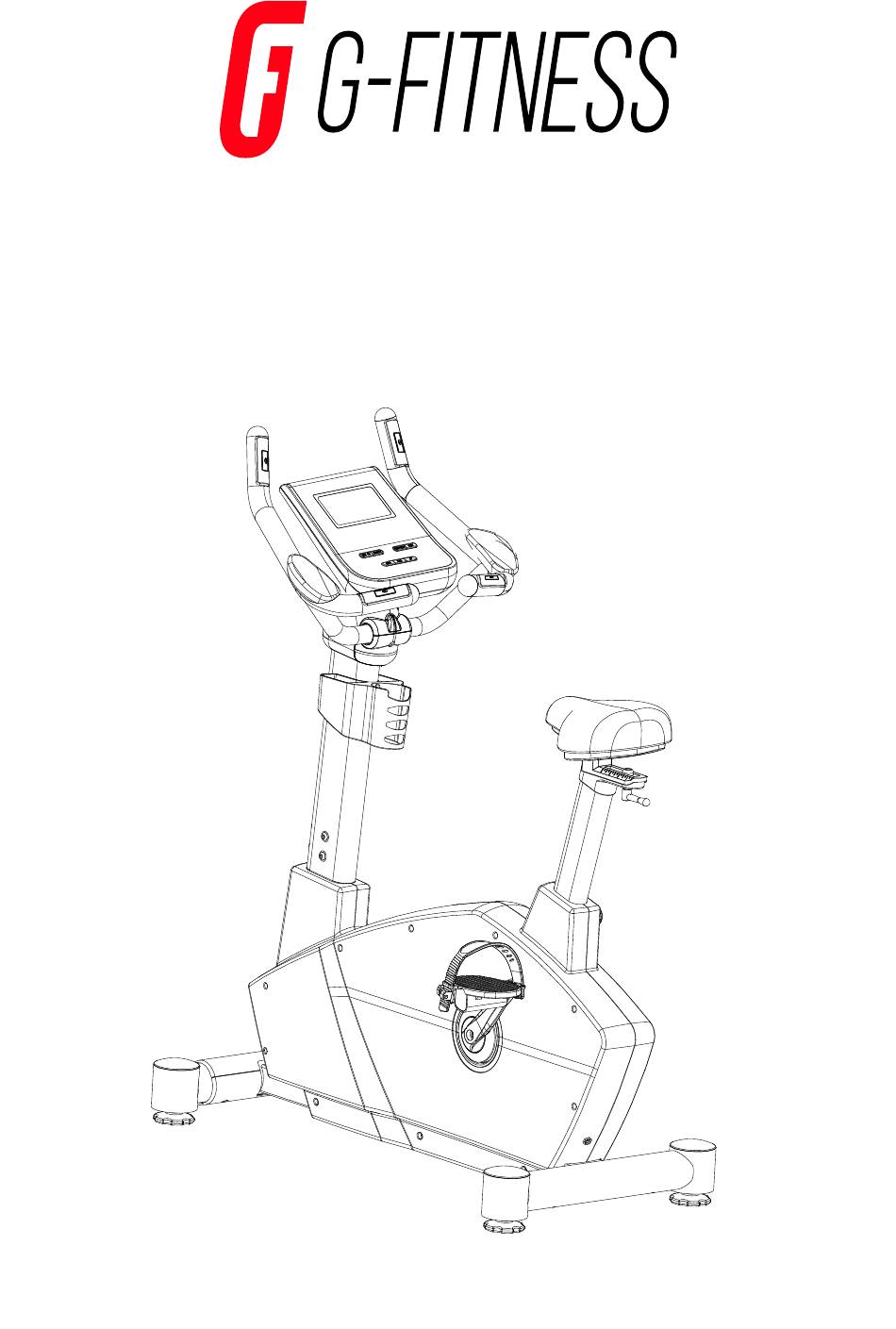

  • Page 1 TZ-7016...
  • Page 2 Owner’s Manual Assembly Your bike will require a small amount of assembly. You will find everything you need included in the box. Get to know your bike Take time to get to know your new bike – it will help you...

  • Page 3: Gather Your Tools

    Assembly PRECAUTIONS WARNING: This bicycle has been designed and constructed to provide maximum safety. Nevertheless, certain precautions should be taken when using exercise equipment. Read the whole manual before assembling and using the bicycle. The following safety precautions should also be observed: 1.

  • Page 4: Hardware Chart

    Hardware chart E B 1 0 0 0 Screw M3*30L(3) (STEP 6) Screwdriver (STEP 4) Allen Bolt M7*P1.0*30L (2) Allen Key-6mm (1) Spri ng Washer *2T(2) SCREWS M5*P0.8*10L(3) wrench-13/15mm (STEP 4) (STEP 6) Assembly part list DESCRIPTION BOM NUMBRE COMPUTER PE-SR66000010706 ADJUSTABLE COMPUTER BRACKET PH-T-PB-326-1000...
  • Page 5 HAND PULSE SET HOLDER PE-P-PB3428-1000 HAND PULSE WIRE (WITHOUT BODY FAT) PE-B23-1060-1002 SCREW (M3*P0.5*12L) PD-SGM20312-1041 HAND PULSE SENSOR HOLDER UPPER (WITHOUT BODYFAT) PL-T-PB-446-1080 HAND PULSE SENSOR HOLDER LOWER PL-T-PB-447-1080 HAND PULSE SENSOR HOLDER UPPER (WITH BODY FAT) PL-T-PB-445-1080 HAND PULSE WIRE WITH BODY FAT PE-B06-0850-1002 HANDLE BAR POST AAEB1000FA039000...
  • Page 6 part list DESCRIPTION BOM NUMBRE SEAT POST ASSEMBLING (40*80*2T) AAEB1000FA049000 F-LR PEDAL(L/R) PS-T-PB-433-1080 GEM FLYWHEEL (φ240*45W(11kg)) PH-FDX24045-1002 C TYPE RIGN (φ17) PD-KCO11700-1002 COIL FOR GENERATOR (900L) PH-T-PB-417-1000 BEARING (6203RS) PH-BA2-6203-1005 BEARING (6203RS) PH-BA2-6203-1005 ONE WAY BEARING PH-P-PB3485-1000 PROTECT COVER (φ78*φ35*12.5W) PH-P-PB2943-1100 PULLEY WITH AXLE (J8*φ30) PH-P-PB3254-1000...

  • Page 7: Step 1 - Install Pedals

    exploration drawing STEP 1 – Install Pedals...
  • Page 8 Insert the Right Pedal (F-R) into the right arm of the Crank assembly (D-14R) and finger tighten in a clockwise direction until the thread is fully inserted in the crank. Repeat for the Left Pedal (F-L) finger tighten in an anticlockwise direction to the crank assembly ( D-14L).
  • Page 9 and two ∮7*2t spring washer (K-1) STEP 4 Step 5 – Install Computer Take off back cover of computer and four M5 screw apart from computer. Screw computer (A) to adjustable computer bracket with four M5 screw (A-2). Make four cables through the computer back cover. Connect four computer cables with computer. Screw computer back cover to computer with two screws.

  • Page 10: Computer Instruction

    cross screw (C-3). Screw upper protect cover (C-5) to handlebar post by one 5M cross screw (C-3) Well done ! Your bike is now ready for use. Please go to the computer operation section in this manual for instructions on how to operate your console. COMPUTER INSTRUCTION Before operating computer, you must riding the machine for at least 5 minutes to save the...
  • Page 11 power Of operating the computer Power on, LCD will display segment for 2 seconds with long beep sound. (drawing1), and display wheel diameter (drawing2) then personal data setting mode. During personal data setting, user may keep on peddling in above 15RPM. After 30 seconds without RPM signal input, backlight will off ; after 90 seconds without RPM signal input, computer will enter into sleep mode automatically.
  • Page 12 program profile accordingly. (drawing 9). drawing 9 4-2 LOAD 1 (preset value) is glittering after training program selected, you may turn UP/DOWN button to select level from 1 to 8 and MODE button for confirmation. (drawing 10) Load level can be adjusted during training. Training in MANUAL mode 5-1 In the MANUAL mode, you may turn UP/DOWN button to select load level from 1 to 16, the preset level is 1.
  • Page 13 profile will be saved for unfinished segment. Training in H.R.C. mode： AGE 25 is flashing after enter H.R.C. mode, you may set your age by turning UP/DOWN/MODE button. The monitor will calculate preset heart rate value automatically according to your age setting. Screen will show heart rate percentage 55%, 75%, 90% and TARGET. You may select heart rate percentage by UP/DOWN/MODE button for training.
  • Page 14 FUNCTIONS : TIME : Count up - No preset target, Time will count up from 00:00 to maximum 99:59 with each increment is 1 second. Count down - If training with preset Time, Time will count down from preset to 00:00.Each preset Increment or decrement is 1 minute between 1:00 to 99:00.
