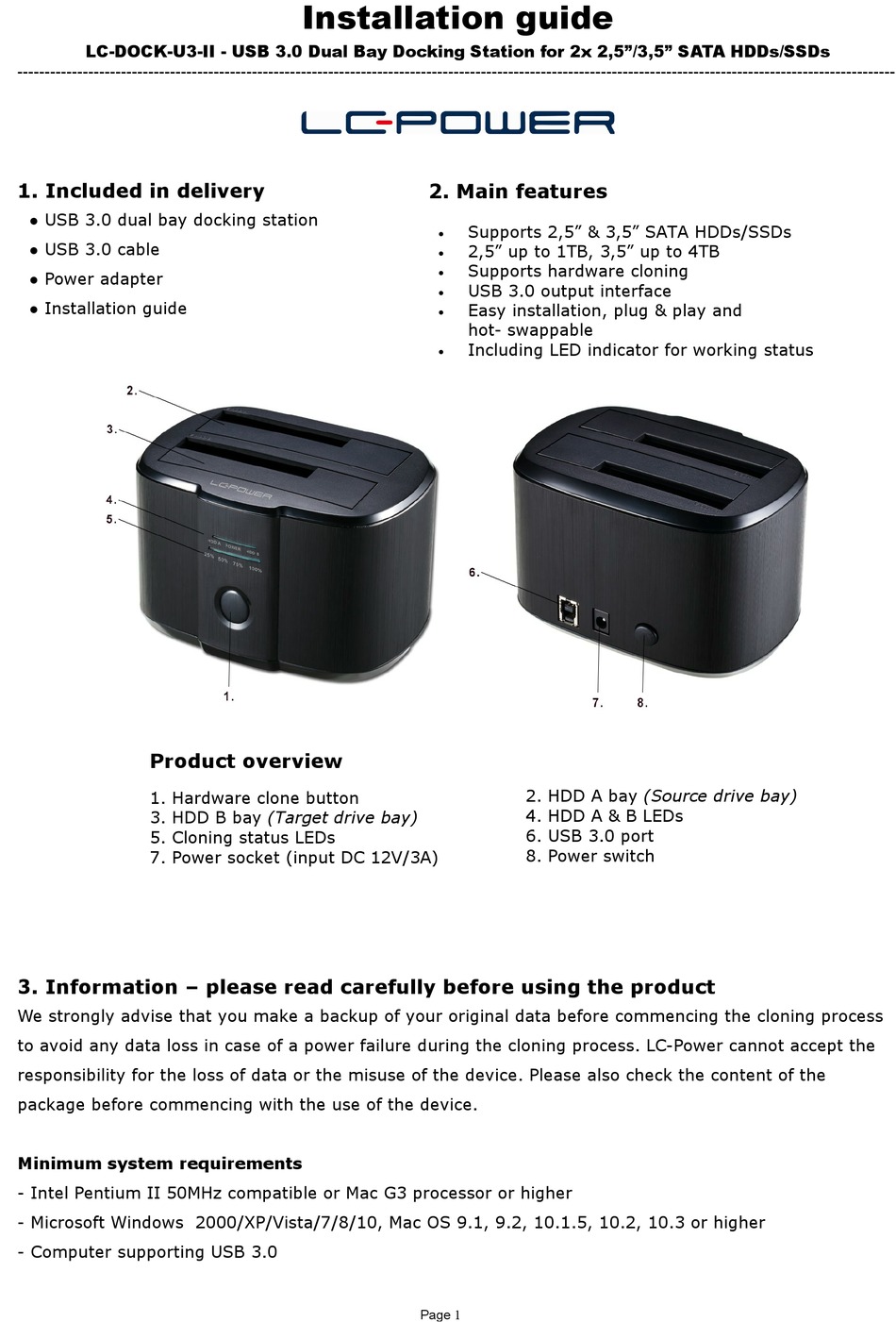

LC-POWER LC-DOCK-U3-II Installation Manual

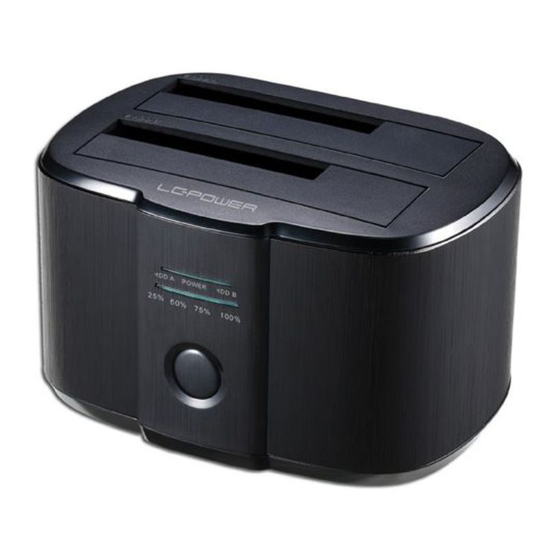

LC-DOCK-U3-II - USB 3.0 Dual Bay Docking Station for 2x 2,5"/3,5" SATA HDDs/SSDs
-----------------------------------------------------------------------------------------------------------------------------------------------------------------

1. Included in delivery

● USB 3.0 dual bay docking station
● USB 3.0 cable
● Power adapter
● Installation guide

Product overview

1. Hardware clone button
3. HDD B bay (Target drive bay)
5. Cloning status LEDs
7. Power socket (input DC 12V/3A)
3. Information – please read carefully before using the product
We strongly advise that you make a backup of your original data before commencing the cloning process
to avoid any data loss in case of a power failure during the cloning process. LC-Power cannot accept the
responsibility for the loss of data or the misuse of the device. Please also check the content of the
package before commencing with the use of the device.

Minimum system requirements

- Intel Pentium II 50MHz compatible or Mac G3 processor or higher
- Microsoft Windows 2000/XP/Vista/7/8/10, Mac OS 9.1, 9.2, 10.1.5, 10.2, 10.3 or higher
- Computer supporting USB 3.0
Installation guide

2. Main features

Supports 2,5" & 3,5" SATA HDDs/SSDs

2,5" up to 1TB, 3,5" up to 4TB

Supports hardware cloning

USB 3.0 output interface

Easy installation, plug & play and

hot- swappable
Including LED indicator for working status

Page 1
2. HDD A bay (Source drive bay)
4. HDD A & B LEDs
6. USB 3.0 port
8. Power switch
