Standard Stud Mount Procedure
Standard Stud Mount Procedure
This mounting technique requires smooth, flat contact surfaces for proper operation and is recommended for
permanent and/or secure installations. Stud mounting is also recommended when testing at high frequencies.
Note: DO NOT attempt mounting on curved, rough or uneven surfaces, as the potential for misalignment and
limited contact surface may significantly reduce the sensor's upper operating frequency range.

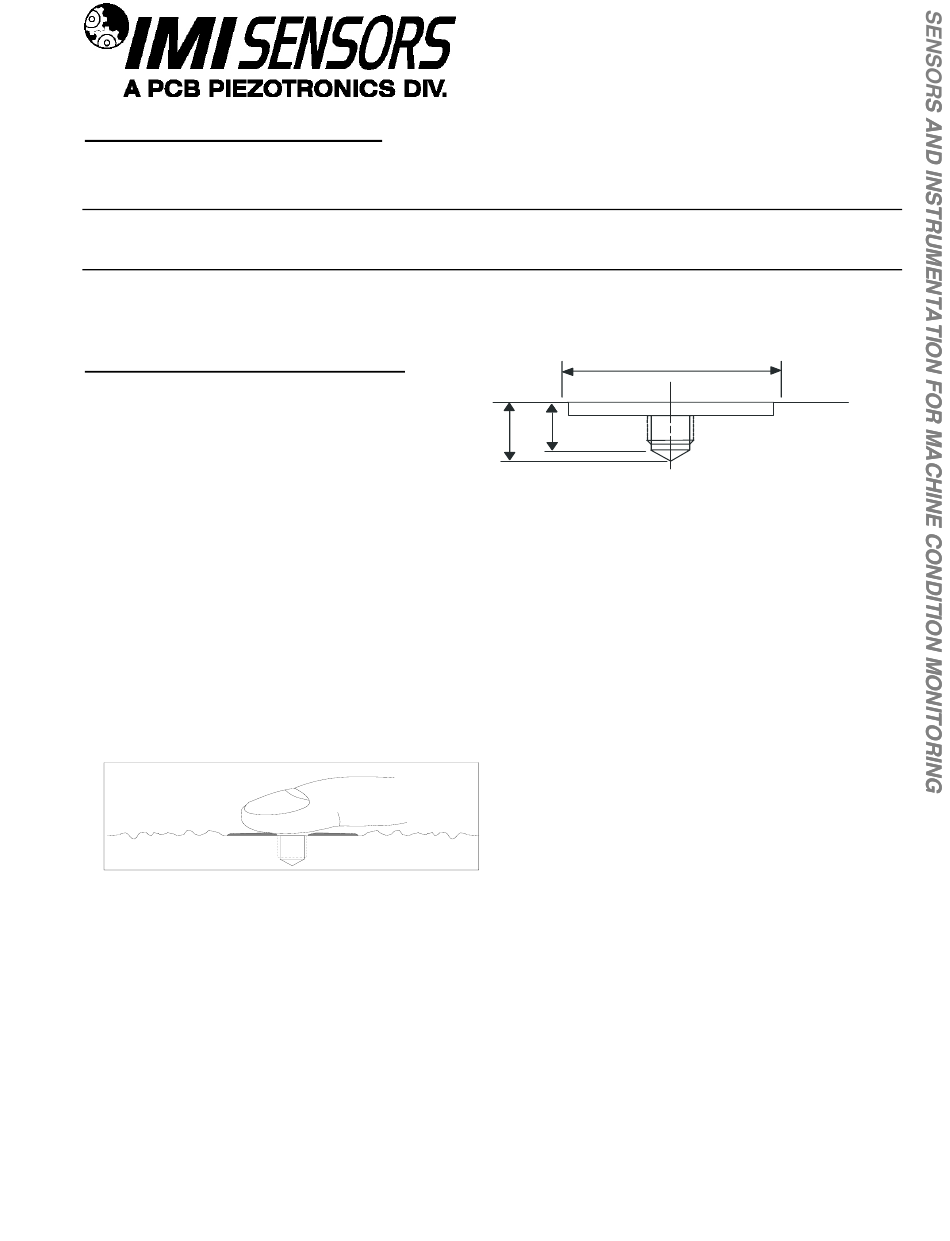

Figure 6 – mounting surface preparation
1/4-28 Stud
1/4-28 Captive Screw
A (in)
0.250
B (in)
0.350
Torque (ft-lb)
2 to 5
STEP 1 First, prepare a smooth, flat mounting surface, and then drill and tap a mounting hole in the center of this
area as shown in Figure 6. A precision-machined mounting surface with a minimum finish of 63 µin [0,00016 mm]
is recommended. (If it is not possible to properly prepare the machine surface, consider using an adhesive
mounting pad as a possible alternative.) Inspect the area, checking that there are no burrs or other foreign
particles interfering with the contact surface.
STEP 2 Wipe clean the mounting surface and spread on a light film of grease, oil or similar coupling fluid prior to
installation.
Figure 7 – mounting surface lubrication
Adding a coupling fluid improves vibration transmissibility by filling small voids in the mounting surface and
increasing the mounting stiffness. For semi-permanent mounting, substitute epoxy or another type of adhesive.
STEP 3 HAND-tighten the sensor/mounting stud to the machine, then secure the sensor with a torque wrench to
the mounting surface by applying the recommended mounting torque (see enclosed specification data sheet for
proper mounting torque). It is important to use a torque wrench during this step. Under-torquing the sensor
may not adequately couple the device; over-torquing may result in stud failure and possibly permanent
damage.
0.250
0.350
B
2 to 5
1 . 1 T im e s
S e n s o r D ia m e t e r
A
PAGE 10
