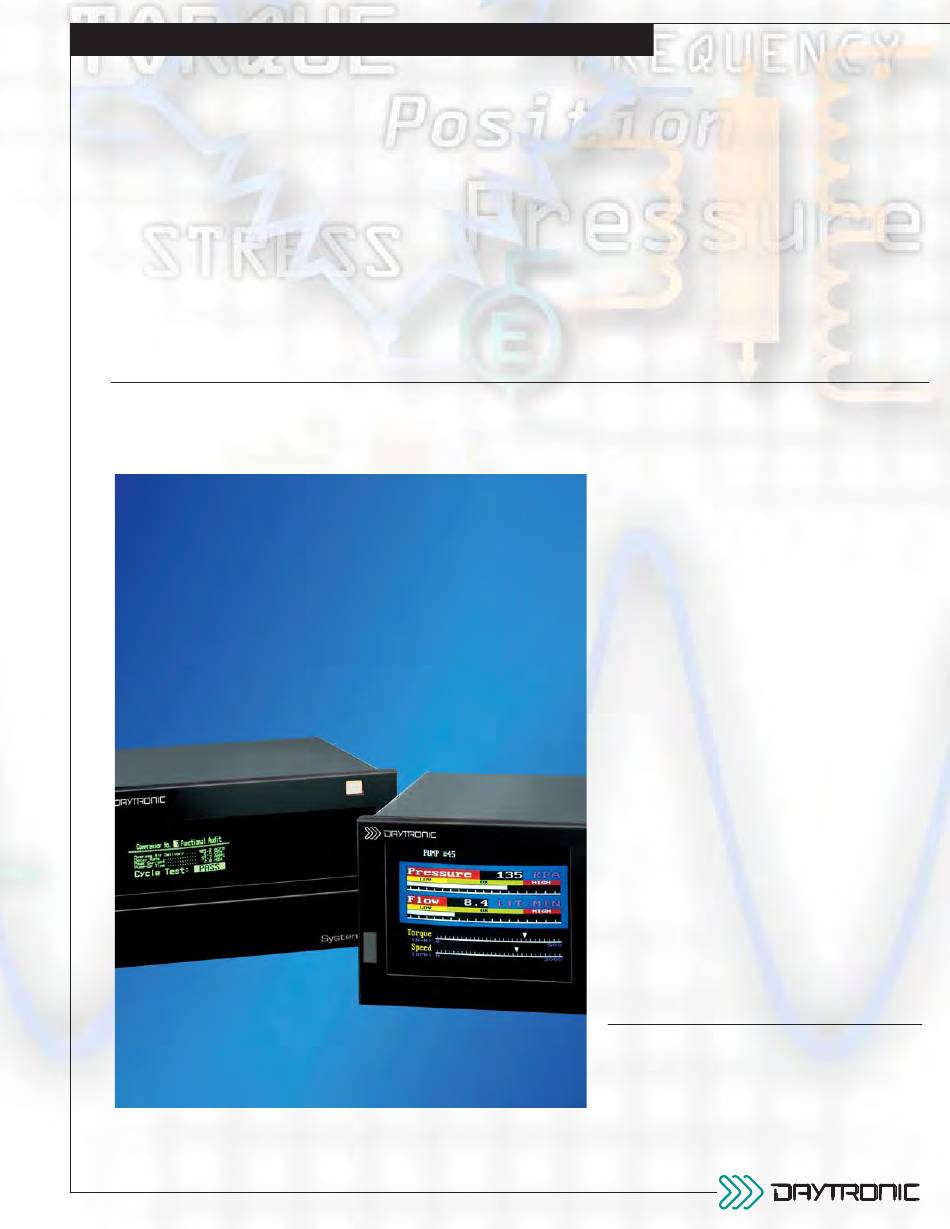

Signal Processing Instrumentation for Measurement & Analysis

Stand Alone

MODULAR FRONT END

Data Acquisition

&Control

YSTEM

User's

Guidebook

Version SB.8

Table of Contents

Need help?

Do you have a question about the System 10 and is the answer not in the manual?

Questions and answers

Summary of Contents for DayTronic System 10

Page 1 Signal Processing Instrumentation for Measurement & Analysis Stand Alone MODULAR FRONT END Data Acquisition &Control YSTEM User’s Guidebook Version SB.8...
Page 2 No part of this document may be reprinted, reproduced, or used in any form or by any electronic, mechanical, or other means, including photocopying and recording, or in any information storage and retrieval system, without permission in writing from Daytronic Corporation. All specifications are subject to change without notice.
Page 3 TOLL-FREE: (800) 668-4745 during normal business hours (Monday through Friday, 8:00 a.m. to 5:00 p.m.). Or you can EMAIL us at sales@daytronic.com To learn more about Daytronic Data Acquisition products and applications, visit our web site at www.daytronic.com Daytronic Corporation 2211 Arbor Blvd.
Page 4: Table Of Contents
15. Setting Data-Transmission Characteristics ........A - 25 16. Communication with External Devices a. Introduction: System 10 Communication Modes ......... A - 26 b. Setup of RS-232-C Communications ..............A - 27 c. Setup of IEEE-488 Communications ..............A - 27 d.
Page 5 ........B - 33 16. Communication with External Devices a. Introduction: System 10 Communication Modes ......... B - 34 b. Setup of “Main” RS-232-C Communications ..........B - 35 c. Setup of “Auxiliary” RS-232-C Communications (10BACI) ....... B - 36 d.
Page 6 ONTENTS 1.C E NTRY OF NEMONIC OMMANDS 1. Introduction ........................1-13 2. Conventions Used in Command Expressions ........1-14 3. Command Entry and Display a. Via Keyboard ......................... 1-15 b. Via Computer Interface ..................... 1-16 4. Interrogating for Setup Values a.
Page 7 ONTENTS 2. Transducer Connections ................10A16-4C.2 3. Setup and/or Operating Considerations a. Setting a 10A16-4C Channel for Four-Wire or Three-Wire RTD Cabling ..............10A16-4C.4 b. Configuration and Calibration ............10A16-4C.4 c. High RTD Resolution with Specially Modified 10A16-4C ..10A16-4C.5 •...
Page 8 ONTENTS 3. Setup and/or Operating Considerations a. Configuration and Calibration ..............10A40.5 Absolute Calibration ..................10A40.5 Calculated Calibration ................. 10A40.6 Two-Point (Deadweight) Calibration ............10A40.6 b. Trigger-Level Adjustment ................10A40.6 • Model 10A41-2C Dual Frequency Input Conditioner Card 1. General Description and Specifications ..........10A41-2C.1 2.
Page 9 ONTENTS • Model 10A61-2 Dual 4-20 mA Conditioner Card 1. General Description and Specifications ..........10A61-2.1 2. Transducer Connections ................10A61-2.2 3. Setup and/or Operating Considerations a. Configuration and Calibration ............... 10A61-2.3 Absolute Calibration ................. 10A61-2.3 Two-Point (Deadweight) Calibration ........... 10A61-2.3 •...
Page 10 1. General Description and Specifications ..........10A73-4.1 2. Gage / Transducer Connections ..............10A73-4.2 a. 1/4-, 1/2-, or Full-Bridge Gage Connections Using a System 10 Bridge Completion Connector ....... 10A73-4.4 b. 1/4-, 1/2-, or Full-Bridge Gage Connections Using the Model 10CJB-4 ..............10A73-4.6 c.
Page 11 ONTENTS 2. Gage / Transducer Connections ............. 10A74-4C.4 a. 1/4-, 1/2-, or Full-Bridge Gage Connections Using a System 10 Bridge Completion Connector ....10A74-4C.5 b. 1/4-, 1/2-, or Full-Bridge Gage Connections Using the Model 10CJB-4 ..............10A74-4C.7 c. Full-Bridge Transducer Connections (Without Bridge Completion) .............
Page 12 ONTENTS d. Configuration and Calibration ..............10A96.5 • Model AA14-4F010 Thermocouple Conditioner Card 1. General Description and Specifications ......... AA14-4F010.1 2. Transducer Connections ..............AA14-4F010.3 3. Setup and/or Operating Considerations a. Selection of “Open TC” Polarity ........... AA14-4F010.4 b. Selection of Analog Output Modes ..........AA14-4F010.6 c.
Page 13 ONTENTS Simulated (Shunt) Calibration ............AA72-2/4.10 4. Optional Bridge Completion: Model 10CJB-2 Dual Bridge Completion Card a. Purpose ....................AA72-2/4.12 b. 10CJB-2 Transducer Connections ..........AA72-2/4.12 c. Calibration Calculated Calibration ................ AA72-2/4.14 Two-Point (Deadweight) Calibration ..........AA72-2/4.14 Simulated (Shunt) Calibration ............AA72-2/4.14 Coarse Zero Offset ................
Page 14 Setting and Transmitting Computer Interrupt: ITR Command 1. Defining an “Interrupt” Character String 2. Initiating the “Interrupt” Transmission c. “Sending” to the Computer or PC-EGU: SND Command 7. Using the Model 10ESRE Serial Range Extender Appendix: Modem Communications with a System 10 DataPAC...
Page 15 ONTENTS 2.C C CRT V OMPLETE IDEO ETUP 1. Setup of Internal CRT a. Setting “BVS” and “VDU” Values: BVS and VDU Commands b. Selecting Video Mode: VID Command c. Setting Screen Refresh Rate: REF Command d. Flagging Out-of-Scan Channels: VSS Command e.
Page 16 ONTENTS j. Exiting Text Editor Mode: Exit Key 6. Recalling the Last Formatted Page: RCL Command 7. Storing a Page Format: SAV Command 8. Editing an Existing Video Page 9. Setting “Sign-On” Page: SOP Command 10. Deleting a Video Page from EEPROM Memory: DEL Command 11.
Page 17 ONTENTS 2.F L IMITS 1. Introduction: A Limit Setup “Getting Started” Procedure 2. Setting Limit Values: LOL and HIL Commands a. Setting Fixed Limit Values b. Setting Variable Limit Values c. Some Uses of Variable Limit Values 1. Continuous Display of Limit Value 2.
Page 18 2.L L : LIN C INEARIZATION OF HANNELS OMMAND 1. System 10 Custom Linearization 2. The LINEARIZE (LIN) Command a. Setting Up a "Real" Linearization Channel b. Setting Up a "Pseudochannel" Linearization Channel 3. Cancelling a Linearization Channel: RST Command 2.M I...
Page 19 ONTENTS 2.N V IDEO NPUTS AND UTPUTS 1. Introduction 2. Standard VGA Input / Output (Models 10KN3, 10KN6, 10KN8A) 3. Model 10KN7 Video Outputs a. Monochrome (RS-170) b. RGB Color (CGA) 2.O O 10CCONB PERATOR ONSOLE ODEL 2.P B ACKUP ROVISIONS 1.
Page 20 ONTENTS e. "Strip-Chart" Depth Interrogation: DPT Command f. Manual Scrolling of "Strip-Chart" Pages in "Zero Left" Mode: Arrow and Home Keys 2.R F RONT ANEL EYPAD PERATIONS 1. Introduction 2. "CLEAR," "ENTER," "ARROWS," and "FUNCTION" Keys a. The "CLEAR" and "ENTER" Keys b.
Page 21 ONTENTS 2. 10ACT01 Configuration a. Setting 10ACT01 Mode: TYP Command b. Setting Range and Resolution: RNG Command c. Setting Input-Amplifier Sensitivity: SEN Command d. "Slaving" of Multiple 10ACT01's c. Model 10ACT01 Operation 1. Incrementing the Count: INC Command 2. Counter/Timer Control a.
Page 22 ONTENTS 3.A.4 A 10A79-4 NALOG APTURE ODEL a. Introduction: 10A79-4 Inputs and Outputs for Analog Peak Capture b. Peak-Capture Setup 1. 10A79-4 Connections a. Connection of Analog Inputs b. Connection of Logic Inputs c. Connection of Analog Outputs 2. Setting Channel Mode 3.
Page 23 ONTENTS 2. Setup of 10AAO-4 Outputs a. Connection of Analog Inputs b. Setting Output Configuration c. Setting Output Gain Values d. Adjusting Output Zero and Span 3.A.8 B UFFER TORAGE OF UTPUTS 10AFIFO ODEL a. Introduction b. Model 10AFIFO Setup 1.
Page 24 ONTENTS 3.B S “B-C ” F PECIAL UNCTIONS 3.B.1 “A ” PAC C TTACHING OMMAND OURCE TO A : ATT, DET, VIA C PECIFIC OMMANDS 3.B.2 L I/O: M 10BIO-16 OGIC AND IGITAL ODEL a. Introduction b. 10BIO-16 Connections c. Setup of Logic I/O Ports 1.
Page 25 ONTENTS d. Setting a "B-Sized" DataPAC Satellite to "Hear" Global Channels Not Dedicated to that Satellite: LCT and RST Commands 6. Setting Up "Global" Logic Bits a. Dedicating Global Bit Groups to DataPAC Satellites and to the Host: SSB Command b.
Page 26 ONTENTS 4. Setting Recorder Depth: DPT 5. Specifying "Store" Conditions: STO Command a. The STORE (STO) Command b. STO Mnemonics 1. Data-Channel Limit Status: ZGT, ZLT, and ZVO 2. Logic State of System Bit: BIT 3. Logic-State Transition of System Bit: BGL and BGH 4.
Page 27 1. Introduction 2. Ensuring 10BACI-488/Central Processor Compatibility: BCP Command 3. Connections 4. Setting System 10 IEEE-488 Bus Address 5. 10BACI-488 Mnemonic Commands (ADD and EOI) 6. "FP" (Floating Point) Commands: FPF and FDM 3.B.5 Supplement No. 4: 10BACI "Floating Point" Option 1.
Page 28 ONTENTS 3.C S “V-C ” F PECIAL UNCTIONS 3.C.1 I “V C ” NSTALLATION OF PTIONAL ARDS a. DataPAC Models 10K3, 10K6, and 10K7 b. DataPAC Models 10K6E and 10K8 3.C.2 E XTENDED IDEO EMORY ITHOUT ARGRAPH 10VMO500 ODEL 3.C.3 F 10VFO132 ORMATTABLE RINTER...
Page 29 ONTENTS 3.C.5 V 10BVT65 IDEO OUCHSCREEN PERATION ODEL NOTE: This manual section applies only to older “T” versions of the Model 10KN6 Mainframe (10KN6T, 10KN6-2T, 10KN6-3T, and 10KN6-4T). a. Introduction: BVT Command b. Touchscreen Setup 1. Setting Touchscreen Type: TST Command 2.
Page 30 3. The DUMP SYSTEM BIT DATA (DSB) Command 4. The DUMP SYSTEM MESSAGE (DSM) Command HANNEL ROCESSING PEEDS 1. Introduction 2. Overview of the 10BCP200 Scan Cycle 3. Comparison of "System 10" and "System 10/2000" Processing Speed 4. Calculation of Scan Rate...
Page 31: For "A-Sized " Mainframes
SB.2 ETTING YSTEM N THE “A-S ” M IZED AINFRAMES...
Page 32 No part of this document may be reprinted, reproduced, or used in any form or by any electronic, mechanical, or other means, including photocopying and recording, or in any information storage and retrieval system, without permission in writing from Daytronic Corporation. All specifications are subject to change without notice. “O ” (A-S...
Page 33 “On the Air” (A-Sized), v. SB.2 Pub. No. 10KOAA.2, Issued 11/01 Part No. 91777 ETTING YSTEM N THE “A-S ” M IZED AINFRAMES Daytronic Corporation 2211 Arbor Blvd. • Dayton, OH 45439-1521 • Tel (937) 293-2566 • Fax (937) 293-2586 (800) 668-4745 • www.daytronic.com...
Page 34 14 Setup of EXECUTE Functions ................23 15 Setting Data-Transmission Characteristics ............25 16 Communication with External Devices a. Introduction: System 10 Communication Modes ........26 b. Setup of RS-232-C Communications ............27 c. Optional IEEE-488 Communications ............. 27 d. Optional RS-422 Communications ..............27 17 Mainframe Keypad Functions ................
Page 35: Introduction
Working for the first time with an instrument system as comprehensive and versa- tile as the Daytronic “System 10” can be a bit overwhelming. There are so many interrelated functions the system can be made to perform—functions for data col- lection, display, processing, communications, reporting, and process control.
Page 36: If You Need Help
Section 2.B of your System 10 Guidebook and follow the interface setup instructions given there. … If at any time you need assistance in getting your System 10 “on the air”—or if problems arise at any later time—feel free to call our CUSTOMER SERVICES DEPARTMENT at...
Page 37 HYSICAL AYOUT DO NOT PLUG IN YOUR MAINFRAME JUST YET. Study the appropriate front- and rear-view drawings below to familiarize yourself with your mainframe’s most important physical elements. Be sure that you know the locations of your particular mainframe’s • A Slots and A Cards, including Central Processor/Interface Card, if present (internal) •...
Page 38: Physical Layout
Power ON/OFF Fig. 2.1.b “10KU” Switch Mainframe Rear Elements Panel-Mount Fuse Slide AC Power Connector Voltage "A Card" I/O Connectors Selector Switch (for connection of transducers and control I/O) Plug-In Keyboard Connector Interface Computer Interface EEPROM Write Protocol Connector Protect Switch Switches Fig.
Page 39 "A SLOT" No. 10 Actuating Lever Fig. 2.3.a “10K4T” Mainframe Front Elements LCD / VFD Connector System Status for 10K4T versions with display) "A SLOT" No. 1 Indicators Optional "A Cards" Front-Panel Large-Scale LCD / VFD Display (Model 10K4T-D / 10K4T-DA only) Front-Panel Two-Line LCD Display...
Page 40: Powerup
LEAVE THE KEYBOARD CONNECTED DURING THE SETUP PROCEDURES THAT FOLLOW. * See Section 1.A.3 of the System 10 Guidebook for connection of a “V”-Option mainframe to a vehicle battery of other DC power source. ** If you are using a Model 10P80D Extended Keyboard with a Model 10KU, 10K1C, or 10K4TA mainframe, you must press Home every time power is cycled, to initialize the keyboard LCD display.
Page 41: Lcd/Vfd Data Display Setup
<LOGO> & Back Systm Video Sp ace C onfg Formt W ht ’ Begin Exit Data Data " Back Retrn C lear C trl Grnd < > LtBlu Line Shift Shift Hght W idth Feed C al Page Home C ap s Insrt Dlete Lock...
Page 42 Fig. 5.1.a, below. If it is a VFD display, it will look like that shown in Fig. 5.1.b. For every System 10 mainframe, Channel No. 998 always reads the system TIME, and Channel No. 999 always reads the system DATE. In Section 9, you will learn Fig.
Page 43: Setup Of Analog Inputs: Transducer Cabling
NPUTS RANSDUCER ABLING If you ordered sensor cables with your System 10, these will be equipped with individual female 20- or 40-pin CONDITIONER CONNECTORS, all properly labelled and “keyed.” Fig. 6.1.a, below, shows the “standard” 20-pin connector for a Daytronic “10A”...
Page 44 Model 10A74-4C Quad Strain Gage Track-Hold Conditioner Card will normally use a special Bridge Completion Connector in place of the standard connector. See the specific subsection of System 10 Guidebook Section 1.E.2 for complete details.
Page 45: Data Channel Configuration
In this section you will also learn how to use the keyboard’s Step and Back Space keys for rapid sequential interrogations. a. Turn to Appendix A of your System 10 Guidebook.* There you will find a cus- tomized printout, which we will call the “System 10 Data Sheet.” This is a com-...
Page 46 “Type J” thermocouple input, and a type of 6B signifies a ±200 V- DC voltage input. A complete list of all channel type codes may be found in Appendix C of the System 10 Guidebook. d. Press the keyboard’s Step key. This “steps” the last-entered interrogation command to the next channel in numerical sequence.
Page 47: Setting System Scan Range
“t .” c. Refer to the Locate (LCT) column in Section 2 of your System 10 Data Sheet. You should already be aware of the “location” of the real channel that uses the source transducer you hooked up in Section 6, above. For example, if you cabled your real-world transducer to the first subchannel of the conditioner card in A Slot No.
Page 48: Setting System Time And Date
Channel No. 1 and/or a high scan limit other than Channel No. t (see Section 1.F.1 of the System 10 Guidebook). Note too that for an A-sized mainframe, you cannot set a Termina- tor Channel higher than “160,” which is the maximum number of channels the system can handle.
Page 49 “header” or “tailer” that allows nonscrolling CRT display of the “datastream” output (see Sections 1.H.2 and 1.H.3 of the System 10 Guidebook for details). See Section 2.B of the System 10 Guidebook for complete setup of the interface link.
Page 50: Setup Of Cross-Channel Calculations
Do not disconnect the transducer. It will be used in some of the following procedures. NOTE: Section 2.G of the System 10 Guidebook shows you how to set a data channel’s SCALING FACTOR and ZERO OFFSET directly, using the SCALING FACTOR (EMM) and OFFSET (BEE) commands, respectively.
Page 51 Apply a value of stable input loading to the source transducer of Channel No. x. Observe the displayed data value for the channel. c. Refer to your customized System 10 Data Sheet and choose a channel within the current scan range but not currently used by your system. Its present “TYPE”...
Page 52: Setup Of Logic Bits And Logic Ports
“limit logic,” “Exe- cute” functions, etc. Just to be safe, however, you might want to check your “System 10 Data Sheet.”) 5. Verify that Bit No. 898 has been properly “set” by commanding BIT 898 [CR] An answer of “898, 1”...
Page 53: Initialization Of Optional Model 10Aio-16
Bit Nos. 16 through 31; the third, of Bit Nos. 32 through 47; etc. A complete table of bit groups is given in Section 2.H of the System 10 Guidebook. Before you use the SRC command to specify which of the 10AIO-16’s LOGIC I/O PORTS are to be INPUTS and which are to be OUTPUTS, you must first “initialize”...
Page 54: Limit Setup
3. Select three bits from the bit group you specified in the above ASL com- mand. Let’s call them Bit Nos. b , and b . If, for example, you specified Bit Group No. 3, then b , and b could be any three numbers from 32 through 47.
Page 55 LOL command, or when it re-enters the channel’s “OK” (“BETWEEN”) zone after either a high-limit or low-limit vio- lation has occurred. See Section 2.F.4 of the System 10 Guidebook for a complete discussion of the three “LIMIT LOGIC” commands (LGT, LLT, and LBT).
Page 56: Limit Setup
k. Enter from the keyboard a command of LLT x = 899 [CR] Bit No. 899 is now automatically assigned a “logic source” of “LIMIT, NON- LATCHING.” NO PREVIOUS LOGIC SOURCE (SRC) COMMAND NEEDS TO HAVE BEEN APPLIED TO BIT NO. 899, AS IT WAS FOR THE “LIMIT, LATCHING”...
Page 57: Setup Of Execute Functions
NOTE: We are here assuming that your system’s Channel No. 150 is presently unused. Just to be safe, however, you might want to check your “System 10 Data Sheet.” If Channel No. 150 is not an unused channel, you will probably want to select another one for this procedure.
Page 58 EXU statements to the bits of any two bit groups (which need not be contiguous) by means of the EXECUTE BASE GROUP (XBG) command, as explained in Section 2.K.2 of the System 10 Guidebook. ** The LOCK (LOK) command can be used to inhibit the automatic updating of all channels, one selected channel, or a selected range of channels.
Page 59: Setting Data-Transmission Characteristics
CHANNEL (CHN), DUMP (DMP), SNAPSHOT (SNP), STREAM (STR), HARD COPY (HCY), or LIMIT ZONE (LZN) com- mand. All this is discussed in detail in Section 1.H of the System 10 Guide- book. All you’ll do here will be to interrogate your system for a few important trans- mission characteristics you should be aware of.
Page 60: Communication With External Devices
• issue to System 10 any MNEMONIC COMMAND in the standard com- mand set for that system; and • receive from System 10 any of the various kinds of formatted data trans- missions discussed in Section 1.H of the System 10 Guidebook, plus any and all responses to interrogations that originate from the connected device.**...
Page 61 There you’ll find recommended cabling for “full handshake,” “incoming handshake,” and “no handshake” interface situations. For proper data interchange between a System 10 mainframe and a connect- ed RS-232-C device to occur, the mainframe’s Computer Interface Port must be set to conform exactly with the protocol stipulated by the connected device.
Page 62: Mainframe Keypad Functions
MNEMONIC to be communicated to the mainframe by pressing the keypad’s FNCTN (FUNCTION) key—and then the 0, 1, 2, 3, or 4 key. See Section 2.I of the System 10 Guidebook for complete details. In the following procedure, you will use the keypad’s FNCTN key to ask for the system time-of-day (via the TME command), and to set a DOWNLOAD PSEUDOCHANNEL with a given numeric value (via the “write”...
Page 63: Further Optional Procedures
10 setup procedures that apply to “A-sized” mainframes. We have also briefly mentioned a number of other (essentially optional) procedures detailed in the System 10 Guidebook. To these we could add the following: • setup of COUNTER/TIMER functions when the optional Model 10ACT01 Counter/Timer Card and/or Model 10ACC-4 Four-Channel Totalizer Card is present (Section 3.A.1 of the System 10 Guidebook)
Page 64 PPENDIX UMMARY OF IZED AINFRAME EATURES Max. No. Analog Max. No Available Channels Logic Bits / A-Card Max. No. Max.No Data Display Available Model Slots Analog I/O Logic I/O and Keyboard/Keypad Options* 10KU 160 / 32 1000 / 64 OPTIONAL front-panel keypad S, V with 2-line “billboard”...
Page 65 The Model 10P80D or 10P25D keyboard may NOT be used with this mainframe. The front bezel of the Model 10K4T-DA may itself be used as a remote VFD display (up to 25 ft.), if an option- al remote power supply (available from Daytronic) is provided. “O ”...
Page 66 Daytronic Corporation 2211 Arbor Blvd. • Dayton, OH 45439-1521• (800) 668-4745 www.daytronic.com Tel (937) 293-2566 • Fax (937) 293-2586 •...
Page 67: For "B-Sized " Mainframes
SB.2 ETTING YSTEM N THE “B-S ” M IZED AINFRAMES...
Page 68 No part of this document may be reprinted, reproduced, or used in any form or by any electronic, mechanical, or other means, including photocopying and recording, or in any information storage and retrieval system, without permission in writing from Daytronic Corporation. All specifications are subject to change without notice. “O ” (B-S...
Page 69 “On the Air” (B-Sized), v. SB.2 Pub. No. 10KOAB.2, Issued 11/01 Part No. 91778 ETTING YSTEM N THE “B-S ” M IZED AINFRAMES Daytronic Corporation 2211 Arbor Blvd. • Dayton, OH 45439-1521 • Tel (937) 293-2566 • Fax (937) 293-2586 (800) 668-4745 • www.daytronic.com...
Page 70: Setup Of "Main" Rs-232-C Communications
Setup of CONDITIONAL and COMMAND Functions ....... 32 15 Setting Data-Transmission Characteristics ............33 16 Communication with External Devices a. Introduction: System 10 Communication Modes ........34 b. Setup of “Main” RS-232-C Communications ..........35 c. Setup of “Auxiliary” RS-232-C Communications (10BACI) ....36 d.
Page 71: Introduction
NOT apply to a 10KN3 system. ** In “10KN6” versions with the “E” (Extended B Rack) Option, the first four B Slots are used for the V-Card set. See Section 3.C.1 of the System 10 Guidebook for more details on V-Card installation.
Page 72: Monitor And Keyboard
“history” recording and playback, network management, auxiliary computer interfacing, etc.). “A Cards” include all basic System 10 SIGNAL CONDITIONER CARDS, as well as certain SPECIAL FUNCTION CARDS. These include cards for Analog Outputs, Analog Peak Capture and Hold, PID Loop Control, and Diagnostic Testing.
Page 73: If You Need Help
… If at any time you need assistance in getting your System 10 “on the air”—or if problems arise at any later time—feel free to call our CUSTOMER SERVICES DEPARTMENT at...
Page 74: Physical Layout
Fig. 2.1.a Mainframe Front Elements, Models 10KN3, 10KN6, and 10KN7 (front bezel(s) removed) Internal Monochrome Monitor* Power ON/OFF Video Text Card Button Central Processor Card (occupies B Slot No. 1) Internal CRT Controls* RS-232 Interface Card Interface Protocol Switches are also mounted on this board) EEPROM Write Protect Switch...
Page 75 Fig. 2.1.b Mainframe Rear Elements, Models 10KN3, 10KN6, and 10KN7 (NOTE: 10KN7 Video Connector Panel is shown separately in Fig. 2.1.c) RS-232 "B Card" I/O Connectors* Touchscreen (for connection of digital/logic devices, RS-232 Formatted Connector satellite units, computers, etc.) Output Connector Fuse and Output (requires optional Model...
Page 76 Fig. 2.2.a Mainframe Front Elements, Model 10KN8A (front bezel removed) Video Signal Card Video Text Card (occupies B Slot No. 3) (occupies B Slot No. 4) Internal Color Monitor Central Processor Card RS-232 Interface Card Interface Protocol Switches are also mounted on this board) EEPROM Write Protect Switch...
Page 77 Fig. 2.2.b Mainframe Rear Elements, Model 10KN8A Combined Power ON-OFF RS-232 Touchscreen and Circuit Breaker Button Connector (NOT NORMALLY USED RS-232 Formatted AC Power Connector WITH THE MODEL 10KN8A) Input Output Connector (requires optional Model "B Card" I/O 10VFO132 Formatted Connectors* Output Output Card for operation)
Page 78: Powerup
(nominal 110 or 220 V-AC). If it is a Model 10KN3, 10KN6, or 10KN7, check the Power Selector Board on the rear panel.* If you need to change the voltage setting, see Section 1.A.3 of the System 10 Guidebook. b. IMPORTANT: Make sure the EEPROM Write Protect Switch is OFF (downward position) before you power up your mainframe and before you turn it off.
Page 79: Crt Video Setup
Every B-sized mainframe can store up to 100 sepa- rate CRT VIDEO PAGE FORMATS (or “VIDEO PAGES”).* Each video page can be used to display a large number of “live” System 10 data channels either via digital readout or, if the Model 10VGM500 Card is present, via horizontal bargraph (see Section 17, below).
Page 80 a. Turn on your mainframe’s EEPROM Write Protect Switch by placing it in the upward position. An alternative method for enabling the EEPROM Write Pro- tect function—especially useful when you don’t want to have to remove the front bezel to access the switch—is to type a command of BIT 999 = 1 [CR] on the keyboard.
Page 81 g. Press the Video Formt (VIDEO FORMAT) key to enter TEXT EDITOR MODE. A blinking cursor will appear at the upper left (“HOME”) corner of the screen. The cursor may be moved by means of the four “ARROW” keys and the Back Space key.
Page 82 ALL TEXT AND DATA CHARACTERS ON A GIVEN LINE OF THE DISPLAY MUST BE OF THE SAME SIZE (HEIGHT x WIDTH). All the character sizes shown in Fig. 2.C.4 of the System 10 Guidebook are possible with the exception (for a Model 10BVS95) of “2 x 1,” “3 x 1,” and “4 x 1.”...
Page 83 screen, pressing the Ctrl (CONTROL) key, and holding it down as you press the Insrt (INSERT) key. Similarly, to delete an entire line of display, move the cursor to the extreme left of the line to be deleted, press Ctrl, and hold it down as you press Dlete (DELETE).
Page 84 Having gone through the above page composition and storage procedure—and, ideally, having gone back and tried to compose a few video page formats of your own design—you may want to consult Section 2.C of the System 10 Guidebook for instructions on additional video setup procedures, including •...
Page 85: Setup Of Analog Inputs: Transducer Cabling
NPUTS RANSDUCER ABLING If you ordered sensor cables with your System 10, these will be equipped with individual female 20- or 40-pin CONDITIONER CONNECTORS, all properly labelled and “keyed.” Fig. 6.1.a, below, shows the “standard” 20-pin connector for a Daytronic “10A”...
Page 86: Data Channel Configuration
TYPE (TYP) command and then a LOCATE (LCT) command. In the following * PLEASE NOTE: The System 10 Data Sheet will be included within the System 10 Guidebook itself (as Appendix A) only when a printed version of the Guidebook is supplied with a specific System 10.
Page 87 In this section you will also learn how to use the keyboard’s Step and Back Space keys for rapid sequential interrogations. a. Turn to Appendix A of your System 10 Guidebook.* There you will find a cus- tomized printout, which we will call the “System 10 Data Sheet.” This is a com-...
Page 88 “Type J” thermocouple input, and a type of 6B signifies a ±200 V-DC voltage input. A complete list of all channel type codes may be found in Appendix C of the System 10 Guidebook. d. Press the keyboard’s Step key. This “steps” the last-entered interrogation command to the next channel in numerical sequence.
Page 89: Setting System Scan Range
“t .” c. Refer to the Locate (LCT) column in Section 2 of your System 10 Data Sheet. You should already be aware of the “location” of the real channel that uses the source transducer you hooked up in Section 6, above. For example, if you cabled your real-world transducer to the first subchannel of the conditioner card in A Slot No.
Page 90: Data Channel Calibration
TO FIND OUT WHICH CALIBRATION METHOD OR METHODS MAY BE USED WITH A GIVEN CONDITIONER CARD, YOU SHOULD REFER TO THE RESPEC- TIVE SUBSECTION OF SYSTEM 10 GUIDEBOOK SECTION 1.E.2. In very general terms, you will calibrate a signal-conditioner channel by com- manding the system’s Central Processor to compute and store two constant...
Page 91 this channel. In Section 8, above, you ensured that Channel No. x is within the current system SCAN RANGE, as it must be if it is to be calibrated. b. You should first arrange for a “live” display of Channel No. x. If this chan- nel does not appear on any of your system’s initial data-display pages, you will have to compose a new video page for its display, following the guidelines given in Section 5, above.
Page 92: Setup Of Cross-Channel Calculations
Do not disconnect the transducer. It will be used in some of the following procedures. NOTE: Section 2.G of the System 10 Guidebook shows you how to set a data channel’s SCALING FACTOR and ZERO OFFSET directly, using the SCALING FACTOR (EMM) and OFFSET (BEE) commands, respectively.
Page 93 where “y” is the number of the unused channel selected in Step c and “x” is the number of the real channel calibrated in Section 10. Channel No. y’s display should now report a value exactly twice that of Channel No. x, and with the same precision as was specified for Channel No.
Page 94: Setup Of Logic Bits And Logic Ports
“limit logic,” “Exe- cute” functions, etc. Just to be safe, however, you might want to check your “System 10 Data Sheet.”) 5. Verify that Bit No. 898 has been properly “set” by commanding BIT 898 [CR] An answer of “898, 1”...
Page 95 Bit Nos. 16 through 31; the third, of Bit Nos. 32 through 47; etc. A complete table of bit groups is given in Section 2.H of the System 10 Guidebook. Before you use the SRC command to specify which of the 10BIO-16’s LOGIC I/O PORTS are to be INPUTS and which are to be OUTPUTS, you must first “initialize”...
Page 96 3. Select three bits from the bit group you specified in the above BSL com- mand. Let’s call them Bit Nos. b , and b . If, for example, you specified Bit Group No. 3, then b , and b could be any three numbers from 32 through 47.
Page 97 c. You will now set the visual effects to be exhibited by the displayed data field of Channel No. x, when the channel’s data reading is LESS THAN the low-limit value established in Step a. You will specify that “low violation” data for Channel No.
Page 98: Limit Setup
LOL command, or when it re-enters the channel’s “OK” (“BETWEEN”) zone after either a high-limit or low-limit vio- lation has occurred. See Section 2.F.4 of the System 10 Guidebook for a complete discussion of the three “LIMIT LOGIC” commands (LGT, LLT, and LBT).
Page 99 m. To “release” the latched Bit No. 898 from its “Logic 1” state, enter a com- mand of RLS 898 [CR] The display of Bit No. 898 should now read “LOW.” We also want a “LESS THAN” limit condition for Channel No. x to set Bit No. 899 to “Logic 1,”...
Page 100: Setup Of Execute Functions
NOTE: We are here assuming that your system’s Channel No. 900 is presently unused. Just to be safe, however, you might want to check your “System 10 Data Sheet.” If Channel No. 900 is not an unused channel, you will probably want to select another one for this procedure.
Page 101 EXU statements to the bits of any two bit groups (which need not be contiguous) by means of the EXECUTE BASE GROUP (XBG) command, as explained in Section 2.K.2 of the System 10 Guidebook. “O ”...
Page 102 “going high” and “going low” of Bit No. r, enter the following commands: EXU r = N/A [CR] EXU /r = N/A [CR] For more examples of the EXECUTE (EXU) command, see Section 2.K.2 of the System 10 Guidebook. 14.b CONDITIONAL ETUP OF...
Page 103: Setting Data-Transmission Characteristics
CHANNEL (CHN), DUMP (DMP), SNAPSHOT (SNP), STREAM (STR), HARD COPY (HCY), or LIMIT ZONE (LZN) com- mand. All this is discussed in detail in Section 1.H of the System 10 Guide- book. All you’ll do here will be to interrogate your system for a few important trans- mission characteristics you should be aware of.
Page 104: Communication With External Devices
For a mainframe that has just been shipped, the normal response should be “[0D].” What you’ve asked for here is the current COMMAND TERMI- NATOR (or “CMT”). Discussed in Section 2.B.5 of the System 10 Guide- book, the CMT is not really a “transmission characteristic.” It is the single ASCII character recognized by your system as the termination of any com- mand received through the Computer Interface Port.
Page 105 • receive from System 10 any of the various kinds of formatted data trans- missions discussed in Section 1.H of the System 10 Guidebook, plus any and all responses to interrogations that originate from the connected device.* The optional Model 10BACIA Auxiliary Computer Interface Card supplies an independent “auxiliary”...
Page 106 BAUD RATE (BAU) command. In order for a BAU command to be effective, the internal protocol switches must be disabled by placing Switch No. 4 in the OFF position. See Section 2.B.2 of the System 10 Guide- book for full instructions.
Page 107: Setup Of Rs-232-C Communications
BAUD RATE (BAU), DELAY (DLY), HEADER (HDR), and OUTPUT TERMINATOR (OPT). A full list of COM- affected commands is given in Section 3.B.5(d) of the System 10 Guide- book. To set the protocol values for an ACI, you must issue a BAUD RATE (BAU) command to the 10BACIA that provides the interface, after “attaching”...
Page 108: Optional Ieee-488 Communications
The optional Model 10BACI-488 is equivalent to a Model 10BACIA with a 24- pin parallel port for standard Talker/Listener communications with an IEEE- 488 bus (in place of the 10BACIA’s standard RS-232-C interface). Setup and use of the 10BACI-488 are treated in Section 3.B.5(f) of the System 10 Guide- book. 16.f...
Page 109 For full details on bargraph setup, see Section 3.C.4 of the System 10 Guide- book. a. Make sure the EEPROM Write Protect function is still enabled.
Page 110 Type “Live Input:” This is the FIXED TEXT that is to precede the line’s bar- graph. g. Press the Caps Lock key. The key’s red indicator light will go on when the keyboard is “locked” for CAPITAL LETTERS. Note that, while the Model 10BVS95 Graphics Video Signal Card supports lower-case letters, IT IS NECESSARY TO ENTER CAPITAL LETTERS WHEN DEFINING A BAR- GRAPH.
Page 111 10. The data top entry can take up to 6 digits plus decimal point and polarity sign (8 digits maximum if no decimal point or sign). o. To enter the data-top value presently shown in the billboard, press CAR- RIAGE RETURN (Retrn). The second bargraph setup parameter (“DATA ZERO”) will now appear in the billboard.
Page 112 “Statistical” playback functions provided by the Model 10BSPC384 also include X-BAR and RANGE, automatically calculated over successive sampling periods for a given channel. See Section 3.B.4(d) of the System 10 Guidebook for complete details.
Page 113 • clear all recordings contained in a given recorder, using the HISTORY CLEAR (HCL) command Be sure to study Section 3.B.4 of the System 10 Guidebook for full details on these and other History Card procedures. WARNING: IF YOUR HISTORY CARD’S FUNCTIONS HAVE BEEN PREDE-...
Page 114 “INT 7” is the mnemonic for a 2-second interval, as indicated in the table in Section 3.B.4(d) of the System 10 Guidebook. This is, of course, a relative- ly simple store condition. You are encouraged to study the full discussion of the STO command in Section 3.B.4(d), and to experiment with different...
Page 115 “twenty frames ago,” and “twenty-five frames ago.” Enter the following PLAYBACK (PLA) commands: PLA 1000 = REC 1, CHN x (-1) [CR] PLA 1001 = REC 1, CHN x (-5) [CR] PLA 1002 = REC 1, CHN x (-10) [CR] PLA 1003 = REC 1, CHN x (-15) [CR] PLA 1004 = REC 1, CHN x (-20) [CR] PLA 1005 = REC 1, CHN x (-25) [CR]...
Page 116 Back Space and/or Step key. The FREEZE (FRZ) command lets you specify a search depth offset and (optional) increment that will not be affected by continued recordings. See Section 3.B.4(e) of the System 10 Guidebook for full details. “O ” (B-S...
Page 117 Recorder No. 1 by commanding RPL 1 = INT 6 [CR] As explained in Section 3.B.4(e) of the System 10 Guidebook, the effect of this command is to make Recorder No. 1’s initial “search frame” the old- est frame in memory, and then to successively decrease the current “search depth”...
Page 118: Further Optional Procedures
10 setup procedures that apply to “B-sized” mainframes. We have also briefly mentioned a number of other (essentially optional) procedures detailed in the System 10 Guidebook. To these we could add the following: • setup of COUNTER/TIMER functions when the optional Model 10ACT01 Counter/Timer Card and/or Model 10ACC-4 Four-Channel Totalizer Card is present (Section 3.A.1 of the System 10 Guidebook)
Page 119 Fully compatible with 640 x 480 VGA format, with a horizontal refresh rate of 31.5 kHz. Will accept CGA/EGA/VGA input only from a VGA ANALOG CARD; will not accept digital video signals from CGA/EGA cards. See Section 2.N of the System 10 Guidebook for complete details regarding video I/O connections for B-sized mainframes.
Page 120 Daytronic Corporation 2211 Arbor Blvd. • Dayton, OH 45439-1521• (800) 668-4745 www.daytronic.com Tel (937) 293-2566 • Fax (937) 293-2586 •...
Page 121 ONDITIONER ETUP ECTION CAN AND ETUP ECTION ONFIGURATION AND ALIBRATION NALOG NPUT HANNELS ECTION ORMATTING AND ANAGEMENT TANDARD RANSMISSIONS Daytronic Corporation 2211 Arbor Blvd. • Dayton, OH 45439-1521 • Tel (937) 293-2566 • Fax (937) 293-2586 (800) 668-4745 • www.daytronic.com...
Page 122 HIS PAGE INTENTIONALLY BLANK...
Page 123 N THE UTORIAL If you are unfamiliar with the Daytronic “System 10,” your first step should be to study the tutorial booklet entitled Getting Your System 10 On the Air, which is included in this Guidebook. There is a booklet for each of the two basic types of System 10 mainframes (“A-sized”...
Page 124 ALL MAINFRAMES REQUIRE COOLING. The cooling air intake is at the bottom of each unit. When rack-mounting a System 10 mainframe, you should provide at least 1.75 inches of clearance below the unit, to ensure proper air flow. When the mainframe is used as a bench-top instrument, the installed 0.5-inch rubber feet...
Page 125 PERATION ODELS HECK OLTAGE ETTING IMPORTANT: Before powering up your System 10 mainframe for the first time, make sure that it is set to the proper NOMINAL AC LINE VOLTAGE (110/120 OR 220 V-AC). IZED AINFRAMES For all A-SIZED mainframes (all “10KU,” “10K1,” “10K2,” and “10K4T” ver- sions), the VOLTAGE SELECTOR SWITCH is located on the rear panel (see the corresponding diagram in the “Physical Layout”...
Page 126 While your System 10 mainframe has internal circuitry to protect it from overvolt- age transients and mild EMI, a clean line is still very desirable. No protection is provided against a dropout longer than 8 milliseconds or brownout below 95 volts.
Page 127 (“Powerup Problems”) before attempting to reset the system. OWERUP ERIFICATION Each time a System 10 mainframe is turned on, the four SYSTEM STATUS INDICA- TORS labelled ERR, CHR, MNE, and RET should all light for about one second, and then go off. This verified proper system powerup.
Page 128 (“V” O PERATION PTION The System 10 “V” (VEHICLE) Option applies to all “10KU” and “10K4T” main- frames with the exception of the Model 10K4T-DA. A mainframe employing the “V” Option may NOT also be used for AC operation. The “V” Option allows operation from nominal 12 or 28 V-DC (50 W maximum).
Page 129 NO DISPLAY at all (i.e., for a 10KU, 10K1C, or 10K4TA with no optional display capa- bilities). For the entry of System 10 MNEMONIC COMMANDS, see Section 1.C of this Guidebook. A DIS value of “2” must therefore be in effect for a Model 10K2D or 10K4T-DA mainframe, or when, for example, a Model 10KU, 10K1C, or 10K4TA is used with a Model 10VFD-2 Display Option.
Page 130 ETTING TARTED • VIDEO MODE (VID)—tells a mainframe’s internal CRT whether it is to display video pages currently in EEPROM storage or an external video input from a computer or other external video-signal source • REFRESH (REF)—selects the desired refresh rate for the CRT display •...
Page 131 Otherwise, the card will not go * Note that while I/O CONNECTORS will have been supplied by Daytronic for all installed cards, and I/O CABLES may have been supplied for all or some of them (as per the original system order), the I/O connections themselves must be made by the user, following the instructions given in Section 1.E.2 and elsewhere in this Guidebook.
Page 132 NSERTION AND EMOVAL Fig. 1.2 Mainframe Slot Connector Hardware "T" Insert (Remove before inserting card) A or B Card Card "Notch" Slot Actuating Connectors Levers Locating CLOSED OPEN fully into the slot. Conditioner-card “keying” is discussed in Section 1.E of this Guidebook.
Page 133 NSERTION AND EMOVAL When removing an A or B CARD from a mainframe slot, Again, MAKE SURE MAINFRAME POWER IS OFF BEFORE CHANGING THE POSITION OF THE SLOT’S ACTUATING LEVER (unless it is an “AA” or “C”-ver- sion Conditioner Card). k.
Page 134 1-12 HIS PAGE INTENTIONALLY BLANK...
Page 135 OMMANDS 1.C.1 NTRODUCTION Every System 10 is preprogrammed to perform most of its standard functions in response to the manual or automatic entry of specific ASCII MNEMONIC COM- MANDS. In very general terms, there are four main types of commands: 1.
Page 136 • the FIFO COMPUTER PORT provided by an optional Model 10AFIFO Card (A-sized mainframe only) Mnemonic commands may also be issued to System 10 INDIRECTLY (and AUTO- MATICALLY) upon occurrence of predefined system conditions and events. Use of EXECUTE (EXU) and COMMAND (CMD) statements for automatic applica- tion of commands is discussed in Section 2.K of this Guidebook.
Page 137 “text” string. 5. All commands are shown with a terminating CARRIAGE RETURN ([CR]). As explained in Section 2.B.5, you may set your System 10 to recognize a COM- MAND TERMINATOR (or “CMT”) other than the standard [CR] for commands entered via SERIAL INTERFACE PORT.
Page 138 Having set up your mainframe’s Computer Interface Port, you are ready to use an external computer or terminal to communicate to System 10 all of the mnemonic * The “billboard” can be part of the mainframe’s multichannel LCD/VFD or CRT data display, or it can be a separate 2-line LCD display that is provided by an external 10P80D or 10P25D key- board or which accompanies a “KD”...
Page 139 System 10. If a command entered via the Computer Interface Port contains a character not in the standard System 10 character set, the red ERR indicator will light. 1.C.4...
Page 140 [NUMERICAL VALUE(S)] [END-OF-TRANSMISSION TERMINATOR] Unless otherwise specified at the time of order, every System 10 is factory-set for an END-OF-TRANSMISSION TERMINATOR (or “EOT”) of CARRIAGE RETURN, LINE FEED ([CR][LF]). As explained in Section 1.H.3, you can at any time specify a different EOT of one to four ASCII control characters.
Page 141 All valid “READ” command forms can be found in the Directory of Mnemonic Commands (Section 4 of this Guidebook), under the appropriate mnemonics. NOTE ALSO: If you interrogate System 10 for a nonexistent setup value—that is, for a value that has not yet been specified by an appropriate “WRITE” command and that has no initial “default”...
Page 142 1-20 HIS PAGE INTENTIONALLY BLANK...
Page 143 Fig. 1.4 System Status Indicators When this light is ON, it means that System 10 is not asserting DATA TER- MINAL READY. The system input buffer is full, and it is therefore not ready to receive data from the connected device. This light should be on only during rapid, continuous computer outputs to System 10.
Page 144 Interface Port an invalid character (not in the standard System 10 ASCII character set). When this light is ON, it means that System 10 has received a valid ASCII CHARACTER through its Computer Interface Port (only). Usually, this light will indicate that System 10 and the connected device are “talking” at the same baud rate.
Page 145 ENERAL ONSIDERATIONS If you ordered one or more sensor cables with your System 10, each supplied cable will be equipped with an individual female CONDITIONER CONNECTOR. The type of connector will depend on the conditioner card with which it is to mate.
Page 146 The “10A” connector housing provides mounting screws to secure the connector to the rear of the System 10 mainframe and to provide a solid ground connection for cable shields.
Page 147 “AA” connector cannot be attached upside down. To set up your System 10’s ANALOG CONDITIONER CARDS, you should a. Make sure the mainframe is OFF. b. Connect each transducer cable to its respective “real-world” sensor, accord- ing to the appropriate cabling diagram (plus any special instructions) given in Section 1.E.2, below.
Page 148 Mount each CONDITIONER CONNECTOR to the rear of the System 10 main- frame by means of the two captive screws attached to the connector housing.
Page 149 DC-to-DC LVDT’s, this card may also be used with other transducers within the above voltage and current range. The Model 10AX-2’s I/O CONNECTOR mates with Daytronic CONDITIONER CON- NECTOR No. 60322, shown in Fig. 1.5, above. Standard pin assignments for the I/O Connector are given in the table below.
Page 150 1-28 HIS PAGE INTENTIONALLY BLANK...
Page 151 ETUP OF NALOG NPUT ARDS AND CCESSORIES The following System 10-compatible Conditioner Cards are treated in this section: • Model 10A9-8C Eight-Channel Thermocouple Conditioner • Model 10A10-4 Quad Isolated Thermocouple Conditioner • Model 10A15-8 Eight-Channel Thermistor Conditioner • Model 10A16-4C Quad Platinum RTD Conditioner •...
Page 152 “Sections” and to “Manual Sections.” Unless otherwise indicated, a “Section” reference—e.g., “see Section 3.a”— will always refer to a subsection of the card-specific section of the System 10 Guidebook which you are presently reading. Unless otherwise indicated, a “Manual Section” reference—e.g., “see Manual Section 1.G.5”—will always refer to a section of the main body of the System...
Page 153 Analog Signal Bus. One 10A11 must therefore be installed in every System 10 A-card rack containing one or more Model 10A9-8C's. In the event of a broken thermocouple wire or other “open TC” condition, the 10A9-8C...
Page 154 PECIFICATIONS Measurement Range and Resolution: See Table 1, below; automatically selected— on an individual channel basis—when the channel is configured; for System 10 chan- nal “type” codes assigned to 10A9-8C data channels, see Table 1 Linearization: Internal digital look-up via system processor; maximum error: ±0.05° C...
Page 155 RANSDUCER ONNECTIONS The Model 10A9-8C’s I/O CONNECTOR mates with Daytronic CONDITIONER CON- NECTOR No. 60324, similar to the one shown in Fig. 1.5 (in Manual Section 1.E.1). This connector contains eight “±” screw-terminal pairs, one for each TC sensor. Each TC lead should be directly attached to its corresponding screw terminal (it should never be soldered).
Page 156 10A9-8C IGHT HANNEL HERMOCOUPLE I/O Connector Conditioner Conditioner Screw Channel Line Number Terminal Number Function 7(+) +SIGNAL 7(–) –SIGNAL 8(+) +SIGNAL 8(–) –SIGNAL INTERNAL THERMISTOR: T1 THERMISTOR: GROUND (COMMON) ONLY THERMISTOR: T2 CONDITIONER CONNECTOR (No. 60324) Fig. 1 Model 10A9-8C Transducer Cabling Etc.
Page 157 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A9-8C card when used in System 10, see the general remarks on System 10 “real- channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guide- book.
Page 158 The user must furnish his or her own pin-to-pin cable for connecting the 10CTJB-8 Junction Box to the rear I/O CONNECTOR of the Model 10A9-8C. Daytronic will sup- ply appropriate solder-terminal connectors for this cable. The cable should be shield- ed, and should consist of stranded copper wires.
Page 159 10A11 is to proportion and sum the cold-junction reference signal and the amplified TC signal of each channel for presentation to the system's Analog Signal Bus. One 10A11 must therefore be installed in every System 10 A-card rack contain- ing one or more Model 10A10-4's.
Page 160 PECIFICATIONS Measurement Range and Resolution: See Table 1, below; automatically selected— on an individual channel basis—when the channel is configured; for System 10 chan- nal “type” codes assigned to 10A10-4 data channels, see Table 1 Linearization: Internal digital look-up via system processor; maximum error: ±0.05° C...
Page 161 RANSDUCER ONNECTIONS The Model 10A10-4’s I/O CONNECTOR mates with Daytronic CONDITIONER CON- NECTOR No. 60324, similar to the one shown in Fig. 1.5 (in Manual Section 1.E.1). This connector contains four “±” screw-terminal pairs, one for each TC sensor. Each TC lead should be directly attached to its corresponding screw terminal (it should never be soldered).
Page 162 10A10-4 SOLATED HERMOCOUPLE I/O Connector Conditioner Conditioner Screw Channel Line Number Terminal Number Function 7(+) +SIGNAL 7(–) –SIGNAL Not Committed Not Committed INTERNAL THERMISTOR: T1 THERMISTOR: GROUND (COMMON) ONLY THERMISTOR: T2 CONDITIONER CONNECTOR (No. 60323) Fig. 1 Model 10A10-4 Transducer Cabling Etc.
Page 163 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A10-4 card, see the general remarks on System 10 “real-channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guidebook. For 10A10-4 chan- nel “type” codes, see Table 1, above.
Page 164 (only). The user must furnish his or her own pin-to-pin cable for connecting the 10CTJB-8 Junction Box to the rear I/O CONNECTOR of the Model 10A10-4. Daytronic will supply appropriate solder-terminal connectors for this cable. The cable should be shielded, and should consist of stranded copper wires.
Page 165 1.E.2.10A15-8 YSTEM NALOG NPUT ARDS 10A15-8 ODEL IGHT HANNEL HERMISTOR ONDITIONER ENERAL ESCRIPTION AND PECIFICATIONS Providing regulated excitation current, the Model 10A15-8 can condition up to eight independent temperature signals from many 3-wire, dual-thermistor-bead probes, in any desired mix (within designated ranges, thermistor probes offer higher accuracy and greater long-term dependability than thermocouples).
Page 166 RANSDUCER ONNECTIONS The Model 10A15-8’s I/O CONNECTOR mates with Daytronic CONDITIONER CON- NECTOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Standard cabling is shown in Fig. 1, below; standard pin assignments for the I/O connector are given in Table 2.
Page 167 ALIBRATION For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A15-8 card, see the general remarks on System 10 “real-channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guidebook. Note, however, that you should use the following special “typing” and scaling proce- dure when setting up any data channel (No.
Page 168 In such a case, the two-point method can be used to improve the “absolute” calibration provided by the System 10 Central Processor. The mainframe’s EEPROM Write Protect Switch must be ON for the ZRO and FRC commands to be effective. See Manual Section 1.G.5 for a general discussion of this conventional “zero and span”...
Page 169 200 ohms, or American standard with “ice-point” of 100 ohms Range and Resolution: See Table 1, below; automatically selected—on an individual channel basis—when the channel is configured; for System 10 channel “type” codes assigned to 10A16-4C data channels, see Table 1; for high RTD resolution, using a specially modified 10A16-4C card, see Section 3.c, below...
Page 170 = 0.00392. Note that a specially modified version of the 10A16-4C yields resolution of 0.01° C (0.02° F) when used with System 10 “custom linearization.” See Section 3.c for details. Including ± one count of least significant digit displayed. RANSDUCER ONNECTIONS The Model 10A16-4C’s I/O CONNECTOR mates with Daytronic CONDITIONER CON-...
Page 171 10A16-4C RTD C LATINUM I/O Connector Conditioner Conditioner Channel Line Number Number Function +SIGNAL –SIGNAL +CURRENT –CURRENT SHIELD 9,K,L Not Committed Fig. 1 Model 10A16-4C Transducer Cabling CONDITIONER CONNECTOR (No. 60322) +CURRENT +SIGNAL Channel Channel 2: –SIGNAL +SIGNAL –CURRENT +CURRENT Channel 3: –SIGNAL –SIGNAL...
Page 172 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A16-4C card when used in System 10, see the general remarks on System 10 “real- channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guide- book.
Page 173 To implement a resolution of 0.01° C (0.02° F) for Channel No. “x” of a specially modi- fied 10A16-4C card, when used in System 10 (only), you need only enter the following LINEARIZE (LIN) command, having first turned ON the system EEPROM SWITCH: LIN x = F1(CHN x) [CR] The effect of this command is to apply to all readings of Channel No.
Page 174 10A16-4C RTD C LATINUM 10A16-4C. HIS PAGE INTENTIONALLY BLANK...
Page 175 200 ohms, or American standard with “ice-point” of 100 ohms Range and Resolution: See Table 1, below; automatically selected—on an individual channel basis—when the channel is configured; for System 10 channel “type” codes assigned to 10A17-2 data channels, see Table 1; for high RTD resolution, using a specially modified 10A17-2 card, see Section 3.b, below...
Page 176 = 0.00392. Note that a specially modified version of the 10A17-2 yields resolution of 0.01° C (0.02° F) when used with System 10 “custom linearization.” See Section 3.b for details. Including ± one count of least significant digit displayed. RANSDUCER ONNECTIONS The Model 10A17-2’s I/O CONNECTOR mates with Daytronic CONDITIONER CON-...
Page 177 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A17-2 card, see the general remarks on System 10 “real-channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guidebook. For 10A17-2 chan- nel “type” codes, see Table 1, above.
Page 178 The effect of this command is to apply to all readings of Channel No. x a prestored “Linearization Table No. 1.” It also automatically assigns to the “linearized” Channel No. x a new “type” designation of “EA.” For a full discussion of System 10 “custom linearization,” see Manual Section 2.L. 10A17-2. ETUP AND...
Page 179 Fig. 1. More detailed information is available on request from the Daytronic factory, if error reduction below the limits shown in Fig. 1 is desired. Note also that, while measurement accuracy is independent of the system using the 10A18-4C card, final measurement resolution will, in general, depend on the system.
Page 180 10A18-4C RTD C LATINUM INEAR Common-Mode Range (expressed as lead-wire resistance rejection, 100 Ω maximum): 0.004%/Ω (4-wire) Input Impedance (Differential): Greater than 10 MΩ Offset: Initial: ±5 µV; vs. Temperature: ±0.2 µV/°C; vs. Time: ±1 µV/month Gain Accuracy: ±0.02% of full scale Gain Stability: vs.
Page 181 RANSDUCER ONNECTIONS The Model 10A18-4C’s I/O CONNECTOR mates with Daytronic CONDITIONER CON- NECTOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Standard four-wire RTD cabling is shown in Fig. 2(a), below. With separate excitation and sense lines, this mode of cabling normally yields the highest measurement accuracy.
Page 182 10A18-4C RTD C LATINUM INEAR CONDITIONER CONNECTOR (No. 60322) +SIGNAL & +CURRENT Channel +SIGNAL & +CURRENT Channel –SIGNAL –CURRENT +SIGNAL & +CURRENT Channel –SIGNAL –SIGNAL –CURRENT +SIGNAL & +CURRENT Channel –CURRENT –SIGNAL –CURRENT Fig. 2(b) Three-Wire SHIELD RTD Cabling SHIELD Connector pins shown as Ground Lug viewed from rear (cable)
Page 183 ALIBRATION For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A18-4C card when used in System 10, see the following section, along with the gen- eral remarks on System 10 “real-channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guidebook.
Page 184 TWO-POINT (DEADWEIGHT) calibration of a 10A18-4C channel in System 10, as explained below.* In the following procedure, Channel No. “x” is a System 10 “REAL CHANNEL” sourced by a 10A18-4C card. Note that, with the exception of the LOCATE (LCT) command (Step 2), each of the commands can be applied to a continuous range of channels by entering the command in “range”...
Page 185 10A18-4C RTD C LATINUM INEAR Turn OFF the system EEPROM SWITCH. OINT EADWEIGHT ALIBRATION If the above procedure does not yield sufficient accuracy, additional TWO-POINT (DEADWEIGHT) calibration may be performed on a real-time basis via the standard ZERO (ZRO) and FORCE (FRC) commands—but only when independently and accu- rately known temperature references are available (preferably the high and low extremes to which the sensor will be subjected).
Page 186 10A18-4C RTD C LATINUM INEAR 10A18-4C. HIS PAGE INTENTIONALLY BLANK...
Page 187 PECIFICATIONS Transducer Types: 5- or 7-wire LVDT's capable of 3280-Hz operation and having pri- mary impedance of 80 ohms or greater (all Daytronic LVDT transducers are suit- able); 3- or 5-wire variable reluctance transducers Sensitivity Range: Accommodates full-scale ranges from ±0.010 in. (±0.25 mm) to ±6.0 in.
Page 188 RANSDUCER ONNECTIONS The Model 10A30-2C’s I/O CONNECTOR mates with Daytronic CONDITIONER CON- NECTOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Table 2 gives stan- dard pin assignments for the I/O Connector. With regard to 10A30-2C cabling, please note the following: 5-wire LVDT cabling (Fig.
Page 189 10A30-2C LVDT C IMPORTANT: The ±EXCITATION, ±SENSE, and ±SIGNAL pins or terminals for an UNUSED LVDT INPUT CHANNEL should be jumpered as shown in Fig. 3. If an input is left open, high-frequency oscillation can result, which can in turn produce significant interchannel crosstalk, and possibly inaccurate data readings.
Page 190 10A30-2C LVDT C CONDITIONER CONNECTOR (No. 60322) +EXCITATION –SENSE +SENSE Channel +SIGNAL –EXCITATION –SIGNAL –SIGNAL Channel 2: –EXCITATION +EXCITATION –SENSE +SENSE Fig. 1(c) 3-Wire Variable +SIGNAL Reluctance Transducer –SIGNAL –SIGNAL Cabling (under 20 ft. in length) SHIELD Connector pins shown as Ground Lug viewed from rear (cable) side of connector...
Page 191 10A30-2C LVDT C Fig. 2 Long-Stroke LVDT Connections C (Chn. 1) 3 (Chn. 1) or J (Chn. 2 or 8 (Chn. 2 Fig. 3 Jumpering of an [Normal [Normal –SIGNAL] +SIGNAL] Unused 10A30-2C LVDT Input +SIGNAL (L.S.) –SIGNAL (L.S.) Model 10A30-2C I/O Connector (Chn.
Page 192 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A30-2C card when used in System 10, see the general remarks on System 10 “real- channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guide- book.
Page 193 PECIFICATIONS Transducer Types: 5- or 7-wire LVDT's capable of 3280-Hz operation and having pri- mary impedance of 80 ohms or greater (all Daytronic LVDT transducers are suit- able); 3- or 5-wire variable reluctance transducers Sensitivity Range: Accommodates full-scale ranges from ±0.010 in. (±0.25 mm) to ±6.0 in.
Page 194 RANSDUCER ONNECTIONS The Model 10A31-4’s I/O CONNECTOR mates with Daytronic CONDITIONER CON- NECTOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Table 3 gives stan- dard pin assignments for the I/O Connector. With regard to 10A31-4 cabling, please note the following: All four 10A31-4 input channels use a single, sensed excitation supply.
Page 195 10A31-4 LVDT C 7-wire LVDT cabling (Fig. 1(b)) or 5-wire variable reluctance transducer cabling (Fig. 1(d)) is to be used when the cable is 20 feet or longer. In this case, the +SENSE and –SENSE lines are tied to the corresponding EXCITATION lines at the transducer.
Page 196 10A31-4 LVDT C Fig. 1 Model 10A31-4 Transducer Cabling CONDITIONER CONNECTOR (No. 60322) +EXCITATION –EXCITATION +SIGNAL SIGNAL SEC 1 COMMON SEC 2 Channel 1 –SIGNAL +EXCITATION –EXCITATION +SIGNAL SIGNAL SEC 1 COMMON SEC 2 Channel 2 –SIGNAL +EXCITATION –EXCITATION +SIGNAL SIGNAL SEC 1 COMMON...
Page 197 10A31-4 LVDT C +EXCITATION –EXCITATION CONDITIONER CONNECTOR (No. 60322) +SIGNAL SIGNAL SEC 1 COMMON SEC 2 Channel 1 –SIGNAL +EXCITATION –EXCITATION +SIGNAL SIGNAL SEC 1 COMMON SEC 2 Channel 2 –SIGNAL +EXCITATION –EXCITATION +SIGNAL SIGNAL SEC 1 COMMON Sensing SEC 2 Channel 3 –SIGNAL Points...
Page 198 10A31-4 LVDT C CONDITIONER CONNECTOR (No. 60322) +EXCITATION –EXCITATION +SIGNAL Channel 1 +EXCITATION –EXCITATION +SIGNAL Channel 2 +EXCITATION –EXCITATION +SIGNAL Channel 3 +EXCITATION –EXCITATION +SIGNAL Channel 4 Fig. 1(c) 3-Wire Variable Reluctance Transducer Cabling (under 20 ft. in length) +SENSE –SENSE SHIELD Ground Lug...
Page 199 10A31-4 LVDT C +EXCITATION –EXCITATION CONDITIONER CONNECTOR (No. 60322) +SIGNAL Channel 1 +EXCITATION –EXCITATION +SIGNAL Channel 2 +EXCITATION –EXCITATION +SIGNAL Sensing Points Channel 3 +EXCITATION –EXCITATION +SIGNAL Channel 4 –SENSE +SENSE Fig. 1(d) 5-Wire Variable Reluctance SHIELD Connector pins shown as Ground Lug Transducer Cabling viewed from rear (cable)
Page 200 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A31-4 card when used in System 10, see the general remarks on System 10 “real- channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guide- book.
Page 201 9 to 15 V-DC, which would allow you to keep the count “alive” during system power shut-down. NOTE: A System 10 data channel derived from a Model 10A35 always takes a channel “type” code of CA, and does not require calibration.
Page 202 10A35 NCODER An excitation of +5 V-DC is provided by the 10A35, as shown in Fig. 1. If a higher exci- tation level is required, the user must provide his or her own external supply, in which case the 10A35's EXCITATION OUTPUT (Pin 1) should NOT be connected to the sen- sor.
Page 203 PERATION For initial configuration of the ANALOG INPUT CHANNEL dedicated to a specific Model 10A35 card when used in System 10, see the general remarks on System 10 “real-channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guidebook.
Page 204 10A35 NCODER RNG 101 = 8009 [CR] To then restart the 10A35's count (from zero), you would again command RNG 101 = 0009 [CR] 10A35. ETUP AND PERATING ONSIDERATIONS...
Page 205 Frequency Ranges: From 10% to 100% of 250, 500, 1000, 2000, 4000, 8000, 16000, or 32000 Hz; automatically selected—on an individual channel basis—when the channel is for the System 10 channel “type” code assigned to a 10A40 data chan- configured;...
Page 206 2.a S TANDARD ABLING The Model 10A40’s I/O CONNECTOR mates with Daytronic CONDITIONER CONNEC- TOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Fig. 1(a) shows recom- mended cabling for an intrinsically grounded transistor or logic-circuit driver; Fig. 1(b) for a pulse transformer transducer with two-wire isolated windings (tachometer, tur- bine flowmeter, etc.);...
Page 207 10A40 REQUENCY Fig. 1 Model 10A40 Transducer Cabling +SIGNAL CONDITIONER CONNECTOR (No. 60322) Frequency Source See Note on Pull-Up Resistor – –SIGNAL See Fig. 2 Connector pins shown as viewed from rear (cable) side of connector SHIELD Ground Lug Fig. 1(a) Cabling to Grounded Frequency Sources +SIGNAL See Note on...
Page 208 10A40 REQUENCY See Note on CONDITIONER CONNECTOR (No. 60322) Pull-Up Resistor –EXCITATION* Zero- +SIGNAL Velocity Sensor +EXCITATION POWER COMMON * This is the sensor's "COMMON" line. Fig. 1(c) Cabling to SHIELD Zero-Velocity Sensors Connector pins shown as Ground Lug viewed from rear (cable) side of connector 2.b S PECIAL...
Page 209 For initial configuration of the ANALOG INPUT CHANNEL dedicated to a specific Model 10A40 card, see the general remarks on System 10 “real-channel” configura- tion in Manual Section 1.G.1 and elsewhere in the System 10 Guidebook. For 10A40 channel “type” codes, see Table 1, above.
Page 210 10A40 REQUENCY NOTE: The accuracy of “absolute” calibration of a 10A40-based channel is limited to ±0.05% of full scale. ALCULATED ALIBRATION This is generally the most convenient means of calibrating a 10A40 channel, when the full-scale rating of the frequency source (or the highest frequency expected to be measured) is accurately known.
Page 211 10A40 REQUENCY Trigger-Level Control Fig. 3 10A40 Trigger-Level Control Using a connected transducer as frequency source, apply an input of approxi- mately 10% of the full-scale range for which the 10A40 has been configured. Turn the TRIGGER-LEVEL CONTROL counterclockwise until the 10A40's data reading drops to zero.
Page 212 10A40 REQUENCY 10A40. HIS PAGE INTENTIONALLY BLANK...
Page 213 2 kHz). For faster response, you may select one of the higher filter bandwidths (see Table 1, below). The System 10 Central Processor controls frequency-range selection and applies an appropriately calculated scaling factor to each measurement, if desired, following initial entry of a special FREQUENCY CALIBRATION (FRQ) command (see Section 3.c,...
Page 214 Frequency Ranges: From 10% to 100% of 250, 500, 1000, 2000, 4000, 8000, 16000, or 32000 Hz; automatically selected—on an individual channel basis—when the channel is for the System 10 channel “type” codes assigned to 10A41-2C data configured; channels, see Table 2, below Excitation: Nominal 10 (i.e., ±5) V-DC;...
Page 215 10A41-2C REQUENCY Fig. 1 Model 10A41-2C Transducer Cabling +SIGNAL CONDITIONER CONNECTOR (No. 60322) Channel 1 Frequency Source See Note on Pull-Up Resistor – See Fig. 2 –SIGNAL +SIGNAL Channel 2 See Note on Frequency Pull-Up Resistor See Fig. 2 Source –...
Page 216 10A41-2C REQUENCY CONDITIONER CONNECTOR (No. 60322) –EXCITATION* Zero- +SIGNAL Velocity See Note Sensor +EXCITATION on Pull-Up Resistor Channel 1 PWR. COMMON –EXCITATION* Zero- +SIGNAL Velocity See Note Sensor +EXCITATION on Pull-Up Resistor Channel 2 * This is the sensor's "COMMON" line. PWR.
Page 217 10A41-2C REQUENCY DC O LIMINATION OF FFSET Each 10A41-2C input channel is supplied with two capacitive-coupled inputs (Pins B and H of the rear I/O Connector provide 22-microfarad capacitance for Channels 1 and 2, respectively; Pins 2 and 7 provide 0.1-microfarad capacitance). These special inputs may be used with either floating or grounded configurations;...
Page 218 10A41-2C REQUENCY Input Voltage Range: 10–200 V 2.5–50 V 0.5–10 V 0.1–2 V Fig. 3 Model 10A41-2C Input Voltage Jumper Pins Channel 1 Channel 2 ETUP AND PERATING ONSIDERATIONS 3.a S ELECTING NPUT OLTAGE ANGE Perform the following steps to select the proper peak voltage input range for each 10A41-2C channel.
Page 219 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A41-2C card when used in System 10, see the general remarks on System 10 “real- channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guide- book.
Page 220 10A41-2C REQUENCY Thus, to calibrate a 10A41-2C-based Channel No. “x,” you need only turn ON the sys- tem EEPROM SWITCH and then apply the following SCALING FACTOR (EMM) com- mand: EMM x = m [CR] where “m” equals the full-scale range corresponding to the channel’s present TYPE designation, expressed to the precision desired for the channel’s data readings.
Page 221 • Subchannel No. 2: Engine RPM As explained in Section 3.a, each subchannel is calibrated by entering an appropriate System 10 SCALING FACTOR (EMM) command. For the “type” codes assigned to 10A43 subchannels, see Table 1, below.* 10A43 S...
Page 222 RANSDUCER ONNECTIONS The Model 10A43’s I/O CONNECTOR mates with Daytronic CONDITIONER CONNEC- TOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Fig. 1 shows how the +SIG- NAL and –SIGNAL pins are to be wired to the engine. Connect the +SIGNAL line (from Pin 3) directly to the “most negative”...
Page 223 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A43 card, see the general remarks on System 10 “real-channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guidebook. For 10A43 channel “type” codes, see Table 1, above.
Page 224 10A43 WELL NGLE 10A43. HIS PAGE INTENTIONALLY BLANK...
Page 225 • Subchannel No. 3: SHAFT TEMPERATURE—this data is necessary for accurate compensation of the torsional modulus of the shaft material. By application of a simple System 10 CALCULATE (CLC) command on the torque and RPM channels, horsepower indication is also easily obtained (see Section 3.b, below).
Page 226 RANSDUCER ONNECTIONS The Model 10A45’s I/O CONNECTOR mates with Daytronic CONDITIONER CONNEC- TOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Table 1 gives standard pin assignments for the I/O Connector. With regard to 10A45 cabling, please note the fol- lowing: The 6-wire cabling shown in Fig.
Page 227 10A45 HAFT ORQUE ENSOR Fig. 1 Model 10A45 Transducer Cabling CONDITIONER CONNECTOR (No. 60322) TORQUE TORQUE REFERENCE GEAR GEAR THERMISTOR SIGNAL SENSE THERMISTOR EXCITATION SENSE TORQUE REFERENCE SIGNAL THERMISTOR SIGNAL THERMISTOR EXCITATION TORQUE SIGNAL SHIELD SIGNAL COMMON Connector pins shown as Ground Lug viewed from rear (cable) Fig.
Page 228 10A45 card, see the general remarks on System 10 “real-channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guidebook. All analog input channels derived from a Model 10A45 must be given a channel “type” code of 55 (“raw”...
Page 229 PECIFICATIONS Transducer Types and Ranges: Any reluctance-pickup turbine flowmeter producing from 15 to 2200 pulses per second, irrespective of waveform; for the System 10 channel “type” codes assigned to 10A48 data channels, see Table 1, below Excitation: Varies with flowmeter; approximately 1 V-AC, typically, at 36 kHz Measurement Characteristics: Normal-Mode Range: ±2.5 V operating;...
Page 230 RANSDUCER ONNECTIONS The Model 10A48’s I/O CONNECTOR mates with Daytronic CONDITIONER CONNEC- TOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Standard cabling is shown in Fig. 1, below; standard pin assignments for the I/O connector are given in Table 2.
Page 231 10A48 Table 2 Model 10A48 Pin Assignments I/O Connector Conditioner Line Number Function EXCITATION (approx. 1 V-AC) SIGNAL COMMON TOTALIZER OUTPUT 3, 6-10 Not Committed Not Committed ETUP AND PERATING ONSIDERATIONS 3.a T RANSDUCER LIGNMENT DJUSTMENTS With the proper transducer connections in place, select an unused system Chan- nel No.
Page 232 Make sure the system EEPROM Switch is OFF, and turn OFF the System 10 main- frame. Remove the 10A48 card from its mainframe slot. For “Card Insertion and Removal,”...
Page 233 10A48 You must now determine a SCALING FACTOR “m” according to the equation m = V x E x R where — “V” is the VOLUME (or MASS) EQUIVALENT for one pulse of the flowmeter, as given in the calibration data supplied with the flowmeter —...
Page 234 10A48 10A48. HIS PAGE INTENTIONALLY BLANK...
Page 235 Transducer Types: 2-wire DC voltage sources, grounded or floating Input Voltage Ranges: ±0.5, 1.0, 2.0, 5.0, 10, or 20 V-DC; automatically selected—on an individual channel basis—when the channel is configured; for the System 10 channel “type” codes assigned to 10A60-4 data channels, see Table 1, below Amplifier (per channel): Normal-Mode Range: ±20 V operating;...
Page 236 ±20.0 V-DC RANSDUCER ONNECTIONS The Model 10A60-4’s I/O CONNECTOR mates with Daytronic CONDITIONER CON- NECTOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Table 2 gives stan- dard pin assignments for the I/O Connector. Cabling for floating inputs is given in Fig. 1(a). NOTE: To minimize signal noise, it is recommended that for a floating (ungrounded) input with high common-mode imped- ance, the COMMON pin be tied to the –SIGNAL line at the connector.
Page 237 10A60-4 DC V OLTAGE Fig. 1 Model 10A60-4 Transducer Cabling CONDITIONER CONNECTOR (No. 60322) +SIGNAL Channel 1 COMMON* Analog –SIGNAL Channel 2: +SIGNAL Signal Source COMMON* Reg. Power Supply –SIGNAL Channel 3: +SIGNAL – (if required) –SIGNAL COMMON* –SIGNAL Channel 4: +SIGNAL Recommended for floating source with high common-mode impedance.
Page 238 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A60-4 card when used in System 10, see the general remarks on System 10 “real- channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guide- book.
Page 239 Input Current: 4 to 20 mA (unipolar) or 4 to 12 to 20 mA (bipolar or “zero-center”); automatically selected—on an individual channel basis—when the channel is config- ured; for the System 10 channel “type” codes assigned to 10A61-2 data channels, see Table 1, below Amplifier (per channel): Common-Mode Range: ±50 V operating;...
Page 240 RANSDUCER ONNECTIONS The Model 10A61-2’s I/O CONNECTOR mates with Daytronic CONDITIONER CON- NECTOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Standard cabling is shown in Fig. 1. Table 2 gives standard pin assignments for the I/O Connector.
Page 241 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A61-2 card when used in System 10, see the general remarks on System 10 “real- channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guide- book.
Page 242 10A61-2 4-20 10A61-2. HIS PAGE INTENTIONALLY BLANK...
Page 243 Input Current: 4 to 20 mA (unipolar) or 4 to 12 to 20 mA (bipolar or “zero-center”); automatically selected—on an individual channel basis—when the channel is config- ured; for the System 10 channel “type” codes assigned to 10A62-8C data channels, see Table 1, below Amplifier (per channel): Common-Mode Range: ±20 V operating;...
Page 244 RANSDUCER ONNECTIONS The Model 10A62-8C’s I/O CONNECTOR mates with Daytronic CONDITIONER CON- NECTOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Standard cabling is shown in Fig. 1. Table 2 gives standard pin assignments for the I/O Connector.
Page 245 Apply a ZERO OFFSET (BEE) command of BEE x = -150.0 [CR] * As always, the available resolution is subject to the System 10 operating range of ±32700. Thus, for example, if a full-scale input of 20 mA is to correspond to an engineering-units read- ing of 150 psi, you would have to enter an EMM value of “468.8”...
Page 246 Switch must be ON for the ZRO and FRC commands to be effective. See Manual Section 1.G.5 for a general discussion of this calibration technique. * As always, the available resolution is subject to the System 10 operating range of ±32700 (see note, previous page).
Page 247 Input Voltage Ranges: ±0.05, 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 50, 100, or 200 V-DC; auto- matically selected—on an individual channel basis—when the channel is configured; for the System 10 channel “type” codes assigned to 10A63-2 data channels, see Table 1, below Excitation (per channel): Nominal 5 V-DC;...
Page 248 ±200 V-DC RANSDUCER ONNECTIONS The Model 10A63-2’s I/O CONNECTOR mates with Daytronic CONDITIONER CON- NECTOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Table 2 gives stan- dard pin assignments for the I/O Connector. 2-wire cabling for analog sources with no excitation from the 10A63-2 is given in Fig.
Page 249 10A63-2 DC V OLTAGE Fig. 1 Model 10A63-2 Transducer Cabling CONDITIONER CONNECTOR (No. 60322) +SIGNAL Channel 1 Analog Signal Source Reg. Power Supply – (if required) –SIGNAL Channel 2: +SIGNAL Add ground for –SIGNAL floating inputs Connector pins shown as viewed from rear (cable) side of connector Fig.
Page 250 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A63-2 card when used in System 10, see the general remarks on System 10 “real- channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guide- book.
Page 251 10A63-2 DC V OLTAGE Thus, to calibrate a 10A63-2-based Channel No. “x,” you need only turn ON the system EEPROM SWITCH and then apply the following SCALING FACTOR (EMM) command: EMM x = m [CR] where “m” equals the full-scale range corresponding to the channel’s present TYPE designation, expressed to the precision desired for the channel’s data readings.
Page 252 10A63-2 DC V OLTAGE 10A63-2. HIS PAGE INTENTIONALLY BLANK...
Page 253 Transducer Types: 2-wire DC voltage sources, grounded or floating Input Voltage Ranges: ±5, 10, or 20 V-DC; automatically selected—on an individual channel basis—when the channel is configured; for the System 10 channel “type” codes assigned to 10A64-8C data channels, see Table 1, below Amplifier (per channel): Normal-Mode Range: ±20 V operating;...
Page 254 ±20 V-DC RANSDUCER ONNECTIONS The Model 10A64-8C’s I/O CONNECTOR mates with Daytronic CONDITIONER CON- NECTOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Table 2 gives stan- dard pin assignments for the I/O Connector. Note that floating (ungrounded) inputs are to be grounded at the site of the signal source, and not at the CONDITIONER CONNECTOR.
Page 255 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A64-8C card when used in System 10, see the general remarks on System 10 “real- channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guide- book.
Page 256 10A64-8C DC V IGHT HANNEL OLTAGE OINT EADWEIGHT ALIBRATION Using the standard ZERO (ZRO) and FORCE (FRC) commands, this conventional “zero and span” method can be applied to a 10A64-8C channel if the received voltage input is an analog of another parameter which has one or more independently and accurately known calibration values.
Page 257 Transducer Types: Low-level 2-wire DC voltage sources, grounded or floating Input Voltage Ranges: ±50, 100, or 200 mV-DC; automatically selected—on an indi- vidual channel basis—when the channel is configured; for the System 10 channel “type” codes assigned to 10A60-4 data channels, see Table 1, below Amplifier (per channel): Normal-Mode Range: ±0.2 V operating;...
Page 258 ±200 mV-DC RANSDUCER ONNECTIONS The Model 10A65-8’s I/O CONNECTOR mates with Daytronic CONDITIONER CON- NECTOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Table 2 gives stan- dard pin assignments for the I/O Connector. Note that floating (ungrounded) inputs are to be grounded at the site of the signal source, and not at the CONDITIONER CONNECTOR.
Page 259 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A65-8 card, see the general remarks on System 10 “real-channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guidebook. For 10A65-8 chan- nel “type” codes, see Table 1, above.
Page 260 10A65-8 DC V IGHT HANNEL EVEL OLTAGE OINT EADWEIGHT ALIBRATION Using the standard ZERO (ZRO) and FORCE (FRC) commands, this conventional “zero and span” method can be applied to a 10A65-8 channel if the received millivolt- age input is an analog of another parameter which has one or more independently and accurately known calibration values.
Page 261 ), and bandwidth flat to 0.1%, 1%, and 3 dB, respectively); automatically selected—on an individual channel basis—when the channel is configured; for the System 10 channel “type” codes assigned to 10A68-2 data channels, see Table 2, below Amplifier (per channel): Floating, with RMS Converter (see Table 1 for bandwidths) Common-Mode Range: ±1500 V operating and without instrument damage...
Page 262 10A68-2 AC RMS C Filter (per channel): 3-pole modified Butterworth; 3 dB down at 5 Hz; 60 dB down at 30 Hz Step-Response Settling Time (Full-Scale Output): To 1% of final value: 150 msec To 0.1% of final value: 200 msec To 0.02% of final value: 250 msec Auxiliary Outputs: Filtered outputs available on mainframe wire-wrap pins Table 1 Model 10A68-2 Input Characteristics...
Page 263 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A68-2 card when used in System 10, see the general remarks on System 10 “real- channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guide- book.
Page 264 10A68-2 AC RMS C Thus, to calibrate a 10A68-2-based Channel No. “x,” you need only turn ON the system EEPROM SWITCH and then apply the following SCALING FACTOR (EMM) command: EMM x = m [CR] where “m” equals the full-scale range corresponding to the channel’s present TYPE designation, expressed to the precision desired for the channel’s data readings.
Page 265 ), and bandwidth flat to 0.2%, 1%, and 3 dB, respectively); automatically selected—on an individual channel basis—when the channel is configured; for the System 10 channel “type” codes assigned to 10A69-4 data channels, see Table 2, below Amplifier (per channel): Selectable gain, followed by high-pass filter with RMS Con- verter (see Table 1 for bandwidths) Common-Mode Range: ±1000 V operating and without instrument damage...
Page 266 200 V-AC RANSDUCER ONNECTIONS The Model 10A69-4’s I/O CONNECTOR mates with Daytronic CONDITIONER CON- NECTOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Table 3 gives stan- dard pin assignments for the I/O Connector. The wiring of each input will depend on the range selected for that input. Cabling for inputs in the 50-, 100-, and 200-mV ranges is shown in Fig.
Page 267 10A69-4 AC RMS C Fig. 1 Model 10A63-2 Transducer Cabling CONDITIONER CONNECTOR (No. 60322) +SIGNAL Channel 1 –SIGNAL –SIGNAL +SIGNAL Channel 2: Reg. Power Supply (if required) –SIGNAL +SIGNAL Channel 3: –SIGNAL +SIGNAL Channel 4: Fig. 1(a) Cabling for High- Sensitivity Input Ranges Connector pins shown as viewed from rear (cable)
Page 268 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A69-4 card, see the general remarks on System 10 “real-channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guidebook. For 10A69-4 chan- nel “type” codes, see Table 2, above.
Page 269 10A69-4 AC RMS C OINT EADWEIGHT ALIBRATION Using the standard ZERO (ZRO) and FORCE (FRC) commands, this conventional “zero and span” method can be applied to a 10A69-4 channel if the received voltage or current input is an analog of another parameter which has one or more indepen- dently and accurately known calibration values.
Page 270 10A69-4 AC RMS C 10A69-4. HIS PAGE INTENTIONALLY BLANK...
Page 271 Input Ranges (Full-Scale): ±0.75, 1.50, or 3.00 mV/V; automatically selected—on an individual channel basis—when the channel is configured; for System 10 channel “type” codes assigned to 10A70-2 data channels, see Table 1, below. Since channel zeroing is by digital techniques, no input balance control is provided. The allowable input range, therefore, must include any initial unbalance (which, in commercially produced strain gage transducers, is usually negligible).
Page 272 RANSDUCER ONNECTIONS The Model 10A70-2’s I/O CONNECTOR mates with Daytronic CONDITIONER CON- NECTOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Table 2 gives stan- dard pin assignments for the I/O Connector. With regard to 10A70-2 cabling, please note the following: 4-wire cabling to a full-bridge strain gage transducer is given in Fig.
Page 273 10A70-2 DC S TRAIN Fig. 1 Model 10A70-2 Transducer Cabling CONDITIONER CONNECTOR (No. 60322) +EXCITATION Channel –SENSE –SIGNAL +SIGNAL +SENSE –EXCITATION Channel 2: +EXCITATION –EXCITATION –SENSE +SENSE +SIGNAL Fig. 1(a) 4-Wire Strain Gage –SIGNAL Cabling (under 20 ft. in length) SHIELD Connector pins shown as Ground Lug...
Page 274 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A70-2 card when used in System 10, see the general remarks on System 10 “real- channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guide- book.
Page 275 10A70-2 DC S TRAIN Note that a channel calibrated by the MVV command will report measurement data to a precision matching that of the entered “u” value. If, for example, you're measuring “psi,” and enter a “u” of “500,” then all subsequent channel readings will be rounded to the nearest psi.
Page 276 10A70-2 DC S TRAIN 10A70-2. HIS PAGE INTENTIONALLY BLANK...
Page 277 1.E.2.10A72-2C YSTEM NALOG NPUT ARDS 10A72-2C ODEL NHANCED TRAIN ONDITIONER ENERAL ESCRIPTION AND PECIFICATIONS The Model 10A72-2C is a general-purpose two-channel conditioner for use with DC- excited load cells, pressure sensors, and any other conventional strain gage transducer employing a 4-arm bridge of nominal 350 Ω or higher, with a full-scale range of 0.75, 1.50, or 3.00 mV/V.
Page 278 10A72-2C DC S NHANCED TRAIN Input Ranges (Full-Scale): Excitation-dependent (see Table 1, below); automatically selected—on an individual channel basis—when the channel is configured; for Sys- tem 10 channel “type” codes assigned to 10A72-2C data channels, see Table 1. Since channel zeroing is by digital techniques, no input balance control is provided. The allowable input range, therefore, must include any initial unbalance (which, in commercially produced strain gage transducers, is usually negligible).
Page 279 RANSDUCER ONNECTIONS The Model 10A72-2C’s I/O CONNECTOR mates with Daytronic CONDITIONER CON- NECTOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Table 2 gives stan- dard pin assignments for the I/O Connector. With regard to 10A72-2C cabling, please note the following: 4-wire cabling to a full-bridge strain gage transducer is given in Fig.
Page 280 10A72-2C DC S NHANCED TRAIN Fig. 1 Model 10A72-2C Transducer Cabling CONDITIONER CONNECTOR (No. 60322) +EXCITATION Channel –SENSE –SIGNAL +SIGNAL +SENSE SENSE See Fig. 5 –EXCITATION Channel 2: +EXCITATION –EXCITATION –SENSE +SENSE +SIGNAL Fig. 1(a) 4-Wire Strain Gage –SIGNAL Cabling (under 20 ft. in length) See Fig.
Page 281 10A72-2C DC S NHANCED TRAIN Model 10A72-2C I/O Connector Fig. 2 Jumpering of an Unused (Chn. n) 10A72-2C Strain Gage Input +SEN (Chn. n) –EX (Chn. n) –SEN (Chn. n) +SIG (Chn. n) –SIG (Chn. n) GROUND ETUP AND PERATING ONSIDERATIONS 3.a S ELECTION OF...
Page 282 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A72-2C card when used in System 10, see the general remarks on System 10 “real- channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guide- book.
Page 283 10A72-2C DC S NHANCED TRAIN MVV x = i, u [CR] For “i,” enter the manufacturer-supplied transducer sensitivity rating in “mV/V, full scale.” For a “Type 70” channel (7.5/1.5/0.75 mV/V, full scale), you should enter an “i” value greater than 0.02 and less than or equal to 1.00 (mV/V). For a “Type 71” channel (15.0/3.0/1.50 mV/V, full scale), you should enter a value greater than 0.04 and less than or equal to 2.00 (mV/V).
Page 284 (strain-gage transducer manufacturers often supply such resistors with their instruments). In System 10, a strain gage channel’s shunt resistor may be switched in and out by means of the SHUNT CALIBRATE—POSITIVE (SHP) or SHUNT CALIBRATE—NEGA- TIVE (SHN) command.
Page 285 NOTE: You must furnish your own pin-to-pin shielded cable for connecting the 10CJB-2 to the 10A72-2C’s rear I/O CONNECTOR (see Table 2 for pin assignments)— or you may use a special cable furnished by Daytronic. In either case, Daytronic will supply terminal connectors for the cable.
Page 286 10A72-2C DC S NHANCED TRAIN Fig. 6 Model 10CJB-2 Transducer Cabling Model 10CJB-2 Model 10CJB-2 Fig. 6(a) Fig. 6(b) Screw Terminal Screw Terminal 2-Wire 3-Wire (Chn. 1 or 2) (Chn. 1 or 2) 1/4-Bridge 1/4-Bridge Completion Completion –SIG –SIG 1/2 BR 1/2 BR –EX –EX...
Page 287 10A72-2C DC S NHANCED TRAIN 4.c C ALIBRATION ALCULATED ALIBRATION You can calibrate a 10A72-2C channel receiving strain-gage input from a Model 10CJB-2 Bridge Completion Card by applying the MV/V CALIBRATION (MVV) com- mand as described in Section 3.d, above. Note however that, in this case, •...
Page 288 10A72-2C DC S NHANCED TRAIN 10A72-2C. HIS PAGE INTENTIONALLY BLANK...
Page 289 2.b) • equivalent circuitry supplied by the user When the 10A73-4 is used with one of the System 10 Bridge Completion Connectors listed above, the excitation level is fixed at 5 V-DC. In the absence of a Bridge Com- pletion Connector—whether or not the Model 10CJB-4 is used—the 10A73-4 provides...
Page 290 BRIDGE COMPLETION CIRCUITRY must be attached, unless all four inputs originate from full-bridge transducers. Section 2.a describes the cabling to be used with System 10 Bridge Completion Connectors. Section 2.b describes the cabling to be used with the Model 10CJB-4 Quad Bridge Completion Card.
Page 291 10A73-4 1/2 & 1/4 B DC S RIDGE TRAIN Section 2.c describes the cabling to be used in the absence of bridge-completion cir- cuitry (i.e., connection to four full-bridge transducers). IMPORTANT: The ±EXCITATION, ±SENSE, and ±SIGNAL pins for an UNUSED STRAIN GAGE INPUT CHANNEL should be jumpered at the I/O CONNECTOR or in the BRIDGE COMPLETION CONNECTOR as shown in Fig.
Page 292 RIDGE OMPLETION ONNECTOR Each System 10 Bridge Completion Connector attaches directly to the rear I/O CONNECTOR of the Model 10A73-4. Remove the top plate of the connector. Inside are four sets of labelled screw termi- nals, corresponding to the 10A73-4's four input channels. You will connect your gage wires directly to these terminals and, if necessary, interconnect certain terminal pairs by means of jumper wires.
Page 293 10A73-4 1/2 & 1/4 B DC S RIDGE TRAIN Model 10HBC-4 Twisted Pair +Excitation +EXC +SENSE Fig. 2(c) Per-Channel Connections to Model CAL SEN 10HBC-4 for 4-Wire 1/2-Bridge Completion Signal +SIGNAL –SENSE –EXC –Excitation SHIELD Model 10HBC-4 Twisted Pair +Excitation +EXC +SENSE Fig.
Page 294 NOTE: You must furnish your own pin-to-pin shielded cable for connecting the 10CJB-4 to the 10A73-4’s rear I/O CONNECTOR (see Table 2 for pin assignments)—or you may use a special cable furnished by Daytronic. In either case, Daytronic will sup- ply terminal connectors for the cable.
Page 295 OMPLETION In the absence of bridge-completion circuitry, the 10A73-4's I/O CONNECTOR will mate with Daytronic CONDITIONER CONNECTOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Pinout for the I/O CONNECTOR is given in Table 2, above. The required cabling is shown in Fig. 4, above.
Page 296 XCITATION EVEL When a System 10 Bridge Completion Connector (Model 10QBC-4-120, 10QBC-4- 350, 10QBC-4-1K, 10HBC-4, or 10FBC-4) is used with the Model 10A73-4, the excita- tion level for all four channels is fixed at 5 volts, and cannot be changed without a special modification to the 10A73-4 card.
Page 297 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A73-4 card when used in System 10, see the general remarks on System 10 “real- channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guide- book.
Page 298 10A73-4 1/2 & 1/4 B DC S RIDGE TRAIN OINT EADWEIGHT ALIBRATION PLEASE NOTE: AS MENTIONED ABOVE, THIS CALIBRATION TECHNIQUE GENERAL- LY APPLIES TO A MODEL 10A73-4 CHANNEL ONLY WHEN THAT CHANNEL IS CON- NECTED TO A FULL-BRIDGE STRAIN GAGE TRANSDUCER, AS ARE THE FOUR CHANNELS SHOWN IN FIG.
Page 299 (strain-gage transducer manufacturers often supply such resis- tors with their instruments). In System 10, a strain gage channel’s shunt resistor may be switched in and out by means of the SHUNT CALIBRATE—POSITIVE (SHP) or SHUNT CALIBRATE—NEGA- TIVE (SHN) command.
Page 300 10A73-4 1/2 & 1/4 B DC S RIDGE TRAIN Similarly, closing the switch to contact point “B” will produce a Logic 0 level at Pin 10 (“NOT –CALIBRATE”), thereby switching in each channel’s shunt resistor for a nega- tive up-scale reading. Opening the switch to disconnect the “NOT –CALIBRATE” line from POWER COMMON will then return all channels to the “NO –CALIBRATE”...
Page 301 10A73-4 1/2 & 1/4 B DC S RIDGE TRAIN +Exc +Exc +Sense Circuit Positive Resume Sense (100K .1% Negative provided) +Signal First –Signal –S –Sense Gage –Exc –Exc Circuit Cable Shunt Circuit on Gage & Cable Bridge Completion Conditioner Card Bridge Circuit (simplified)
Page 302 10A73-4 1/2 & 1/4 B DC S RIDGE TRAIN —and the corrected SCALING FACTOR in units of STRAIN is therefore = (30,000) (1 + R ) = (30,000) (1.007) = 30,210 This corrected factor can then be applied to the strain gage channel in question by means of the SCALING FACTOR (EMM) command.
Page 303 2.b); • equivalent circuitry supplied by the user** * In System 10, the Model 10A1 uses the same system bus as the Model 10A11 Thermocouple Processor Card; therefore, a “10A” THERMOCOUPLE CONDITIONER such as the Model 10A9-8C or 10A10-4 cannot be used in the same System 10 “A-card” rack as a Model 10A1.
Page 304 Also, no more than 16 Model 10A74-4C cards using this excitation/configuration combination for all four channels can be installed in any one System 10 “A-card” rack. 10A74-4C.
Page 305 Transducer Ranges: ±7500, 15000, or 30000 microstrain; with the optional Model 10VAC: ±5, 10, or 20 V-DC (mixed as desired); automatically selected—on an individ- ual channel basis—when the channel is configured; for System 10 channel “type” codes assigned to 10A74-4C data channels, see Table 2 Excitation (for all four channels): Sensed excitation jumper-selectable 1, 2, 5, or 10 V-DC (i.e., ±0.5, ±1, ±2.5, or ±5.0 V-DC, respectively), nominal;...
Page 306 For connection of voltage signals to an optional Model 10VAC attached to this connector, see Section 5. Section 2.a describes the cabling to be used with System 10 Bridge Completion Connectors. Section 2.b describes the cabling to be used with the Model 10CJB-4 Quad Bridge Completion Card.
Page 307 RIDGE OMPLETION ONNECTOR Each System 10 Bridge Completion Connector attaches directly to the rear I/O CONNECTOR of the Model 10A74-4C. Remove the top plate of the connector. Inside are four sets of labelled screw termi- nals, corresponding to the 10A74-4C's four input channels. You will connect your gage wires directly to these terminals and, if necessary, interconnect certain terminal pairs by means of jumper wires.
Page 308 10A74-4C DC S TRAIN RACK Fig. 2 Model 10A74-4C Strain Gage Cabling Using System 10 Bridge Completion Connectors Fig. 2(a) Per-Channel Fig. 2(b) Per-Channel Model 10QBC-4 Model 10QBC-4 Connections to Model Connections to Model +EXC +EXC 10QBC-4* for 2-Wire 10QBC-4* for 3-Wire...
Page 309 NOTE: You must furnish your own pin-to-pin shielded cable for connecting the 10CJB-4 to the 10A74-4C’s rear I/O CONNECTOR (see Table 3 for pin assignments)— or you may use a special cable furnished by Daytronic. In either case, Daytronic will supply terminal connectors for the cable.
Page 310 OMPLETION In the absence of bridge-completion circuitry, the 10A74-4C's I/O CONNECTOR will mate with Daytronic CONDITIONER CONNECTOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Pinout for the I/O CONNECTOR is given in Table 3, above. The required cabling is shown in Fig. 4.
Page 311 JUMPER PINS are located at the front edge of the card. Place the single jumper con- nector across the pair of pins labelled with the desired excitation level: 1, 2, 5, or 10 V. You need not remove the 10A74-4C card from the System 10 mainframe in order to do this.
Page 312 “master” 10A1 must be designated for synchronization to the system scan cycle. The System 10 scan cycle can be “slaved” in turn to an external pulse signal received through the RS-422 interface provided by a designated Model 10BACI-422 Auxiliary Computer Interface Card.
Page 313 10A74-4C DC S TRAIN RACK When a 10A74-4C is connected to full-bridge strain gage transducers, “TWO-POINT (DEADWEIGHT)” calibration may be applied, in addition to or as an alternative to “EMM-CALCULATED” and “SIMULATED (SHUNT)” calibration (in this case, as before, calibration via the MVV command is not recommended). NOTE: If you are using a Model 10CJB-4 for bridge completion of a 10A74-4C chan- nel and, prior to initial calibration, observe a significantly nonzero reading when no load is placed on the gage(s), you may impose a nominal ±1 mV/V offset by means of...
Page 314 (strain-gage transducer manufacturers often sup- ply such resistors with their instruments). In System 10, a strain gage channel’s shunt resistor may be switched in and out by means of the SHUNT CALIBRATE—POSITIVE (SHP) or SHUNT CALIBRATE—NEGA- TIVE (SHN) command.
Page 315 10A74-4C DC S TRAIN RACK Fig. 6 Logic Inputs for 10A74-4C Remote Shunt Calibration and/or Track-Hold Control (Without Bridge Completion) CONDITIONER CONNECTOR (No. 60322) CONDITIONER CONNECTOR (No. 60322) +5 V +5 V +5 V +CALIBRATE +CALIBRATE OPEN = Logic 1 (NO ±Calibration) PWR COMMON PWR COMMON...
Page 316 10A74-4C DC S TRAIN RACK 1 MV/V OFFSET Fig. 7 Model 10CJB-4 – Offset Jumpers 3.e C 10A74-4C T ONTROL OF RACK PERATION OGIC NPUT When the 10A74-4C's rear I/O CONNECTOR is not dedicated to a Model 10QBC- 4, 10HBC-4, 10FBC-4, or 10VAC, its Pin K can be used as an alternative source of TRACK/HOLD control (see Fig.
Page 317 10A74-4C DC S TRAIN RACK +Exc +Exc +Sense Circuit Positive Resume Sense (100K .1% Negative provided) +Signal First –Signal –S –Sense Gage –Exc –Exc Circuit Cable Shunt Circuit on Gage & Cable Bridge Completion Conditioner Card Bridge Circuit (simplified) Compl. Circuit Fig.
Page 318 10A74-4C DC S TRAIN RACK 4.b P REVENTING THE FFECTS OF RIDGE ONLINEARITY The effects of this nonlinearity can be minimized by SHUNT CALIBRATION at 80% of the expected full-scale strain, thus distributing it more uniformly over the range. WHERE THE GAGE IS TO BE USED IN EITHER TENSION OR COMPRESSION MEA- SUREMENTS—BUT NOT BOTH—an additional compensating term can be employed to determine the fully corrected SCALING FACTOR: = m (1 + R...
Page 319 10A74-4C DC S TRAIN RACK Connects to Fig. 9 10VAC Transducer Cabling 10A74-4C Rear I/O Connector +Signal 10VAC Connection CHANNEL Board ANALOG Chan. 3 +Signal SIGNAL Chan. 3 –Signal SOURCE NOT USED NOT USED Chan. 2 +Signal Chan. 4 +Signal Chan.
Page 320 10A74-4C DC S TRAIN RACK 10A74-4C. HIS PAGE INTENTIONALLY BLANK...
Page 321 1.E.2.10A76 YSTEM NALOG NPUT ARDS 10A76 ODEL IBRATION ONDITIONER ENERAL ESCRIPTION AND PECIFICATIONS The single-channel Model 10A76 measures the true RMS value of the vibratory com- ponent of the output signal of a conventional strain gage accelerometer of up to 50 mV, full scale—for which selectable excitation of 1, 5, or 10 V-DC is provided.
Page 322 RANSDUCER ONNECTIONS The Model 10A76’s I/O CONNECTOR mates with Daytronic CONDITIONER CONNEC- TOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Table 1 gives standard pin assignments for the I/O Connector. With regard to 10A76 cabling, please note the fol- lowing: 4-wire cabling to a full-bridge strain gage transducer is given in Fig.
Page 323 10A76 IBRATION Fig. 1 Model 10A76 Transducer Cabling CONDITIONER CONNECTOR (No. 60322) +EXCITATION –SENSE +SENSE –SIGNAL +SIGNAL –EXCITATION Fig. 1(a) 4-Wire Strain Gage Cabling (under 20 ft. in length) SHIELD Connector pins shown as Ground Lug viewed from rear (cable) side of connector CONDITIONER CONNECTOR (No.
Page 324 10A76 IBRATION Excitation Selection Jumper Pins Fig. 2 10A76 Excitation and Filter Gain Selection Jumper Pins High-Pass Filter Gain Selection Jumper Pins Position the jumper as shown in Fig. 3 to set the desired excitation voltage. Do not reinstall the 10A76 card until you have set the high-pass filter gain (next section).
Page 325 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A76 card when used in System 10, see the general remarks on System 10 “real- channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guide- book.
Page 326 10A76 IBRATION Orient the accelerometer VERTICALLY AT REST, to create a state of “gravitational acceleration” (= 1 g). Enter a FORCE (FRC) command of FRC y = 1.00 [CR] You must now determine the high-pass filter gain that includes the desired full scale.
Page 327 59 kilohms, 1%. Note that the 10A78 can NOT be cali- brated via the System 10 MV/V CALIBRATION (MVV) command. Note also that a specially modified version of the 10A78 is required if you wish to control the shunt-cali- bration process by means of logic-level inputs through the rear I/O CONNECTOR.
Page 328 RANSDUCER ONNECTIONS The Model 10A78’s I/O CONNECTOR mates with Daytronic CONDITIONER CONNEC- TOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Table 2 gives standard pin assignments for the I/O Connector. With regard to 10A78 cabling, please note the fol- lowing: 4-wire strain gage cabling is given in Fig.
Page 329 10A78 AC S TRAIN Turn OFF mainframe power and remove the 10A78 card from its mainframe slot. For “Card Insertion and Removal,” see Manual Section 1.B. Refer to Fig. 2, below, and locate the SIGNAL PROGRAMMING JUMPER PADS on the component side of the board. 3.
Page 330 10A78 AC S TRAIN CONDITIONER CONNECTOR (No. 60322) +SENSE +EXCITATION –SIGNAL +SIGNAL –EXCITATION –SENSE LEBOW CAL SHIELD EXTRA WIRE Connector pins shown as Ground Lug (paired with "LEBOW CAL," viewed from rear (cable) UNCONNECTED at side of connector Conditioner Connector and at Transducer) Fig.
Page 331 10A78 AC S TRAIN Solder drop for Solder drop for Transducer Cabling special Lebow 16 Cabling other than Lebow 1600 Series Fig. 2 10A78 Signal Program- ming Jumper Pads and Shunt Calibration Resistor Shunt Resistor (#R47) +S S.C. Terminal post for connection of resistor ETUP AND PERATING ONSIDERATIONS...
Page 332 10A78 AC S TRAIN Load the transducer in the positive direction with a convenient “deadweight” value which is greater than one-half of full scale. Using a small insulated screwdriver, adjust the 10A78’s PHASE CONTROL until a maximum reading is obtained for the 10A78 channel.
Page 333 ALIBRATION For initial configuration of the ANALOG INPUT CHANNEL dedicated to a specific Model 10A78 card when used in System 10, see the general remarks on System 10 “real-channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guidebook.
Page 334 (strain-gage transducer manufacturers often supply such resistors with their instruments). In System 10, a strain gage channel’s shunt resistor may be switched in and out by means of the SHUNT CALIBRATE—POSITIVE (SHP) or SHUNT CALIBRATE—NEGA- TIVE (SHN) command.
Page 335 1.E.2.10A96 YSTEM NALOG NPUT ARDS 10A96 ODEL MPLIFIED CCELEROMETER IBRATION ONDITIONER ENERAL ESCRIPTION AND PECIFICATIONS The single-channel Model 10A96 measures the true RMS value of the vibratory com- ponent of the output signal of an Amplified Piezoelectric Accelerometer, for which an excitation of ±15 V-DC is provided.
Page 336 TOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Table 1 gives standard pin assignments for the I/O Connector. Fig. 1 shows 5-wire connections to a Daytronic Model ACL3 Amplified Piezoelectric Accelerometer. The 10A96 will work with any similar instrument with a sensitivity of 50.0 mV/g, using similar cable connections.
Page 337 10A96 MPLIFIED CCELEROMETER IBRATION CONDITIONER CONNECTOR (No. 60322) +EXCITATION +13.5 to +16.5 V-DC Supply Input –SIGNAL Output / Supply Common (–) –EXCITATION -13.5 to -16.5 V-DC Supply Input +SIGNAL SIGNAL ± 5 V-DC Output COMMON Model ACL3 Electrical Connector (Bendix PT1H-10-6P—mates with PT06A-10-6S) SHIELD Connector pins shown as...
Page 338 10A96 MPLIFIED CCELEROMETER IBRATION "Front-End" Amplifier Gain Selection Jumper Pins Fig. 2 10A96 Amplifier and Filter Gain Selection Jumper Pins High-Pass Filter Gain Selection Jumper Pins Gain = 1 2 3 4 5 6 7 Fig. 3 10A96 Front-End Amplifier Gain Selection Jumper Pins Gain = 2 2 3 4 5 6 7...
Page 339 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model 10A96 card when used in System 10, see the general remarks on System 10 “real- channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guide- book.
Page 340 10A96 MPLIFIED CCELEROMETER IBRATION +SIGNAL Voltage –SIGNAL Standard – COMMON Fig. 5 Calibration Connections to 10A96 I/O Connector Connector pins shown as viewed from rear (cable) side of connector 4. With the EEPROM Switch still ON, apply a ZERO (ZRO) command to Channel No.
Page 341 10A96 MPLIFIED CCELEROMETER IBRATION Command EMM y [CR] and note the answer returned by the system. This is “m ,” the scaling factor you “forced” for Channel No. y in Step 6. 10. Now set the “m” coefficient for Channel No. x (“Vibratory Component”) by com- manding EMM x = m [CR]...
Page 342 10A96 MPLIFIED CCELEROMETER IBRATION 10A96. HIS PAGE INTENTIONALLY BLANK...
Page 343 No external cold junction is required (although the user may supply his own Controlled Ambient Temperature Zone for ref- erence-junction purposes, if desired). A conventional Daytronic four-channel isother- mal connector assembly (No. 60323, shown in Figs. 2 and 3) is supplied with each...
Page 344 Number of Input Channels: Four Thermocouple Types and Ranges: See Table 1; automatically selected—on an indi- vidual channel basis—when the channel is configured; for System 10 channel “type” codes assigned to AA14-4F010 data channels, see Table 3 (Section 3.c) Amplifier (per channel): Normal-Mode Range: ±80 mV operating;...
Page 345 2.7778 RANSDUCER ONNECTIONS The Model AA14-4F010’s I/O CONNECTOR mates with Daytronic CONDITIONER CONNECTOR No. 60323, shown in Fig. 2. This connector contains four “±” screw- terminal pairs, one for each TC sensor. TC leads should be directly attached to the corresponding screw terminals (they should never be soldered).
Page 346 AA14-4F010 HERMOCOUPLE Fig. 2 Four-Channel Thermocouple Connector Assembly (No. 60323) Cable Clamp Screw-Terminals Precision (for secure connection of Reference-Junction thermocouple leads) Thermistor Cable Relief Post 20-Pin Connector (attaches to rear I/O Connector of AA14-4F010 Card) I/O Connector Conditioner Conditioner Screw Channel Line Number...
Page 347 AA14-4F010 HERMOCOUPLE CONDITIONER CONNECTOR (No. 60323) Fig. 3 Model AA14-4F010 Transducer Cabling Etc. Thermocouple Sensors (SAME TYPE) – + – + + SIGNAL Channel 1 – SIGNAL – + – + + SIGNAL – SIGNAL Channel 2 Connector pins shown as viewed from rear (cable) side of connector SHIELD...
Page 348 AA14-4F010 card, see the general remarks on System 10 “real-channel” configura- AA14- tion in Manual Section 1.G.1 and elsewhere in the System 10 Guidebook. For 4F010 channel “type” codes, see Table 3, below. In System 10, the initial configuration and ABSOLUTE CALIBRATION of an AA14-4F010 channel (No.
Page 349 AA14-4F010 HERMOCOUPLE 3. Apply a RESET (RST) command to Channel No. x: RST x [CR] The channel will be retyped as “55” (i.e., a direct millivolt reading from the sys- tem’s internal Called Signal Bus). Its SCALING FACTOR (“m”) will be changed to “5000”...
Page 350 ED PRIMARILY FOR TRAINED SERVICE TECHNICIANS. With regard to the on- board diagnostic pins, please note the following: • PROPER ESD PRACTICE SHOULD BE OBSERVED WHEN MAKING CONTACT WITH AN AA14-4F010 BOARD INSTALLED IN A “LIVE” DAYTRONIC SYSTEM MAINFRAME. ALWAYS GROUND YOURSELF TO THE MAINFRAME CHASSIS BEFORE TOUCHING THE BOARD.
Page 351 AA30-4 from 0.2 through 200 Hz in 16 steps—or, if desired, a fixed filter of either 10 or 50 Hz for all channels may be specified at the time of order. When the AA30-4 is used in System 10, its filter cutoff values are set by means of an on-board 16-position switch for each channel.
Page 352 PECIFICATIONS Transducer Types: 5- or 7-wire LVDT's capable of 3280-Hz operation and having pri- mary impedance of 80 Ω or greater (all Daytronic LVDT transducers are suitable); 3- or 5-wire variable reluctance transducers Input Ranges (rms, full-scale): Automatically selected—on an individual channel basis—when the channel is configured;...
Page 353 AA30-4 LVDT C Gain Stability: vs. temperature: ±50 ppm/°C; vs. time: ±20 ppm/month Filter (per channel): 3-pole modified Butterworth “F1” Programmable Filtering (all four channels): Switch- or software-selectable to one of 16 different cutoff frequencies: 0.2; 0.4; 0.8; 1.0; 1.6; 2.0; 4.0; 5.0; 8.0; 10; 20;...
Page 354 AA30-4 LVDT C Table 3 Fixed Filter Characteristics for “AA” Cards Bandwidth Step-Response Settling Time Response Response to 1% of to 0.1% of to 0.02% of Filter at -3 dB at -60 dB final value final value final value Designation (Hz) (Hz) (msec)
Page 355 AA30-4 LVDT C IMPORTANT: The ±EXCITATION, ±SENSE, ±SIGNAL, and CENTER WIRE terminals for an UNUSED LVDT INPUT CHANNEL should be jumpered as shown in Fig. 3, below. If an input is left open, high-frequency oscillation can result, which can in turn produce significant interchannel crosstalk, and possibly inaccurate data readings.
Page 356 AA30-4 LVDT C Channel 1, 2, 3, or 4: AA30-4 CONDITIONER CONNECTOR +SENSE –SENSE SHIELD +EXCITATION +EXCITATION +SENSE –EXCITATION SLAVE IN Fig. 5 –SENSE +SIGNAL –EXCITATION –SIGNAL SEC. 1 +SIGNAL CENTER WIRE* SIGNAL –SIGNAL COMMON SEC. 2 PRIMARY COIL * SIGNAL COMMON SECONDARY COILS Fig.
Page 357 AA30-4 LVDT C 2.b C ONNECTION OF XTERNAL XCITATION OURCE An external excitation supply furnished by the user can be optionally applied to each active AA30-4 channel, in place of the card's on-board 3280-Hz, 3-VAC (rms) refer- ence. The external excitation must be 2 to 6 kHz, 2 to 3.5 V-AC (rms sine wave), refer- enced to “center wire”...
Page 358 NOTE: If your AA30-4 card is equipped with FIXED ANALOG FILTERING, you may ignore this manual section. When using an AA30-4 with PROGRAMMABLE ANALOG FILTERING in System 10, you may set an individual corner frequency for the analog filter of each active input chan- nel,* as follows: Fig.
Page 359 Reinsert the AA30-4 card. NOTE: In addition to the normal-mode analog filtering supplied by the AA30-4 card, System 10 can provide additional processor-controlled DIGITAL SMOOTHING on a per-channel basis. For each individual channel, you may indicate the desired amount of digital smoothing by applying a FILTER (FIL) command to that channel (see Manual Section 2.G.2).
Page 360 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model AA30-4 card when used in System 10, see the general remarks on System 10 “real- channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guide- book.
Page 361 PRIMARILY FOR TRAINED SERVICE TECHNICIANS. With regard to the on-board diagnostic pins, please note the following: • PROPER ESD PRACTICE SHOULD BE OBSERVED WHEN MAKING CONTACT WITH AN AA30-4 BOARD INSTALLED IN A “LIVE” DAYTRONIC SYSTEM MAIN- FRAME. ALWAYS GROUND YOURSELF TO THE MAINFRAME CHASSIS BEFORE TOUCHING THE BOARD.
Page 362 AA30-4 LVDT C AA30-4. HIS PAGE INTENTIONALLY BLANK...
Page 363 Hz are not recommended for use with the AA41, because of inadequate usable dynamic frequency range. When the card is used in System 10, its filter cutoff values are set by means of an on-board 16-position switch for each channel.
Page 364 REALIGNMENT OF THE AA41 CARD IS REQUIRED. FILTER TILES, HOWEVER, MAY BE INSTALLED OR REMOVED BY THE USER, IN THE FIELD. CONTACT THE DAYTRONIC SERVICE DEPARTMENT FOR COMPLETE INSTRUCTIONS. THE FOLLOWING AA41-2 / AA41-4 VERSIONS ARE CURRENTLY AVAILABLE: • Model AA41-2F010—Two input channels, with FIXED 10-Hz FILTERING for each •...
Page 365 (see Table 2, below); automatically selected—on an individual channel basis—when the channel is configured for the System 10 channel “type” codes assigned to AA41 data channels, see Table 1, below Excitation: Nominal 10 (i.e., ±5) V-DC; ±50 mA, total (all channels) Amplifier (per channel): Normal-Mode Range: ±200 V operating and without instrument damage...
Page 366 AA41-2 / AA41-4 REQUENCY Table 2 “F1” Programmable Filter Characteristics for “AA” Cards Bandwidth Step-Response Settling Time Selected Response Response to 1% of to 0.1% of to 0.02% of Frequency at -3 dB at -60 dB final value final value final value (Hz) (Hz)
Page 367 AA41-2 / AA41-4 REQUENCY 40-Pin Connector (attaches to rear I/O Connector of AA41 Card) Fig. 2 Model AA41 Connector Assembly Board SHIELD +SIGNAL +SIGNAL A +SIGNAL B Channel Channel –SIGNAL POWER COM –5V NO CONNECTION NO CONNECTION SHIELD +SIGNAL +SIGNAL A +SIGNAL B Channel Channel...
Page 368 AA41-2 / AA41-4 REQUENCY AA41-2: Channel 1 or 2: AA41-4: Channel 1, 2, 3, or 4: AA41 CONDITIONER CONNECTOR +SIGNAL SHIELD +SIGNAL +SIGNAL A Frequency Fig. 4 Source +SIGNAL B –SIGNAL – –SIGNAL POWER COM See Note on Pull-Up Resistor –5V Fig.
Page 369 AA41-2 / AA41-4 REQUENCY DC O LIMINATION OF FFSET Each AA41 input channel is supplied with two capacitive-coupled inputs: “+SIGNAL A” provides 0.1-microfarad capacitance, while “+SIGNAL B” provides 10-microfarad capacitance. These special inputs may be used with either floating or grounded con- figurations;...
Page 370 NOTE: If your AA41 card is equipped with FIXED ANALOG FILTERING, you may ignore this manual section. When using an AA41 with PROGRAMMABLE ANALOG FILTERING in System 10, you may set an individual corner frequency for the analog filter of each active input chan- nel,* as follows: Remove the AA41 card from its slot (see Section 3.a, Step 1, above).
Page 371 For initial configuration of ANALOG INPUT CHANNELS dedicated to a specific Model AA41 card when used in System 10, see the general remarks on System 10 “real- channel” configuration in Manual Section 1.G.1 and elsewhere in the System 10 Guide- book.
Page 372 AA41-2 / AA41-4 REQUENCY Thus, to calibrate an AA41-based Channel No. “x,” you need only turn ON the system EEPROM SWITCH and then apply the following FREQUENCY CALIBRATION (FRQ) command: FRQ x = i, u [CR] For “i,” enter the manufacturer-supplied full-scale rating of the frequency source (or the highest frequency expected to be measured), in hertz.
Page 373 PRIMARILY FOR TRAINED SERVICE TECHNICIANS. With regard to the on-board diagnostic pins, please note the following: • PROPER ESD PRACTICE SHOULD BE OBSERVED WHEN MAKING CONTACT WITH AN AA41 BOARD INSTALLED IN A “LIVE” DAYTRONIC SYSTEM MAIN- FRAME. ALWAYS GROUND YOURSELF TO THE MAINFRAME CHASSIS BEFORE TOUCHING THE BOARD.
Page 374 AA41-2 / AA41-4 REQUENCY AA41-2/4. HIS PAGE INTENTIONALLY BLANK...
Page 375 Table 1 gives the full-scale mV/V ranges that correspond to each excitation level. Like most Daytronic “Advanced Analog” (“AA”) cards, the AA72 features optional PRO- GRAMMABLE LOW-PASS ACTIVE FILTERING for the removal of unwanted high-fre- quency measurement-signal components. Selectable analog filtering is offered for the AA72 either from 0.2 through 200 Hz in 16 steps (“F1”...
Page 376 REALIGNMENT OF THE AA72 CARD IS REQUIRED. FILTER TILES, HOWEVER, MAY BE INSTALLED OR REMOVED BY THE USER, IN THE FIELD. CONTACT THE DAYTRONIC SERVICE DEPARTMENT FOR COMPLETE INSTRUCTIONS. THE FOLLOWING AA72-2 / AA72-4 VERSIONS ARE CURRENTLY AVAILABLE: • Model AA72-2F010—Two input channels, with FIXED 10-Hz FILTERING for each •...
Page 377 Input Ranges (Full-Scale): See Table 1; automatically selected—on an individual channel basis—when the channel is configured; for System 10 channel “type” codes assigned to AA72 data channels, see Table 1. Since channel zeroing is by digital techniques, no input balance control is provided.
Page 378 AA72-2 / AA72-4 DC S TRAIN Table 1 Model AA72 Ranges and “Type” Codes Channel 1-V Excitation 5V Excitation 10-V Excitation “Type” Code 7.5 mV/V 1.5 mV/V 0.75 mV/V 15.0 mV/V 3.0 mV/V 1.50 mV/V 30.0 mV/V 6.0 mV/V 3.00 mV/V Table 2 “F1”...
Page 379 AA72-2 / AA72-4 DC S TRAIN Table 4 Fixed Filter Characteristics for “AA” Cards Bandwidth Step-Response Settling Time Response Response to 1% of to 0.1% of to 0.02% of Filter at -3 dB at -60 dB final value final value final value Designation (Hz)
Page 380 AA72-2 / AA72-4 DC S TRAIN Shunt Resistors: R4 (Chn. 4) R1 (Chn. 1) R3 (Chn. 3) R2 (Chn. 2) 40-Pin Connector (attaches to rear I/O Connector of AA72 Card) Fig. 2 Model AA72 Connector Assembly Board SHIELD +EXCITATION +SENSE Channel Channel +SIGNAL...
Page 381 AA72-2 / AA72-4 DC S TRAIN AA72-2: Channel 1 or 2: AA72-4: Channel 1, 2, 3, or 4: AA72 CONDITIONER +SENSE CONNECTOR SHIELD (SHLD) +EXCITATION +EXCITATION (+EX) +SENSE (+SEN) +SIGNAL (+SIG) –SIGNAL (–SIG) –SIGNAL +SIGNAL CAL SENSE (CAL SEN) –SENSE (–SEN) CAL SENSE –EXCITATION (–EX) –EXCITATION...
Page 382 NOTE: If your AA72 card is equipped with FIXED ANALOG FILTERING, you may ignore this manual section. When using an AA72 with PROGRAMMABLE ANALOG FILTERING in System 10, you may set an individual corner frequency for the analog filter of each active input chan- nel,* as follows: Remove the AA72 card from its slot (see Section 3.a, Step 1, above).
Page 383 For AA72 channel “type” codes, see Table 1, above. In System 10, you can use three calibration methods with the Model AA72, unless it is being used with a Model 10CJB-2 Dual Bridge Completion Card (in which case a special calibration procedure is required, as explained in Section 4.c, below):...
Page 384 AA72-2 / AA72-4 DC S TRAIN Thus, to calibrate an AA72-based Channel No. “x,” you need only Turn ON the system EEPROM SWITCH and then apply the following MV/V CALI- BRATION (MVV) command: MVV x = i, u [CR] For “i,” enter the manufacturer-supplied transducer sensitivity rating in “mV/V, full scale.”...
Page 385 (strain-gage transducer manufacturers often supply such resistors with their instruments). In System 10, a strain gage channel’s shunt resistor may be switched in and out by means of the SHUNT CALIBRATE—POSITIVE (SHP) or SHUNT CALIBRATE—NEGA- TIVE (SHN) command.
Page 386 AA72-2 / AA72-4 DC S TRAIN Fig. 6 Logic Inputs for AA72 Remote Shunt Calibration SHIELD (SHLD) Fig. 6(a) Switch Closure, +EXCITATION (+EX) No External Supply +SENSE (+SEN) +SIGNAL (+SIG) –SIGNAL (–SIG) OPEN = Logic 1 (NO ±Calibration) CAL SENSE (CAL SEN) CLOSED = Logic 0 –SENSE (–SEN) (±Calibration)
Page 387 AA72-2 / AA72-4 DC S TRAIN NOTE: A SPECIAL DAYTRONIC CABLE MUST BE USED TO CONNECT THE 10CJB-2 TO THE AA72’S REAR I/O CONNECTOR. Contact the Daytronic Service Department for full details. Fig. 7(a) shows connections between the 10CJB-2 and a 2-wire 1/4-bridge gage con- figuration (represented by the single gage resistor).
Page 388 AA72-2 / AA72-4 DC S TRAIN 4.c C ALIBRATION ALCULATED ALIBRATION You can calibrate an AA72 channel receiving strain-gage input from a Model 10CJB-2 Bridge Completion Card by applying the MV/V CALIBRATION (MVV) command as described in Section 3.d, above. Note however that, in this case, •...
Page 389 PRIMARILY FOR TRAINED SERVICE TECHNICIANS. With regard to the on-board diagnostic pins, please note the following: • PROPER ESD PRACTICE SHOULD BE OBSERVED WHEN MAKING CONTACT WITH AN AA72 BOARD INSTALLED IN A “LIVE” DAYTRONIC SYSTEM MAIN- FRAME. ALWAYS GROUND YOURSELF TO THE MAINFRAME CHASSIS BEFORE TOUCHING THE BOARD.
Page 390 AA72-2 / AA72-4 DC S TRAIN AA72-2/4. HIS PAGE INTENTIONALLY BLANK...
Page 391 BRATION OF SYSTEM DATA CHANNELS (SECTION 1.G). There are two mnemonic commands by which you can specify the precise range of data channels to be scanned by the System 10 Central Processor.* The TER- MINATOR (TER) command is a “WRITE” command, and thus requires the EEP- ROM Write Protect Switch to be ON.
Page 392 ANGE The TERMINATOR (TER) command defines the default scan range to be auto- matically in effect upon each System 10 powerup. This is the continuous range of data channels from the current SYSTEM BASE CHANNEL (“SBC”)—normally Channel No. 1—up to and including the last-specified TERMINATOR (“TER”) CHANNEL.
Page 393 LAGGING HANNELS For “B-sized” System 10 mainframes only, you can arrange for the display of any data channel presently outside the effective scan range to be prefixed by an ampersand (&). This is to alert the operator to the possibility that the displayed data reading for that channel may be invalid, if it is a “REAL”...
Page 394 1-32 HIS PAGE INTENTIONALLY BLANK...
Page 395 “N/A”—see Section 2.F.4 * PLEASE NOTE: The System 10 Data Sheet will be included within the System 10 Guidebook itself (as Appendix A) only when a printed version of the Guidebook is supplied with a specific System 10.
Page 396 In general terms, you will calibrate a signal-conditioner channel by commanding the System 10 Central Processor to compute and store two constant values: a SCALING FACTOR (“m”)—also called “multiplier” or “gain” factor—and a ZERO OFFSET (“b”).
Page 397 The basic System 10 calibration methods are listed below, and are described in the following Guidebook sections. TO FIND OUT WHICH CALIBRATION METHOD OR METHODS MAY BE USED WITH A GIVEN CONDITIONER CARD, YOU SHOULD REFER TO THE RESPECTIVE SUBSECTION OF SECTION 1.E.2 OF THIS GUIDE-...
Page 398 (or the highest frequency expected to be measured) is known. This method involves sending an appropriate FREQUENCY CALIBRATION (FRQ) command to the System 10. It is generally faster, more convenient, and inherently more accurate alternative to “Two-Point (Deadweight)” calibration of a frequency input channel—although final accuracy of calibration will depend, of...
Page 399 Model 10A76 Vibration Conditioner, or Model 10A96 Amplified Accelerometer Vibration Conditioner Card. The precise commands sent to the System 10 will vary with the conditioner card that sources the channel. See the respective subsection of Section 1.E.2 for complete instructions.
Page 400 ONFIGURATION AND ALIBRATION NALOG NPUT HANNELS Also, you should make sure that all channels to be calibrated are within the currently effective SCAN RANGE. See Section 1.F.2. Applying the ZERO (ZRO) or FORCE (FRC) command to an unscanned channel will probably result in an erroneous data reading for that channel.
Page 401 ONFIGURATION AND ALIBRATION NALOG NPUT HANNELS If you established a known nonzero input for Channel No. x in Step a, make sure the EEPROM Switch is ON, and enter a command of ZRO x = z [CR]* where “z ” is the numerical value of the known input, with appropriate polarity.
Page 402 (strain-gage transducer manufacturers often supply such resistors with their instruments). As explained below, a System 10 strain gage channel’s shunt resistor is switched in and out by means of the SHUNT CALIBRATE—POSITIVE (SHP) or SHUNT CALIBRATE—NEGATIVE (SHN) command.
Page 403 ONFIGURATION AND ALIBRATION NALOG NPUT HANNELS 1. Provide “Live” Channel Data Display See Section 1.G.5, Step 1 (above). 2. Set Default Scaling: EMM Command See Section 1.G.5, Step 1 (above). 3. First Calibration Point: ZRO Command a. Establish a zero input for Strain Gage Channel No. x by removing all load from the source transducer.
Page 404 1-42 HIS PAGE INTENTIONALLY BLANK...
Page 405 YPES OF RANSMISSIONS A System 10 mainframe can be made to transmit different kinds of “data” from its Computer Interface Port. In this section we will be concerned only with the trans- mission from this port of numerical values contained in system DATA CHANNELS (whether these values represent actual measurements, calculations, downloaded constants, etc.), and of “limit status”...
Page 406 Note here that a. Each of the commands in Table 1.2 is a “RUN-TIME” COMMAND and may be entered either via the System 10’s plug-in keyboard (if present) or via its Com- puter Interface Port. Regardless of the means of entry, the DUMP (DMP), SNAPSHOT (SNP), STREAM (STR), and HARD COPY (HCY) commands will always produce an output from the Computer Interface Port only.
Page 407 • “x” is the Channel Number of the transmitted channel • “w” is the data value for this channel currently in System 10 RAM memory • “z” is a number indicating the LIMIT ZONE in which this data value currently...
Page 408 In this case, each “dump” is automatically preceded by an instantaneous locking of the System 10 DATA RAM and is followed by an unlocking of the RAM (see the LOCK (LOK) and UNLOCK (UNL) commands, Section 2.E).
Page 409 ESCAPE (ESC) command. This you may do by pressing the keyboard’s Esc key or by transmitting either the mnemonic ESC or the ASCII [Esc] character (= hex 1B) to System 10 via the Computer Interface Port. When applied, the ESC command not only terminates any transmission from the Computer Interface Port currently in progress, but also has the effect of clearing any partial command that has been entered.
Page 410 ORMATTING AND ANAGEMENT OF TANDARD RANSMISSIONS LZN x TO y [CR] Outputs z [CR][LF] for all data channels from Channel No. x to and including Channel No. y (y ≥ x); billboard will display limit-zone information for Channel No. x only (you may use the keyboard’s Step key to produce sequential limit-zone readings on the billboard for a range of channels, following an initial keyboard entry of...
Page 411 ORMATTING AND ANAGEMENT OF TANDARD RANSMISSIONS To cancel limit-zone indication for all transmissions to which it applies, enter the NO LIMITS (NOL) command: NOL [CR] Note that the NO LIMITS (NOL) command is automatically in effect, by default, on mainframe powerup. c.
Page 412 ANAGEMENT OF TANDARD RANSMISSIONS specified HEADER or TAILER string (respectively). However, System 10 will not answer a keyboard-entered interrogation of HDR [CR] or TLR [CR]—i.e., a bill- board display of the current HEADER or TAILER string will not appear. Table 1.3 Hexadecimal Coding of ASCII Control Characters...
Page 413 UTPUT ERMINATOR In almost all cases, every System 10 is factory-set to end every line of transmis- sion from its Computer Interface Port with CARRIAGE RETURN, LINE FEED ([CR][LF]). If you require a different OUTPUT TERMINATOR in order to commu-...
Page 414 ORMATTING AND ANAGEMENT OF TANDARD RANSMISSIONS acter, it should be enclosed in square brackets (e.g., OPT = [0A] [CR]*, which would cause each line of output to be terminated by a Line Feed). If two charac- ters are entered, both should be within the same pair of brackets, separated by a comma (e.g., OPT = [0D,0C] [CR]*, which would cause each line of output to be terminated by Carriage Return, Form Feed).
