Sportable Scoreboards ST-15 Operating Instructions Manual

5-digit sports timer
Hide thumbs

Advertisement

Table of Contents

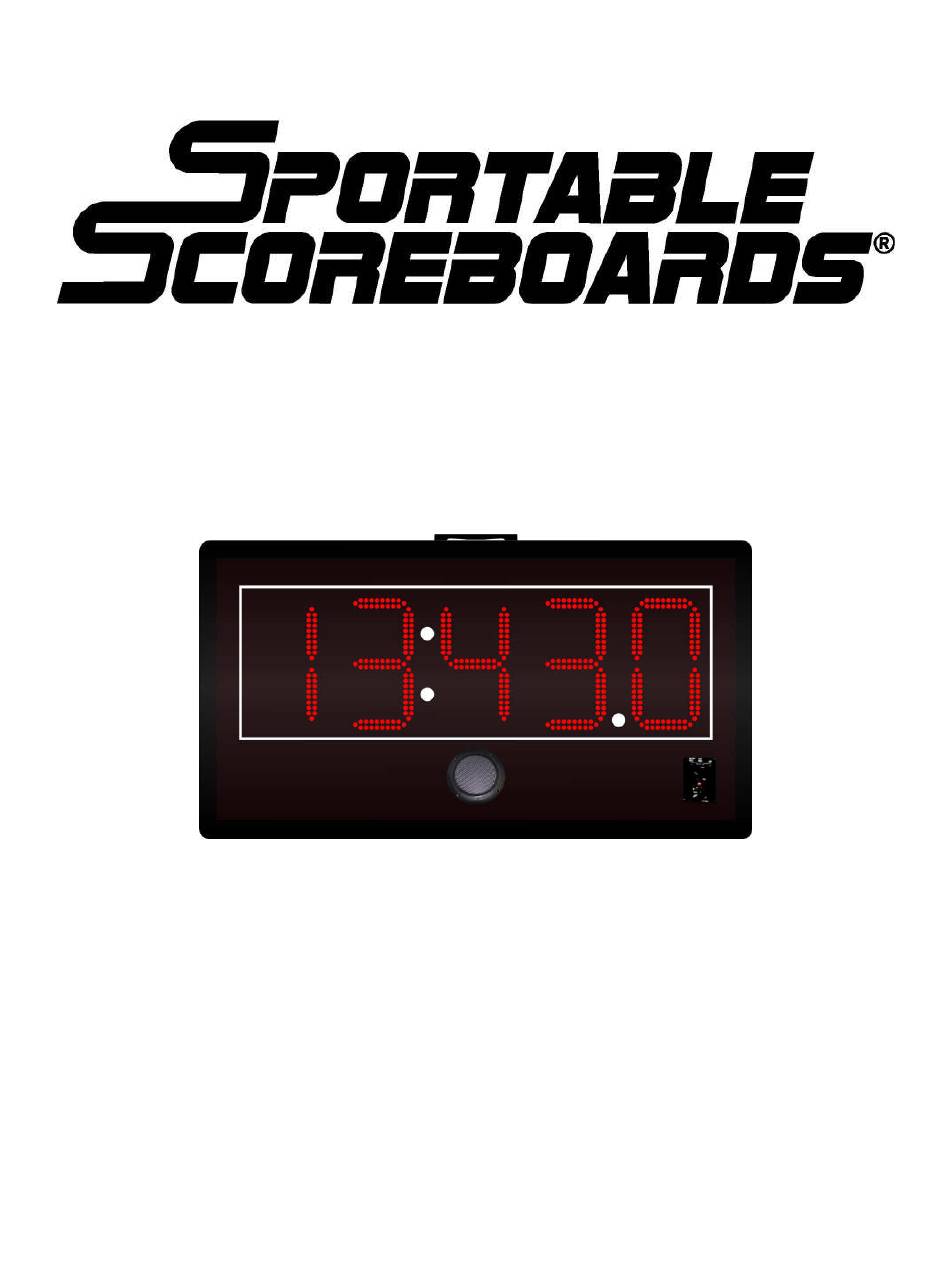

OPERATING INSTRUCTIONS
FOR
MODEL ST-15
5-DIGIT SPORTS TIMER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-15 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sportable Scoreboards ST-15

  • Page 1 OPERATING INSTRUCTIONS MODEL ST-15 5-DIGIT SPORTS TIMER...

  • Page 2: Parts List

    COMPONENT IS MISSING FROM THE FACTORY PACKAGING. OVERVIEW The ST-15 is a 5-digit sports timer designed to count up or down. The timer is completely user- programmable and allows the user to set the number of clock digits, the “weight” of the digits (explained in detail later in this section), whether the timer counts up or down, the length of the horn sounding, and several other features.
  • Page 3 The ST-15 5-digit sports timer also has a built-in TIME OF DAY function and can display the current time of day in either a 12-hour or 24-hour clock format.

  • Page 4: Getting Started

    2. Place a leg bracket over either leg and at the side of the ST-15 cabinet, secure the leg bracket to the side of the cabinet with (4) four each ¼-20 screws using a Phillips head screw driver.

  • Page 5: Configuring The Display

    CONFIGURING THE DISPLAY The ST-15 is shipped from the factory configured as follows: 1. 5-digit timer configured to display H: MM:SS (hours, minutes, and seconds) 2. count up (the timer will count up from zero to a user-preset stopping time or indefinitely if no user-preset stopping time is entered) 3.
  • Page 6 12/24 Hour Clock Format 0 = 12-hour / 1 = 24-hour To configure the items above the display must be placed in configuration mode. To do this, start with the timer’s POWER switch in the OFF position. Ensure that the handheld controller is properly connected to the timer.
  • Page 7 Parameter 1: Number of Timer Digits (Available when parameter 0 is set to “1” or “3”) Use the number keys on the handheld controller to enter the desired number of timer digits. This value may be from “1” to “10” but “5” is recommended since the timer has 5 digits. If this parameter’s value is greater than “5”...

  • Page 8: Timer Operation

    If you set the number of clock digits to “3” and want the timer to display M:SS, set the First Clock Digit Value to “6.” If you set the number of clock digits to “2” and want the timer to display SS, set the First Clock Digit Value to “7.”...
  • Page 9 NOTE: Failing to perform step 3 will cause the board not to display the correct time. Examples: If Parameter 2 was set to 5 (5 clock digits) and Parameter 5 was set to 1 (count down) and the desired starting time is 1:30:00 (one hour, 30 minutes), the starting time would be entered by pressing 1 –...
  • Page 10 2. Use the number keys on the handheld controller to enter the time of day in either a 12-hour or 24-hour clock format, depending on the value you set for parameter 6 in configuration mode. 3. Press the NEXT key to save the entered time and start the clock.
