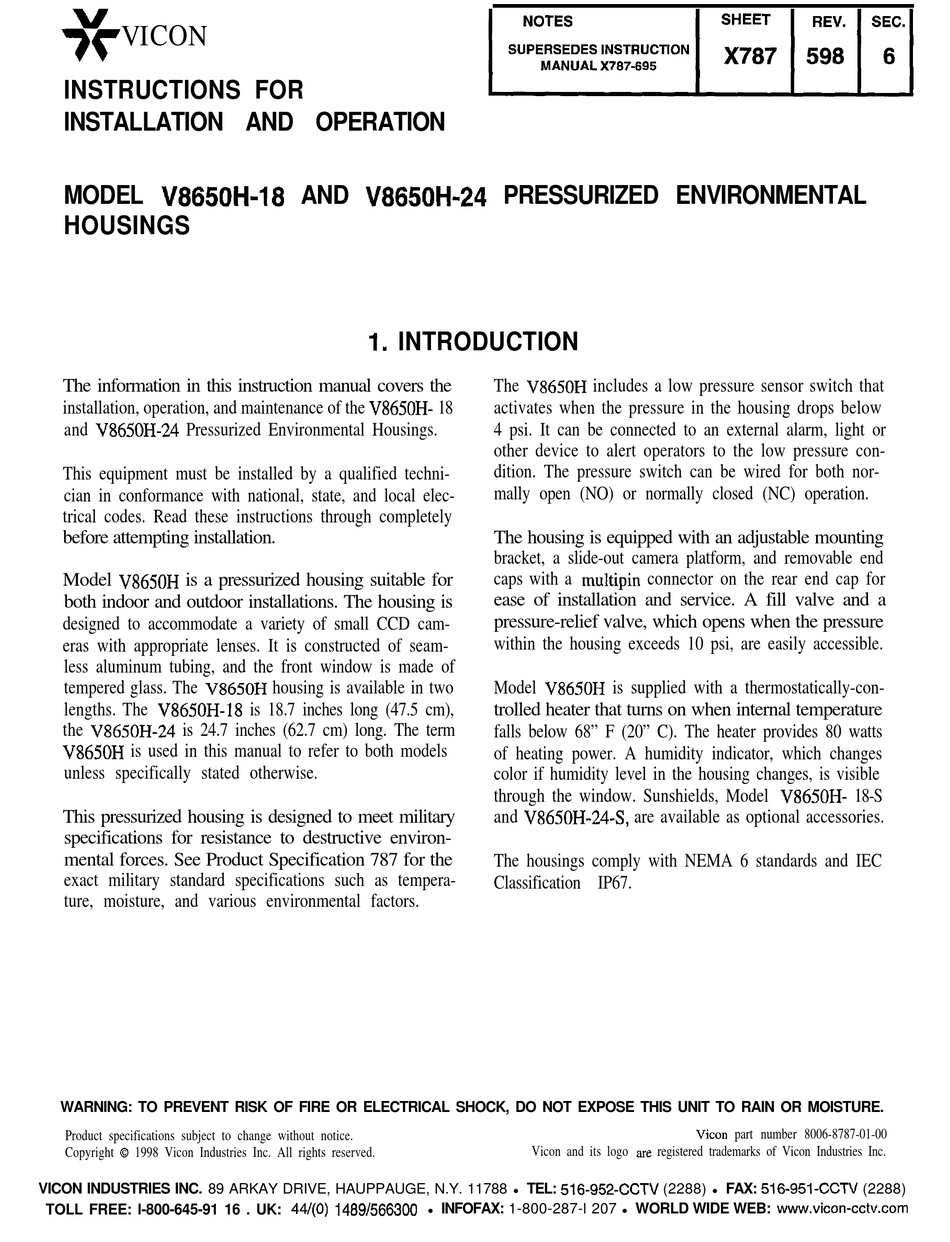

INSTRUCTIONS FOR
INSTALLATION AND OPERATION
MODEL V8650H-18
HOUSINGS
The information in this instruction manual covers the
installation, operation, and maintenance of the V865OH- 18
and V865OH-24 Pressurized Environmental Housings.
This equipment must be installed by a qualified techni-
cian in conformance with national, state, and local elec-
trical codes. Read these instructions through completely
before attempting installation.
Model V8650H is a pressurized housing suitable for
both indoor and outdoor installations. The housing is
designed to accommodate a variety of small CCD cam-
eras with appropriate lenses. It is constructed of seam-
less aluminum tubing, and the front window is made of
tempered glass. The VS65OH housing is available in two
lengths. The V8650H-18
the V8650H-24
is 24.7 inches (62.7 cm) long. The term
unless specifically stated otherwise.
This pressurized housing is designed to meet military
specifications for resistance to destructive environ-
mental forces. See Product Specification 787 for the
exact military standard specifications such as tempera-
ture, moisture, and various environmental factors.
WARNING: TO PREVENT RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
Product specifications subject to change without notice.
Copyright 0 1998 Vicon Industries Inc. All rights reserved.
VICON INDUSTRIES INC. 89 ARKAY DRIVE, HAUPPAUGE, N.Y. 11788
TOLL FREE: l-800-645-91 16 . UK: 44/(O) 1489/566300
AND V8650H-24
is 18.7 inches long (47.5 cm),
l
PRESSURIZED ENVIRONMENTAL
The V8650H includes a low pressure sensor switch that
activates when the pressure in the housing drops below
4 psi. It can be connected to an external alarm, light or
other device to alert operators to the low pressure con-
dition. The pressure switch can be wired for both nor-
mally open (NO) or normally closed (NC) operation.
The housing is equipped with an adjustable mounting
bracket, a slide-out camera platform, and removable end
caps with a multipin connector on the rear end cap for
ease of installation and service. A fill valve and a
pressure-relief valve, which opens when the pressure
within the housing exceeds 10 psi, are easily accessible.
Model VS650H is supplied with a thermostatically-con-
trolled heater that turns on when internal temperature
falls below 68" F (20" C). The heater provides 80 watts
of heating power. A humidity indicator, which changes
color if humidity level in the housing changes, is visible
through the window. Sunshields, Model V8650H- 18-S
and V865OH-24-S, are available as optional accessories.
The housings comply with NEMA 6 standards and IEC
Classification IP67.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
TEL: 516-952-CCTV
l
INFOFAX: 1-800-287-l 207
(2288)
FAX: 516-951-CCTV
l
WORLD WIDE WEB: www.vicon-cctv.com
l
(2288)
Advertisement
Table of Contents
Summary of Contents for Vicon V8650H-18
- Page 1 WARNING: TO PREVENT RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. Product specifications subject to change without notice. Vicon and its logo are registered trademarks of Vicon Industries Inc. Copyright 0 1998 Vicon Industries Inc. All rights reserved.
-
Page 2: Important Safeguards
16. Dverloadinf : Do not overload wall outlets and extension cords as this can resu t m a risk of fire or electric shock. 6. Attachments - Do not use attachments not recommended by Vicon as they may cause hazards. -
Page 3: Coaxial Cable Recommendations
Belden are used. Materials and construction must follow the guidelines above. Table B gives some equivalent The shield must be copper braid providing 95% or better cable numbers of other manufacturers. Vicon recommends coverage. the following coaxial cable types, unless otherwise specified elsewhere in this manual. -
Page 4: Installation
2. INSTALLATION 2.1 Unpacking and Inspection 2.1.2 INSPECTION FOR CONCEALED All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to deliver the DAMAGE equipment in the same condition as it left the factory. - Page 5 21-pin connector, and mounting the Phillips screwdriver housing to a pan-and-tilt drive. Sometimes the camera flat screwdriver and lens are prewired by Vicon and factory-installed into heat gun the housing. wire strippers soldering iron An accessory kit is included and contains most of the hardware required during installation.
- Page 6 9. Select the proper mounting hole and mount the camera/lens assembly to the plate with the appro- priate size l/4-20 screws, flat washers and lock washers supplied in the accessory kit. Camera and lens should be approximately concentric with the window.
-
Page 7: Power And Control Connections
The V8650H wiring harness is provided with a TABLE 2 lenses with preset-position potentiometers. If a pre- set lens is installed, simply connect the g-pin AMP MR connector on the lens to the corresponding housing connector. If the lens is a motorized zoom without presets, it is supplied with a 6-pin AMP MR connector in the accessory pack. - Page 8 L E N S TO CAM TO CAM TO TBl -9 TO TB1-8 TO TB1-9 TO TBl-9 120v 230V...
-
Page 9: Fill Valve
Figure 5 Detail from Wiring Diagram PRESSURE GAUGE AND REGULATOR FILL VALVE NITROGEN G A S 1! Figure 6 Pressurization Setup X787-598... -
Page 10: Mounting The Housing
Call or write Vicon for a Return Authorization Name and address of the company returning (R.A.) at one of the locations listed below. Record the unit the name of the Vicon employee who issued the Name of the Vicon employee who issued the R.A. R.A.
