Summary of Contents for Discovery Expedition D103X

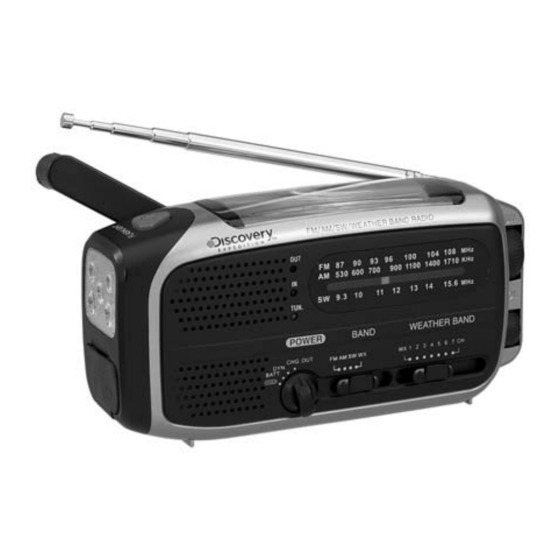

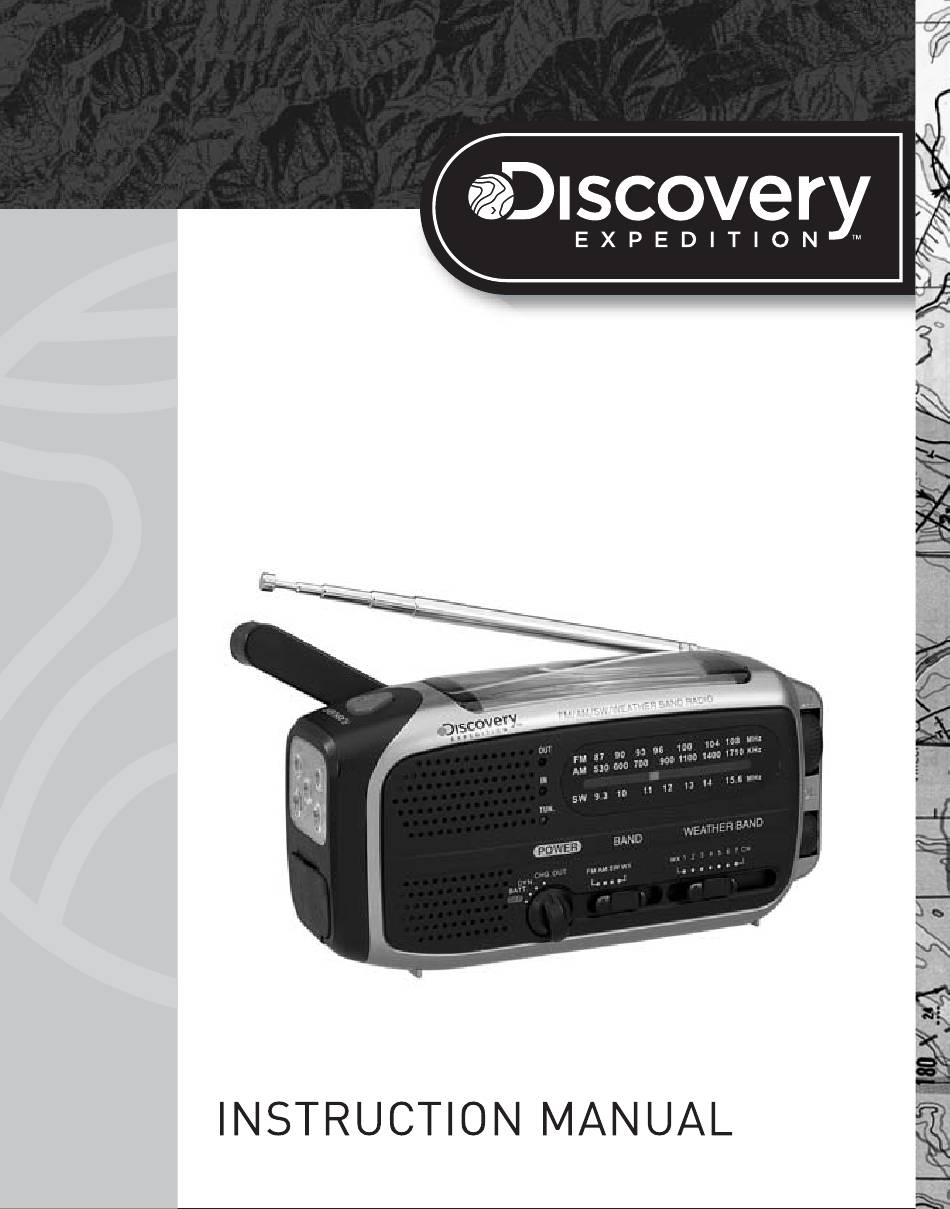

- Page 1 SELF-POWERED AM / FM / SW / NOAA WEATHER RADIO D103X...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. -
Page 3: Compliance With Fcc Regulations
COMPLIANCE WITH FCC REGULATIONS This equipment has been tested and found to comply with the limits for a Class B digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Location Of Controls
LOCATION OF CONTROLS 1 Speaker 2.Power Source Selector 3.FM/AM/SW/WX Band 4.Weather Channel Switch 5.Dial Pointer 6 Tuning Knob 7.Volume Knob 8 Flashlight Mini USB Jack USB Jack Earbuds Jack... - Page 5 12 Flashlight Button 13.Telescopic Antenna 14. Solar Batteries 15.Hand Crank 16.Battery Compartment 17.Strap Hole 18.Tuning Indicator 19.Battery Charging Indicator 20.Charging External Device Indicator...
-
Page 6: Power Source
3 x “AAA” (UM-4) batteries (not included) or computer USB DC 5V power. A.“DYNAMO” POWER OPERATION 1.A DC 3.6V rechargeable battery is included with D103X. When first time using the unit, open the battery compartment and plug the rechargeable battery into the socket as shown. -
Page 7: Operation
Follow the manufacturer's instructions for charging the product and do not charge longer than recommended. Unplug the charger when the battery is charged. Recycle Rechargeable Batteries Recycle your old rechargeable batteries at one of the many collection sites in the U.S. and Canada. To find the site nearest you, visit www.call2recycle.org or call toll-free 1-877-2-RECYCLE. -
Page 8: Listen To The Radio
LISTEN TO THE RADIO 1. Set the Power Source Selector to "BATT." or "DYN." position to turn the unit on. 2. Set the Band Switch to select AM/FM/SW band. 3. Rotate the tuning Knob to select the desired radio station, the tuning LED will light if the station is properly tuned. -
Page 9: Charging The Internal Battery
CHARGING THE INTERNAL BATTERY SOLAR CHARGING 1. Install Ni-MH batteries correctly. 2. Set the Power Source Selector to "OFF" position. 3. Put the unit in the sunlight, make the solar panel of the unit is irradiated by the sunlight.The unit will charge the rechargeable battery automatically. 4. -
Page 10: Using The Flashlight
CHARGING THE EXTERNAL DEVICE This unit has a USB which can charge your Cell phone or MP3 player if they have a built in Mini USB port to accept external charging power. 1. Use a USB to Mini USB cable(not included) to connect the unit and your external device which has a Mini USB port. -
Page 11: Care And Maintenance
CARE AND MAINTENANCE 1. Do not subject the unit to excessive force, shock, dust or extreme temperature. 2. Do not tamper the internal components of the unit. 3. Clean your unit with a damp (never wet) cloth. Solvent or detergent should never be used. -
Page 12: Specification
SPECIFICATION Power requirement: DC Input: 3 X AAA (UM-4) Batteries or Built in DC 3.6V, 300mAH Ni-MH rechargeable battery or DC 5V Computer USB Power. Frequency Range Radio Band FM 88 ~ 108 MHz AM 520 - 1710 KHz SW 9.3 - 15.6 MHz WX CH1 –... -
Page 13: Limited Warranty And Service
LIMITED WARRANTY AND SERVICE SPECTRA MERCHANDISING INTERNATIONAL, INC. warrants this unit to be free from defective materials or factory workmanship and will replace or repair this unit or any part thereof, except batteries, if it proves to be defective in normal use or service within 90 days from date of original purchase. - Page 14 V080811...
