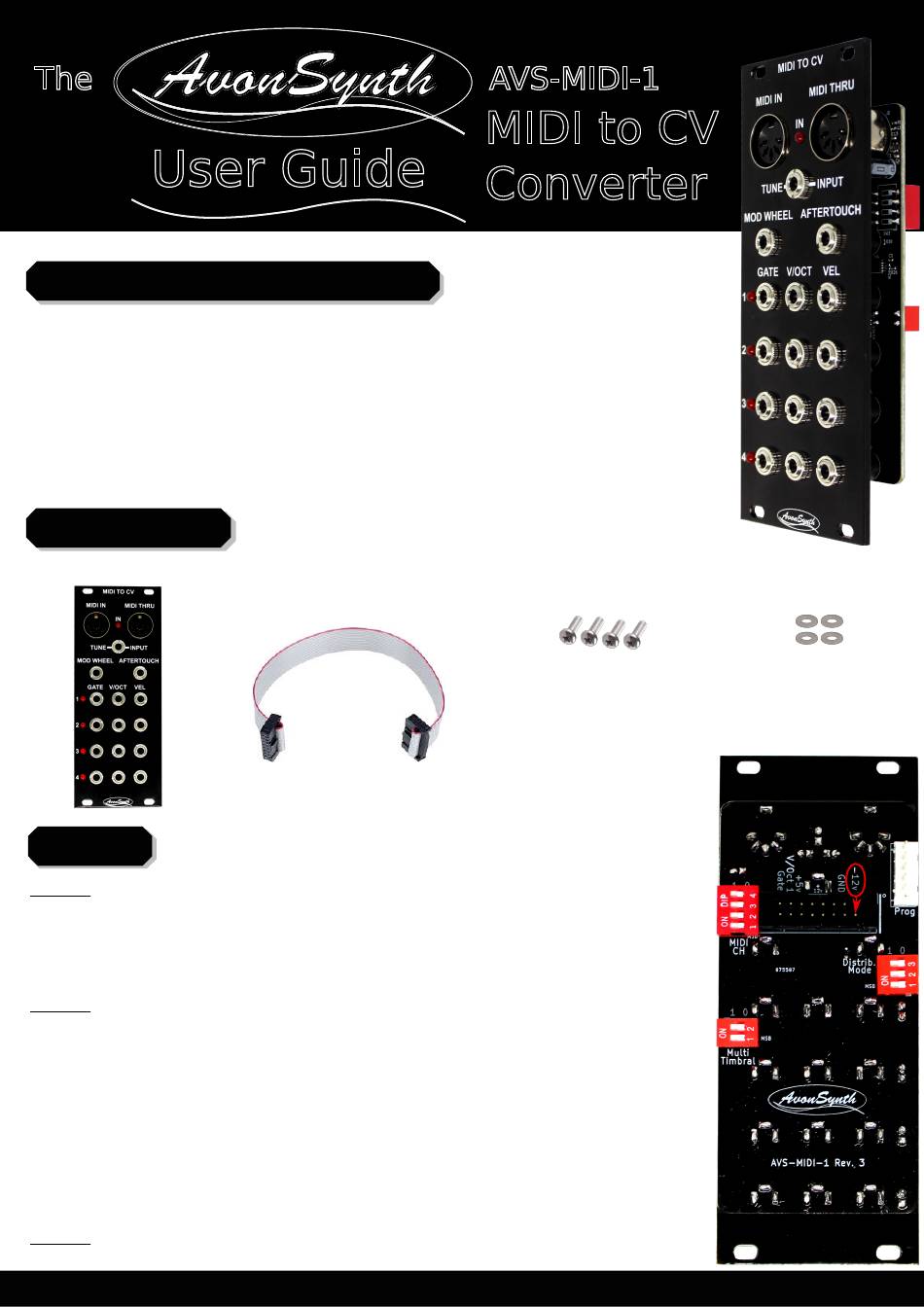

The

User Guide

Thank you for purchasing from AvonSynth

Congratulations on your purchase of a brand new AvonSynth AVS-MIDI-1

MIDI to CV Converter Module. We trust that it will both serve and

inspire you as you create beautiful music with it for years to come.

In order to get the most out of your module, please ensure that you read

this User Guide in its entirety so that you fully understand all of its

functionality, and that you follow all necessary safety directions during use.

Included in the Box

1 x MIDI to CV Module

Installation

Step 1: Power your system oﬀ. Place the module in your Eurorack-

compatible rack in any convenient position. Aﬃx the module to your

rails using the included mounting screws and nylon washers. Neglecting

to use these washers may result in unnecessary marking of the unit.

Step 2: Triple check the polarity of the power connector before

connecting the power cord to your power supply. Ensure that the -12v

line marked on the back of the module connects to the same end of the

ﬂat-cable that also connects to the -12v line on your power supply. While

AvonSynth modules use shrouded connectors that make this process

safer and more reliable, some systems do not conform to this polarity

standard, so careful checking is always necessary. Connecting the

module with incorrect polarity can result in irreversible damage done to

the module which cannot be covered by warranty.

Step 3: Power up your system and start patching!

www.AvonSynth.com

1 x 16 pin to 16 pin

ﬂat-cable power cord

AVS-MIDI-1

MIDI to CV

Converter

4 x M3 Mounting Screws

4 x Nylon Washers

Page 1 of 7

Table of Contents

Need help?

Do you have a question about the AVS-MIDI-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for AvonSynth AVS-MIDI-1

Page 1 Converter Thank you for purchasing from AvonSynth Congratulations on your purchase of a brand new AvonSynth AVS-MIDI-1 MIDI to CV Converter Module. We trust that it will both serve and inspire you as you create beautiful music with it for years to come.
Page 2 AVS-MIDI-1 MIDI to CV User Guide Converter Features & Speciﬁcations Polyphonic MIDI to CV converter with automatic oscillator tuning capability MIDI Tuning Standard compatibility for arbitrary scales 4 channels of individual gate, V/OCT, and velocity CV outputs Independent Mod Wheel and Channel Aftertouch CV Outputs Automatic polyphony selection based on inserted plug Rear DIP-switch based conﬁguration to choose channel and mode...
Page 3 AVS-MIDI-1 MIDI to CV User Guide Converter MIDI Channel Numbers Tuning Method 1 2 3 4 1 2 3 4 There may be times when more precise tuning is required, especially when utilising several diﬀerent analogue VCOs in polyphony. To create a custom...
Page 4 Scala to create your own tunings, or use one of the thousands of available tunings on the internet. Send your MTS bulk dump as Sysex to the AVS-MIDI-1, and if it is received successfully, the LEDs will shine one by one from bottom to top. Otherwise, they will all blink three times to indicated a failed dump.
Page 5 If you would like softer presses on the keyboard to generate softer notes, you can connect the VEL output from the AVS-MIDI-1 to also control the VCA, though this is optional. If this patch is replicated with 4 VCOs, 4 ADSRs, and 4 VCAs, rich 4-note polyphony can be achieved.
Page 6 MIDI that it is being sent correctly. If the cable is connected, and MIDI messages are being sent from the source device, the 'IN' LED on the AVS-MIDI-1 blinks as messages are received. If the 'IN' LED is blinking, but nothing else is happening, check that you have selected matching MIDI channels on the source device and the AVS-MIDI-1 (see page 3).
Page 7 If you have any concerns about your AvonSynth hardware, please get in touch via info@AvonSynth.com to discuss any issues. We will do our best to assist you in getting your hardware operating correctly, and if necessary, we will provide an RMA (Return Merchandise Authorization) to send back the unit for inspection.
