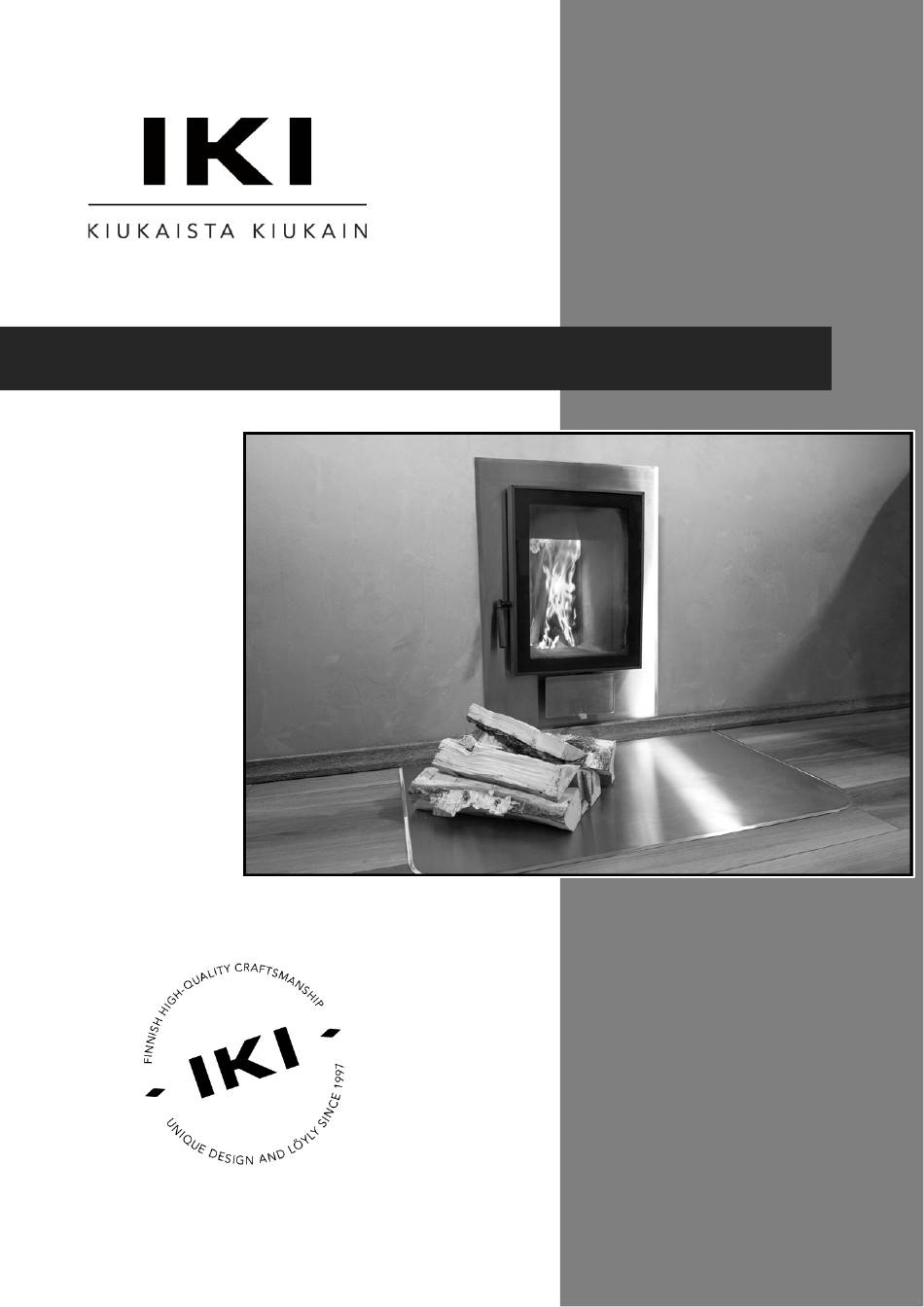

- Page 1 Instructions for installation and use KIVI-IKI SL fireplace sauna stove Instructions for installation and use 4/2021...
- Page 2 Contact information Helsinki Warehouse Technical support IKI Kiuas Plc Production , Pieksämäki Pälkäneentie 5 (Mon-Fri 9-16) Hakaniemenkatu 11 Niilontie 10...
-
Page 3: Table Of Contents
P a g e Contents SAFETY INSTRUCTIONS ..........................3 WARRANTY ..............................4 INSPECTING THE CONTENTS OF THE SHIPMENT AND INSTALLATION ............6 Selecting the location for the stove ....................6 Preheating and commissioning the stove ..................6 Safety distances to flammable structures ..................7 Through-the-wall installation ...................... -
Page 4: Safety Instructions
P a g e 1. SAFETY INSTRUCTIONS The stove may not be used for any purpose other than heating the sauna, such as for drying clothes or to heat a construction site, etc. Covering the stove during use, or while it is still warm, is prohibited. The use of sea water or other saline water is prohibited and will void the warranty. -
Page 5: Warranty
P a g e 2. WARRANTY IKI Kiuas Ltd (the manufacturer) assures a warranty to its products as stipulated here, guaranteeing the quality and functionality of the products during the warranty period. The warranty applies to products sold and used in Finland. The warranty requires that the buyer follow the instructions regarding the location of the stove, its installation, use and maintenance as well as those regarding the stones used in the heater. - Page 6 The costs caused by an error or negligence on the part of the customer will be charged from the customer. If returns are made without reason or in violation of the terms of the contract, IKI Kiuas Plc reserves the right to charge the costs of handling and shipping from the customer.
-
Page 7: Inspecting The Contents Of The Shipment And Installation
The delivery also includes 1 ash spatula, 1 connecting pipe and protective gloves for installation. If the stove will be connected to the IKI T600 chimney, a 30 cm adapter will also be included. 3.1 Selecting the location for the stove •... -
Page 8: Safety Distances To Flammable Structures
(A) 300 mm in minimum from the lead-through in the wall (C). If the stove is installed though a log wall a non-combustible heat shield must be used around the fireplace, as shown in the figure (B). IKI-Kiuas also recommends the use of a spark damper in the front (D). www.ikikiuas.fi... -
Page 9: Measurements And Height For A 90-Degree Angled Stove Pipe
If the stove will be connected to the IKI T600 chimney, a 30 cm mesh adapter is included in the delivery. The diameter of the adapter is 250 mm. -
Page 10: Ventilation And Compensation Air
P a g e 4. VENTILATION AND COMPENSATION AIR Careful planning of the sauna room’s ventilation is necessary to ensure the stove gets enough air to burn cleanly and the bathers get fresh air for breathing. Good ventilation is also required to dry the sauna room properly after bathing. -
Page 11: Installation Of The Stove
1. Make a hole in the wall for the furnace (PIC 1). The hole needs to be 345 mm in width and 630 mm in height. NOTE! If you are using an IKI stove base, the hole needs to be located 70 mm higher. - Page 12 P a g e | 11 www.ikikiuas.fi...
-
Page 13: Affixing The Glass Hatch
P a g e | 12 5.2 Affixing the glass hatch PIC 1: Affix the hatch to the front of the furnace. There are appropriate holes in place for the hinge bolts. PIC 2: Screw in the bolt nuts and tighten them from the inner side of the hatch. -
Page 14: Instructions For Use
6. INSTRUCTIONS FOR USE The heating time of the saunastones is about 60-90mins, depending on the size of the sauna room , ventilation and the size of the stove. The correct bathing temperature for IKI stoves is approximately 55-70 degrees. -
Page 15: Care And Upkeep
P a g e | 14 6.2 Care and upkeep NOTE! It is possible for the fireplace hatch to change colour in time, or for the paint to wear off. You can repaint the hatch using paint that is heat-resistant up to 600 degrees. Before painting, the metal parts of the hatch should be sanded and degreased. -
Page 16: Instruction For Sweeping
P a g e | 15 Features of the water Effect Recommendation Humus content Colour, taste, precipitation < 12 mg / l Iron in the water Colour, smell, taste, precipitation < 0,2 mg / l Hardness: The main ingredients precipitation Mn <... -
Page 17: Protective Base For The Stove
IKI-Kiuas product range includes a 50 cm diameter stove base. The base has adjustable legs. The protective base is also suitable for use with a tiled and waterproofed floor, reducing the heat radiation to the floor. - Page 18 P a g e | 17 NOTES: ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ www.ikikiuas.fi...
- Page 19 P a g e | 18 www.ikikiuas.fi...
- Page 20 P a g e | 19 Copyright IKI Kiuas Plc – We reserve the right to make changes. www.ikikiuas.fi...
