GSM Gate Opener
Remote Relay Switch
GSM Gate, Barrier, Shutter, Garage
Door and Door opener
Open gate or garage door with a FREE
call from your mobile phone!
Remote switching machines with a
FREE call from your mobile phone!
User Manual
Ver 1.8
RTU5024
Date Issued: 2020-12-01
All rights reserved
Http://www.rtu5024.com
Advertisement
Table of Contents
Summary of Contents for HUOBEI electronics RTU5024
- Page 1 Open gate or garage door with a FREE call from your mobile phone! Remote switching machines with a FREE call from your mobile phone! GSM Gate Opener Remote Relay Switch User Manual Ver 1.8 RTU5024 Date Issued: 2020-12-01 All rights reserved Http://www.rtu5024.com...
-
Page 2: Table Of Contents
9. Authorized users list paper--------------------------------------------------------------11 This handbook has been designed as a guide to the installation and operation of RTU5024 Gate Opener. Statements contained in the handbook are general guidelines only and in no way are designed to supersede the instructions contained with other products. -
Page 3: Product Details

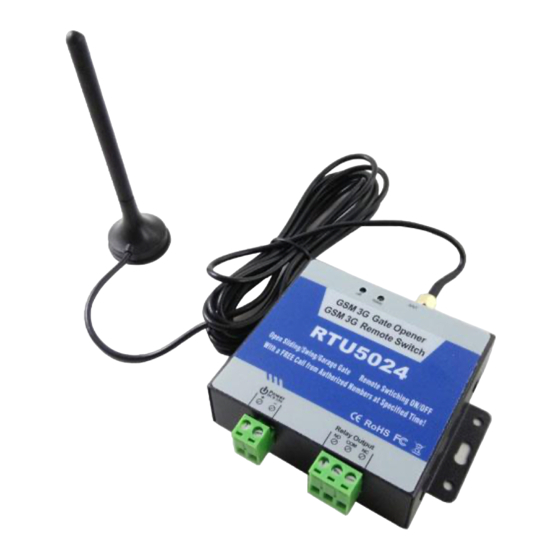

FREE call from your mobile phone. Just dial from Authorized User number at the specified time then the Barrier and doors are opened, or the machine are turn on or off by the RTU5024. There are no call costs, the RTU5024 rejects the call from authorized number then carries out the turn ON/OFF action. -
Page 4: Applications
Please install the product at suitable places as described in the product documentation. Avoid signal shielded by covering the mainframe. Use Qualified Maintenance Service Maintenance can be carried out only by qualified maintainer. Page 4 of 11 Ver 1.7 File No.:RTU5024... -
Page 5: Diagram
4. Typical wiring connection: RTU5024 for Gate opener: RTU5024 for remote switch: Power up the RTU5024 and electronic lock by same DC source,the The pump switched ON/OFF by phone call. Pump power up by the lock switched ON/OFF by phone call. -
Page 6: Installation And Sms Command Settings
SMS commands. 5. The pwd in the command means the password,like 1234 or 5678 if you changed. 6. If the RTU5024 used for gate access only,all you need to do is to change the default password and add the authorized numbers. -
Page 7: St A R T ( Ve R I F Y T I M E )
8:00a.m.(1502050800) to Feb 5 10:00a.m.(1502051000). Note: 1. The authorized number means the one who can dial the RTU5024 to control the relay. 2. The Serial Number is the position to store the authorized users, from 001~200. Page 7 of 11... -
Page 8: R El Ay Cont Rol Par Am Eters
ON, for relay OFF. ab: the ID code of the 1 number(a) and the caller number(b), =0 means disable, =1 means enable. content: confirmation SMS content. ID code RTU5024 send notify SMS to The 1 number Caller number √ √... -
Page 9: Self-Check Report/Inquiry Status/Imei Code And Firmware Version/Reset
Press and hold the RESET button(closed to the SIM card holder), then power ON,after 6 seconds later, the RTU5024 will restart,then release the RESET button. This operation will reset the password to default 1234 and other parameters, but the authorized users numbers will remain on the memory. -
Page 10: Important Information
1) In case of failure, please contact the distributor or manufacturer. 2) If the RTU5024 works but fail to send SMS texts, switch the power off and on again after one minute. Test it after few minutes later,or ensure and check the settings are correct and the cellular signal strong enough. -
Page 11: Authorized Users List Paper
New 2020 version can support optional battery inside the box for power failure alert. And also one optional alarm input port 2) Rain proof box vesion RTU5024 support the PC programmer and the battery for power failure alert. And also have one alarm input port. - Page 12 A Professional GSM 3G M2M products manufacturer and automation solution provider, since 2005. 10. Authorized users list (print this page and fill in for record) Position User Phone number User Name Always Specific time access … … Page 12 of 11 Ver 1.7 File No.:RTU5024...
