TruVision TVK-600 Quick Start
Guide

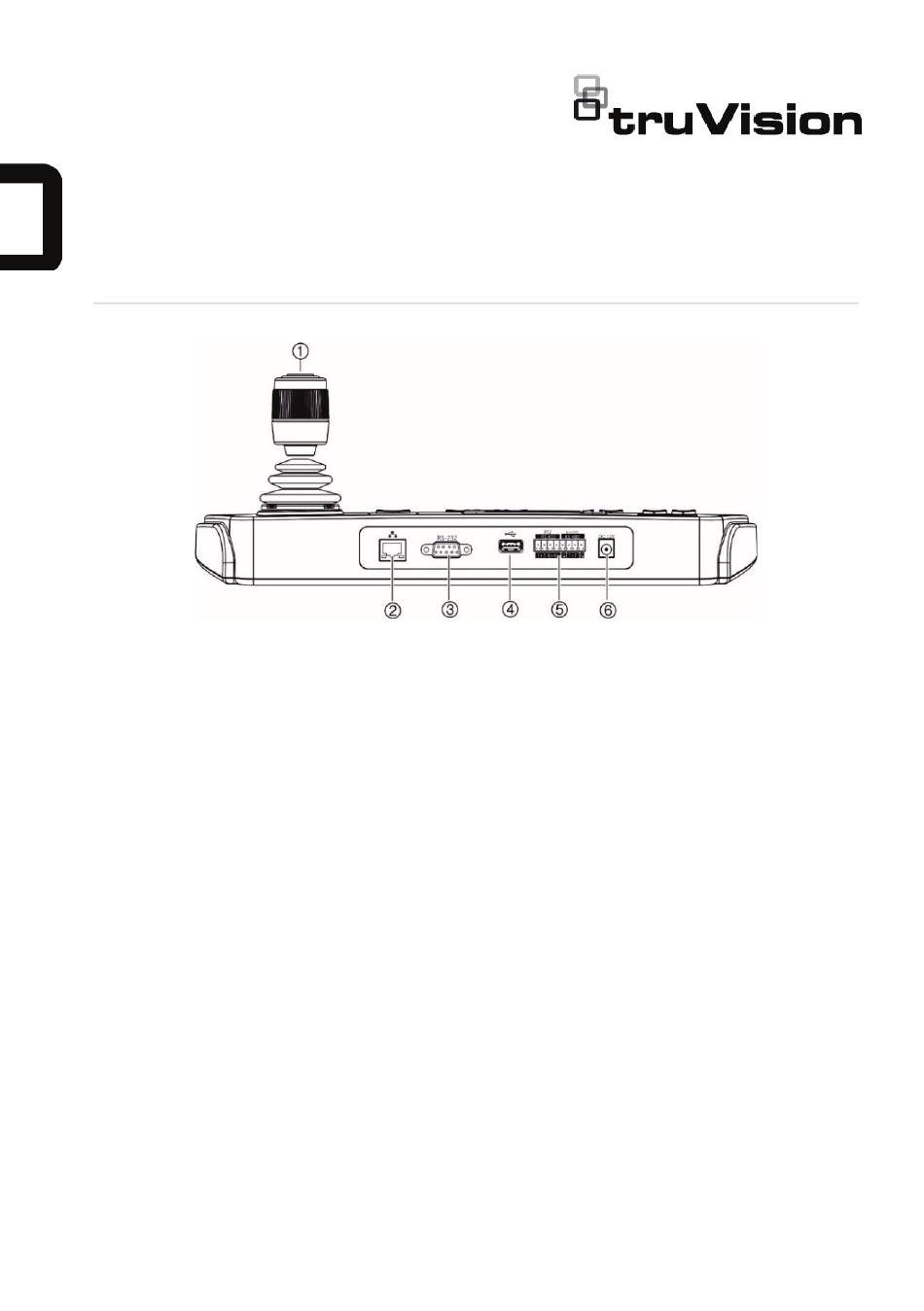

Figure 1: Back panel
1. 4-axis joystick with button on top
2. Network port: 10/100 Mbps Ethernet interface
3. RS-232 serial interface

Product overview

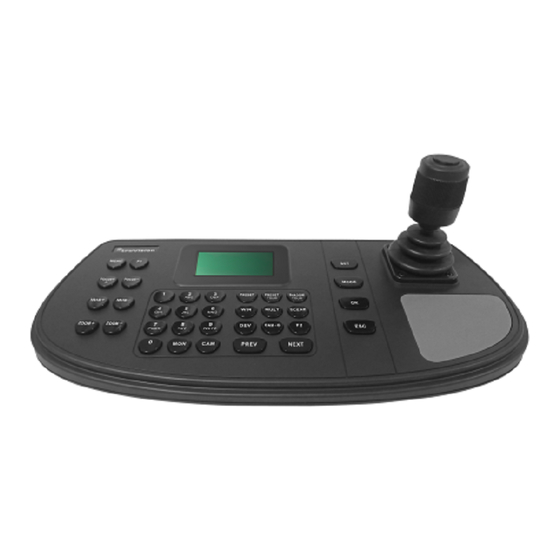

The TruVision TVK-600 keypad lets you
communicate via RS-485 or IP with TruVision
recorders, decoders, encoders and PTZ
domes. You can easily control the devices.
The keypad is easily configured and operated
through the web browser.

Package contents

When you receive the product, check the
package and contents for damage, and verify
that all items are included. If any of the items
are damaged or missing, please contact your
local supplier.
The TVK-600 is shipped with the following
items:
TVE-600 keypad
P/N 1073666-EN • REV B • ISS 29JUN21
4. USB interface
5. RS-422/RS-485 serial interface (RS-422 not in
use)
6. 12 VDC power supply
Power supply unit (PSU)
Power supply cords (US, UK and Europe)
TruVision TVK-600 Quick Start Guide
You can download the software and the
manual from our web site. Also available from
our web site are these guides in several
languages:
TruVision TVK-600 Configuration Manual
TruVision TVK-600 Operator Guides

Installation environment

Refer to the configuration manual for detailed
information, but observe these important
requirements:
Place the unit in a secure location.
