Philio Technology Corporation PSC03 Manual

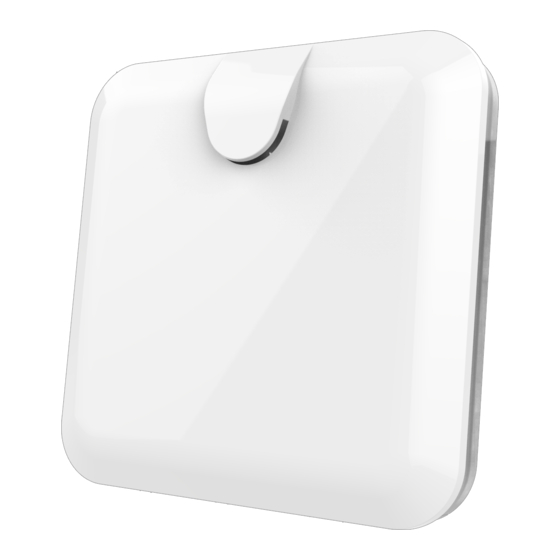

Gateway PSC03

Introduction:

The PSC03 Smart Wireless Network Gateway Controller makes it easy and fast to set
up a Z-Wave automation system. Do not need tedious setup, just connect the power
and connect the network modem in the home, then scan the QR code on the body or
the box through the APP that is downloaded and installed on the mobile phone or
tablet to complete the installation. You can easily include other wireless sensors or
light control devices to immediately enjoy smart home automation.
PSC03 uses the Z-Wave 500 series chip modules, not only has higher transmission
efficiency and lower power consumption, and support AES 128 bits encryption and
longer transmission distance.
The PSC03 controller has two network operating modes, AP and STA. When working
in AP mode, the controller can connect to a home network modem and provide
wireless network signals to other wireless network devices. The STA mode allows the
smart wireless network gateway controller to connect to existing wireless networks by
means of wireless, and greatly increase the convenience of use.

PSC03 Function Compare:

PSC03-1A PSC03-1B
SIREN V
USB Function V
Battery Option
Top case Normal
Jump Wires

Specification

DC5V 1A or 2A from adapter
Rated
Backup battery 3.7Vdc 1150mAh (Li battery)
Min. 40M indoor,
RF distance (Z-wave)
100M outdoor line of sight,
868.40 MHz, 869.85 MHz (EU)
RF Frequency (Z-wave) 908.40 MHz, 916.00 MHz (US)
920.9MHz, 921.7MHz, 923.1MHz (TW/KR/Thai/SG)
RF Maximum Power +5dBm
RF Frequency (Wi-Fi) Wi-Fi IEEE 802.11 b/g/n
RF Maximum Power +20dBm
Location indoor use only
0 to 40 ℃
Operation temperature
Humidity 85%RH max
FCC ID RHHPSC03
Specifications are subject to change and improvement without notice.
PSC03-1C PSC03-1D
V V
Option
Slim type Slim type Slim type
V
PSC03-1E
V
Slim type
