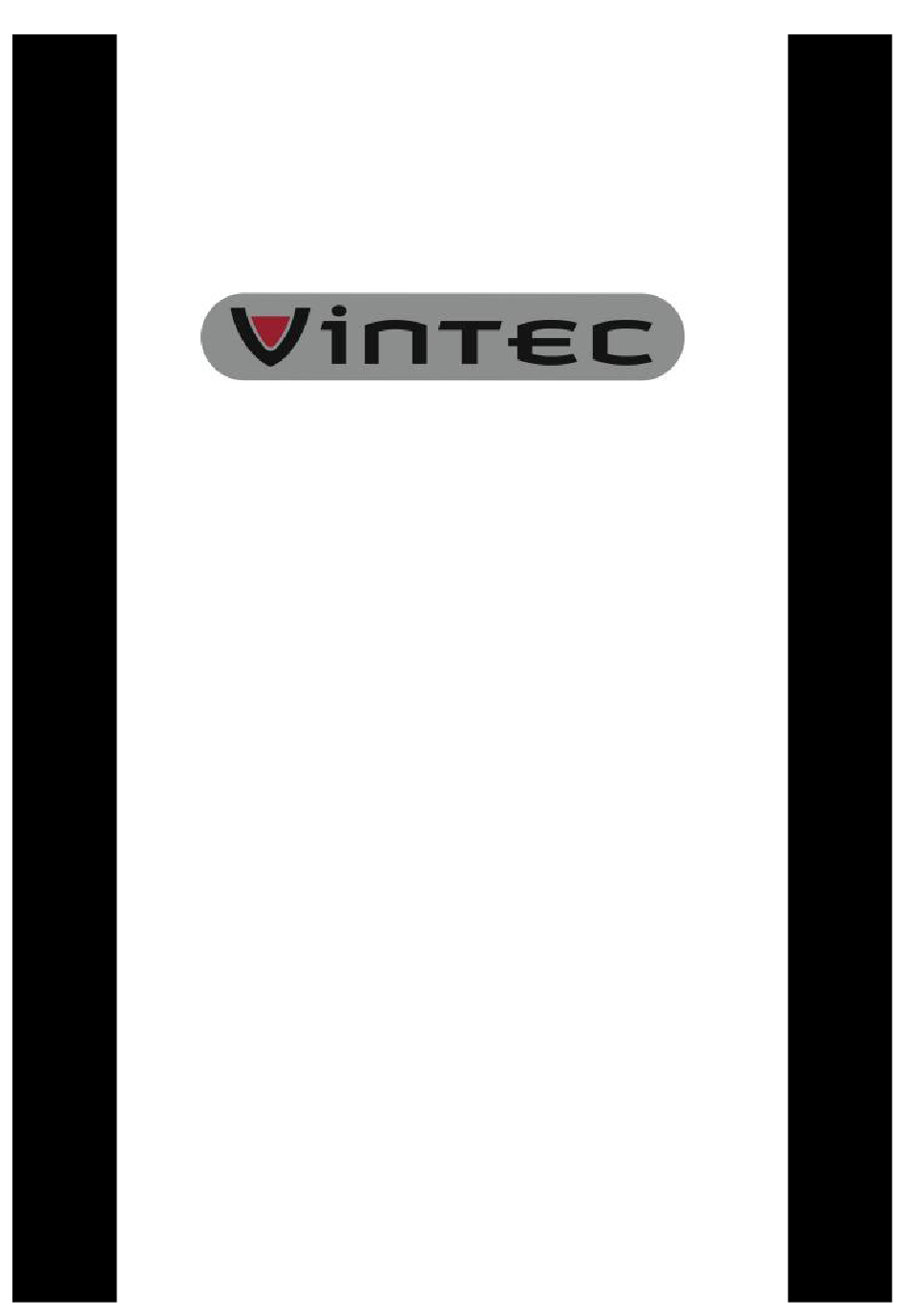

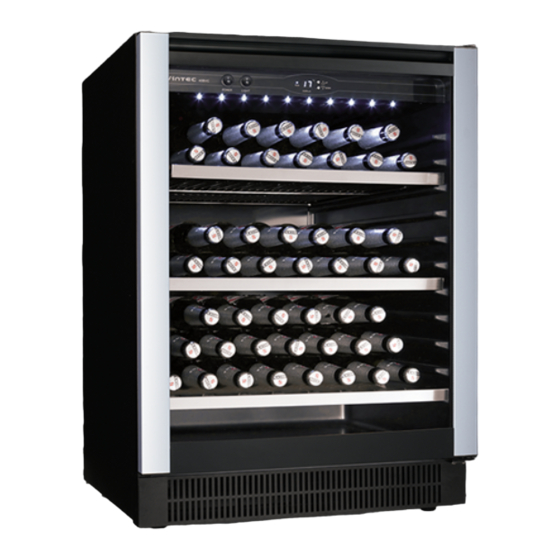

- Page 1 Armoire à vin Beverage Preservation Technology USER MANUAL V40BVC AL/S3/BK V20BVC S3/BK V20BVC V26BVC code: VIM 201604/BVC/01...
- Page 2 Somes models are available in dedicated countries only. VINTEC offers no guarantee for our Beverage Center if it is being used for any purpose other than that for which it was specifically designed. VINTEC cannot be held responsible for any error in this manual.
- Page 3 • The room for installing the appliance must be at least 1 cubic metre per 8 grams of refrigerant. The refrigerant quantity contained in this appliance is listed above in grams; it is also noted on the Rating Plate of the appliance. It is hazardous for anyone other than an Authorised Service Person to carry out servicing or repairs to this appliance.
- Page 4 Your Vintec Beverage Center is equipped with 4 adjustable feet to facilitate easy leveling. VINTEC recommends that you screw the back feet toward the base so they are in the shortest position and adjust the front feet to level the Beverage Center.
- Page 5 IMPORTANT - THIS SPACER MUST BE ATTACHED TO THE UNIT BEFORE INSTALLATION FOR VENTILATION PURPOSE. FAILURE TO DO SO VOIDS THE WARRANTY TURNING ON YOUR BEVERAGE CENTER Plug in and switch on the unit by pressing on the power button for a few seconds. When you use the Beverage Center for the first time (or restart the Beverage Center after having it shut off for a long time), there will be a few degrees, variance between the temperature you have selected and the one indicated on the LED readout.
- Page 6 An individual’s perception of noise is directly linked to the environment in which the Beverage Center is located, as well the specific type of models. VINTEC Beverage Centers are in line with international standards for such appliances. VINTEC will always do its utmost to satisfy its customers but will not retake possession of the goods due to complaints based on normal operating noise occurrences.
-
Page 7: Temperature Settings
TYPES OF REGULATION Please note that, depending on the loading and settings chosen, it takes about 24 hours for the Beverage Center to see the temperature stabilizing. During this time LED seems to move erratically. It is normal and this process occurs whenever the setting is modified and/or whenever a large amount of bottles are added to the unit. -
Page 8: Adjustable Shelves
Internal light In order to reduce energy consumption, this wine cabinet will automatically switch off the LED lights after 10 minutes. If you want the LED light to remain on continuously, this is possible. Please press and hold the "LIGHT" button for 5 seconds, the display will show "LP".After 4 seconds the display will revert back to normal and the light will remain on until manually switched off. -
Page 9: Reversibility Of The Door
REVERSIBILITY OF THE DOOR Warning: To avoid accidents during the process of changing the door, we recommend that you get assistance. The glass door is heavy and may cause injury if dropped. - Depending on to the model and the type of handle your wine cabinet is equipped with, you may have to rotate the door through 180 degrees. - Page 10 - While holding the door firmly, remove the three lock screws (2) from the lower right hinge module, and remove it.（Fig.1) - Remove the three lock screws (4) from the top right hinge and remove the hinge (3) . (Fig.3) - Fix the top left hinge (5) at the top left corner with the three lock screws (4) .
- Page 11 4. Remove decorative nail (8) from left top of cabinet and install spare top hinge (Left) (7) at left top of cabinet with 3 screws. (Fig. D) 5. Following the above procedure, install the spare lower hinge to the left (9). (Fig. E) 6.
- Page 12 Height 810mm – 830mm (10mm adjustable feet) Width 295 – 300mm Depth 561– 592mm + 30mm stopper (Total of 622mm) 2. This Vintec Beverage Center is not designed to be fully integrated behind a joinery door. 3. Please note that: For V40 a minimum cut out width of 615mm is required to facilitate installation, removal and servicing.
-
Page 13: Vent Specifications
VENT SPECIFICATIONS Front View (V40) Front View (V26) Front View (V20) 400mm code: VIM 201604/BVC/01... - Page 14 Front View (V20) Front View (V20) 400mm 320mm Cross section 30 mm * This applies to all V40&V20BVC BK&S3 models. * only 10mm requires for V26&V20&AL-V40BVC etc. code: VIM 201604/BVC/01...
- Page 15 5. This Vintec Beverage Center is front venting. The cabinet draws air from the front and rear and expels through the grill under the door at the front. If a joinery kick board is being placed in front of the Beverage Center, a grill of at least the same width as the Beverage Center grill and with a minimum airflow allowance of 150cm2 must be installed into the kick board.
- Page 16 Dimensional drawings: V40BVC S3/BK Front View Top View Side View AL-V40BVC Front View Top View Side View code: VIM 201604/BVC/01...
- Page 17 V26BVC V20BVC code: VIM 201604/BVC/01...
-
Page 18: Operation Anomalies
Similarly, any intervention on the electrical circuit should be performed by a qualified electrician. Notes: Any intervention performed by a non authorized technicians by Vintec will lead to the warranty being considered as null and void. POWER FAILURES In the event of a power interruption, all previous temperature settings are automatically erased and it will revert to a preset temperature setting . -
Page 19: Troubleshooting Guide
Irrespective of the cause, if you notice either abnormal temperature or humidity levels inside your beverage center, be reassured that only long and frequent exposure to these abnormal conditions can cause a detrimental effect on your beverage. TROUBLESHOOTING GUIDE Common problems may easily be solved, saving you the cost of a possible service call. Please read carefully the instruction manual and revert to troubleshooting guide chart. - Page 20 AL/S3/BK AL/S3/BK S3/BK Technical data V26BVC V20BVC V40BVC V40BVC V20BVC （R600a） (R600a) （R600a） （R134a） (R600a) Models Capacity 355ml 146 L 81.2L 57 L 146 L Net capacity 35 g 70 g Gas charge quantity Pre-set temp in degrees 2-10ºC 2-10ºC 2-10ºC 2-10ºC 2-10ºC...
- Page 21 Standard features: Compressor operated: R600a - Available in rated voltage/frequency (as per country's requirements): 100V/50/60Hz, 220V/50/60Hz,115V/50Hz - Automatic defrost - Humidity : 65% RH +/-10% RH - Black outer and inner finish - Internal light - Adjustable feet x 4 - Double glass door with 3rd acrylic layer - Seamless Stainless Steel door frame finish for “S3”...
- Page 22 Copyright: All rights are reserved. All photocopying, reproduction, translation whether partial or total are strictly prohibited, without prior written consent from VINTEC. www.vintec-cellar.com code: VIM 201604/BVC/01...
