- Page 1 User manual Gait trainer Walking edition 23/21...
-
Page 3: Foreword
Foreword Dear Customer! We would like to thank you for your trust extended to us and for purchasing our product. The gait trainer MoweGo distinguishes ® itself by its quality, security, easy operation and modern design. For optimal use of this aid, we ask you and possible other users to carefully read this operating manual. -
Page 4: Table Of Contents
Table of contents Table of contents Topic Page Foreword ……………………………………… Table of contents ……………………………… Safety instructions …………………………… Warranty and product liability ……………… CE sign and position ………………………… Indications and prophylaxis ………………… 10 Purpose of use ………………………………… 11 Product overview ……………………………… 12 ………………………………... -
Page 5: Safety Instructions
Safety instructions Safety instructions The gait trainer MoweGo is CE-marked ® and fulfils the requirements of the lastest directives. It was developed in line with most recent findings. Production is subject to an on-going quality control. It was developed in accordance to the newest insights. - Page 6 ® medical supervision. instructions of this user manual, as these have been drawn up for your safety • The gait trainer MoweGo must only be ® and as a guideline for the correct use operated under supervision of a qualified and maintenance of this product.
- Page 7 MoweGo overturning. ® • Do not use the MoweGo before ® • Move all objects out of the way, which checking the wheels of the aid. could be hit or fall whilst operating the •...
- Page 8 Safety instructions regulations in the presented operating manual. • Clean the gait trainer MoweGo ® accordance with the instructions given in the chapter „cleaning”. • Please ensure before use the product is cleaned according to the cleaning instructions and if indicated also disinfected.
-
Page 9: Warranty And Product Liability
ATO FORM reserves the right to inspect the The warranty can only be sustained if the product being claimed for and the relevant ATO FORM product is in use in the same documentation before agreeing to the country where it was purchased and if... -
Page 10: Indications And Prophylaxis
Indications and prophylaxis • Mentally retarded children • spatial perception and estimation of distances • Disturbance of the CNS In summary, the MoweGo serves to: ® • Post traumatic and post infectious conditions that involve disturbance wihtin • generate and promote the gait pattern the locomotor system •... -
Page 11: Purpose Of Use
The MoweGo may only be used for the ® specialist, who has tested beforehand and above mentioned applications. determined if the MoweGo is suitable ® For all other applications and any kind for the individual therapeutic goal of the of damages resulting from these, the patient. -
Page 12: Product Overview

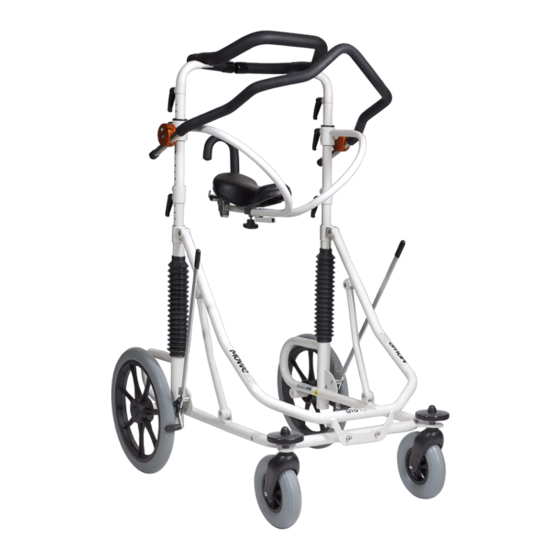

Product overview Product overview 8.1 Basic model The MoweGo is a gait trainer, which was ® designed to support and facilitate the user to move around independently A – Upper Frame B – Lower Frame C – Thorax ring D – Springs E –... -
Page 13: Accessories / Options
N – Drag brake O – Non-reverse brake (inte- grated in rear wheels) For a complete overview of our extensive range of accessories for the MoweGo see item 11.2 Ty- ® pes and accessories on page 25. Page 13/36 (23/21) -
Page 14: Initial Operation
Above all the on wheels with remaining strength. reseller should read through the complete Even when the operation of the MoweGo ® present user manual carefully, in order to features both simplicity and safety, it is nec- then explain it to the customer in detail. -
Page 15: Assembly And Adjustment
Assembly and adjustment 10 Assembly and adjustment 10.1 Basic model Preparing for self-assembly: • Unpack the product and remove the packing materials. • Ensure that all supplied components are present and undamaged. • Have the required tools, components and mounting elements ready to hand before beginning the assembly. - Page 16 Assembly and adjustment Height of the thorax ring and seat: For the height adjustment of the thorax ring, loosen lower clamping levers on both sides (Image 2 B). Adjust to the desired height, then tighten both clamping levers, whereby ensuring both sides are adjusted to an equal height with help of the height positioning holes.
- Page 17 Assembly and adjustment Springs: Each packet of spare springs contains a The two springs in the lower framework can fitting sticker, detailing minimal weight of be replaced if a softer or firmer suspension patient. When springs are replaced, the is required. Springs are available in various stickers must be attached on the outside of strengths, designed to support the following the frame, below the spring cover.
- Page 18 Assembly and adjustment Handle (Image 5): The handle is fastened to the frame by means of an aluminium fixation on both sides. Adjust height and depth of the handle by unscrewing both hexagon socket screws. These must be tightened again after adjusting the handle.
- Page 19 The drive of these daring persons should not be hindered but rather be encouraged. In the first few days of use we recommend free handling using the MoweGo , in order ® for the patient to become familiar with it and its all functions.
- Page 20 Assembly and adjustment Anti-tip stabiliser For safety reasons it is recommended to use of the anti-tip stabiliser for patients who tend to severe and uncontrollable movements. The doctor in charge should decide whether this is necessary. (Image 8) Image 8 Directional stabiliser In the beginning it is advisable to use the directional stabiliser (Image 9), to prevent...
- Page 21 The escorts should Please note safety instructions stand in front of, beside or behind the on pages 5 and 6 patient and should move the MoweGo ® slowly and carefully. These precautions give the patient confidence, especially if you give careful instructions of what you are doing at the same time, e.g.
-
Page 22: Accessories / Options
Assembly and adjustment 10.2 Accessories / options The following accessories are intended for use in conjunction with the MoweGo ® Leg separation plate (Image 10) Leg guide (Image 11) Anti-tip stabiliser (Image 12) Special seat (Image 13) Drag brake (Image 14) - Page 23 Image 14 For a complete overview of our extensive range of accessories for the MoweGo ® see item 11.2 Types and accessories on page 25. Page 23/36 (23/21)
-
Page 24: Types Of Models
MGO-A2140 Size A2 60,5 to 85,5 cm 140 cm The most up-to-date overview of our extensive range of accessories for MoweGo and their description as well ® as much more useful information can be found on our homepage www.ato- form.com. -
Page 25: Accessories / Options
Types and accessories 11.2 Accessories / options Article No. Size Description MGO-01210 C1/C2 Springs, min. 10 kg (pair) MGO-01215 C1/C2 Springs, min. 15 kg (pair) MGO-01220 C1/C2 Springs, min. 20 kg, standard (pair) MGO-253420 J1/A1/A2 Springs, min. 20 kg, (pair) MGO-253440 J1/A1/A2 Springs, min. -
Page 26: Technical Details
Technical details Page 26/36 (23/21) -
Page 27: Cleaning And Disinfection
Technical details Cleaning and disinfection Construction The gait trainer consists of: A powder-coated steel pipe frame, the adjustable metal parts are chromed, supporting elements with foam pads as well as pleasant and easy to clean imitation leather cover, 4 spokewheels out of polyamide with individual total locking device. -
Page 28: Maintenance And Overhaul
• Full brake function If any repair works need to be carried out • No signs of damage or wear to your MoweGo please contact your ® specialist dealer. Frame The device should be checked by the •... - Page 29 Maintenance and overhaul Date Service performed Name Sign Page 29/36 (23/21)
-
Page 30: Operating Life And Re-Use
Operating life and Re-use 15 Operating life and Re-use The MoweGo is made from high quality The product MoweGo was designed so ® ® materials and is subject to a continuous it could be reused after the application of quality control in our house. Because of various measures. -
Page 31: Faults, Repairs, Spare Parts
® persons, voids any warranties. In these cases, any product liability granted by the manufacturer (ATO FORM GmbH, Zur Lauterhecke 34, D-63877 Sailauf) is voided in advance. For all questions about spare parts and accessories contact your specialist dealer or the ATO FORM-Service +49 6093-944-0. -
Page 32: Storage
Storage 17 Storage Keep this operating manual in a safe place, The current version of these where you or care and maintenance staff instructions for use can be have access to it. found on our homepage in the download area. You can find more informati- on about the product on our homepage at www.ato-form. - Page 33 Page 33/36 (23/21)
- Page 34 Page 34/36 (23/21)
- Page 35 In environmental protection matters: All packaging parts are re-useable. The cardboard packaging is to be recycled as waste paper. We therefore use paper as filler material. Possible used plastic film of the packaging are made out of PE and are therefore low in pollutant and can either be recycled or burnt.
- Page 36 Hoists ■ Customized solutions ■ Thank you for your interest in our products. For questions please contact ATO FORM GmbH or your specialist dealer. Your ATO FORM Team ATO FORM GmbH Zur Lauterhecke 34, 63877 Sailauf, Germany Tel. +49 6093 944-0, Fax +49 6093 944-444 E-Mail: info@ato-form.com...
