CoreModule MX Retention Bracket

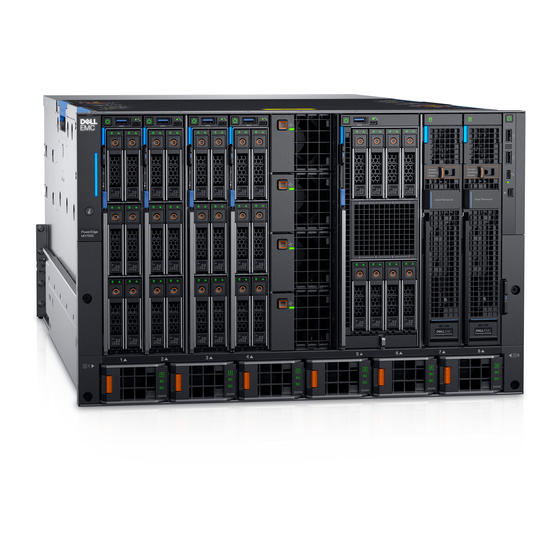

Install the Retention Brackets in the MX7000
Quick Start Guide
For Health and safety information, refer to the sheet LS-AHKL-0001.
The Retention Bracket Field Replacement Unit (FRU) is an upgrade to the
CoreModule (v1.0) running firmware version 5.0.4 or later. This guide describes how
to replace the fan modules in a CoreModule with the retention brackets.
Field replacement kit
Requirements
Posidriv M2.5
1. Remove retention brackets from the packaging
Always use appropriate anti-static handling procedures when handling sleds,
cards and modules.
2. Power off the sled(s) connected to the CoreModule(s)
To avoid disruption, migrate any VMs from sleds before power down.
www.amulethotkey.com
LEFT
RIGHT
3. Remove the CoreModule(s) from the MX7000 enclosure
4. Remove the CoreModule cover screws
5. Hold catches open and remove the CoreModule cover
2
1
+
2
6. Remove the fan modules
2
1
Release catch
Thumb grip
QS-MX7K-0030 v1.0 June 2021
+
2
Advertisement
Summary of Contents for Amulet Hotkey CoreModule MX Retention Bracket
- Page 1 CoreModule MX Retention Bracket Install the Retention Brackets in the MX7000 Quick Start Guide 3. Remove the CoreModule(s) from the MX7000 enclosure For Health and safety information, refer to the sheet LS-AHKL-0001. The Retention Bracket Field Replacement Unit (FRU) is an upgrade to the CoreModule (v1.0) running firmware version 5.0.4 or later.
- Page 2 PC-over-IP, PCoIP and the PCoIP logo are registered trademarks of Teradici Corp. Amulet Hotkey and ‘solutions you can bank on’ are registered trademarks of Amulet Hotkey Ltd. Other product names and company names listed within this document may be trademarks of their respective owners.
