Summary of Contents for HomeFree UTX-830

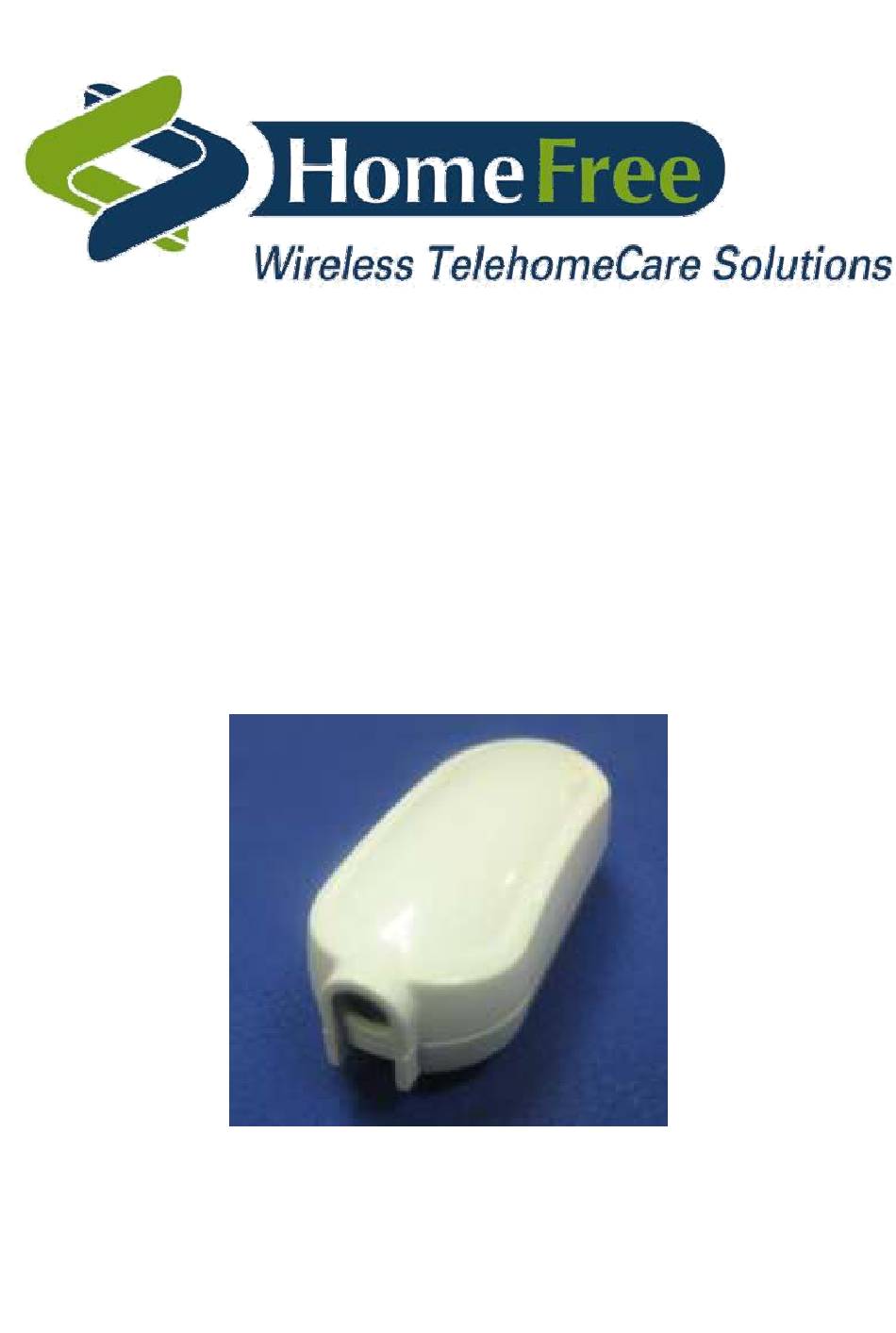

- Page 1 Universal Transmitter USER MANUAL FCC ID: QUX-UTX-830-2...
- Page 2 HomeFree Systems Ltd Universal Transmitter User Manual Table of Contents Foreword .................. 2 1.1. Activating the Universal Transmitter:........2 1.2. Activating a Panic Alert: ............3 1.3. Deactivating a Panic Alert:............3 1.4. Deactivating the Universal Transmitter: ........3 1.5.
- Page 3 1.2. The UTX-830 is a stand-alone unit. It can be battery operated or externally powered by a dedicated AC adaptor; it has RF transmitter module, a microcontroller, which controls the UTX- 830 operation, one PCB, and a door magnet.
- Page 4 Transmitter is deactivated. 1.2. Activating a Panic Alert: The UTX-830 sends a panic transition alert message to the monitoring station in the following way, activate the reed switch (Normally open / Close). Once in panic alert mode, the Universal Transmitter sends a panic alert message to the monitoring station.
- Page 5 HomeFree Systems Ltd Universal Transmitter User Manual Take off the power supply from the unit. Disconnect the battery from the case. 1.5. Cleaning Instructions A soft brush and any cleaning solution are all that is needed to clean the Universal Transmitter.
- Page 6 HomeFree Systems Ltd Universal Transmitter User Manual FCC Notices This note is applicable to the American Universal Transmitter (Panic Button) NOTE The Universal Transmitter complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:...
- Page 7 HomeFree Systems Ltd Universal Transmitter User Manual Consult the dealer or an experienced radio/TV technician • for help. CAUTION Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
