WICKED AUDIO GROWL Quick Start Manual

In the box

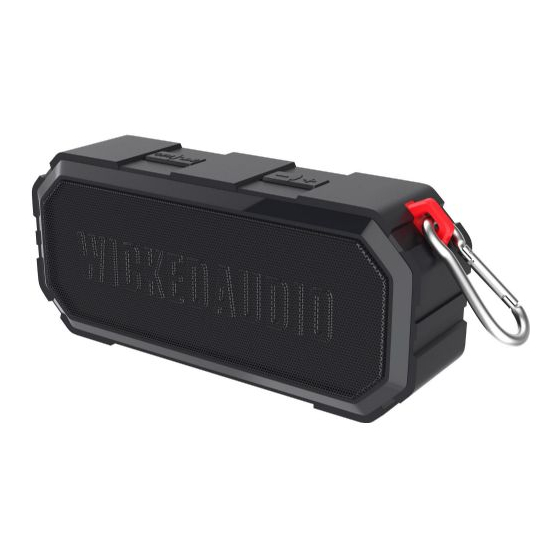

Growl Rugged Wireless Speaker
Travel Carabiner
USB to USB-C Charging Cable
Aux Cable
Instruction Booklet
3 second press Turn On
4 second press Turn O
Switch speaker mode between
Single press
Bluetooth and aux-in mode
Single press Pause / Play / Answer / Hangup
Long press Volume Down
Long press Volume Up
Short press Previous Track
Short press Next Track
Front LED Light
Solid Red Charging
Solid Blue Fully charged
Solid Blue
Bluetooth paired
Incoming call
On a call
Pairing mode
Flashing Blue
Disconnected
Bluetooth play mode
Back LED Light
DC Out (USB Port) is being
Solid Blue
used for powerbank function
First Time Use
1 – Make sure Growl Wireless Speaker is charged.
2 – Turn on Growl by holding down the power button for 3 seconds
3 – LED on the front of the speaker will flash blue
4 – Your device will detect the pairing name "Wicked
Growl." Select "Wicked Growl" on your device to start
pairing your device to the speaker.
5 – Speaker will make a "ding" sound and the blue LED will
be SOLID when connected and paired with your device.
6 – You're ready to go!
1
Power in
USB-C port
(charge speaker)
Aux in
Power Bank
Charging External devices with The Growl Speaker
External devices like phones or other small electronics
that can charge via USB, can be plugged into the USB port
on the back of your speaker. Using the device's charging
cord, plug in the USB side of the cable into the USB port
on the back of the speaker. If your device requires a cable
other than the included USB to USB-C cable, you may
substitute another cable that has a USB plug. The speaker
does not need to be turned on to use this function. A blue
LED will show in the top right corner near the USB port
when the power bank function is in use.
Charging Speaker
Plug the USB end of the charging cable into a power
supply; then plug the USB-C end of the charging cable
into the USB-C port on the back of the speaker.
3
Power out
USB port
(charge external device)
Back LED Light
Powerbank
function status
ENGLISH
Turning on/o speaker
Hold down power button for 3 seconds to turn on your
speaker. Hold down power button for 4 seconds to turn
o the speaker. You will hear a "growl" sound as the
speaker powers o .
Disconnected
When out of range, or if your device becomes disconnect-
ed from the speaker, the speaker will make a "growl"
sound. Front LED will begin to flash blue.
Incoming Call / Answer / Hangup
When receiving an incoming call, the speaker will detect
the device's programmed ringtone (this may di er
depending on your device.) You can answer by using a
short press on the Call/Pause/Play button on the top of
the speaker.
Low Batteries
Please consider charging your speaker regularly when not
in use to retain ample battery life. When the speaker has
approximately 10% battery life, the speaker will make a
"low charge" sound, indicating the battery is needing to
be charged. The speaker will make this announcement 1-2
more times before the battery dies and the speaker shuts
o .
Linkable Tech
Linking two Growl speakers together
1 – Turn on both speakers. They will go into pairing mode.
2 – When both speakers' LEDs are flashing blue, DOUBLE
PRESS the pause/play button on one speaker. Speaker
will beep.
3 – Wait 5-10 seconds. The speaker that was double
pressed will continue flashing blue. The other speaker will
change to solid blue.
4 – Pair your device to the speaker.
5 – You're ready to go!
Note: If you have paired a single speaker to your phone or
device previously, you must forget the Growl speaker from
list of recognized Bluetooth devices before syncing two
Growl speakers.
PRECAUTIONS
LISTENING TO AUDIO AT EXCESSIVE VOLUMES CAN CAUSE PERMANENT HEARING DAMAGE. USE AS LOW A
VOLUME AS POSSIBLE.
Over exposure to excessive sound levels can damage your ears resulting in permanent noise-induced hearing loss
(NIHL). Please use the following guidelines established by the Occupational Safety Health Administration (OSHA) on
maximum time exposure to sound pressure levels before hearing damage occurs.
SAFE USE & HAZARD WARNINGS
90 dB SPL at 8 hours, 95 dB SPL at 4 hours, 100 dB SPL at 2 hours, 105 dB SPL at 1 hours, 110 dB SPL at 30 min, 115 dB
SPL at 15 min, 120 dB SPL: Avoid as damage may occur
IMPORTANT SAFETY INSTRUCTION
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings
4 Follow all instructions.
Attention should be drawn to the environmental aspects of battery disposal;The use of apparatus in moderate
climates
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device
must accept any interference, including interference that may cause undesired operation of the device.
LIMITED ONE-YEAR WARRANTY
Keep your receipt to obtain warranty service. Go to
www.wickedaudio.com for more details.
MODEL #: WI-BTS70
IC ID: 20526-WIBTS7X
2
Developed in Utah, U.S.A.
Made in China
4
