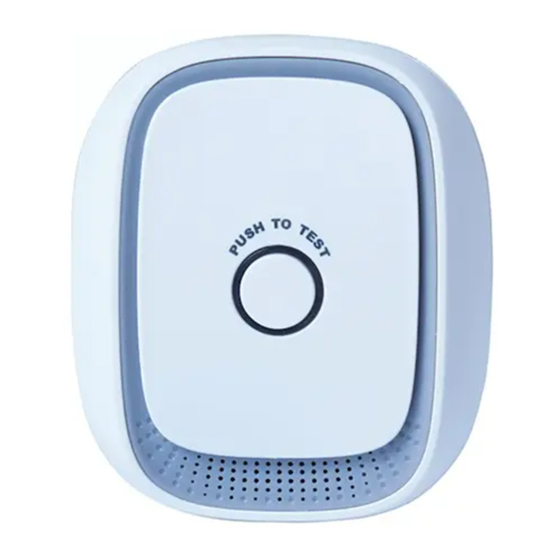

GD334 Gas Detector
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GD334 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Owon GD334

  • Page 1 GD334 Gas Detector Quick Start Guide...
  • Page 2 Introduction The Gas Detector uses an extra low power consumption ZigBee wireless module. It is used for detecting combustible gas leakage. Also it can also be used as a ZigBee repeater that extends wireless transmission distance. The gas detector adopts high stability semi-condutor gas sensor with little sensitivity drift.

  • Page 3: Get To Know Your Device

    Get to know your device Reset button LED indicator Test button Reset button Reset. Press and hold the reset button for five seconds until the LED indicator flashes green six times to reset to default factory setting. Test button Test. Press the test button to enter test mode. The LED indicator will flash three times and the alarm will beep three times.

  • Page 4: Led Indicator

    LED indicator Please refer to the table below for LED status information: Light Status Alarm sound Green LED Normal LED flashes Device warming up Beep once when powered on alternatively Red LED flashes Alarm Rapid beeps Yellow LED solid Fault...

  • Page 5: Get Started

    Get Started 3.1 To get started, you will need: A SEG-X3 Smart Gateway The mobile app 3.2 Connect to gateway’s network 1. Plug the gas detector to power outlet, the LED indicator will flash alternatively for three minutes, indicating the sensor is warming up. 2.
  • Page 6 at 0.3-1m height from ceiling, less than 1.5m from the gas source. Mounting example...

  • Page 7: Technical Specifications

    Technical Specifications Power Supply • AC100V-240V Average Consumption • < 1.5W Alarm Sound • 75dB/m Alarm Density • 6%LEL±3%LEL (natural gas) Working Temperature • -10°C~+50°C Humidity • <=95%RH Networking Mode • ZigBee Ad-Hoc Networking Networking Distance • <=100m (open area) Anti-RF interference •...

  • Page 8: Safety Notice

    Safety Notice WARNING: Failure to follow these safety notices could result in fire, electric shock, other injuries, or damage to the Gas Detector and other property. Read all the safety notices below before using the Gas Detector. • Avoid high humidity or extreme temperatures. •...
