New Pig SAN329 Instructions

PIG High-Capacity Touchless
Hand Sanitizer Dispenser
Instructions

Removing Lid Assembly

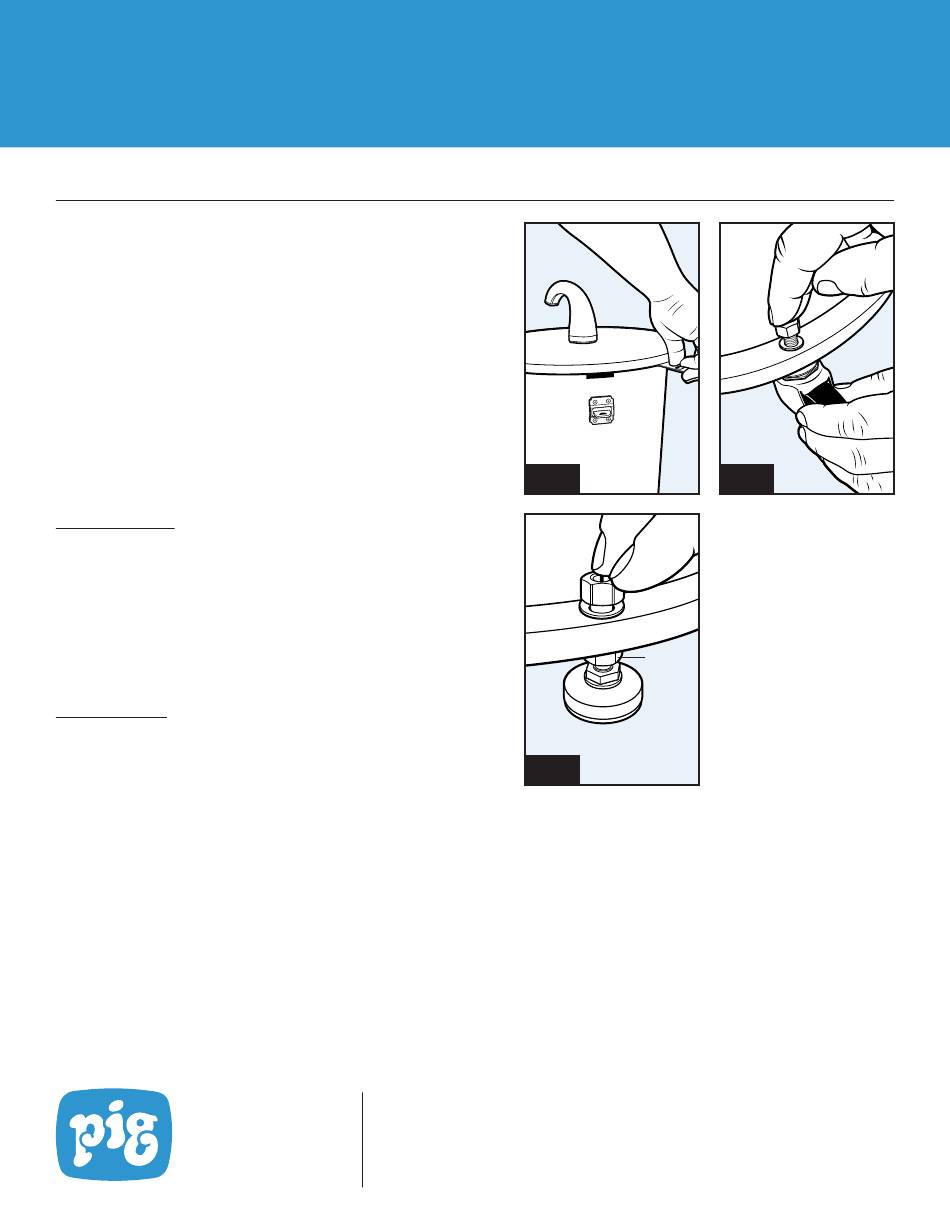

1. Open latch and use it to lift lid slightly; rotate the lid one quarter-turn
left or right to unseat the catch. (fig. A)
2. Remove lid assembly.
3. Remove cardboard packaging and hardware box.

Installing Batteries

1. Remove the two screws from the power supply box (located on
underside of lid assembly) using a Phillips-head screwdriver.
2. Install four D-cell alkaline batteries as shown in the diagram of the
power supply box. (Batteries included in hardware box)
3. Replace cover and screws.

Installing Swivel Casters or Leveling Feet

For Swivel Casters (fig. B)
1. Insert stem up through the base hole.
2. Place flat washer over stem.
3. Thread hex nut and tighten with
4. Repeat above steps for all casters
NOTE: Two of the four casters are locking-style casters, to be alternated
with the standard casters during installation. There is an additional
hole for securing the base; it is not meant for a caster.
For Leveling Feet (fig. C)
1. Thread a flange hex nut onto stem, with flange facing away from foot
base; hand tighten until nut stops at bottom of threads.
2. Insert stem up through the base hole.
3. Place flat washer over stem.
4. Thread a standard hex nut and tighten with
5. If unit needs to be leveled, adjust lower nut first, then retighten top nut
NOTE: There is an additional hole for securing the base; it is not meant for
a leveling foot.
