Introduction

The TZ 3300 868 Z-Wave Remote Controller is a battery operated remote control capable of
controlling any Z-Wave compliant device. It organizes device control into five Groups and three
Scenes, and is capable of controlling devices on the same network as another TZ 3300 868 remote,
or with any Z-Wave compliant Controller device.
The interface is simple, and is designed with the control of motorized devices in mind. The buttons
used to control devices are Open, Close, and Stop, as well as buttons to activate up to three
scenes. Open, Close, and Stop commands are sent to devices in one of five groups. Only devices
that are a part of a group are controlled. Scene buttons will control all devices that are part of
that scene. The user interface is summarized above.

Selecting and Controlling a Group of Networked Devices

1. Press SELECT
higher group number.
light solid RED.
2. Press Open, Close, or Stop to control any device(s) included in the selected group.
command is issued within five seconds the remote will power down to conserve batteries.

Including Devices into the Network

1. Press and release the Include/Exclude button by inserting a paper clip. The Mode LED will
light solid GREEN indicating the remote is in Network Include mode.
2. Press the Include (Learn) button on a device you wish to include into the network within 10
seconds.
3. The Mode LED should blink GREEN briefly indicating the device was Learned (Included) into
the network.
4. While Mode LED is still lit GREEN, repeat steps 2 and 3 for every node to be Included into
the network.
2 September 2009

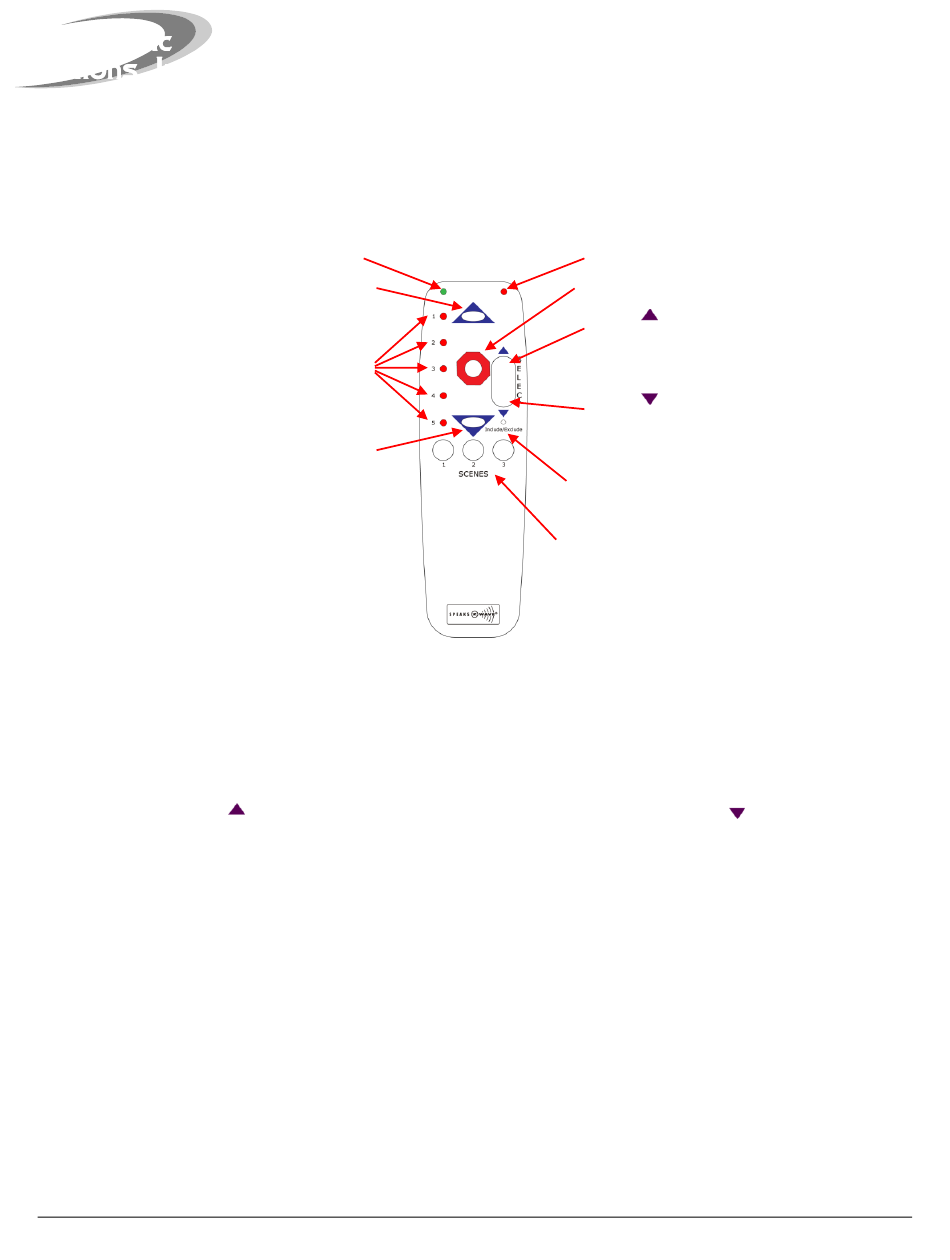

Mode LED
