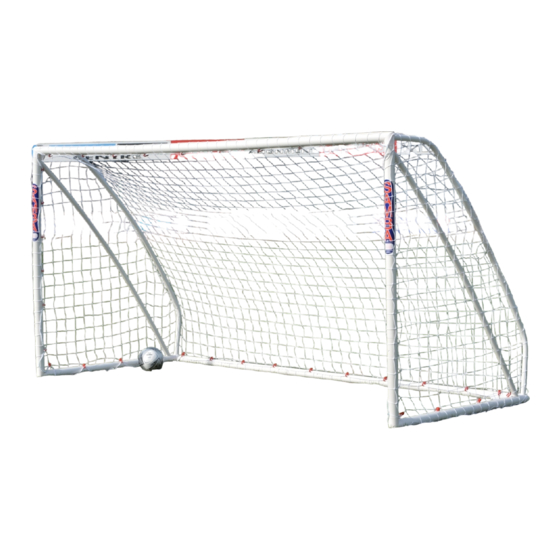

Samba Ultimate 12 x 6 Match Goal Assembly And Safety Instructions

Samba Ultimate 12 x 6 Match Goal
With locking system
(366cm x 183cm)
Part No. 1 2 3 3a 4
Qty. 2 2 3 3 4
Length 46" 31" 46" 46" 20"
5 7 9 10 10a 12
7a
8 4 4 4 2 5
4
- - - - - -
-
Assembly and Safety Instructions
1. Always inspect the goal post and net for defects before use and replace damaged parts.
2. Do not use the goal with faulty parts.
3. The goal must always be secured to the ground. Weights to be used on hard surfaces,
ground anchors on grass.
4. Never climb on the net or goal frame.
5. The goal must never be used without the net fitted.
6. Please adhere to the safety instructions at all times. Refer to the Football Association
website (www.thefa.com) and British Standards for the recommended safety procedures.
7. When the goal is not being used, dismantle and store in a secure area.
8. This goal has been independently tested and complies with EN16579
9. Not suitable for children under 3 years old due to small parts i.e. quick clips and length of
cord.
10.It is recommended that the goal is assembled by an adult.
Routine visual check
A routine visual check should be carried out before each use.
The routine visual inspection enables the identification of obvious hazards that can result
from vandalism, misuse or general deterioration.
Examples of visual inspection:
— damage to the goal frame
— lack of / insufficient anchorage or stability equipment
— damaged or missing fixings
— damaged nets / damaged or missing net fixings
— correct attachments of net to goal frame
Method of anchoring
Arrows indicating anchoring points and anchors to be inserted at 45 degrees.
1
. Hold anchor at
approximately 45
13 14
degrees.
15 Goal bag
13 14 15 B.G. SPORTS INTERNATIONAL LIMITED – Walton street, Colne, Lancashire, BB8 0EN
1 40 1
- - -
IMPORTANT SAFETY INSTRUCTIONS
2. Final position,
tube anchored to
the ground.
Tel: 01282 860077 Fax: 01282 860033
Email sales@sambasports.co.uk Website www.sambasports.co.uk
